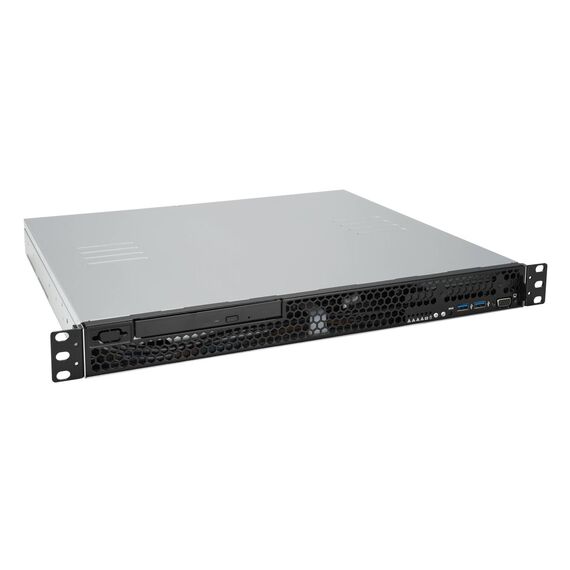

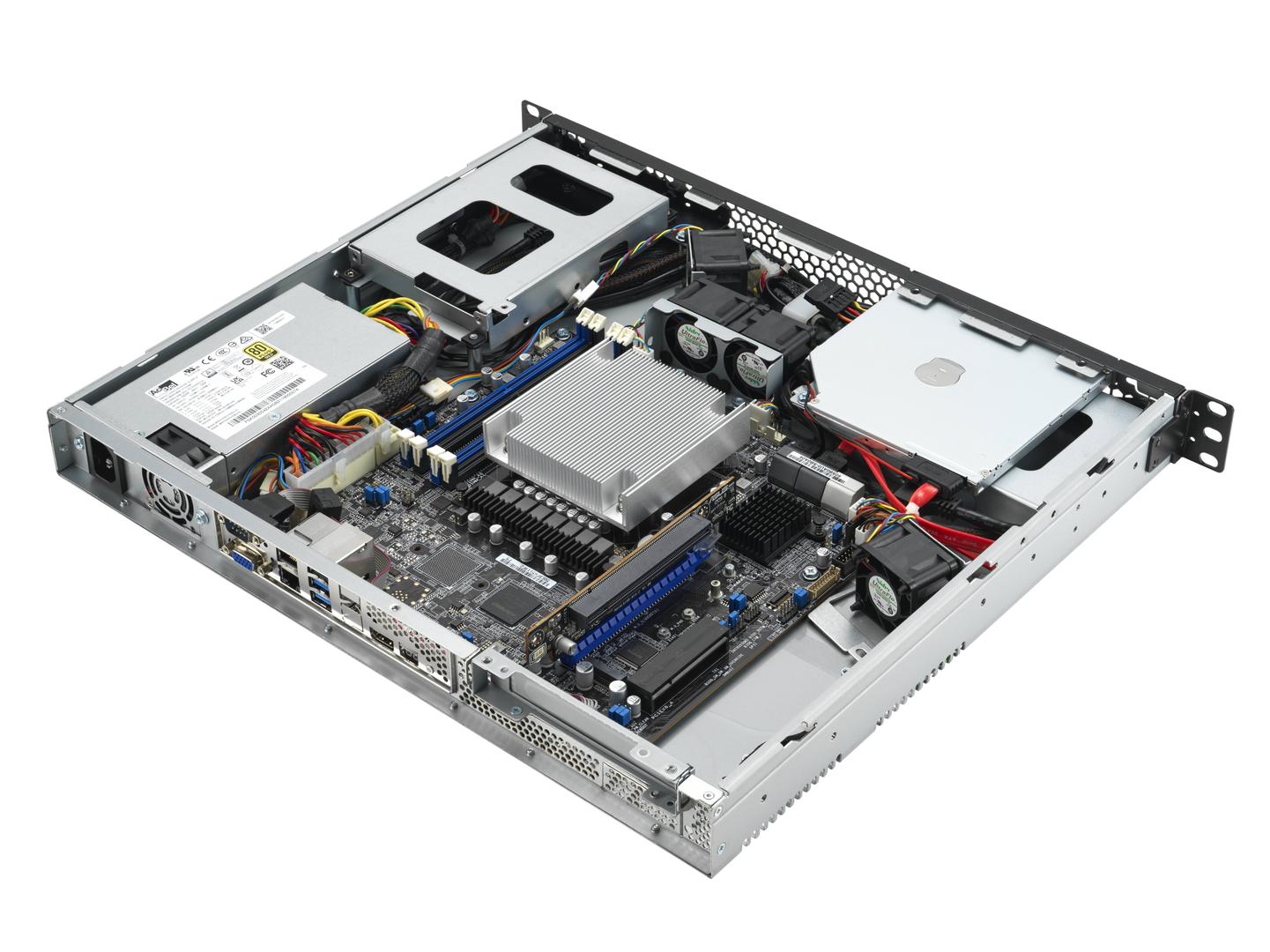

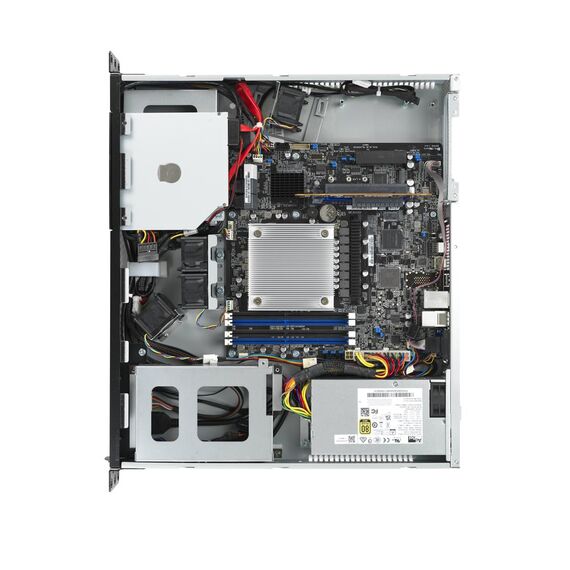

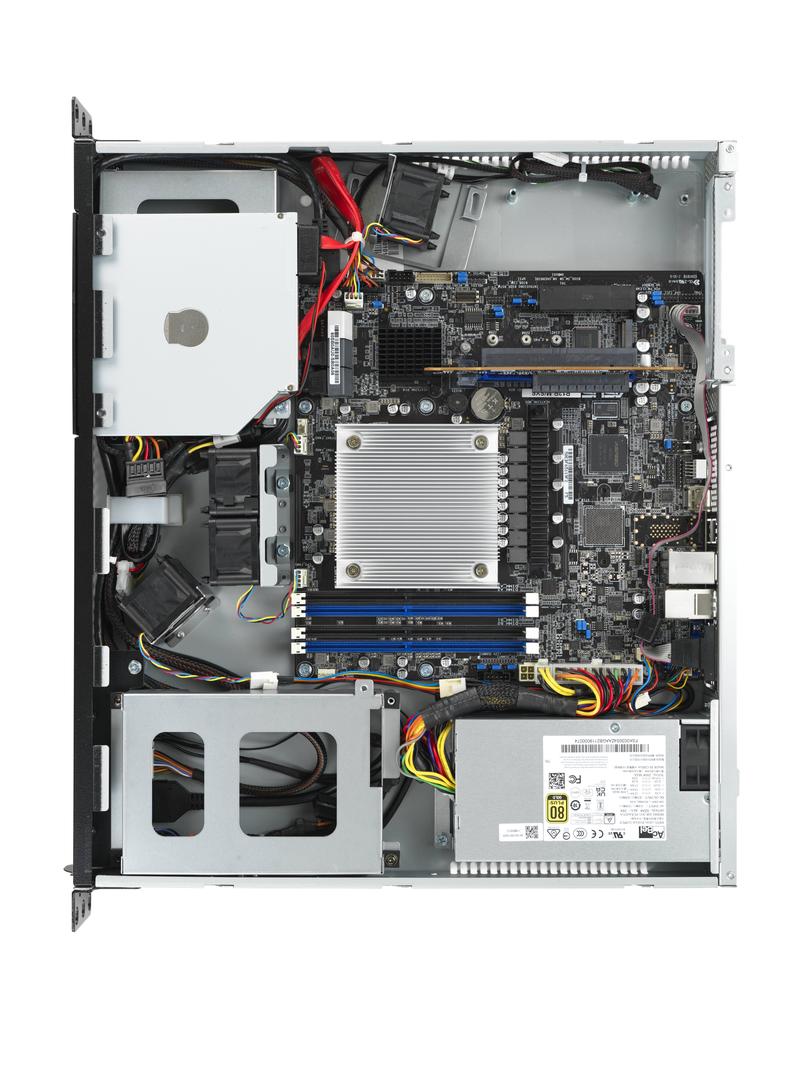

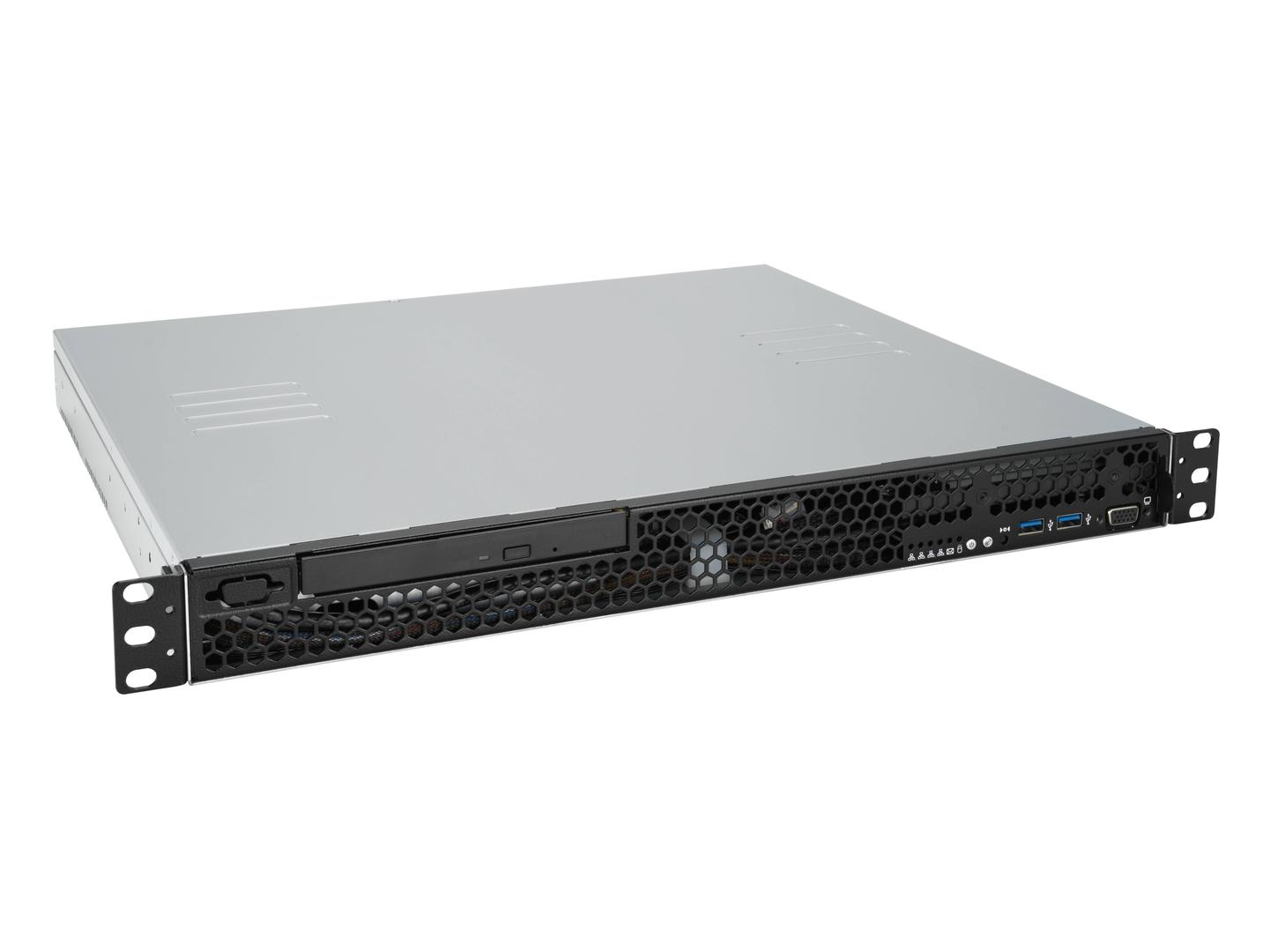

ASUS RS100-E11-PI2 / Server / rack-mountable / 1U / 1-way / no CPU / RAM 0 GB / no HDD / AST2600 / no OS / monitor: none / silver | 90SF02P1-M00110

90SF02P1-M00110
857.08
(1,019.93 inc. VAT)
Availability: 11 item(s)
Standard DeliveryStandard delivery within 4 to 8 business days.
Find similar
Delivery
Payment options
Product Code04:429035 EAN Code4711081932116 ManufacturerAsus

Product Features

  • Powerful processors
    Small businesses require reliability and security to support their critical business and customer data needs. Powerful processors deliver essential server performance, expandability and reliability to small businesses to support critical business and customer data needs.
  • PCIe 4.0 ready
    PCI Express (PCIe) 4.0 delivers high bandwidth, offering lower power consumption, better lane scalability and backwards compatibility. ASUS servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking - enabling flexible scalability for demanding or increasing workloads.
  • Enhanced security
    ASUS servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. In addition, all RS100-E11-PI2 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
  • High-resolution HDMI monitoring
    RS100-E11-PI2 server features a HDMI 1.4 port directed from CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring.
  • Dual Ethernet bandwidth
    Featuring dual onboard LAN, RS100-E11-PI2 server provides server-grade connectivity and supports high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.

Special Features

  • Powered by an advanced platform
  • Powerful CPU and huge memory support
  • Flexible storage expandability
  • Dual Intel Gigabit Ethernet with teaming support
  • Comprehensive I/O connectivity to meet different needs
  • Complete server management with ASUS Control Center

Product Specification

Type Server
Product Form Factor Rack-mountable - 1U
Built-in Devices Led panel
Server Scalability 1-way
Internal Bays Qty 2
Colour Silver
Processor / Chipset Processor / Chipset
CPU No CPU
Max CPU Qty 1
CPU Upgradability Upgradable
CPU Socket LGA1200 Socket
Chipset Type Intel C252
RAM RAM
Installed Size 0 GB / 128 GB (max)
Technology DDR4 SDRAM
Form Factor DIMM 288-pin
Slots 4 (Total) / 4 (empty)
Features Unbuffered, dual channel memory architecture
Hard Drive Hard Drive
Type No HDD
Storage Controller Storage Controller
Type 2 x SATA
Controller Interface Type SATA 6Gb/s
RAID Level RAID 0, RAID 1, RAID 5, RAID 10
Optical Storage Optical Storage
Type No optical drive
Monitor Monitor
Monitor Type None.
Graphics Controller Graphics Controller
Graphics Processor ASPEED AST2600
Video Memory 64 GB
Video Interfaces VGA, HDMI
Networking Networking
Ethernet Ports 3 x Gigabit Ethernet
Ethernet Controller 2 x Intel I210-AT
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity Expansion / Connectivity
Bays 2 (total) / 2 (free) x internal 3.5"
Slots 1 (total) / 1 (free) x PCIe 4.0 x16 ¦ 1 (total) / 1 (free) x M.2 Card - 2280
Interfaces 1 x serial (1 rear) ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 (2 rear) ¦ 1 x management - RJ-45 (1 rear) ¦ 2 x USB 3.2 Gen 1 (2 front) ¦ 2 x USB 3.2 Gen 2 (2 rear) ¦ 2 x VGA (1 front, 1 rear) ¦ 1 x HDMI (1 rear)
Miscellaneous Miscellaneous
Compliant Standards FCC Class A certified, BSMI
Power Power
Device Type Power supply
Power Provided 350 Watt
80 PLUS Certification 80 PLUS Gold
Operating System / Software Operating System / Software
OS Provided No operating system
Dimensions & Weight Dimensions & Weight
Width 43 cm
Depth 38 cm
Height 4.4 cm
Weight 7.5 kg
Dimensions & Weight (Shipping) Dimensions & Weight (Shipping)
Shipping Weight 11.7 kg
Environmental Parameters Environmental Parameters
Min Operating Temperature 10 °C
Max Operating Temperature 35 °C
Humidity Range Operating 20 - 90%

Features - Asus - 90SF02P1-M00110

More Details
Product Code
04:429035
EAN Code
4711081932116
Manufacturer
Asus
