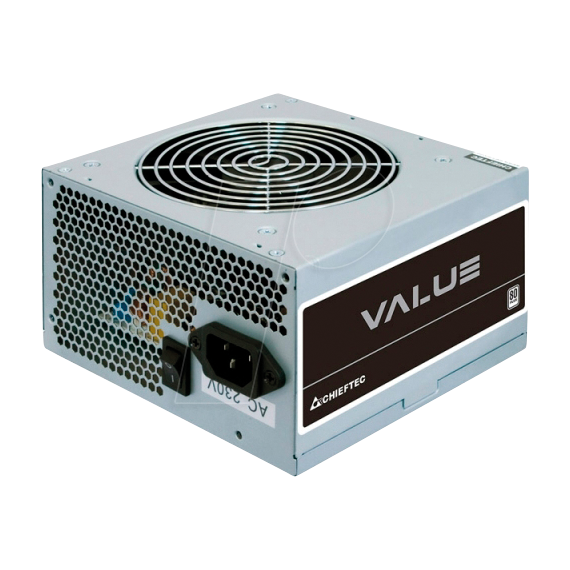

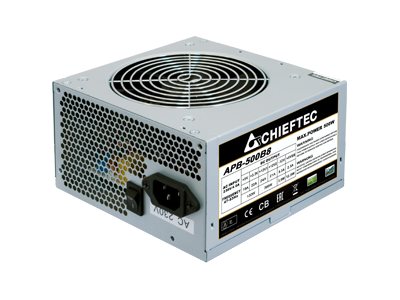

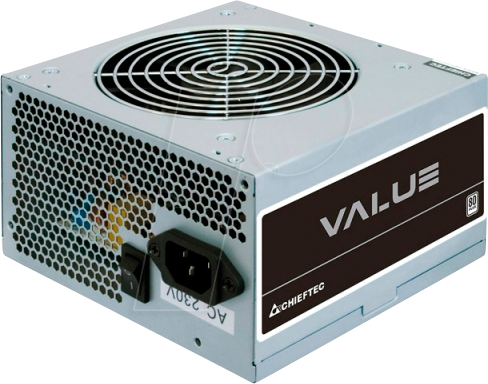

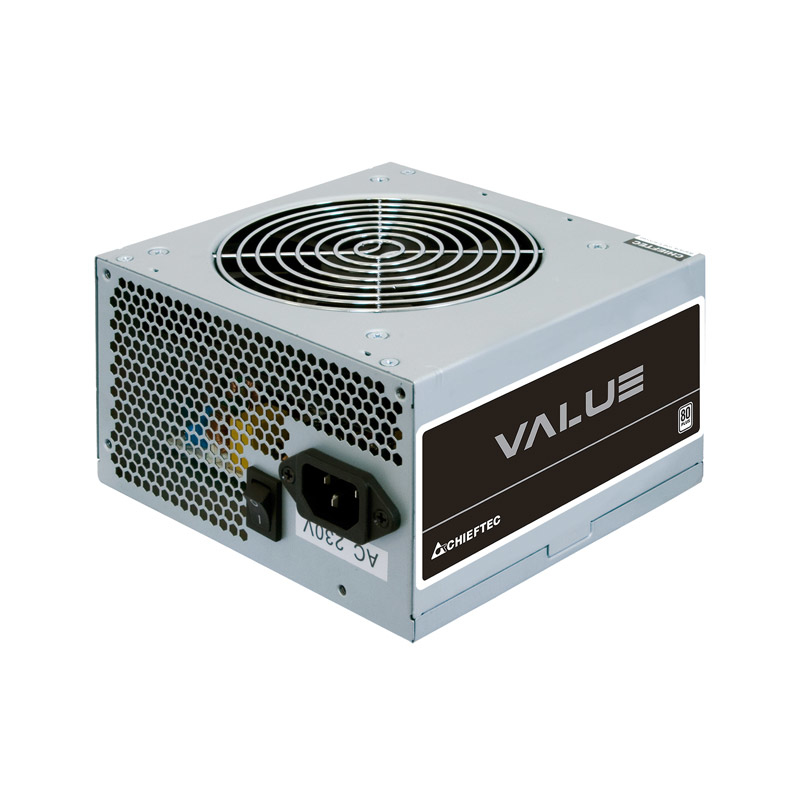

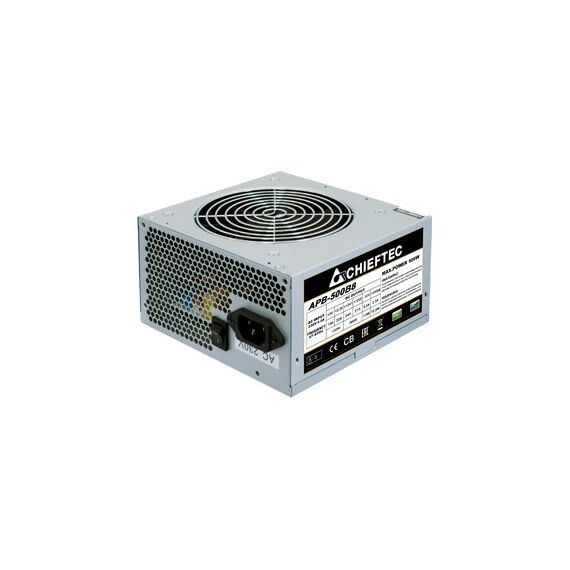

Chieftec VALUE SERIES APB-500B8 - Power supply (internal) - ATX12V 2.3 - AC 230 V - 500 Watt - active PFC - silver | APB-500B8
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.3 |
| PSU Form Factor | ATX |
| Colour | Silver |
| Power Device | |
| Input Voltage | AC 230 V |
| Frequency Required | 50 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 3 x 15 pin Serial ATA power ¦ 2 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector ¦ 1 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 4 pin internal power (12V) |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 500 Watt |
| Output Current | +5V - 19 A ¦ +3.3V - 22 A ¦ +12V1 - 24 A ¦ +12V2 - 21 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Efficiency | 80% |
| Power Factor (PF) | 0.9 |
| Miscellaneous | |
| Cooling System | 120 mm fan |
| Features | Over voltage protection, overpower protection, undervoltage protection, short-circuit protection, fan speed control |
| Compliant Standards | TUV, CB, RoHS, ERP, EAC |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.7 cm |
Features - Chieftec - APB-500B8
More Details
Product Code
07:135274
EAN Code
4710713230569
Manufacturer
Chieftec
