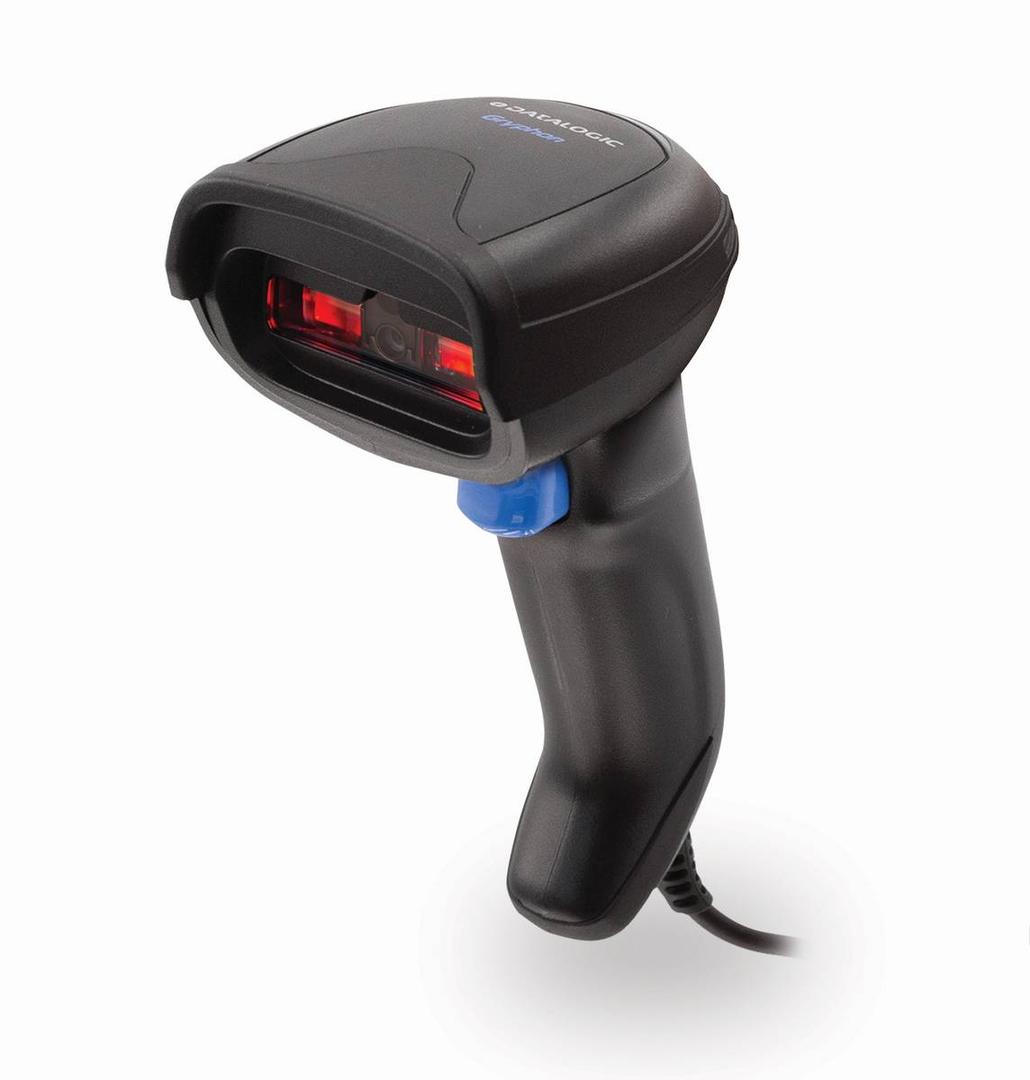

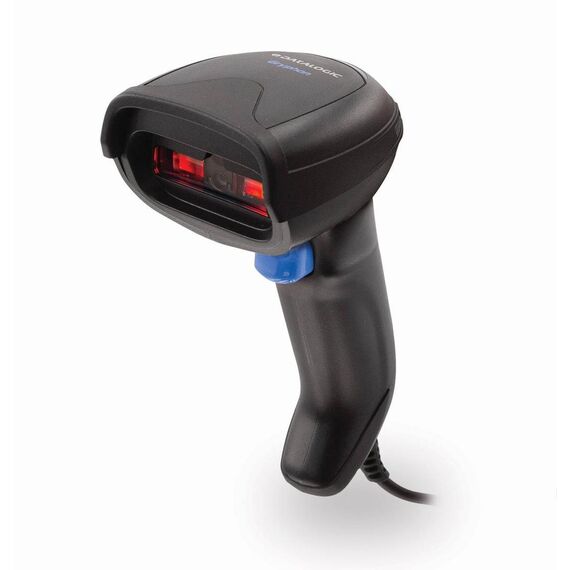

Datalogic Gryphon I GD4220 / Kit / barcode scanner / handheld / linear imager / 400 scan / sec / decoded / USB | GD4220-BKK1
Please sign in so that we can notify you about a reply
Product Specification
| Type | Barcode scanner - handheld |
| Colour | Black |
| Barcode | Barcode |
| Interface Type | USB |
| Minimum Bar Width | 3 mil |
| Scan Element Type | Linear imager - dual LED |
| Light Source Wave Length | 613-630 nm |
| Scan Mode | Single-pass |
| Scan Speed | 400 scan / sec |
| Max Working Distance | 147 cm |
| Skew (Degrees) | 65 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | EAN/JAN, Code 39, GS1 DataBar, UPC |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Green Spot technology, disinfectant ready housing, Datalogic Motionix technology, 16 kV ESD protection (air discharge) |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x USB ¦ 1 x USB - Type C |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x USB cable - external |
| Compliant Standards | IP52, China RoHS, IEC 62471, EU RoHS |
| Power | Power |
| Voltage | DC 5 V |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6.8 cm |
| Depth | 10.9 cm |
| Height | 16.6 cm |
| Weight | 163 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 95% |
| Drop Specification | 1.8 m to concrete |
Features - Datalogic - GD4220-BKK1
More Details
Product Code
CA25159
EAN Code
-
Manufacturer
Datalogic
