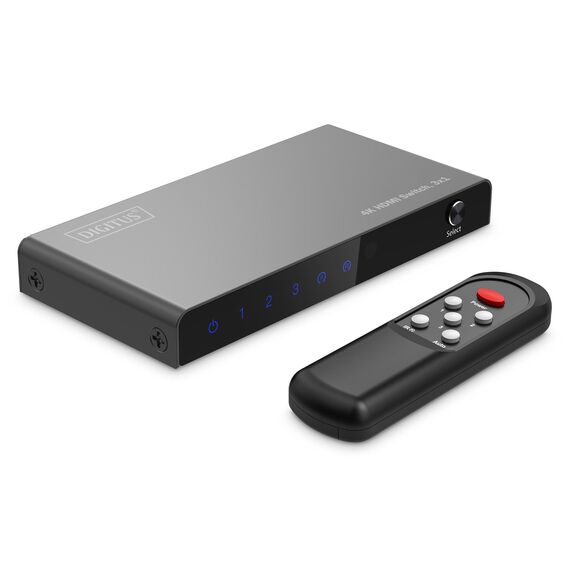

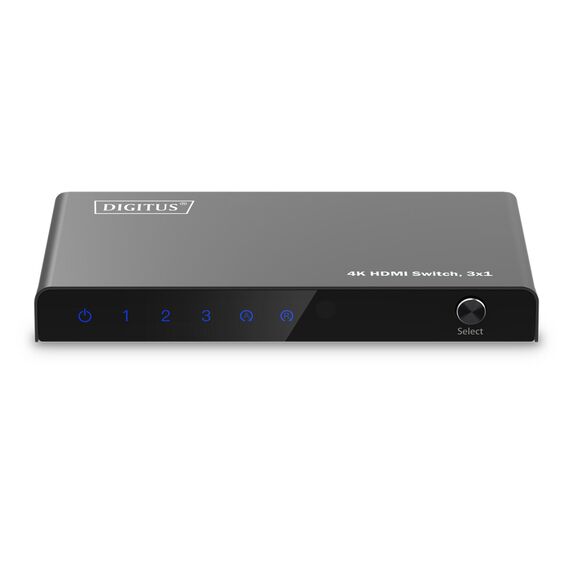

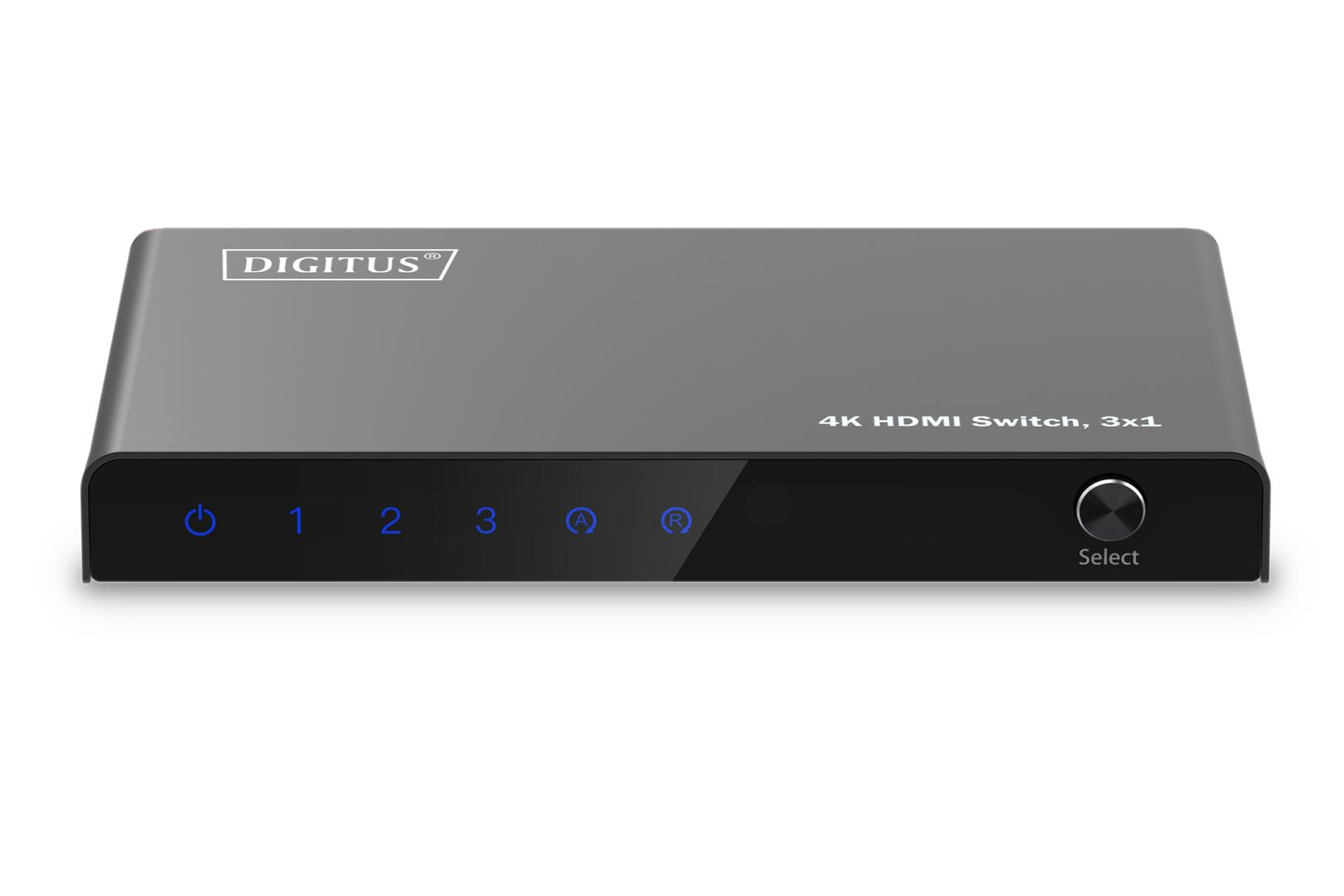

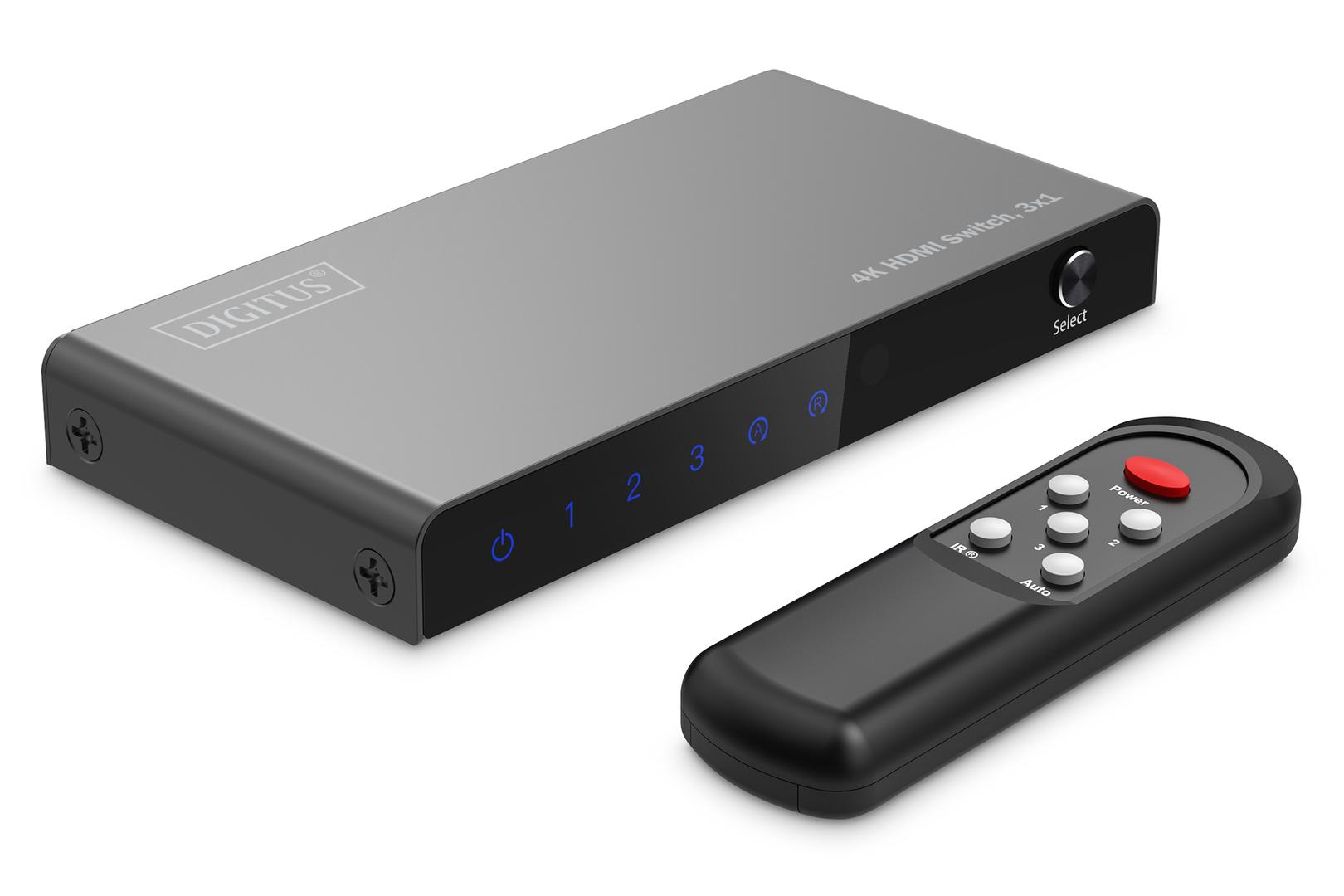

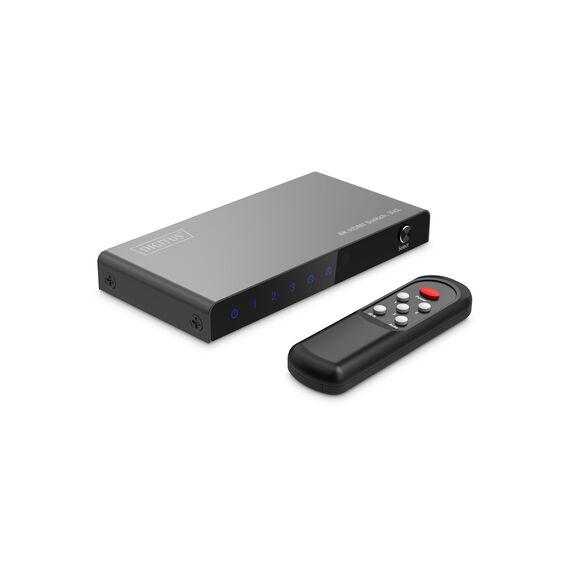

DIGITUS DS-55331 / Video/audio switch / 4K / 3 x 1 / desktop | DS-55331

Product Features

· Switch conveniently between 3 signal sources via remote control, on the device itself or via automatic recognition.
· Additional HDMI connections for your output device - 3 signal sources via just 1 HDMI connection/cable on the screen
· Power supply via Micro USB cable (included)
· Max. resolution: 4K/60Hz
· Video bandwidth: 18 Gbps
· Supports High Dynamic Range (HDR)
· Supports HDCP 2.2
· Supports Consumer Electronic Control (CEC)
· Supports Deep Color (36-bit)
· Supports compressed (e.g. DTS, Dolby Digital, etc.) and uncompressed audio formats (e.g. LPCM, etc.)
· HDMI 2.0

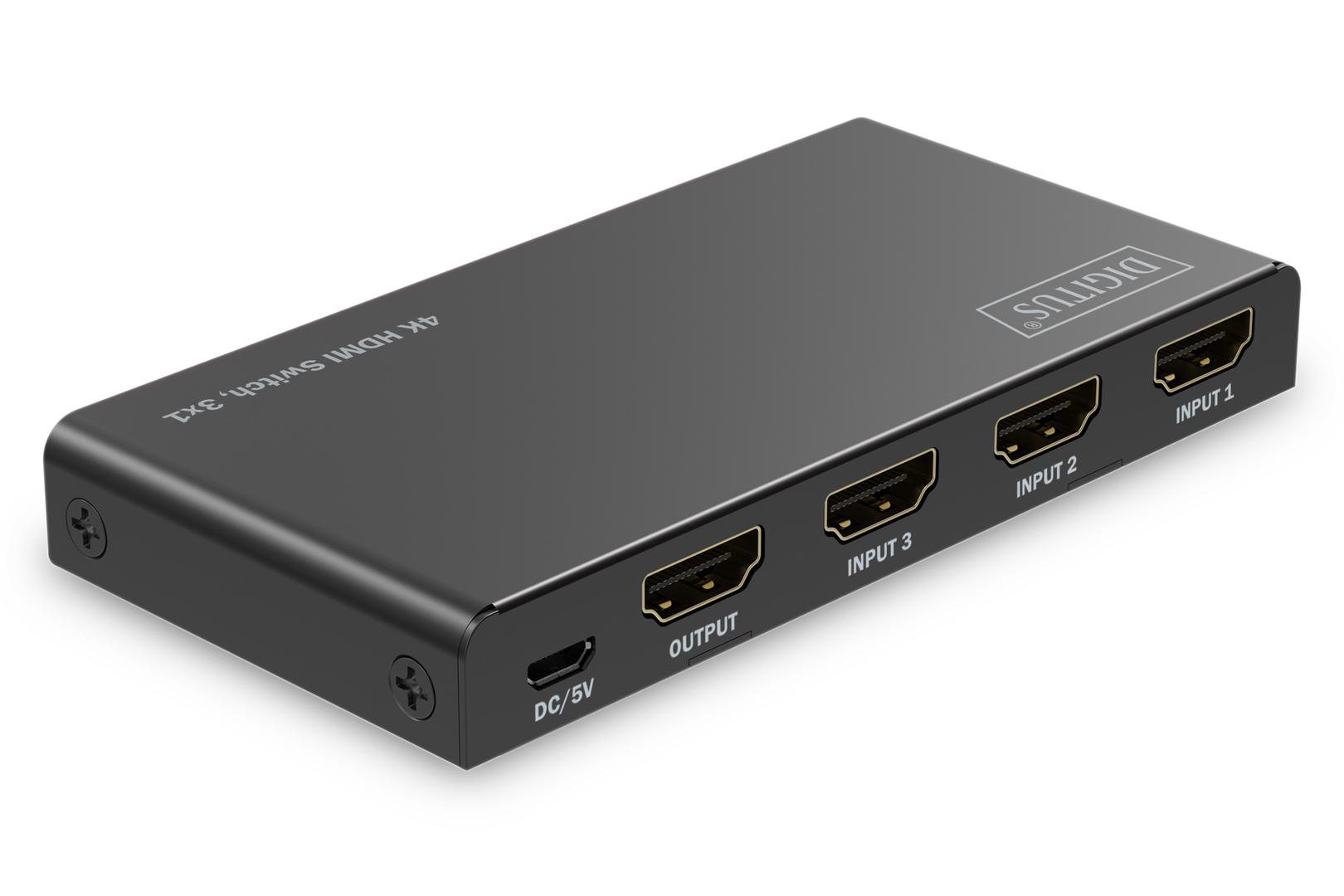

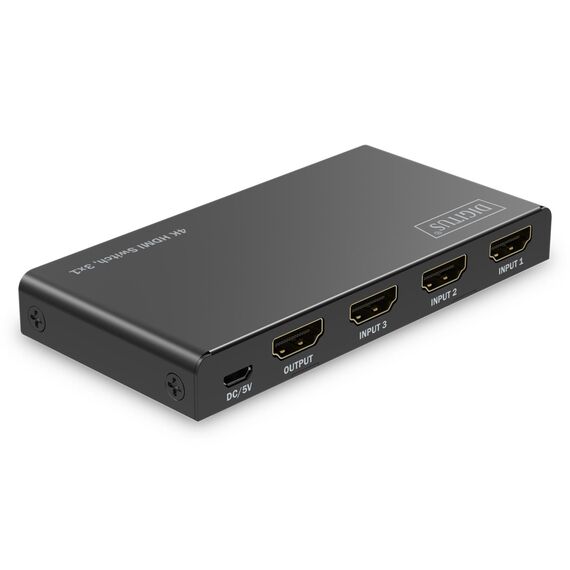

· Connections:
· 3x HDMI input (4K/60Hz)
· 1x HDMI output (4K/60Hz)
· 1x Micro USB input (DC 5V) - Power supply
· 6x Status LEDs
· 1x Changeover switch / function button
· 1 x IR receiver
· Operating temperature: 0-70°
· Power consumption: approx. 5W
· Housing: Metal
· Dimensions (housing): L 11.2 x W 5.6 x H 1.4 cm
· Weight: 145 g
· Color: black

Special Features

· Switch conveniently between 3 signal sources via remote control, on the device itself or via automatic recognition.
· Additional HDMI connections for your output device - 3 signal sources via just 1 HDMI connection/cable on the screen
· Power supply via Micro USB cable (included)
· Max. resolution: 4K/60Hz
· Video bandwidth: 18 Gbps
· Supports High Dynamic Range (HDR)
· Supports HDCP 2.2
· Supports Consumer Electronic Control (CEC)
· Supports Deep Color (36-bit)
· HDMI 2.0

Product Specification

Device Type	Video/audio switch - 3 x 1
Enclosure Type	Desktop
Subtype	HDMI
Performance	Bandwidth: 18 Gbps
Max Resolution	4K @ 60 Hz
Features	4K resolution support, dual display support, LED status indicators, HDR support, CEC support, 36-bit Deep Color support, DTS support, Dolby Digital support, LPCM support, triple display support
Compliant Standards	HDCP 2.2
Built-in Devices	IR receiver
Status Indicators	Status
Expansion / Connectivity	Expansion / Connectivity
Interfaces	1 x HDMI output 3 x HDMI input Micro-USB input management / power
Power	Power
Power Device	External power adapter
Voltage Required	DC 5 V
Power Consumption Operational	5 Watt
Miscellaneous	Miscellaneous
Colour	Black
Included Accessories	Remote control
Cables Included	Micro-USB cable - 75 cm
Dimensions & Weight	Dimensions & Weight
Width	11.2 cm
Depth	5.6 cm
Height	1.4 cm
Weight	145 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	70 °C
