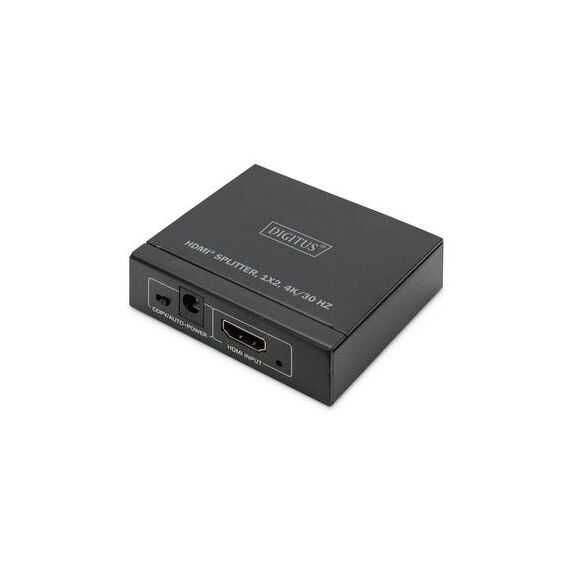

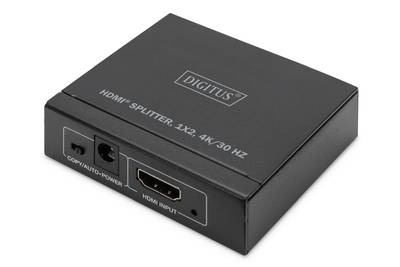

DIGITUS HDMI Splitter, 1×2, 4K / 30 Hz | DS-45340

Product Features

· Splits an HDMI input signal onto two output displays with a maximum resolution of 4K2K/30Hz
· EDID support (2 modes) - 1: Copy - HDMI output 1 / 2: Auto Mode - Compare & create HDMI output 1 & 2
· HDMI 1.4b
· HDCP 1.4
· Video bandwidth: 2.97 Gbps
· Compact design for easy and flexible installation
· Connections:
· 1x HDMI input (4K/30Hz) - Connection signal source
· 2x HDMI output (4K/30Hz) - Connection output device
· 1x Power adapter input (DC 5V/1A), connection for external power adapter
· 1x EDID changeover switch
· Operating temperature: 0-40°
· ESD protection
· Housing: Metal
· Dimensions: L 7 x W 6 x H 2 cm
· Weight: 125 g
· Color: black

Special Features

· Output of an HDMI input signal onto two output displays at the same time, in 4K/30Hz
· EDID support (2 modes) - 1: Copy - HDMI output 1 / 2: Auto Mode - Compare & create HDMI output 1 & 2
· HDMI 1.4b
· HDCP 1.4
· Video bandwidth: 2.97 Gbps
· Compact design for easy and flexible installation

Product Specification

Video port type	HDMI
Video out	2x HDMI
HDMI version	1.4b
Maximum resolution	3840 x 2160 pixels
Product colour	Black
Housing material	Metal
Output voltage	5 V
Output current	1 A
Width	60 mm
Depth	70 mm
Height	20 mm
Quantity per pack	1 pc(s)
Package width	117 mm
Package depth	105 mm
