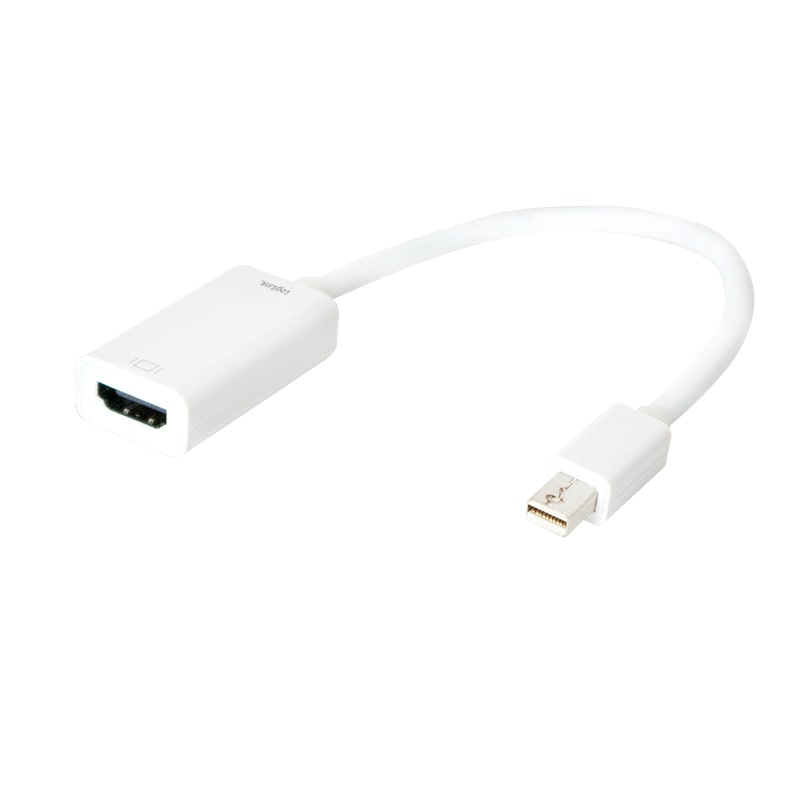

LogiLink CV0036B Active Mini DisplayPort 1.2 to HDMI Adapter, 4K 30Hz, White

Brand: LogiLink
CV0036B
€10.09
€12.01 inc. VAT
Out of stock
Add to wish list Ask a question
Product Code04:202075 EAN Code4052792032734 ManufacturerLogiLink TypeMini DisplayPort - HDMI

Quick Specs

Maximum output resolution
Up to 4K x 2K at 30 Hz
Video amplifier bandwidth
Up to 5.4 Gbps
HDCP support
HDCP 1.3 | HDCP repeater support
3D support
Supported
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

LogiLink CV0036B Active Mini DisplayPort to HDMI Adapter

The LogiLink CV0036B is an active Mini DisplayPort 1.2 to HDMI adapter for connecting compatible computers and notebooks to HDMI displays, monitors and projectors. It supports video output up to 4K x 2K at 30Hz, audio transmission and HDCP content protection, while drawing power directly from the Mini DisplayPort source.
Up to 4K x 2K at 30 Hz Up to 5.4 Gbps HDCP 1.3 Supported

The LogiLink CV0036B is an active Mini DisplayPort 1.2 to HDMI adapter for connecting compatible computers and notebooks to HDMI displays, monitors and projectors. It supports video output up to 4K x 2K at 30Hz, audio transmission and HDCP content protection, while drawing power directly from the Mini DisplayPort source.

Best For
✓ Audio support

Key Features


Commercial Fit
The active conversion design combines Mini DisplayPort 1.2 input with HDMI output, supports up to 4K x 2K at 30Hz and HDCP, and needs no separate power supply.

Maximum Power Consumption
Maximum Power Consumption: 1W | 1 W

Power Supply
Powered directly from the Mini DisplayPort source | no external power supply required

Carton dimensions
Carton dimensions: 570 x 380 x 260 mm

Technical Specifications

Product Type Mini DisplayPort to HDMI signal format converter / active adapter
Input Connector Mini DisplayPort male, 20-pin
Output Connector HDMI Type A female, 19-pin
Input Standard DisplayPort 1.2
Output Standard HDMI High Speed with Ethernet
Maximum Output Resolution Up to 4K x 2K at 30Hz | Up to 4K x 2K at 30 Hz
Maximum Data Rate 3.0 Gbit/s
Video Amplifier Bandwidth Up to 5.4 Gbps
HDCP Support HDCP 1.3 | HDCP repeater support
3D Support Supported
MST Support DisplayPort Multi-Stream Transport supported
Supported Colour Formats RGB 6/8/10/12 bits per component | YCbCr 4:4:4 and YCbCr 4:2:2 at 8/10/12 bits per component | RGB 6/8/10/12 bits per component, YCbCr 4:4:4, and YCbCr 4:2:2 at 8/10/12 bits per component
Audio Support 8-channel LPCM | compressed AC-3 and DTS | HBR audio up to 24-bit/192kHz | 8-channel LPCM, compressed AC-3 and DTS audio, and HBR audio up to 24-bit/192 kHz
Power Supply Powered directly from the Mini DisplayPort source | no external power supply required
Maximum Power Consumption 1W | 1 W
Cable Length 0.15m / 15cm | 0.15 m / 15 cm
Colour White
Net Weight 14.88g | 14.88 g
Product Dimensions 230 x 23 x 12mm | 230 x 23 x 12 mm
Package Contents 1x Mini DisplayPort 1.2 to HDMI adapter | 1x user manual | 1x Mini DisplayPort 1.2 to HDMI adapter and 1x user manual
Package Quantity 1 piece
Manufacturer LogiLink
Model / Part Number CV0036B
Storage temperature -10 °C to 80 °C
Storage humidity 5% to 90% RH, non-condensing
Packaging dimensions 162 x 230 x 2 mm
Packaging weight 35 g
Carton dimensions 570 x 380 x 260 mm
Carton weight 5.5 kg
Operating temperature 0 °C to 70 °C
Operating humidity 10% to 85% RH, non-condensing
EAN 4052792032734
Carton quantity 90 pieces
SKU / EAN CV0036B | 4052792032734

Frequently Asked Questions

What should I know before buying?
This adapter is designed for Mini DisplayPort source devices and HDMI displays, with a Mini DisplayPort male input and HDMI female output. Maximum 4K output is specified at 30Hz, and the HDMI cable is not included in the listed package contents.
What is included in the box?
1x Mini DisplayPort 1.2 to HDMI adapter | 1x user manual | 1x Mini DisplayPort 1.2 to HDMI adapter and 1x user manual
What is it compatible with?
HDCP 1.3 | HDCP repeater support
Singular Expert Insight
The active conversion design combines Mini DisplayPort 1.2 input with HDMI output, supports up to 4K x 2K at 30Hz and HDCP, and needs no separate power supply.

Buyer’s Guide

Buy it if
A suitable choice for users with a Mini DisplayPort-equipped computer or notebook who need to connect it to an HDMI display, monitor or projector with video and audio support.
Skip it if
This adapter is designed for Mini DisplayPort source devices and HDMI displays, with a Mini DisplayPort male input and HDMI female output. Maximum 4K output is specified at 30Hz, and the HDMI cable is not included in the listed package contents.
