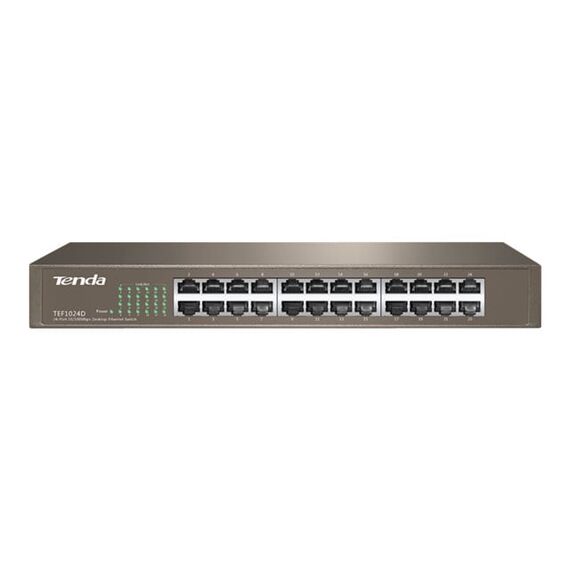

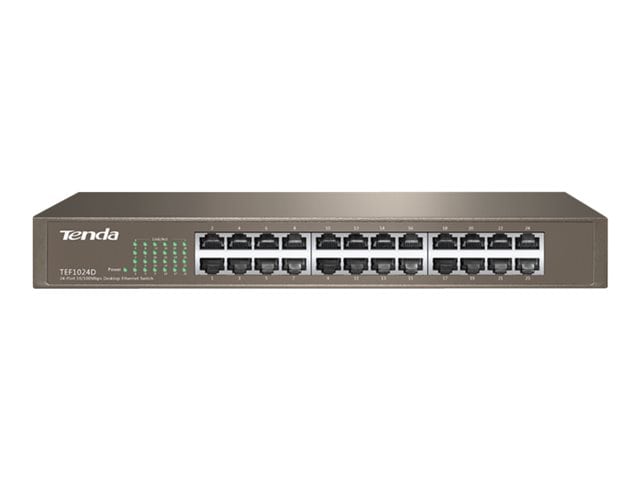

Tenda TEF1024D / Switch / 24 x 10/100 / desktop, rack-mountable | TEF1024D
Tenda TEF1024D / Switch / 24 x 10/100 / desktop, rack-mountable | TEF1024D
Description
The Tenda TEF1024D 24-Port 10/100 Switch is specially engineered to provide simple solution to expand SMB networks and campus networks at the best possible cost. Connect this 24-port switch to a router and add up to twenty three more computers or other Ethernet-based devices such as a printer, Network-Attached Storage (NAS), or Internet camera to increase the functionality of your network. Housed in sturdy metal case, it is ideal for years of dependable use.
Tenda TEF1024D / Switch | TEF1024D
Special Features
- 24 Autosensing 10/100Mbps switched ports with auto MDI/MDI-X crossover detection
- Up to 200Mbps full duplex bandwidth on each port
- Sturdy metal case ideal for years of dependable use
- 8K MAC address table with address Learning and Aging, and Data Flow Control for enhanced transmission
- Support 6000V lightning protection for power supply
- Support standard 13/19 inch rack-mountable
- Support Plug and Play,without any configuration
Product features
- Space-saving design for desktop & rack installation
The switch is solidly housed in a compact and slim metal case that is easy to position on any flat surface with limited space like desktop or mount into a rack. Plus, the device features an internal high performance switching power supply. - Standards and protocols compliance
Fully compliant with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX. - Stable and reliable performance
Dynamic buffering helps balance network load, prevent frame drop and automatically check error frames, ensuring data integrity. - Inductive lightning protection
Integrating professional circuits, Tenda New 24-Port Unmanaged Fast Switch can protect the power supply from inductive lightning (6KV in Common Mode Protection). - Plug and Play
The switch is a Plug-and-Play device that requires no configuration or software. Once you connect the hardware, the switch is operating! Each port is able to autosense half/full duplex mode and auto detect MDI/MDI-X crossover.
Product Specification
Device Type | Switch - 24 ports |
Enclosure Type | Desktop, rack-mountable |
Subtype | Fast Ethernet |
Ports | 24 x 10/100 |
MAC Address Table Size | 4K entries |
Features | Flow control, auto-uplink (auto MDI/MDI-X), store and forward, full duplex mode, MAC address learning, MAC address aging |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Status Indicators | Power, link/activity |
Interfaces | 24 x 100Base-TX RJ-45 |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V |
Power Consumption Operational | 20 Watt |
Compliant Standards | Plug and Play, FCC, RoHS |
Width | 44.1 cm |
Depth | 12.2 cm |
Height | 4.4 cm |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% |
