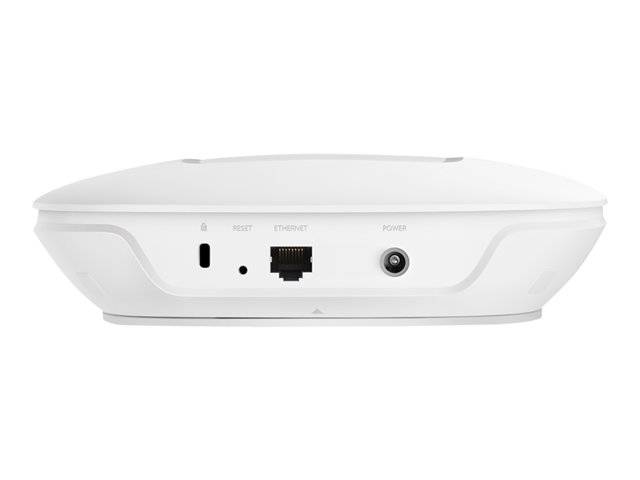

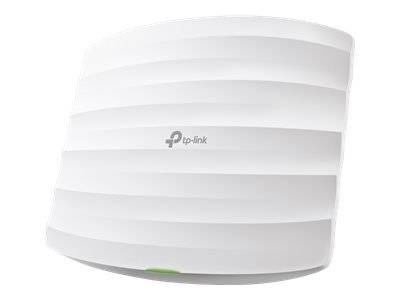

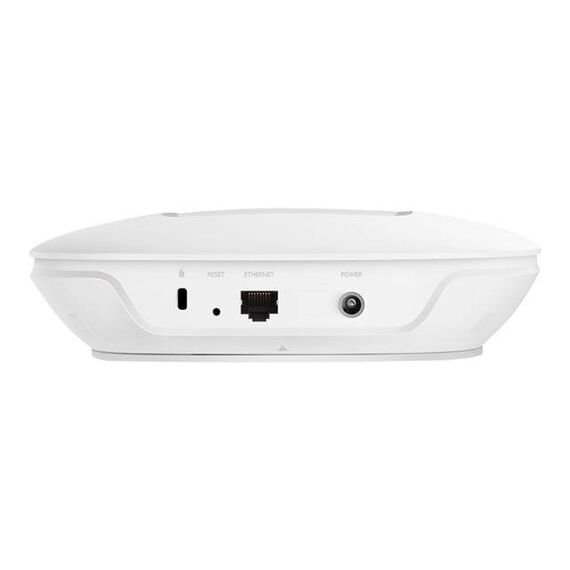

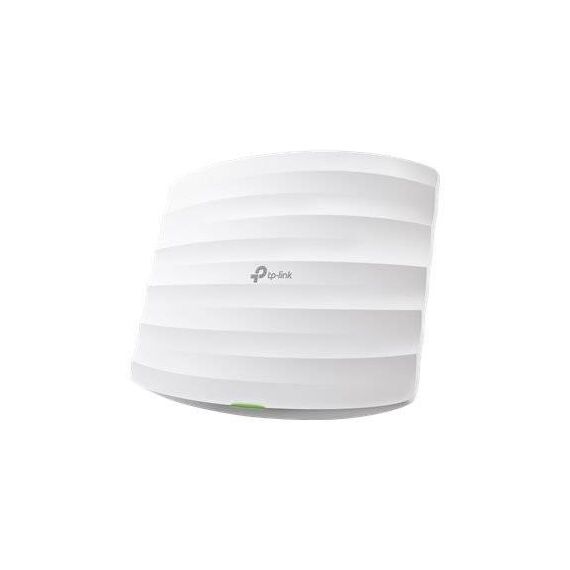

TP-Link Omada EAP245 / Radio access point / Wi-Fi / Dual Band | EAP245

Description

The 802.11ac Wi-Fi combined with advanced 3x3 MIMO technology ensures the EAP245 superior Wi-Fi speeds and coverage.

Special Features

Product features

Flexible deployment
The EAP's low-profile design and easy mount chassis make it easy to install on any wall or ceiling surface and allow it to blend in with most interior decorating styles. EAP devices also support PoE, making deployment effortless and flexible.
Wi-Fi for multi-user business environment
The business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It's the perfect fit for motels, salons, chain-stores, schools, and restaurants.

Product Specification

Device Type	Radio access point
Width	18 cm
Depth	18 cm
Height	4.75 cm
Form Factor	External
Connectivity Technology	Wireless
Data Transfer Rate	1750 Mbps
Data Link Protocol	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Remote Management Protocol	SNMP 1, Telnet, SNMP 2c, HTTP, HTTPS, CLI
Frequency Band	2.4 GHz, 5 GHz
Capacity	Maximum number of configured SSIDs (2.4 Ghz): 8 ¦ Maximum number of configured SSIDs (5 Ghz): 8
Features	Load balancing, VLAN support, Syslog support, manageable, E-mail alert, MAC address filtering, wall mountable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), Multiple SSID support, reset button, ceiling mountable, security lock slot (cable lock sold separately)
Encryption Algorithm	128-bit WEP, 64-bit WEP, 152-bit WEP, WPA, WPA-PSK, WPA2-PSK, WPA2-Enterprise
Authentication Method	RADIUS
Compliant Standards	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at
Antenna	Internal
Antenna Qty	6
Directivity	Omni-directional
Gain Level	4 dBi
Interfaces	1 x 1000Base-T (PoE+) - RJ-45
Included Accessories	Wall mounting kit, ceiling mounting kit
Compliant Standards	UL, FCC, RoHS
Power Over Ethernet (PoE) Supported	PoE+
Power Device	External power adapter
Power Consumption Operational	12.7 Watt
Software Included	Drivers & Utilities
OS Required	Microsoft Windows XP / Vista / 7 / 8 / 10
Service & Support	Limited warranty - lifetime
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	10 - 90% (non-condensing)
