TP-Link Omada EAP235-Wall / Radio access point / 802.11ac Wave 2 / Wi-Fi 5 / 2.4 GHz, 5 GHz / wall mountable | EAP235-WALL
Product Specification
| Device Type | Radio access point |
| Width | 8.6 cm |
| Depth | 2 cm |
| Height | 14.3 cm |
| Form Factor | Wall mountable |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2 |
| Remote Management Protocol | SNMP 1, SNMP 2c, HTTP, HTTPS |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Maximum number of configured SSIDs (2.4 Ghz): 8 ¦ Maximum number of configured SSIDs (5 Ghz): 8 |
| Wi-Fi Rating | AC1200 |
| Features | Load balancing, E-mail alert, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), reset button, rogue access point detection, MU-MIMO technology, beamforming technology, band steering, SSID to VLAN mapping, rate limit, VLAN management |
| Encryption Algorithm | 128-bit WEP, 64-bit WEP, 152-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise |
| Authentication Method | Secure Shell (SSH) |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2 |
| Antenna | Internal |
| Antenna Qty | 4 |
| Gain Level | 4 dBi |

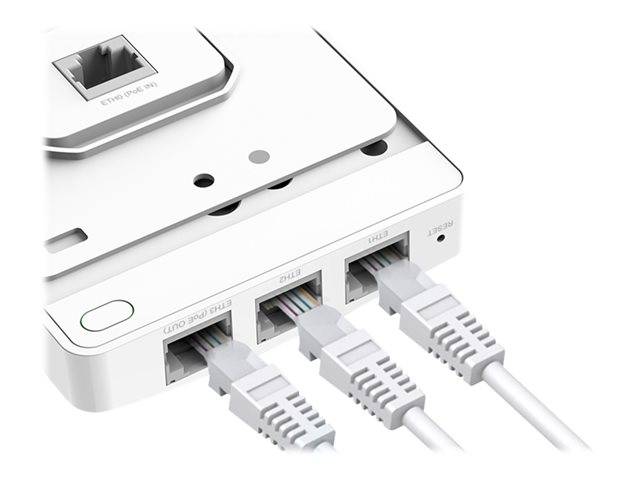

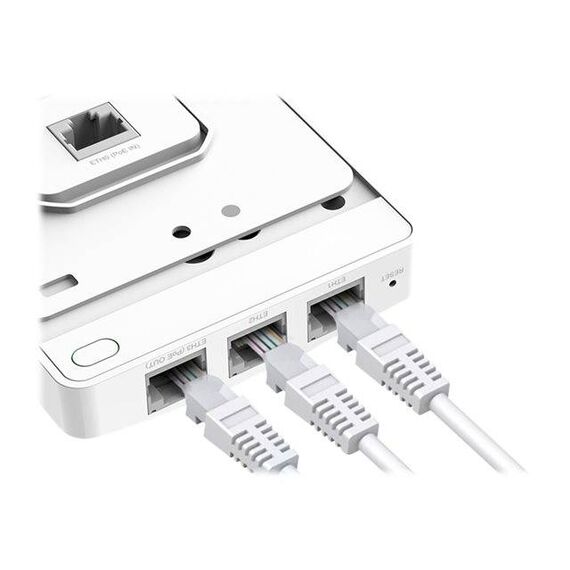

| Interfaces | 3 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x 1000Base-T (uplink) - RJ-45 |
| Included Accessories | Wall mounting kit |
| Compliant Standards | FCC, RoHS |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Power Consumption Operational | 9.8 Watt |
| OS Required | Microsoft Windows XP / Vista / 7 / 8 / 10 |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - TP-LINK - EAP235-WALL
More Details
Product Code
07:121501
EAN Code
6935364088972
Manufacturer
TP-LINK
