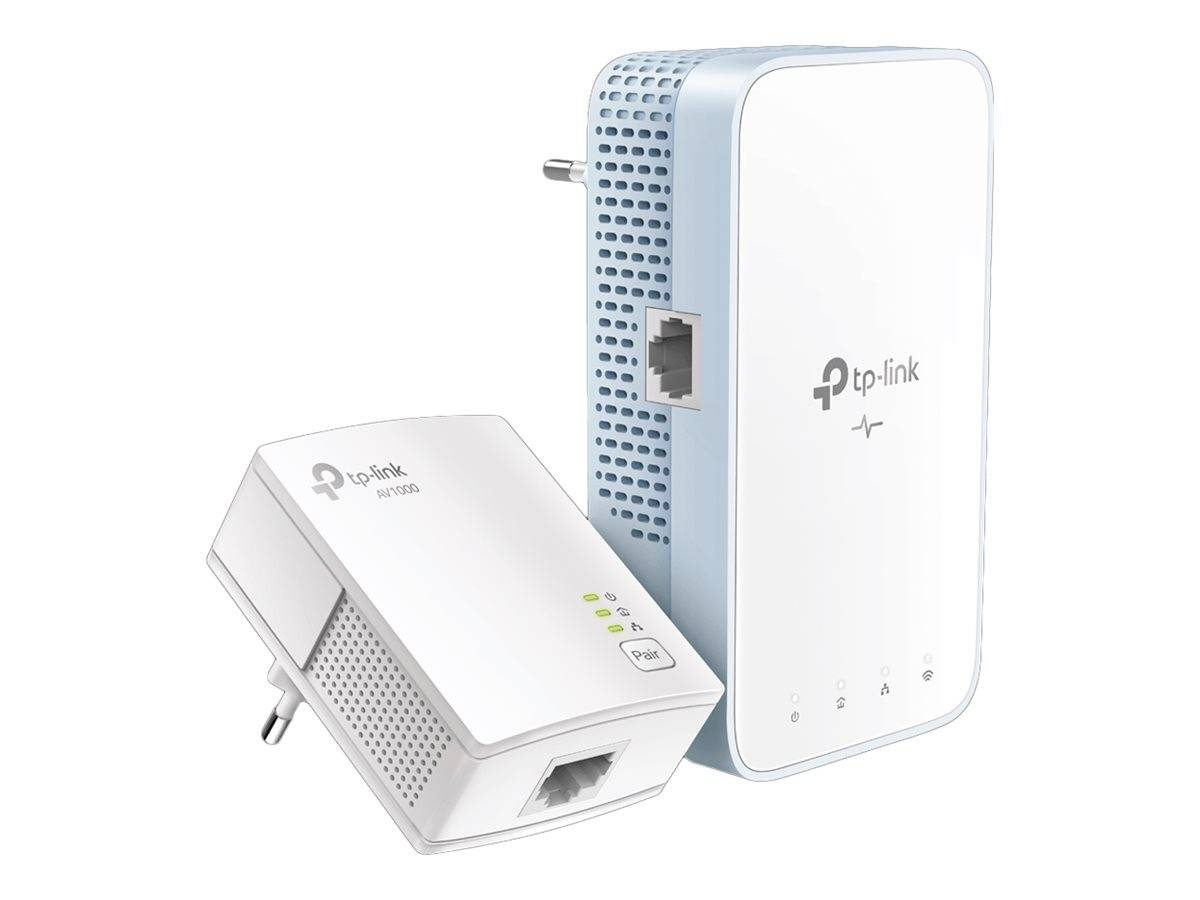

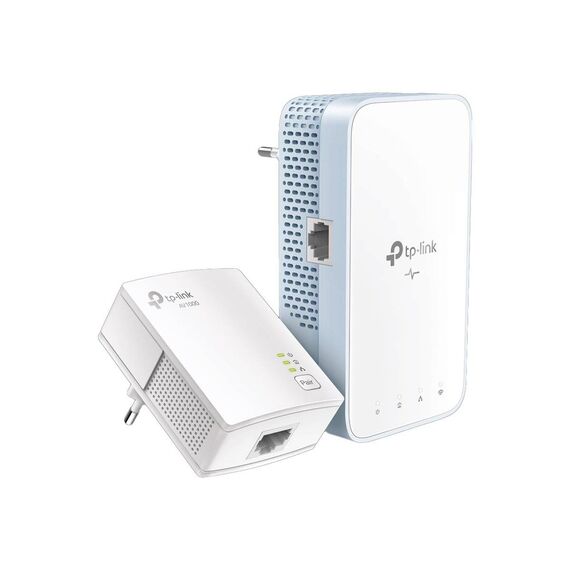

TP-Link TL-WPA1000 KIT V1 / Powerline adapter kit / GigE, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901 / Wi-Fi 5 / Dual Band / wall-pluggable | TL-WPA1000 KIT
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Powerline adapter kit |
| Kit Content | TL-PA7017 powerline adapter, TL-WPA7517 powerline adapter |
| Enclosure Type | Wall-pluggable |
| Connectivity Technology | Wireless, wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, HomePlug AV (HPAV), HomePlug AV (HPAV) 2.0, IEEE 1901, IEEE 802.11ac |
| Frequency Band | 2.4 GHz / 5 GHz |
| Data Transfer Rate | 1000 Mbps |
| Max Range Indoors | 300 m |
| Performance | Maximum data rate (5 GHz): 867 Mbps ¦ Maximum data rate (2.4 GHz): 300 Mbps |
| Encryption Algorithm | WPA-PSK, 128-bit AES, WPA2-PSK, WEP |
| Wi-Fi Rating | AC1200 |
| Features | Wi-Fi Clone button, LED on/off button, Wi-Fi Auto-Sync, pair button, OneMesh support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, HomePlug AV, HomePlug AV 2.0, IEEE 1901, IEEE 802.11ac, RoHS |
| Status Indicators | Power, LAN, powerline, 2.4/5 GHz |
| Line Properties | Line Properties |
| Line Coding Format | OFDM |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x HomePlug AV 2.0 ¦ 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - on extender |
| Power | Power |
| Power Device | Internal power supply |
| Miscellaneous | Miscellaneous |
| Cables Included | 2 x network cable |
| Software / System Requirements | Software / System Requirements |
| OS Required | Apple MacOS, Linux, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - TP-LINK - TL-WPA1000 KIT
More Details
Product Code
04:405568
EAN Code
4897098688403
Manufacturer
TP-LINK
