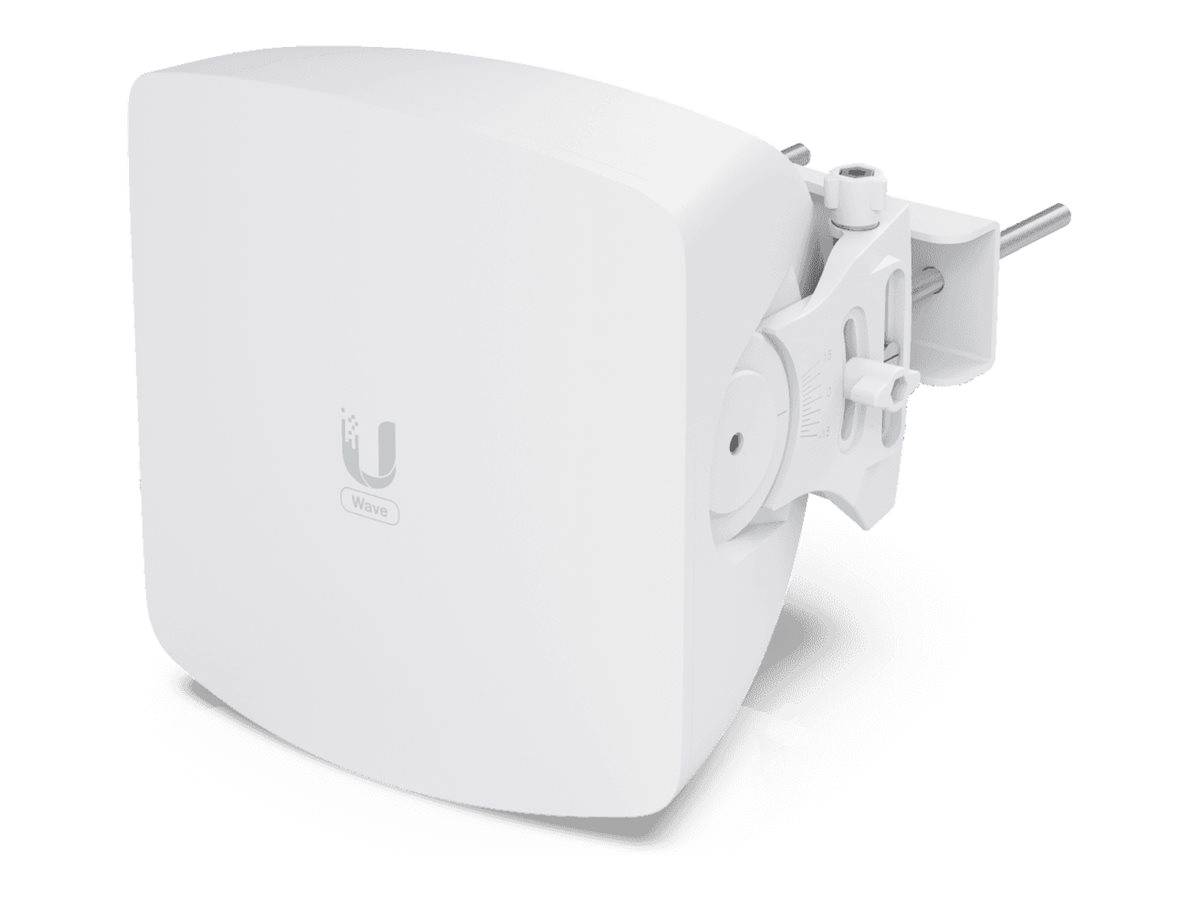

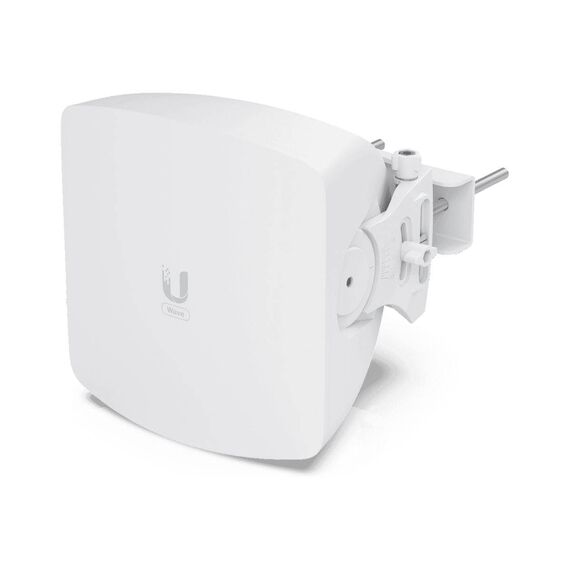

Ubiquiti UISP Wave / Radio access point / Wi-Fi 6 / 5 GHz | WAVE-AP
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Radio access point |
| Ruggedized Design | Outdoor |
| Built-in Devices | GPS |
| Width | 20.5 cm |
| Depth | 18.7 cm |
| Height | 21.2 cm |
| Weight | 2.3 kg |
| Processor / Memory / Storage | Processor / Memory / Storage |
| Processors Installed | ARM 1.4 GHz |
| RAM | 512 MB DDR3L SDRAM |
| Networking | Networking |
| Form Factor | External |
| Connectivity Technology | Wireless |
| Data Transfer Rate | 5.4 Gbps |
| Line Coding Format | 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, 1024 QAM |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Remote Management Protocol | SNMP |
| Frequency Band | 5 GHz, 60 GHz |
| Performance | Bandwidth (full duplex): 2.7 Gbps |
| Capacity | Clients per access point: 15 |
| Status Indicators | Power, GPS, Ethernet link/activity |
| Features | Reset button, pole mountable, dual-linear polarisation, bridge mode, Point-to-Multipoint (PtMP) link mode, Bluetooth management, Wave Technology, Quad-core CPU, aluminium alloy enclosure, UV stabilised polycarbonate enclosure, 30° sector coverage |
| Encryption Algorithm | AES, WPA2-PSK |
| Aerial | Aerial |
| Antenna | Internal |
| Gain Level | 24 dBi |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 100M/1G/2.5 Gigabit Ethernet - RJ-45 ¦ 1 x 10 Gigabit Ethernet - SFP+ |
| Miscellaneous | Miscellaneous |
| Included Accessories | Pole mount |
| Compliant Standards | IC, FCC, IPX6 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Ubiquiti - WAVE-AP
More Details
Product Code
03:203989
EAN Code
0810010078742
Manufacturer
Ubiquiti
