StarTech.com SFP-10GB-BX-U-STA-ST MSA Uncoded 10GBASE-BX Upstream BiDi SFP+ Module, Single-Mode LC, 10km, 1270nm Tx/1330nm Rx

Brand:
StarTech.com

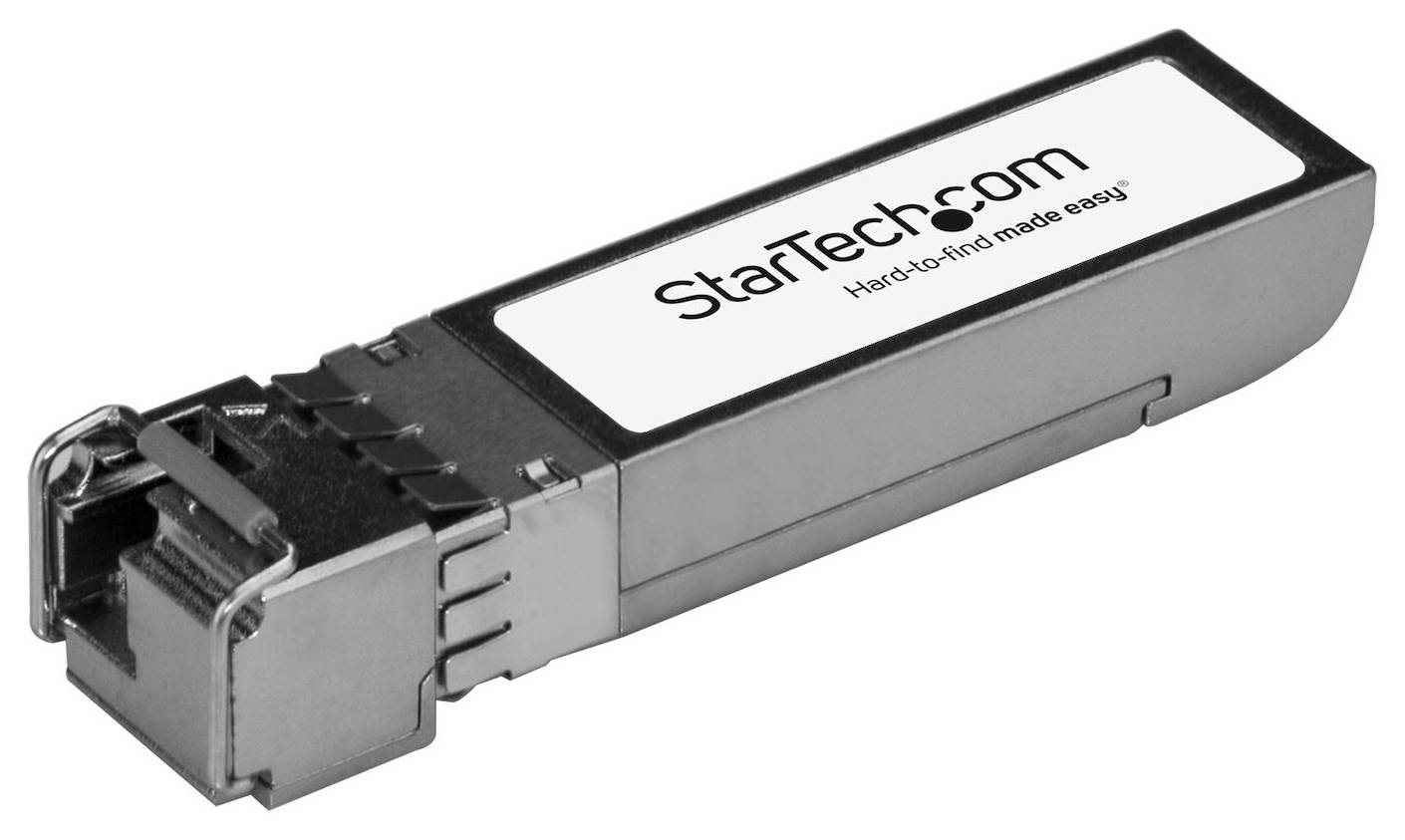

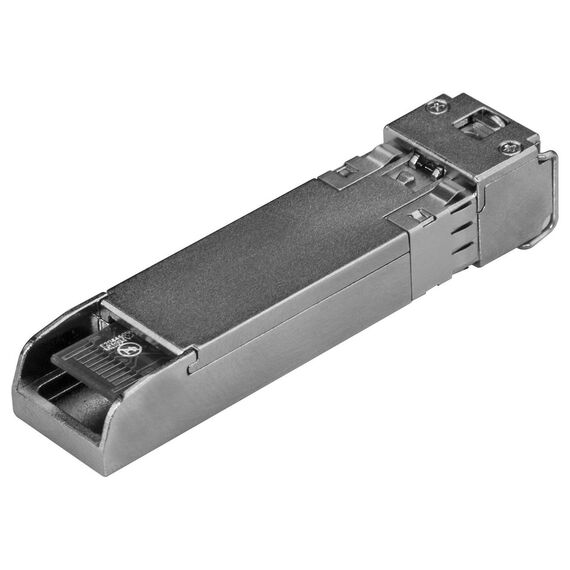

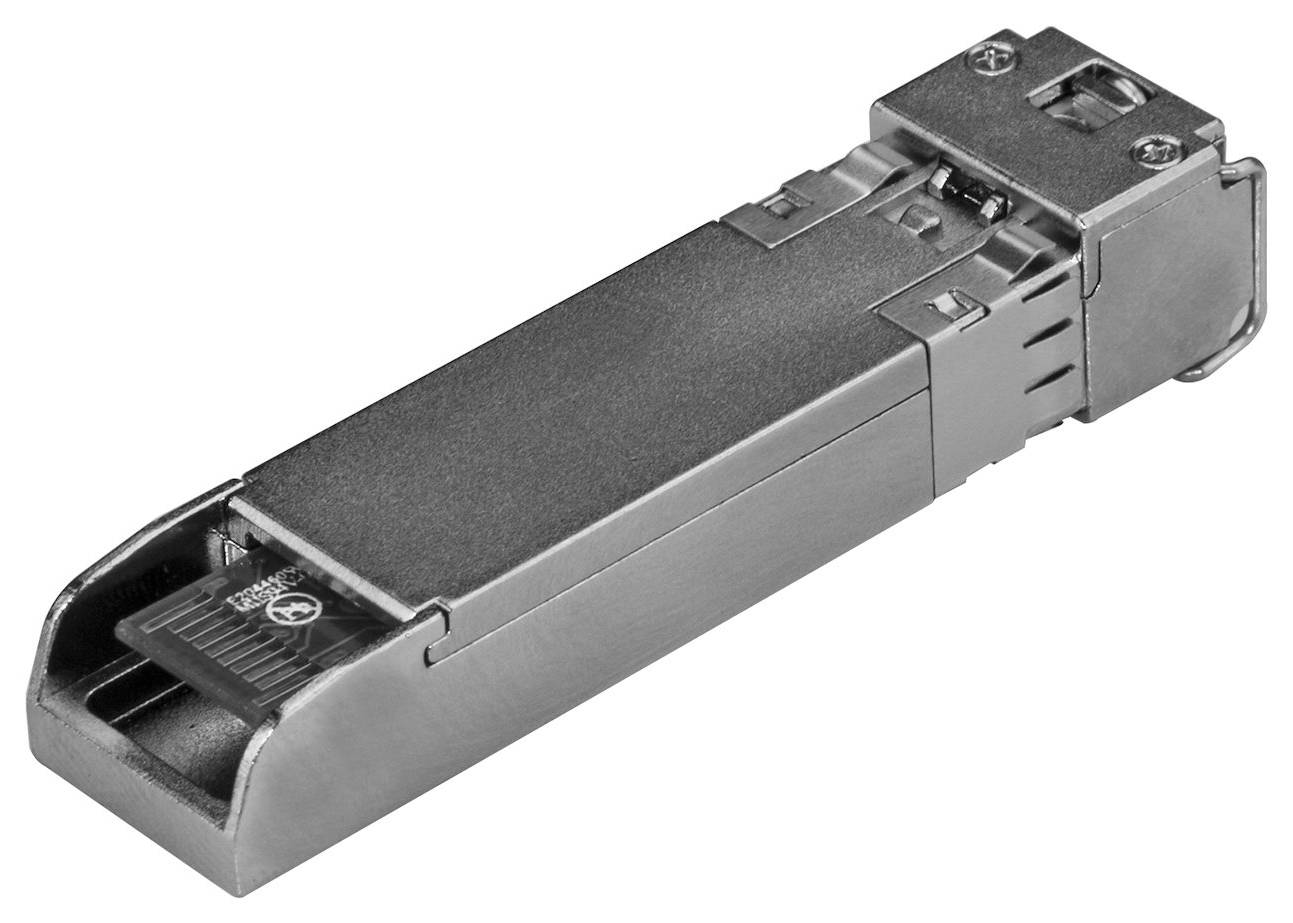

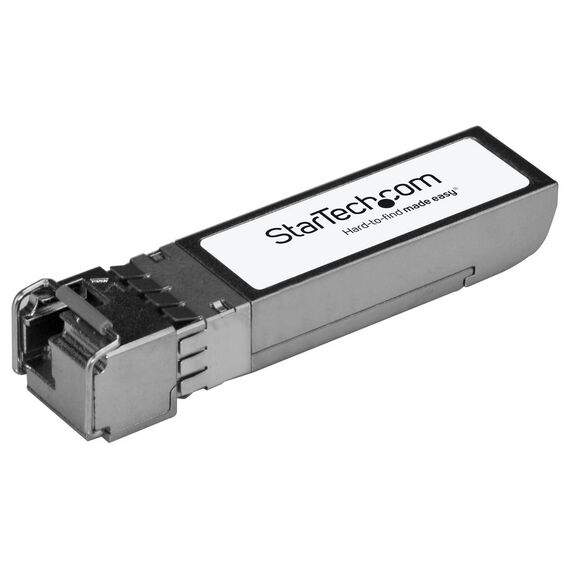

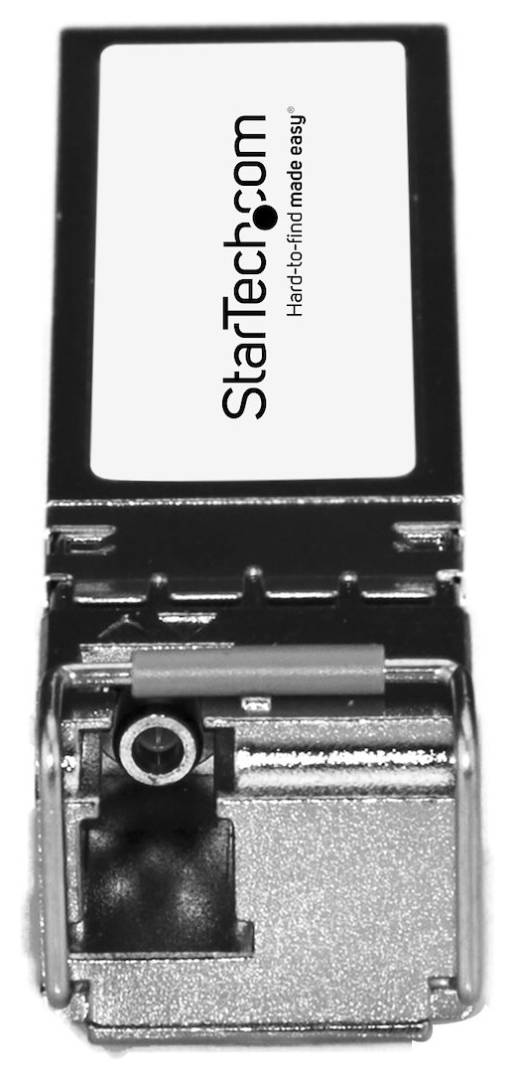

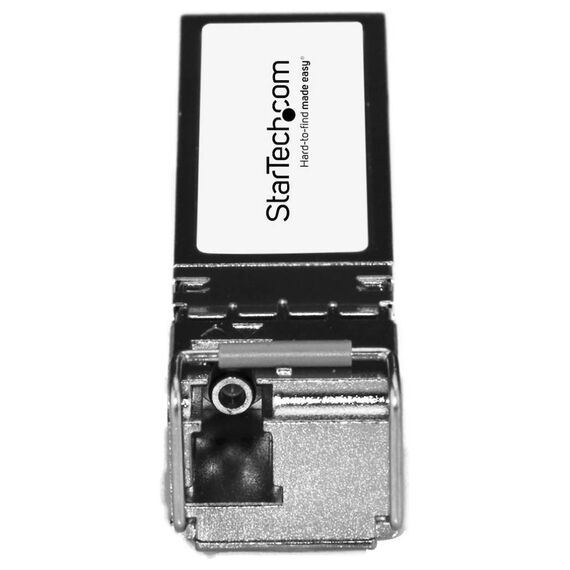

StarTech.com SFP-10GB-BX-U-STA-ST Upstream BiDi LC SFP+ Transceiver
StarTech.com SFP-10GB-BX-U-STA-ST MSA Uncoded 10GBASE-BX Upstream BiDi SFP+ Module, Single-Mode LC, 10km, 1270nm Tx/1330nm Rx
€183.63 inc. VAT
Buy
SFP-10GB-BX-U-STA-ST
€154.31
€183.63 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
V934742
EAN Code
0065030885836
Manufacturer
StarTech.com

Quick Specs

Speed / format
10Gbps, 10GBASE-BX SFP+
Fiber / reach
Single-strand SMF, LC, up to 10km
Upstream optics
1270nm Tx / 1330nm Rx
Host / monitoring
Uncoded MSA; DDM
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

10GbE over one fiber strand, with the correct BiDi pair

10GBASE-BXUpstream BiDiLC single-modeUp to 10km

This is one upstream SFP+ transceiver for a compatible switch or router, rather than a complete fiber link. It sends at 1270nm and receives at 1330nm, allowing bidirectional 10GbE traffic over a single strand of single-mode fiber. StarTech specifies pairing it with the downstream SFP-10GB-BX-D-STA-ST at the opposite end.

Before you order:
Your host must accept uncoded MSA-compliant 10GBASE-BX SFP+ modules. Confirm the host model, single-mode LC cabling, optical loss budget and complementary downstream wavelengths. The box contains one module; the other-end module and fiber must be planned separately.

What's in the Box

  • 1 × SFP+ transceiver

What It Means in Practice

  • For example, install this upstream module in one compatible switch and the specified downstream module in the far-end switch, then connect their LC interfaces through a suitable single-mode strand. Each end uses different transmit/receive wavelengths on the same fiber. The stated up-to-10km reach depends on a suitable optical path and link budget.

What Will Not Work

  • Two identical upstream modules do not provide the complementary transmit/receive pairing specified for this link.
  • An MSA label does not establish acceptance by every switch; verify that the host allows uncoded modules.

Key Features


Single-strand bidirectional fiber
WDM optics send and receive on one single-mode fiber strand, helping use existing single-strand infrastructure for 10GbE.

The upstream half of the link
1270nm transmit and 1330nm receive wavelengths pair with the separately identified downstream module.

Diagnostics and servicing
DDM support provides digital diagnostic capability, while hot swapping supports module replacement in compatible equipment.

Technical Specifications

Identification
Brand / SKU StarTech.com / SFP-10GB-BX-U-STA-ST
EAN / UPC 0065030885836 / 065030885836
Sales quantity 1 SFP+ transceiver
Optical link and compatibility
Form factor SFP+
Standard IEEE 802.3ae 10GBASE-BX
Maximum data rate 10Gbps
Fiber / connector Single-mode fiber, single strand, LC
Operating mode BiDi WDM, full duplex, upstream
Transmit / receive wavelength 1270nm Tx / 1330nm Rx
Maximum transfer distance Up to 10km (6.2mi)
Complementary module StarTech.com SFP-10GB-BX-D-STA-ST (downstream)
Host compatibility MSA-compliant 10GBASE-BX switches/routers accepting uncoded modules
Digital diagnostics DDM supported
Hot swapping Supported
Power and physical
Power consumption Less than 1.3W
Dimensions 13.9 × 58.5 × 12.6mm (manufacturer length × width × height)
Weight 24g
Manufacturer term Lifetime warranty for the module lifetime, not the network switch lifetime
Included in package 1 × SFP+ transceiver

Frequently Asked Questions

Why is this different from a duplex two-fiber module?
This BiDi WDM model sends and receives on one fiber strand using two wavelengths. It requires the complementary optical module at the far end.
Which other-end model is specified?
StarTech names SFP-10GB-BX-D-STA-ST as the downstream counterpart for SFP-10GB-BX-U-STA-ST.
Does lifetime warranty follow the switch lifetime?
StarTech states that coverage is for the lifetime of the module, not the lifetime of the network switch.
Singular Expert Insight
Choose this module to build or maintain the upstream end of a single-strand 10GbE link. Host acceptance and the far-end wavelength pair are the first checks; connector fit and a 10G label alone do not establish a working link. Check your SFP+ host and BiDi pairing

Buyer’s Guide

✓

Buy it if

 You need the upstream 1270nm Tx/1330nm Rx end of an uncoded MSA 10GBASE-BX single-fiber link.
✕

Skip it if

 Your host requires a different module coding or the installed far-end optics do not complement these wavelengths.
→

Also consider

 The specified downstream counterpart for the other end, or a duplex optical design if the planned link uses two fibers.
Tell us both switch models, fiber type and link distance so we can check the required pair.

Features - StarTech.com - SFP-10GB-BX-U-STA-ST

Port Speed
  • 10 Gbps
More Details
Product Code
V934742
EAN Code
0065030885836
Manufacturer
StarTech.com
