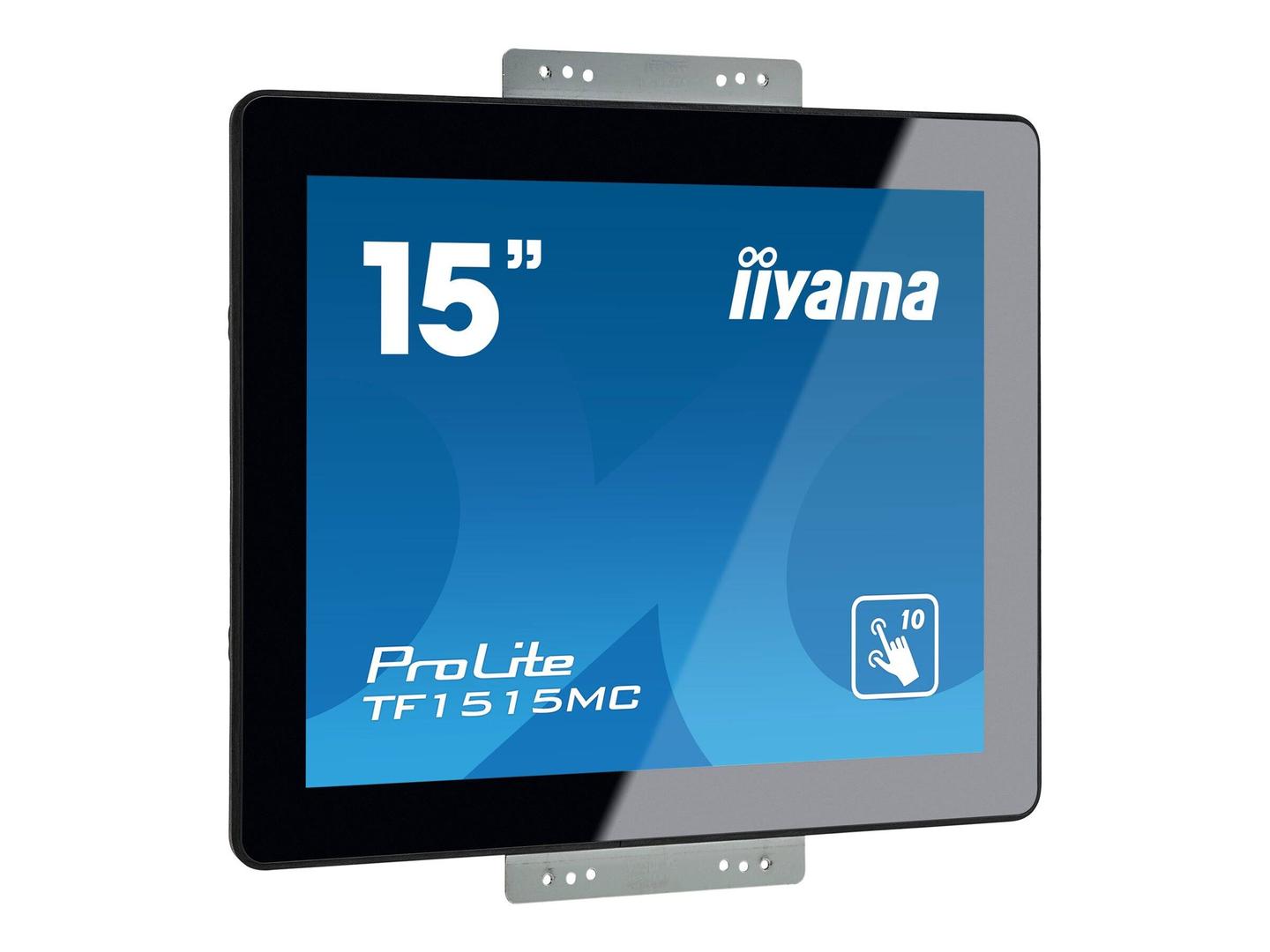

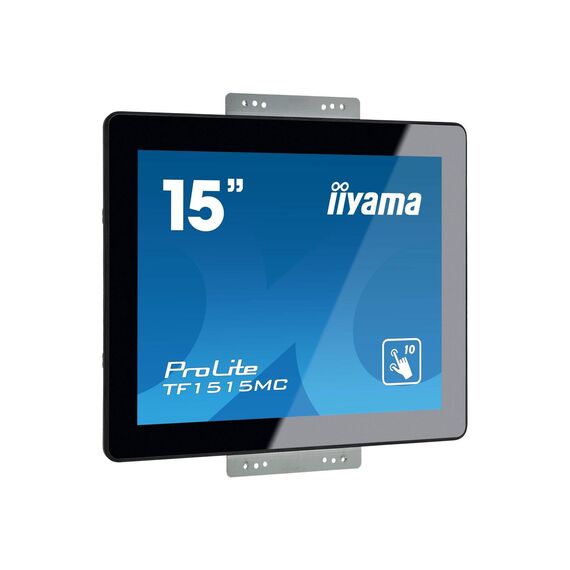

iiyama ProLite TF1515MC-B2 / LED monitor / 15" / open frame / touchscreen / 1024 x 768 / TN / 350 cd/m² / 800:1 / 8 ms / HDMI, VGA, DisplayPort / black | TF1515MC-B2
Please sign in so that we can notify you about a reply
Product Features
- Open-frame brackets

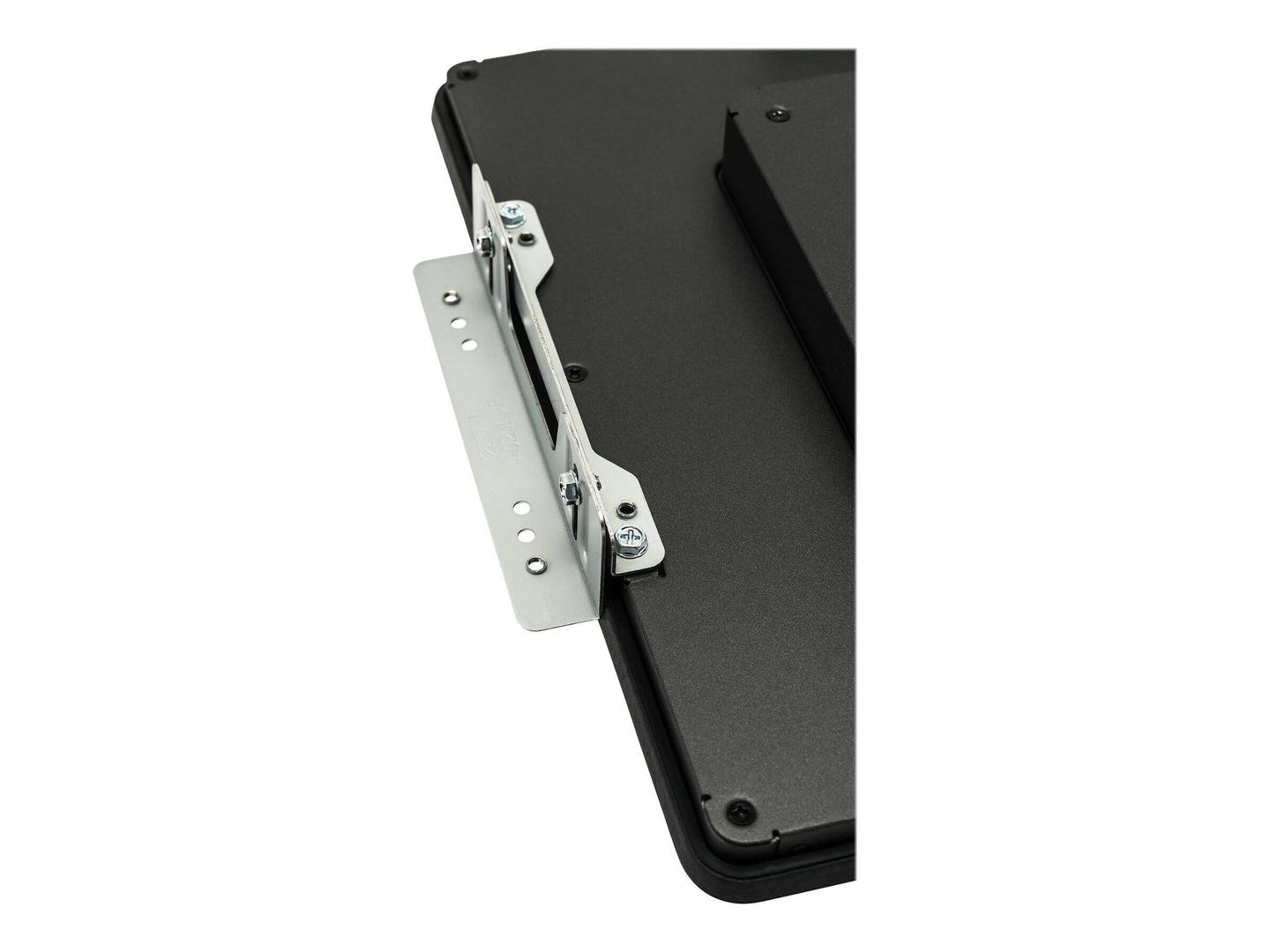

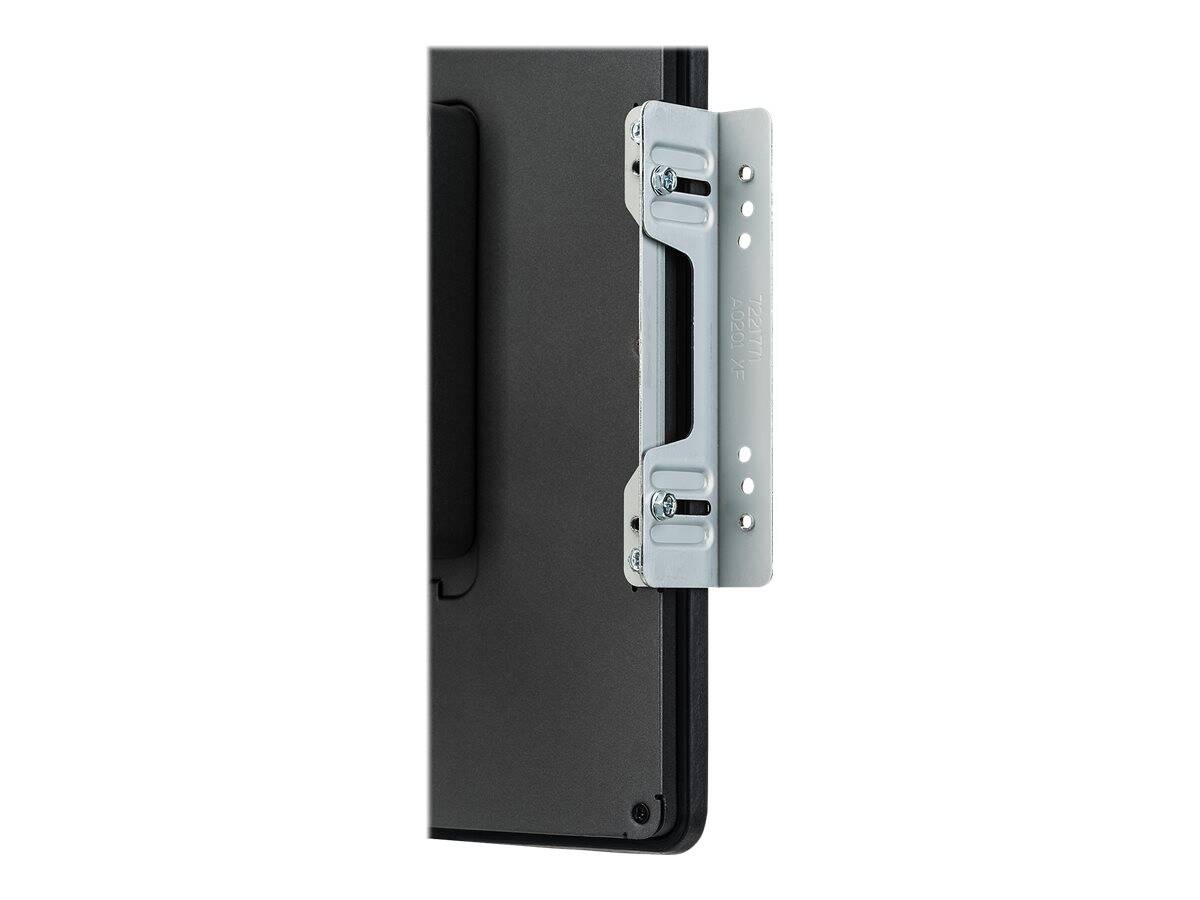

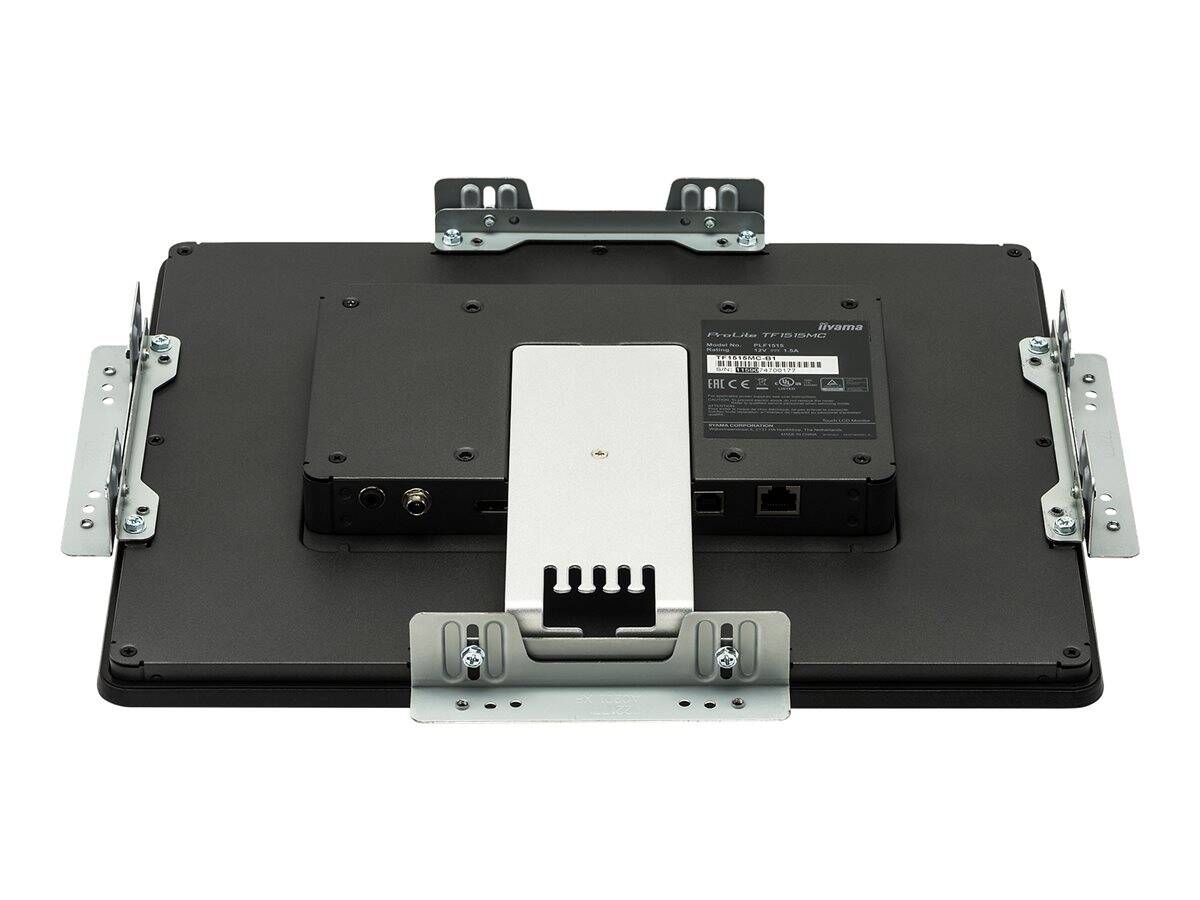

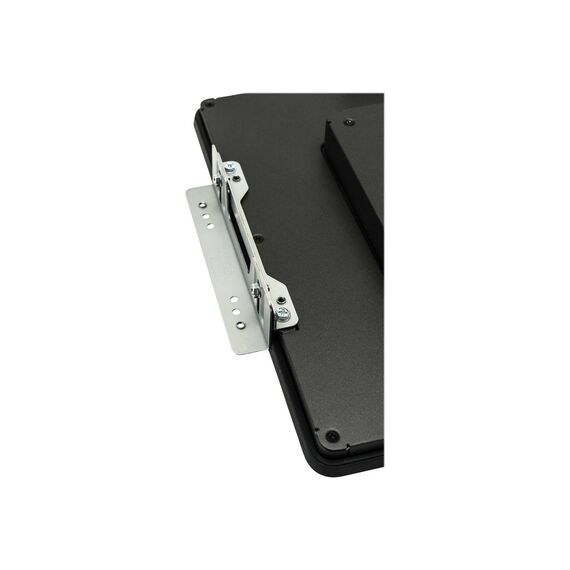

This open frame monitor comes equipped with external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and in store retail. - Anti-fingerprint coating
This special nano coating ensures a smoother touch and less resistance in the swipe. It makes the screen less static and susceptible to dirt, dust, fingerprints and it improves the clarity of the content displayed on the screen. - Foam seal

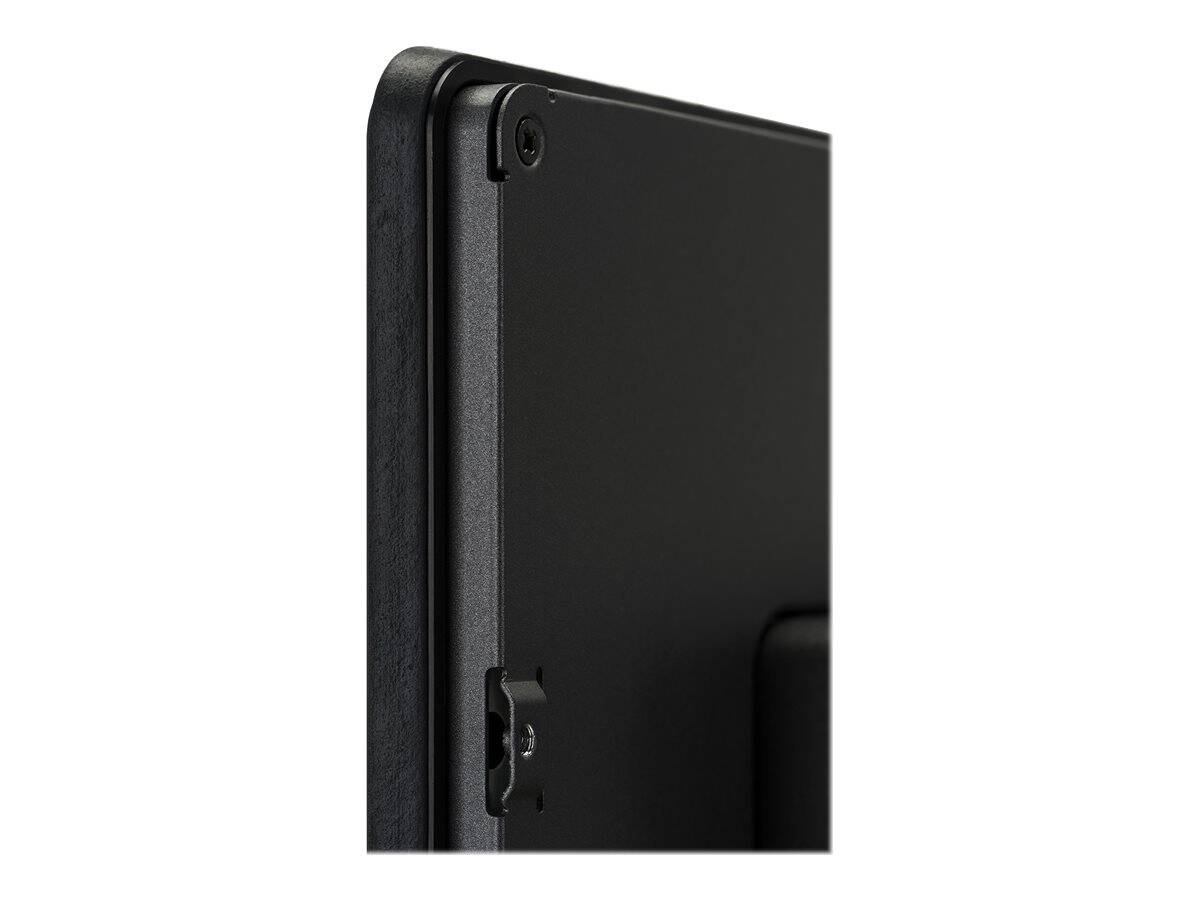

A foam seal finish around the monitor ensures seamless integration and optimal dust protection.
Special Features
- Open-frame brackets
- Anti-fingerprint coating
- Foam seal
Product Specification
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Energy Class | Class E |
| Diagonal Size | 15" |
| Panel Type | TN |
| Aspect Ratio | 4:3 |
| Native Resolution | 1024 x 768 |
| Pixel Pitch | 0.297 mm |
| Brightness | 350 cd/m² |
| Brightness w/touchscreen | 315 cd/m² |
| Contrast Ratio | 800:1 |
| Colour Support | 16.2 million colours |
| Response Time | 8 ms (grey-to-grey) |
| Vertical Refresh Rate | 56 - 75 Hz |
| Horizontal Refresh Rate | 31.4 - 60 kHz |
| Horizontal Viewing Angle | 160 |
| Vertical Viewing Angle | 150 |
| Backlight Technology | LED backlight |
| OSD Languages | English, German, French, Italian, Spanish, Japanese, Chinese |
| Features | HDCP, edge-to-edge glass, OSD lock, scratch-resistant, anti-fingerprint, landscape mode, portrait mode, Face Up mode, 6 mm through-glass, touch through glass function |
| Colour | Black |
| Dimensions (WxDxH) | 36.4 cm x 4.15 cm x 29.1 cm |
| Weight | 2.9 kg |
| Input | Input |
| Type | Touchscreen |
| Movement Detection Technology | Capacitance intelligence (PCAP) |
| Connectivity | Connectivity |
| Interfaces | VGA ¦ HDMI (HDCP) ¦ DisplayPort (HDCP) ¦ Headphones (mini-jack) ¦ USB (touchscreen only) |
| Mechanical | Mechanical |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous | Miscellaneous |
| Included Accessories | Remote control |
| Cables Included | 1 x USB cable ¦ 1 x HDMI cable ¦ 1 x DisplayPort cable |
| Mounting Kit | Included |
| Compliant Standards | Plug and Play, DDC-2B, CB, cULus, TUV Bauart, IP65, EAC, REACH SvHC |
| Power | Power |
| Power Consumption (On mode) | 10.4 W |
| Power Consumption SDR (On mode) | 10.4 kWh/1000h |
| Power Consumption (Typical) | 16 Watt |
| Power Consumption Stand by | 1.2 Watt |
| Power Consumption (Off Mode) | 1.2 Watt |
| Software / System Requirements | Software / System Requirements |
| Included Software | Driver |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 46 cm |
| Shipping Depth | 17.5 cm |
| Shipping Height | 47 cm |
| Shipping Weight | 4.6 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
Features - Iiyama - TF1515MC-B2
Resolution
1024 x 768
More Details
Product Code
03:139904
EAN Code
4948570116751
Manufacturer
Iiyama
