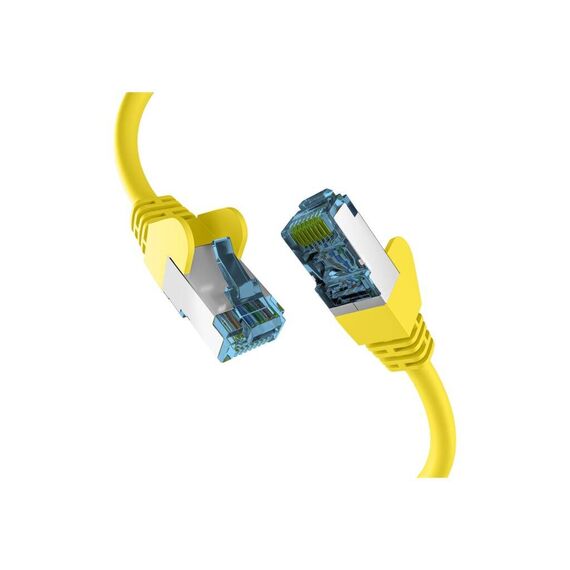

EFB-Elektronik Cat6A S/FTP Patch Cable RJ45 0.15m Yellow, Cat7 Raw Cable, LSZH

Brand:
EFB
EFB-Elektronik - Patch cable - RJ-45 (M) to RJ-45 ( | EC020200176
EFB-Elektronik Cat6A S/FTP Patch Cable RJ45 0.15m Yellow, Cat7 Raw Cable, LSZH
€3.18 inc. VAT
Buy
EC020200176
€2.67
€3.18 inc. VAT
Ships from EU stock: 59 item(s)
+ −
Add to wish list Ask a question
Product Code
04:437678
EAN Code
4049759290245
Manufacturer
EFB
Quick Specs
Rating
Cat 6A link · 500 MHz
Cable
Cat 7 S/FTP PiMF · AWG 27/7
Length / Colour
0.15 m · Yellow
Jacket
LSZH · 6 mm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

EFB-Elektronik EC020200176 Cat 6A S/FTP Patch Cable, 0.15 m Yellow

Cat 6A S/FTP0.15 m · Yellow500 MHz · 10 GbpsLSZH jacket

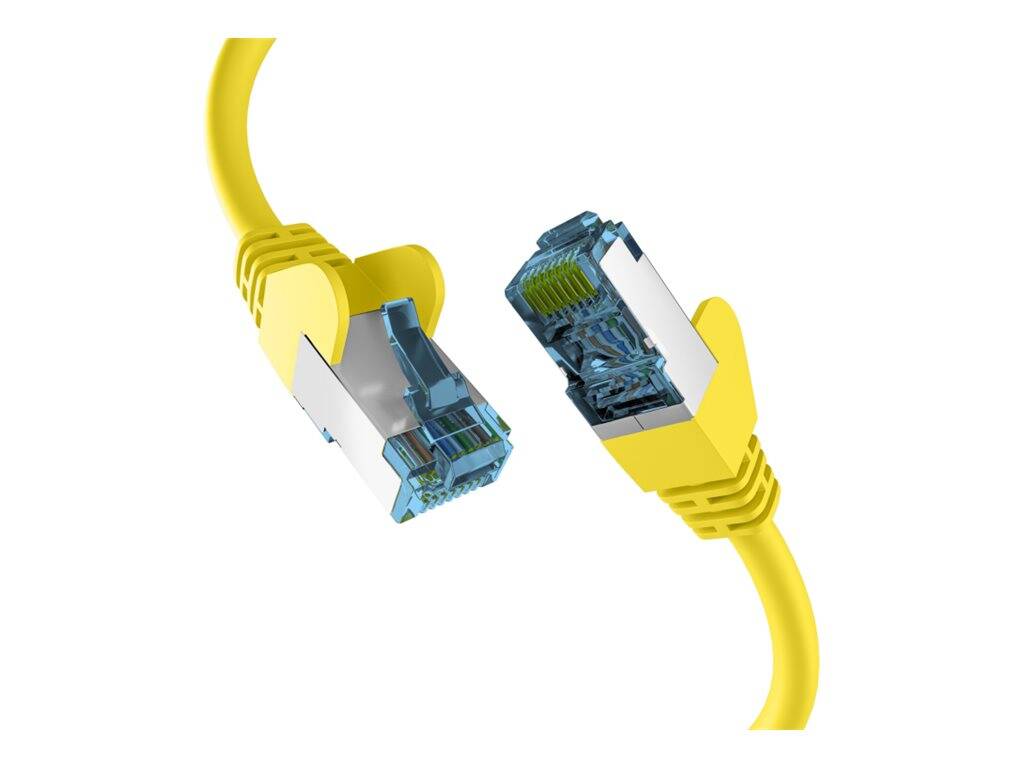

The EFB-Elektronik EC020200176 is a 0.15 m yellow Cat 6A S/FTP patch cable with RJ45 plugs on both ends, built for patch-panel-to-switch jumpers, stacked switches and tight rack runs. It is built on Cat 7 raw cable with Cat 6A RJ45 plugs, so the link is rated Cat 6A / 500 MHz while the heavier-screened Cat 7 cable adds noise margin; a locking-lug guard and length imprint on the boot make it easy to identify and hard to snag. Part number EC020200176 (EAN 4049759290245) identifies this exact length and colour, so you can reorder identical cords when you extend a cabinet or colour-code a new VLAN.

Before you buy
The raw cable is Cat 7 (600 MHz), but RJ45 connectors cap the channel at Cat 6A / 500 MHz / 10 Gbps — this is not a GG45/TERA Cat 7 link. At 0.15 m it is a rack jumper only. EFB publishes no PoE class for this cord.

Key Features


Cat 7 raw cable, Cat 6A plugs
Four foil-wrapped pairs under an overall braid (S/FTP PiMF) give extra crosstalk and EMI margin for 10GBASE-T in crowded cabinets.

Locking-lug guard + length imprint
The boot protects the release lug from breaking off and shows the length, so identical jumpers stay easy to sort.

LSZH jacket, 6 mm
Halogen-free, low-smoke outer jacket suited to offices, server rooms and public buildings; AWG 27/7 stranded copper stays flexible.

Technical Specifications

Identification
Part Number EC020200176
EAN / GTIN 4049759290245
MPN EC020200176
Brand EFB-Elektronik
Cable
Category Channel Cat 6A — 500 MHz, set by the RJ45 plugs
Shielding S/FTP PiMF — each pair in its own foil plus an overall braid
Conductor Stranded copper, AWG 27/7
Pairs / Wires 4 pairs · 8 wires
Jacket LSZH — low smoke, zero halogen
Outer Diameter 6 mm
Raw Cable Grade Cat 7 per ANSI/TIA/EIA-568-C.2 — cable tested up to 600 MHz
Connectors
Connectors RJ45 male to RJ45 male (8P8C)
Contacts Gold-plated
Wiring T568B, 1:1 straight-through — not a crossover
Boot Moulded, anti-kink sleeve + locking-lug protection
Physical
Length 0.15 m
Colour Yellow
Protection IP20 — indoor use
Marking Length imprint on the boot
Performance & Compliance
Bandwidth 500 MHz
Max. Data Rate 10 Gbps Ethernet
PoE No PoE class published by EFB — for certified 802.3bt use EFB MK6001
Standards EN 50173-1, ISO/IEC 11801, TIA/EIA-568-B, ANSI/TIA/EIA-568-C.2

Frequently Asked Questions

Does the EC020200176 work with my switch, router or patch panel?
Yes. It is a standard RJ45-to-RJ45 Cat 6A patch cord wired straight-through (T568B), so it connects any Ethernet port to any other — switches, routers, NAS units, access points, patch panels and PCs. Modern ports auto-negotiate speed and handle crossover automatically.
Is a 0.15 m cable long enough?
At 0.15 m (15 cm) it is a jumper, not a room cable: it is sized for linking a patch panel to the switch directly above or below it, or two stacked switches, without slack loops cluttering the cabinet. For desk or wall-outlet runs choose 1–3 m instead.
What is the difference between the EC020200176 and the plain EFB EC0202000 Cat 6A cord?
Both are 10 Gbps Cat 6A S/FTP LSZH cords. The EC020200176 uses Cat 7 raw cable (tested to 600 MHz) with a locking-lug boot and length imprint; the EC0202000 series uses standard Cat 6A 500 MHz cable with latch protection. For a normal 10 GbE rack either works — pick by colour and boot style.
Singular Expert Insight
We stock the EC020200176 for installers who want the extra screening of Cat 7 raw cable at the rack without paying for a proprietary Cat 7 connector system. Just remember the RJ45 plugs make it a Cat 6A link; the plain EC0202000 cords do the same 10 GbE job for less. Browse the full range of network cables for other lengths and colours, or pair it with our network switches.

Buyer's Guide

Buy it if
You patch 10 GbE switches, NAS or servers and want heavy S/FTP screening plus colour-coded, length-marked jumpers.
Skip it if
You need a real Cat 7 GG45/TERA link, a certified PoE++ cord, or a run longer than a rack jumper.
Also consider
EFB EC0202000 plain Cat 6A (same 10 GbE, lower cost) or EFB MK6001 Cat 6A with 802.3bt PoE rating.

Features - EFB - EC020200176

Colour
yellow
Standard
CAT6a
More Details
Product Code
04:437678
EAN Code
4049759290245
Manufacturer
EFB
