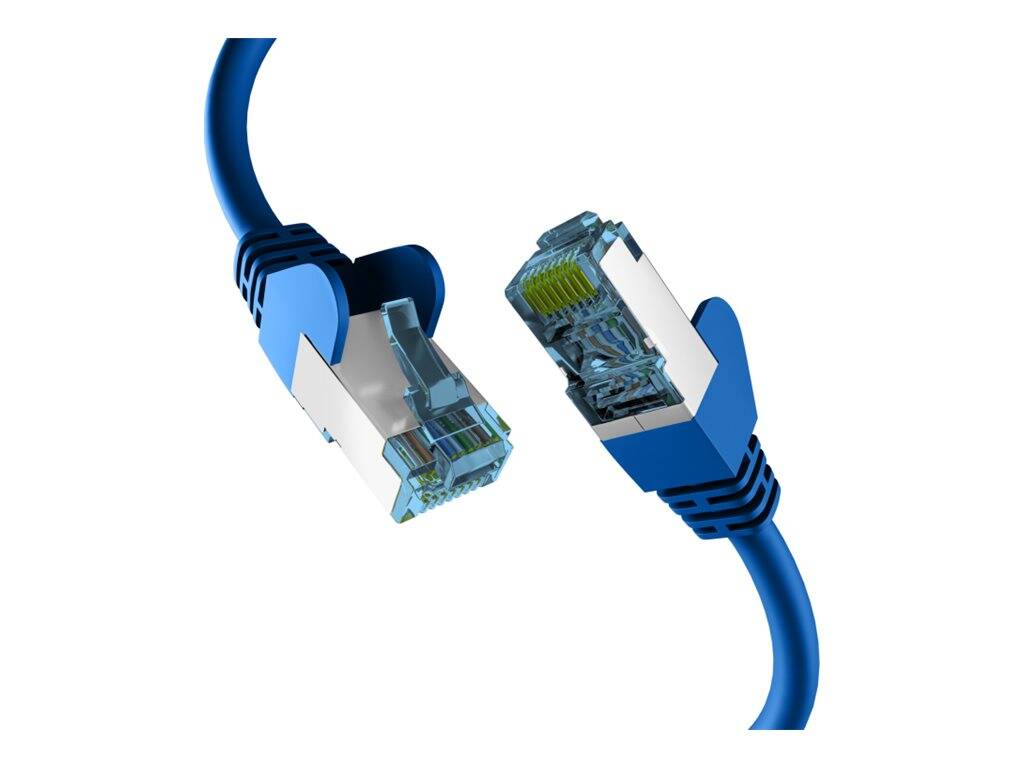

EFB-Elektronik 15 cm Cat 6A S/FTP Patch Cable (Blue)
Cat 6A · 10 GbE15 cmS/FTP PiMFLSZH · Blue
The EFB-Elektronik EC020200204 is a 15 cm S/FTP PiMF patch cable built on Cat 7 raw cable with Cat 6A RJ45 connectors, made for ultra-short 10 Gigabit jumpers between a patch panel and a switch in the same rack. Part number EC020200204 is the blue version; the halogen-free LSZH jacket and 6 mm outer diameter suit data-centre and structured-cabling environments where fire safety matters.
Compatibility note: Cat 7 raw cable does not make this a Cat 7 link: the RJ45 plugs are Cat 6A, so the channel performs as Cat 6A (Class EA, 500 MHz, 10GBASE-T). EFB publishes no PoE class for this range, so do not plan 802.3bt budgets on it without checking your equipment. At 15 cm, confirm the two ports are close enough before ordering.
Key Features
Shielded S/FTP PiMF
Each twisted pair has its own foil plus an overall braid, keeping alien crosstalk and EMI low in densely packed racks and next to power cabling.
Cat 7 raw cable, Cat 6A plugs
Stranded AWG 27/7 copper on Cat 7 raw cable, terminated with shielded gold-plated RJ45 plugs wired 1:1 to T568B for full 10 Gigabit Ethernet.
Built for patch panels
Moulded anti-kink boots with locking-lug protection and a length imprint on the plug make 15 cm jumpers easy to identify and hard to snag.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The EC020200204 is a sensible choice for tidy, colour-coded 1U jumpers between patch panels and network switches at 10 Gbit/s. If your runs only need 1 Gbit/s, an unshielded Cat 6 U/UTP cord is cheaper and thinner; if you need longer lengths, the same EFB range continues at 25 cm, 50 cm and beyond in the same colours.
Buyer's Guide
Buy it if
You need 15 cm Cat 6A jumpers in blue for a patch panel directly next to a switch, with LSZH jackets for the rack.
Skip it if
Your ports are more than about 10 cm apart, or you need a published PoE class for 802.3bt devices.
Also consider
Longer EFB Cat 6A S/FTP cords (25 cm, 50 cm) for panels one or two units away from the switch.
Features - EFB - EC020200204
Colour
blue
Standard
CAT6a
More Details
Product Code
04:437706
EAN Code
4049759290528
Manufacturer
EFB
