EFB-Elektronik LC-LC Duplex Fibre Optic Patch Cable, OM4 multimode 50/125µm, LSZH 2mm, 1.5m, Violet
Brand:
EFB
EFB-Elektronik LC-LC Duplex Fibre Optic Patch Cable, OM4 multimode 50/125µm, LSZH 2mm, 1.5m, Violet
€15.8 inc. VAT
O0319.1,5
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
EFB-Elektronik LC to LC OM4 Duplex Fibre Patch Cable, 1.5 m
OM4 multimodeLC ↔ LC1.5 mLSZH Violet

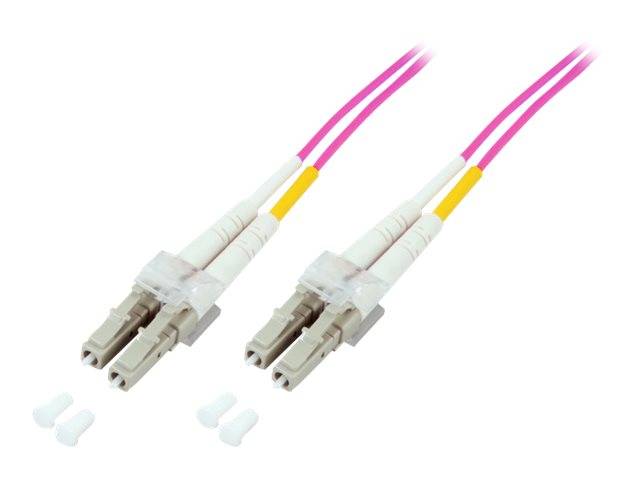

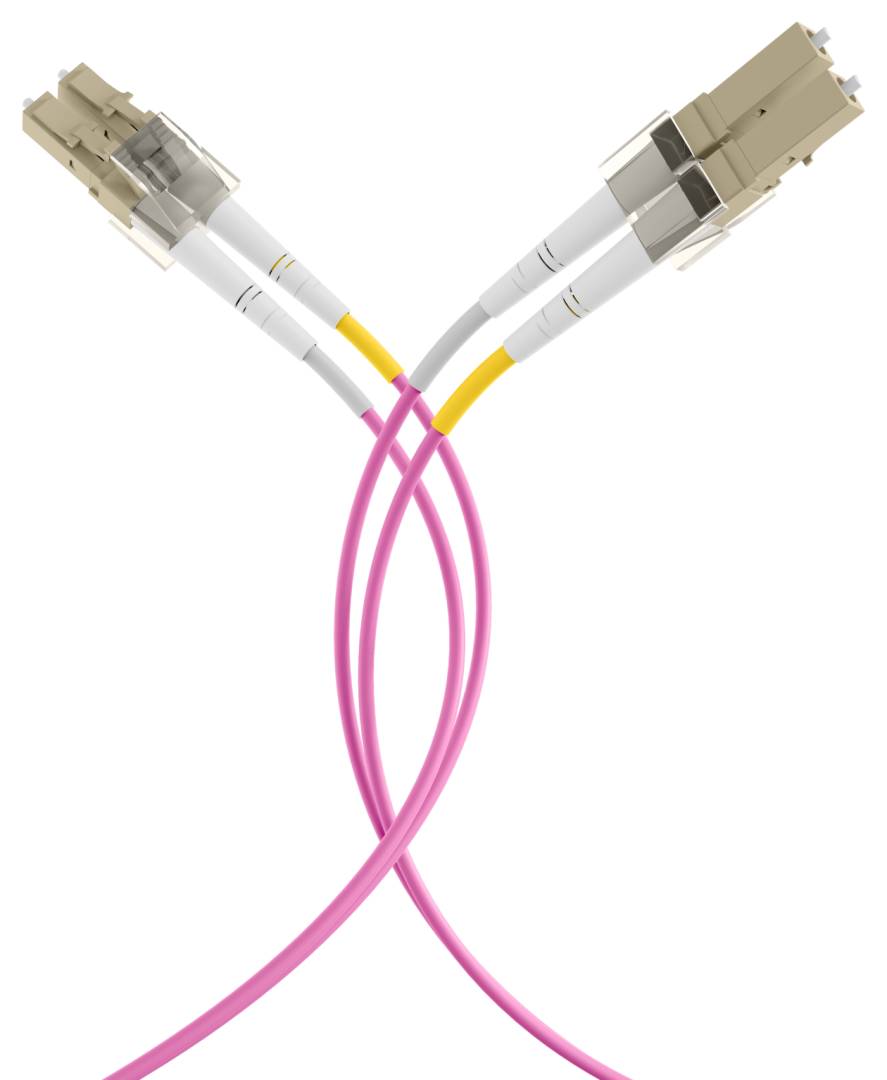

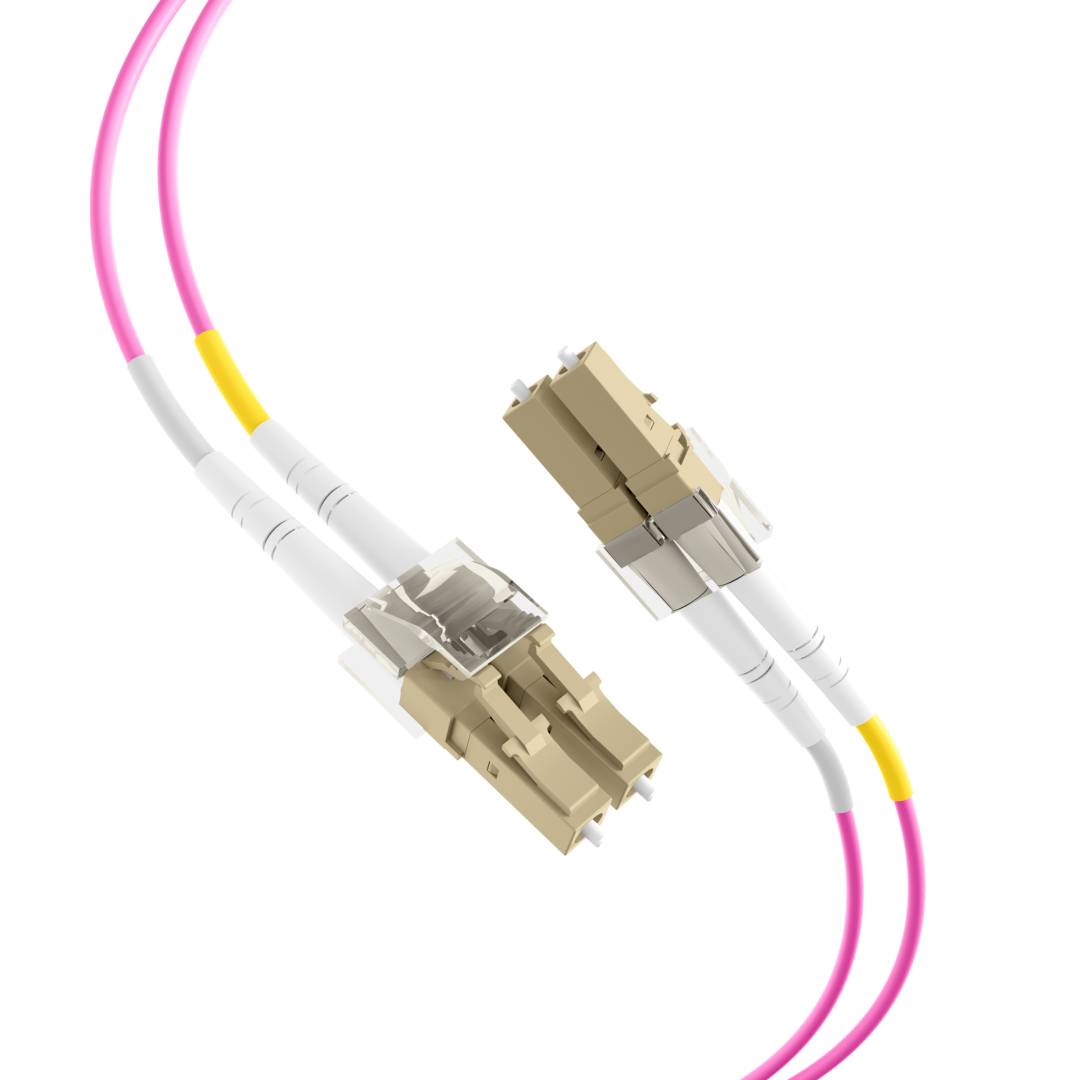

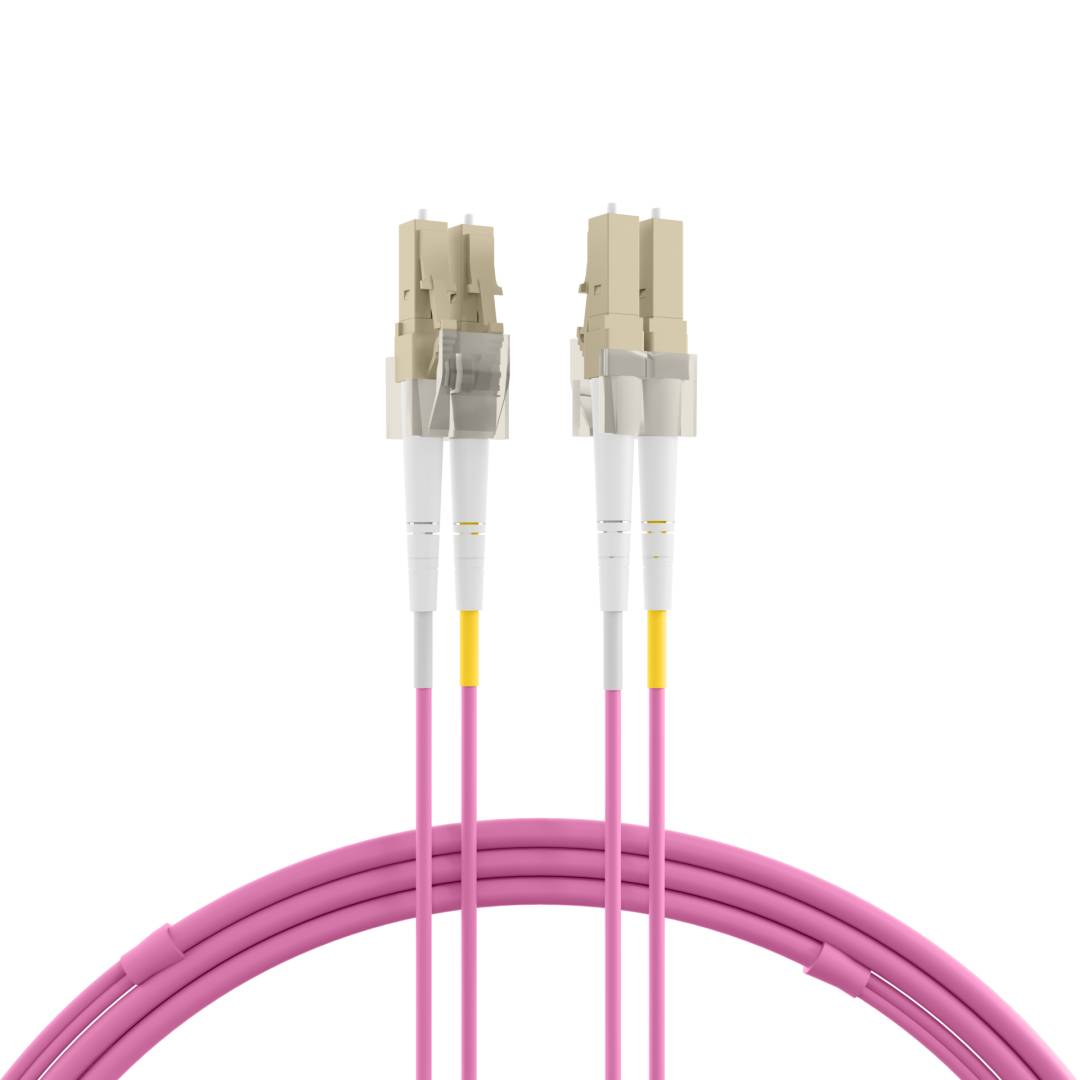

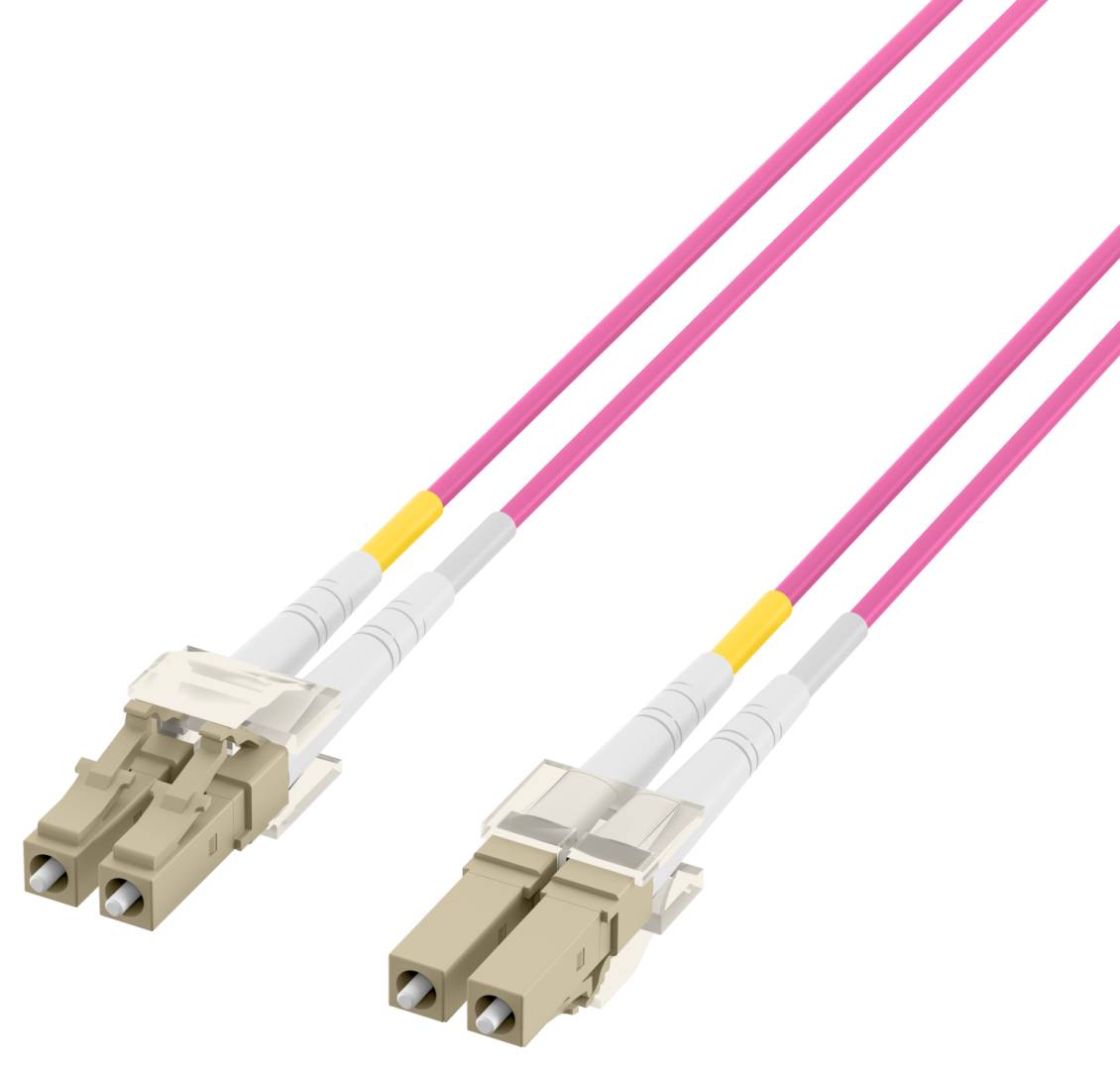

The EFB-Elektronik O0319.1,5 is a 1.5 m duplex OM4 multimode 50/125 µm fibre optic patch cable with LC connectors on both ends, for linking switches, servers, media converters and patch panels in racks and comms rooms.
OM4 is the higher-bandwidth grade of 50/125 µm multimode fibre, recognised by its heather (erica) violet jacket. It uses the same 850 nm SR optics as OM3 but reaches further: IEEE specifies OM4 for 10GBASE-SR up to 400 m and 25GBASE-SR up to 100 m.
What's in the Box
- 1 × LC-LC duplex patch cable, 1.5 m
- 2 × duplex clips
- 1 × individual measurement report
- 1 × information sheet
What It Means in Practice
- At 1.5 m it suits patching inside one rack: switch to patch panel, or server to top-of-rack switch.
- Duplex means two fibres in one cable: one carries transmit and the other receive, so one cable completes one link between two transceivers.
- The LSZH (low smoke, zero halogen) jacket is the usual requirement in offices, data centres and public buildings: in a fire it gives off little smoke and no corrosive halogen gas.
- Keep the end faces covered until you plug in: a dirty connector is the most common reason a new fibre link does not come up.
What Will Not Work
- Single-mode optics (LX, LR, ER at 1310/1550 nm): they need an OS2 single-mode cable, not multimode.
- SC or ST ports, or a mix of connector types: this cable is LC on both ends.
- Copper RJ45 ports: fibre needs an optical transceiver or a media converter at each end.
- MPO/MTP ports (40G/100G SR4 parallel optics): they use multi-fibre trunk cables, not duplex patch cords.
Key Features
OM4 multimode fibre
OM4 50/125 µm multimode for 850 nm optics; IEEE specifies OM4 for 10GBASE-SR up to 400 m and 25GBASE-SR up to 100 m.
LC on both ends
LC is the small duplex connector used on SFP, SFP+ and SFP28 transceivers and most modern patch panels.
LSZH jacket
2 mm duplex cable with aramid strain relief; low smoke, zero halogen sheath in violet (heather / erica violet), the colour code for OM4.
Measured and documented
Each cable ships with its own measurement report, so the insertion-loss result goes straight into the installation file.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Fibre patch cords rarely fail on quality; they fail because the grade or the connector does not match the port. Check three things before you order: the fibre type your transceivers expect (multimode SR/SX for this cable), the connector on each port, and UPC versus APC. If you are adding optics too, see our network switches with SFP/SFP+ ports.
✓ Buy it if you need a 1.5 m OM4 link between LC and LC ports.
✕ Skip it if your transceivers are single-mode (LX/LR): you need an OS2 cable.
→ Also consider EFB-Elektronik OM4 patch cables in other lengths and connector pairs: ask us for the exact code.
Not sure which cable you need? Send us the model of your switch, transceiver or patch panel and we will confirm fibre type and connectors before you order.
Features - EFB - O0319.1,5
Colour
violet
Length
1.5m
More Details
Product Code
04:262049
EAN Code
4049759097936
Manufacturer
EFB
