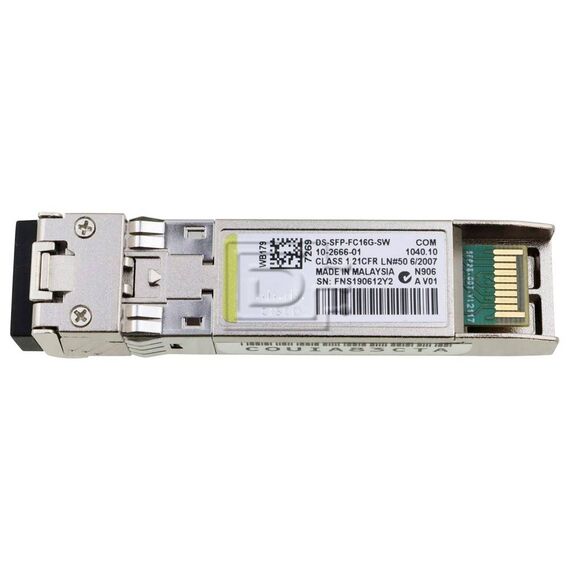

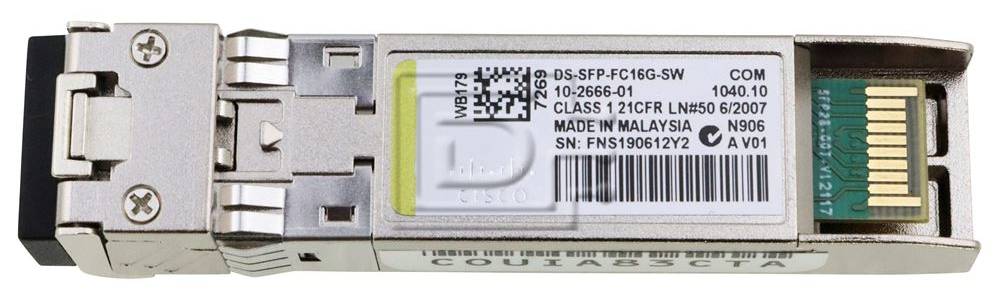

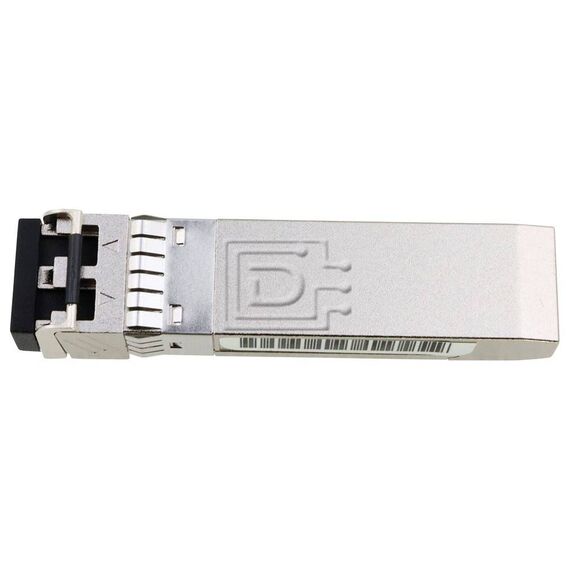

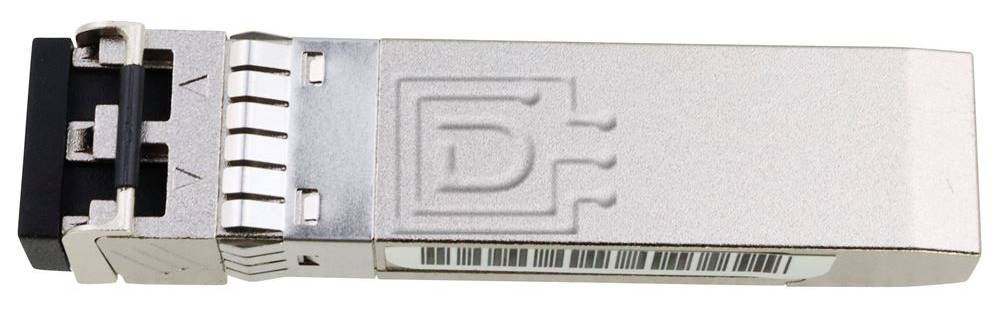

Cisco DS-SFP-FC16G-SW= 16G Fibre Channel SW SFP+ Spare Transceiver, 850nm, Duplex LC, Multimode
Brand:
Cisco
Cisco DS-SFP-FC16G-SW= 16G Fibre Channel SW SFP+ Spare Transceiver, 850nm, Duplex LC, Multimode
€478.17 inc. VAT
DS-SFP-FC16G-SW=
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Shortwave optics for a Fibre Channel storage link
4/8/16G FC850nm MMFDuplex LCSpare SFP+
The Cisco DS-SFP-FC16G-SW= is the spare-order version of a shortwave Fibre Channel SFP+ optical transceiver. It fits a supported port in a Cisco MDS 9000 Series storage network and converts the port’s electrical signal into an 850nm optical link over multimode fibre. You need compatible host equipment, duplex-LC multimode cabling and a matching supported optical endpoint. The spare module does not provide a complete link by itself.
Before you order:
This is Fibre Channel storage networking. The SFP+ shape alone does not establish Ethernet compatibility. Check the exact switch/module, port speed, software support, fibre grade and link budget before ordering.
What It Means in Practice
- For a supported 16G storage-network link, insert the transceiver in the supported host port and connect duplex LC multimode fibre to the compatible remote optic. At 16G, Cisco specifies up to 100m on OM3 or 125m on OM4/OM5, with a minimum fibre length of 2m.
- Distance depends on both the negotiated rate and fibre grade. The longer distances listed at 4G do not apply to 16G; check the full speed-specific table.
What Will Not Work
- Do not treat this as a generic 10GbE Ethernet optic or a single-mode longwave module.
- Do not assume 300m or 400m reach at 16G from an unqualified retailer distance claim.
- An empty SFP+ slot is not sufficient evidence of compatibility; host support must be confirmed.
Key Features
Autosensing Fibre Channel rates
The module offers 4/8/16Gbps Fibre Channel connectivity on supported MDS ports. Actual line signalling rates are 4.25/8.5/14.025Gbps.
850nm multimode optics
Dual LC connections use multimode fibre. Cisco provides separate reach limits for OM1, OM2, OM3 and OM4/OM5 at each supported speed.
A serviceable spare module
The equals-sign ordering code identifies the spare transceiver. Hot-swappable construction supports supported-platform servicing; follow the host’s installation procedures.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Start with the supported Cisco port and intended Fibre Channel rate, then choose the fibre grade and check distance and loss budget. At 16G, OM3 and OM4/OM5 have different reach limits despite using the same LC connector. Check your Cisco Fibre Channel requirements
Buyer’s Guide
✓
Buy it if
You require the genuine spare SW optic for a supported Cisco 4/8/16G Fibre Channel port.✕
Skip it if
You need Ethernet, single-mode longwave optics or a distance outside the specified limits.→
Also consider
The appropriate supported longwave Fibre Channel optic when the verified link requires single-mode fibre or greater reach.Provide the Cisco chassis/module, software release, port rate, fibre grade and total link length.
Features - Cisco - DS-SFP-FC16G-SW=
More Details
Product Code
6779W96
EAN Code
0882658409547
Manufacturer
Cisco
