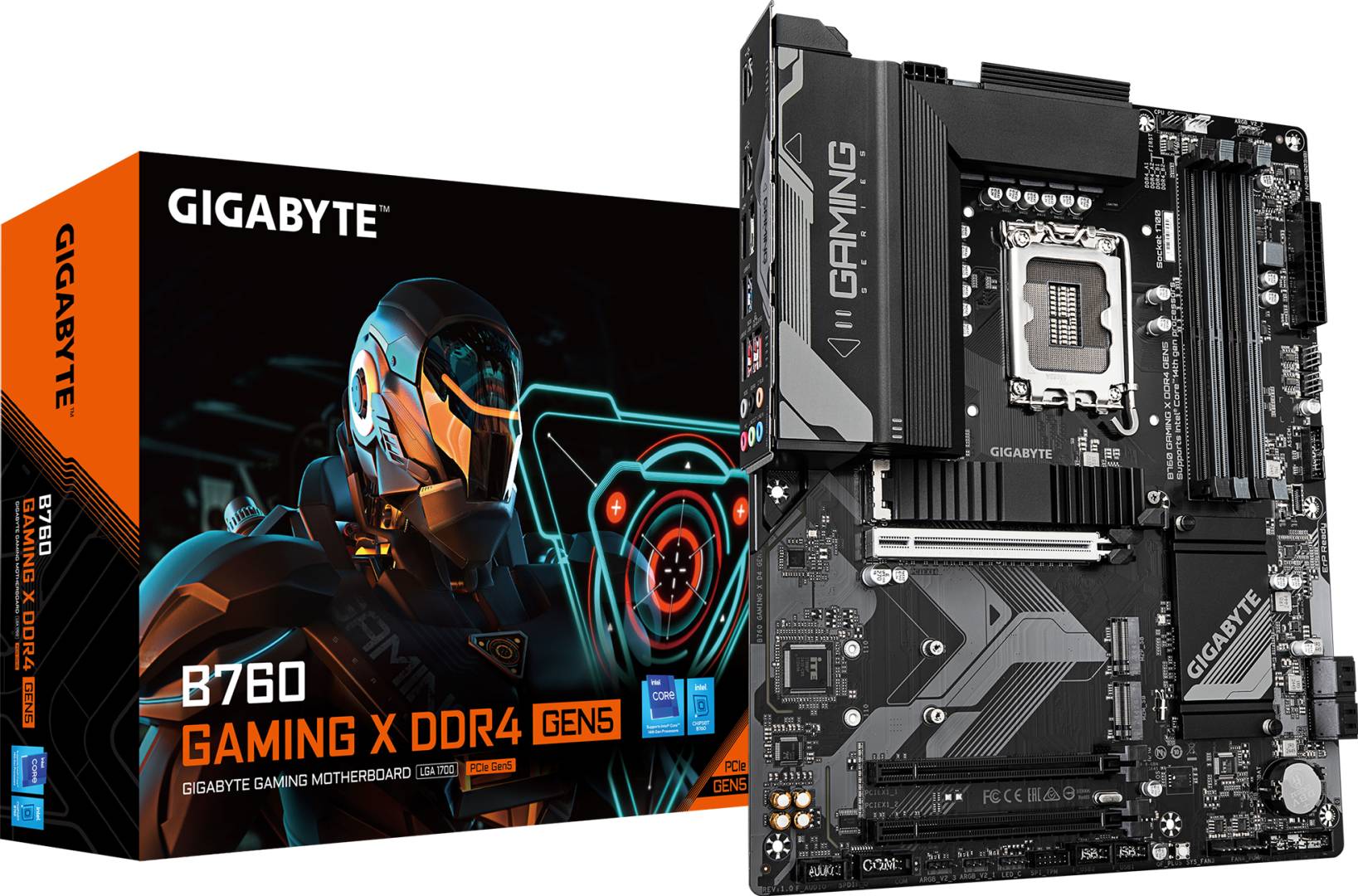

GIGABYTE B760 GAMING X DDR4 GEN5 ATX Motherboard, LGA1700, PCIe 5.0 x16, Three PCIe 4.0 M.2, 2.5GbE LAN

Brand:
GigaByte
B760 GAMING X D4 GEN5
€132.96 €147.73
€158.22 inc. VAT
Out of stock
Add to wish list Ask a question
Product Code
03:278369
EAN Code
4719331873448
Manufacturer
GigaByte

Quick Specs

Platform
Intel LGA1700 / B760
Memory
4 × DDR4 / up to 128GB
Expansion
PCIe 5.0 x16 / 3 × M.2
Network
2.5GbE wired LAN
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

GIGABYTE B760 GAMING X DDR4 GEN5 ATX Motherboard, LGA1700, PCIe 5.0 x16, Three PCIe 4.0 M.2, 2.5GbE LAN

Intel LGA1700 / B7604 × DDR4 / up to 128GBPCIe 5.0 x16 / 3 × M.2

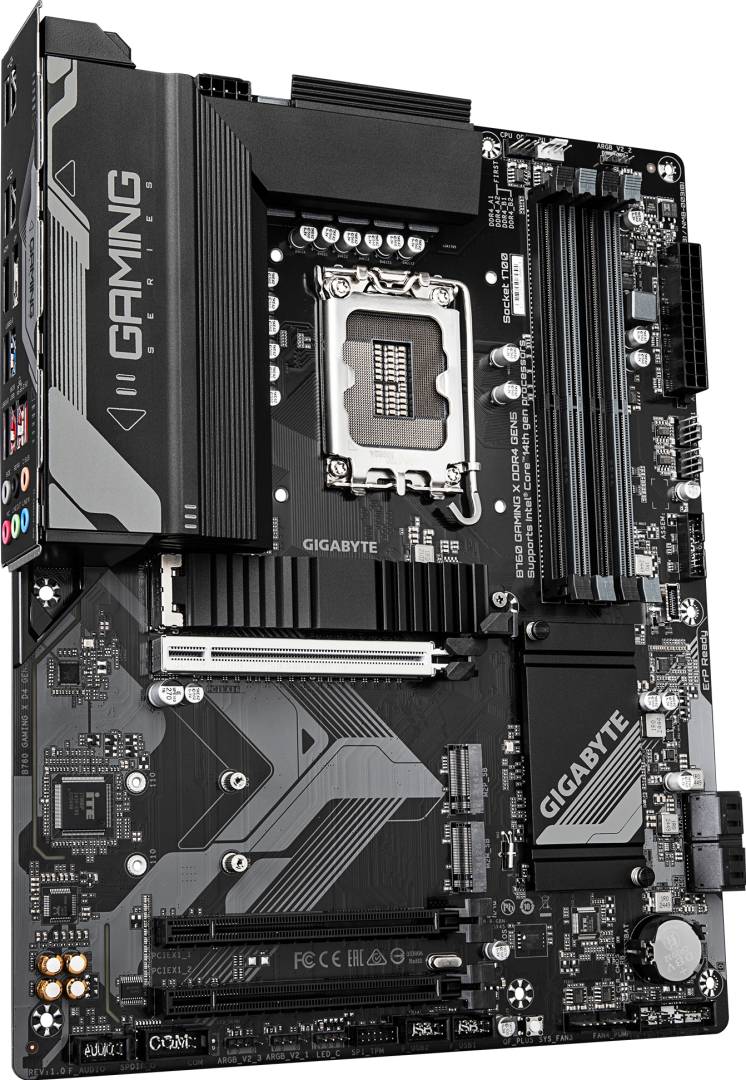

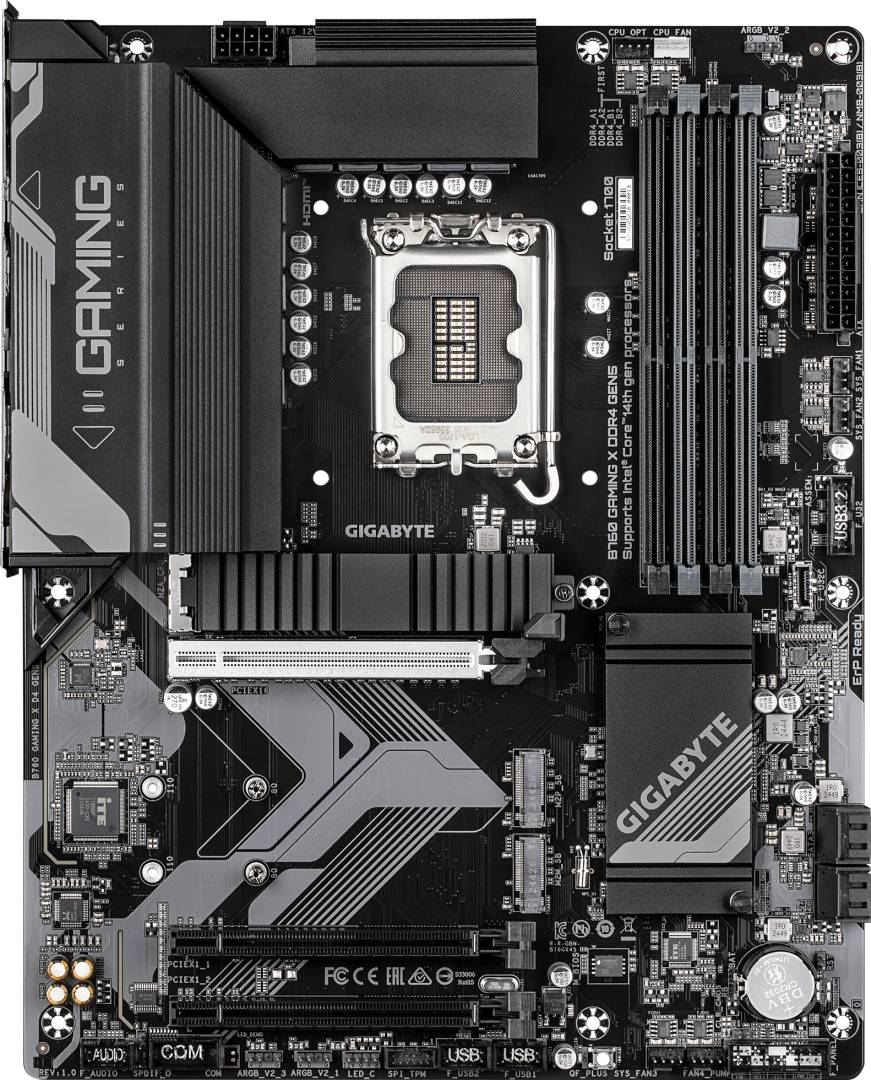

B760 GAMING X DDR4 GEN5 lets you build around a supported 12th, 13th or 14th generation Intel processor while retaining DDR4 memory. The ATX layout provides a PCIe 5.0 x16 graphics slot, three PCIe 4.0 M.2 connections and 2.5GbE wired networking. A 10Gbps USB-C header serves a compatible case front panel; there is no rear USB-C port. This exact DDR4 model has no built-in Wi-Fi or Bluetooth.

Compatibility — check before buying:
Requires supported LGA1700 CPU, DDR4 and an ATX-compatible case; components are separate.

Key Features


Keep DDR4, add modern expansion
Four DDR4 sockets support up to 128GB using modules up to 32GB each. XMP memory overclocking is supported, subject to CPU, BIOS and the memory support list.

Three NVMe slots and clear PCIe wiring
All three M.2 connectors support PCIe 4.0 NVMe drives. The main PCIe slot is x16 wired; the two additional full-length slots are x1 wired and suit lower-bandwidth cards.

Cooling and service-friendly controls
VRM and M.2 heatsinks accompany six fan/pump headers and Smart Fan 6. PCIe EZ-Latch eases graphics-card removal, while Q-Flash Plus can update BIOS without installed CPU, RAM or GPU.

Wired connectivity and front USB-C
Use 2.5GbE for a compatible wired network and the internal 10Gbps USB-C header with a matching case connector. Rear display outputs require CPU integrated graphics.

Technical Specifications

Identification
Brand / model GIGABYTE B760 GAMING X DDR4 GEN5
Manufacturer SKU B760 GAMING X DDR4 GEN5
EAN / GTIN 4719331873448
Socket / chipset LGA1700 / Intel B760 Express
Form factor / dimensions ATX, 30.5 × 24.4cm
CPU and memory
CPU support Intel Core 14th/13th/12th generation, Pentium Gold and Celeron; check exact CPU support list/BIOS
Memory capacity / slots 4 × DDR4 DIMM, up to 128GB, up to 32GB per module; dual channel
Supported memory rates 5333(OC) / 5133(OC) / 5000(OC) / 4933(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133MT / s
Memory types Non-ECC unbuffered 1Rx8/2Rx8/1Rx16; ECC unbuffered 1Rx8/2Rx8 operates in non-ECC mode; XMP supported; check memory QVL
VRM / PCB Hybrid 8+1+1 phases, 60A DrMOS, 6-layer PCB, shielded internal memory routing
Expansion and storage
Main PCIe slot 1 × PCIe 5.0 x16, x16 wired; graphics card or NVMe SSD only
Secondary PCIe slots 2 × physical x16, PCIe 3.0 x1 wired
M.2 connections 3 × Socket 3 Key M, 2280/22110, PCIe 4.0 x4/x2 NVMe; M2A_CPU from CPU, M2P_SB/M2M_SB from chipset
SATA / RAID 4 × SATA 6Gb/s; SATA RAID 0/1/5/10
Connectivity
Wired LAN Realtek 2.5GbE, 2.5Gbps / 1Gbps / 100Mbps
Wireless No built-in Wi-Fi or Bluetooth on this DDR4 GEN5 model
DisplayPort 1 × DisplayPort 1.2, up to 4096×2304 at 60Hz, HDCP 2.3; requires CPU integrated graphics
HDMI 1 × HDMI 2.1 TMDS, up to 4096×2160 at 60Hz, HDCP 2.3; CPU-dependent
Rear USB 1 × USB 3.2 Gen 2 Type-A (10Gbps), 2 × Gen 1 Type-A (5Gbps), 5 × USB 2.0/1.1
Front USB 1 × USB-C Gen 2 header for 1 port (10Gbps); 1 × Gen 1 header for 2 ports (5Gbps); 2 × USB 2.0/1.1 headers for 4 ports
Other rear ports 1 × RJ-45, 6 × audio jacks; no rear USB-C
Audio Realtek HD audio, 2/4/5.1/7.1 channels; software jack reassignment for 7.1; S/PDIF out header, high-end audio capacitors
Internal headers and cooling
Power connectors 1 × 24-pin ATX, 1 × 8-pin ATX 12V; UD solid pins
Fan / pump headers 1 × CPU fan, 1 × CPU fan/pump, 3 × system fan, 1 × system fan/pump; up to 2A / 24W (12V) per header; PWM/DC, over-current protection
Cooling construction VRM Thermal Armor Advanced, M.2 Thermal Guard; one-piece TMOS heatsink, 5W/mK thermal pad; up to 4× surface versus traditional heatsinks (manufacturer reference)
Smart Fan 6 Multiple temperature sources, PWM/DC fan curves, slope/stair modes, Fan Stop, 7 control points, profile saving; pump control depends on installed pump
Lighting 3 × ARGB Gen 2 headers, 1 × RGB header, RGB Fusion via GCC
Other headers / controls 1 each: front panel, front audio, S/PDIF out, serial, TPM (GC-TPM2.0 SPI V2 only), reset jumper, Clear CMOS jumper, Q-Flash Plus button
Slot construction PCIe UD stainless-steel reinforcement, SMD mounting, PCIe EZ-Latch quick release
Firmware and software
BIOS 256Mbit flash, licensed AMI UEFI; PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
BIOS update Q-Flash / Q-Flash Plus; Plus can update without CPU, RAM or GPU, with 24-pin/8-pin power and FAT32 USB containing exact BIOS renamed gigabyte.bin
I/O controller iTE
Monitoring Voltage, temperature, fan speed, water flow, fan-fail warnings and speed control
Utilities GIGABYTE Control Center (functions vary by board), Smart Backup
Operating systems Windows 11 64-bit, Windows 10 64-bit

What's in the Box

B760 GAMING X DDR4 GEN5 motherboard

What Will Not Work

Requires supported LGA1700 CPU, DDR4 and an ATX-compatible case; components are separate.
No built-in Wi-Fi/Bluetooth or rear USB-C.
Rear display outputs require CPU integrated graphics; secondary physical x16 slots run at x1.

Frequently Asked Questions

Can I install DDR5 because the name says GEN5?
No. GEN5 refers to the PCIe 5.0 graphics slot; this board takes DDR4 DIMMs only.
Is there USB-C on the rear panel?
No. The USB-C connection is a 10Gbps internal header for a compatible front case port. Rear USB connectors are Type-A.
Do the two extra full-length slots run at x16?
No. They have the physical x16 shape but run at PCIe 3.0 x1. Use the main PCIEX16 slot for your graphics card.
Singular Expert Insight
Choose this board when you want DDR4 reuse, three NVMe drives and wired 2.5GbE in an ATX build. Budget for a separate wireless adapter if Wi-Fi is needed. Check your upgrade with Singular Tell us your equipment model and we can check the compatibility requirements.

Buyer’s Guide

Buy it if

You have a supported LGA1700 CPU and DDR4 kit and want PCIe 5.0 graphics expansion.

Skip it if

You need DDR5, built-in Wi-Fi or rear USB-C.

Also consider

The distinct DDR5 or Wi-Fi variants only if their memory and network specifications match your build.
