StarTech.com RK519WALLV — 5U Low-Profile Vertical Wall Rack, 90 kg
5U · 19-inch90 kg capacityVertical wall mountFully assembled

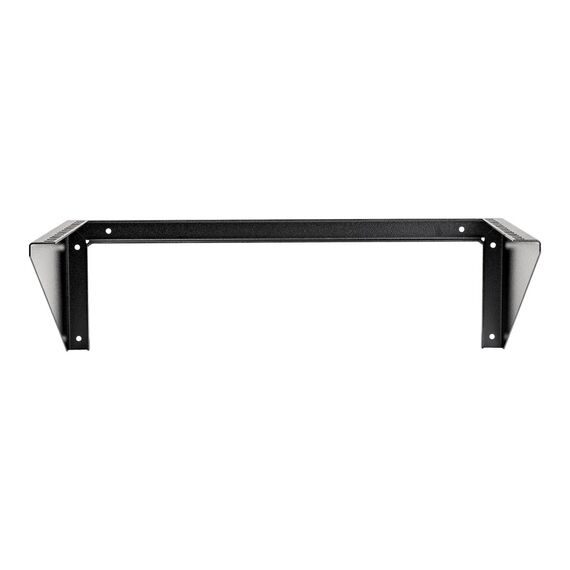

The StarTech.com RK519WALLV is a 5U, 19-inch low-profile vertical wall-mount rack with a 90 kg load rating, for mounting switches, patch panels and small appliances on a wall in offices, classrooms and shops without a floor-standing cabinet.

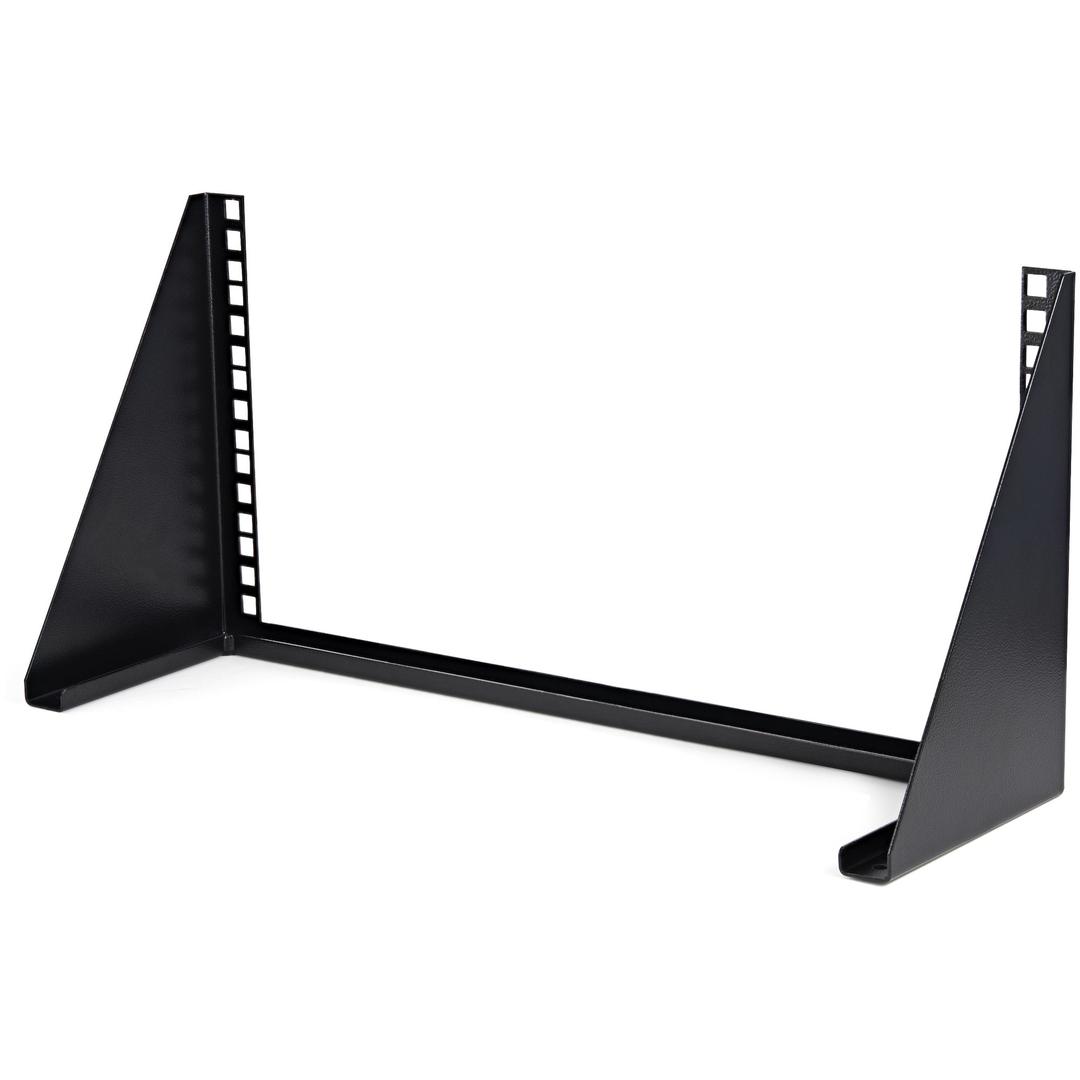

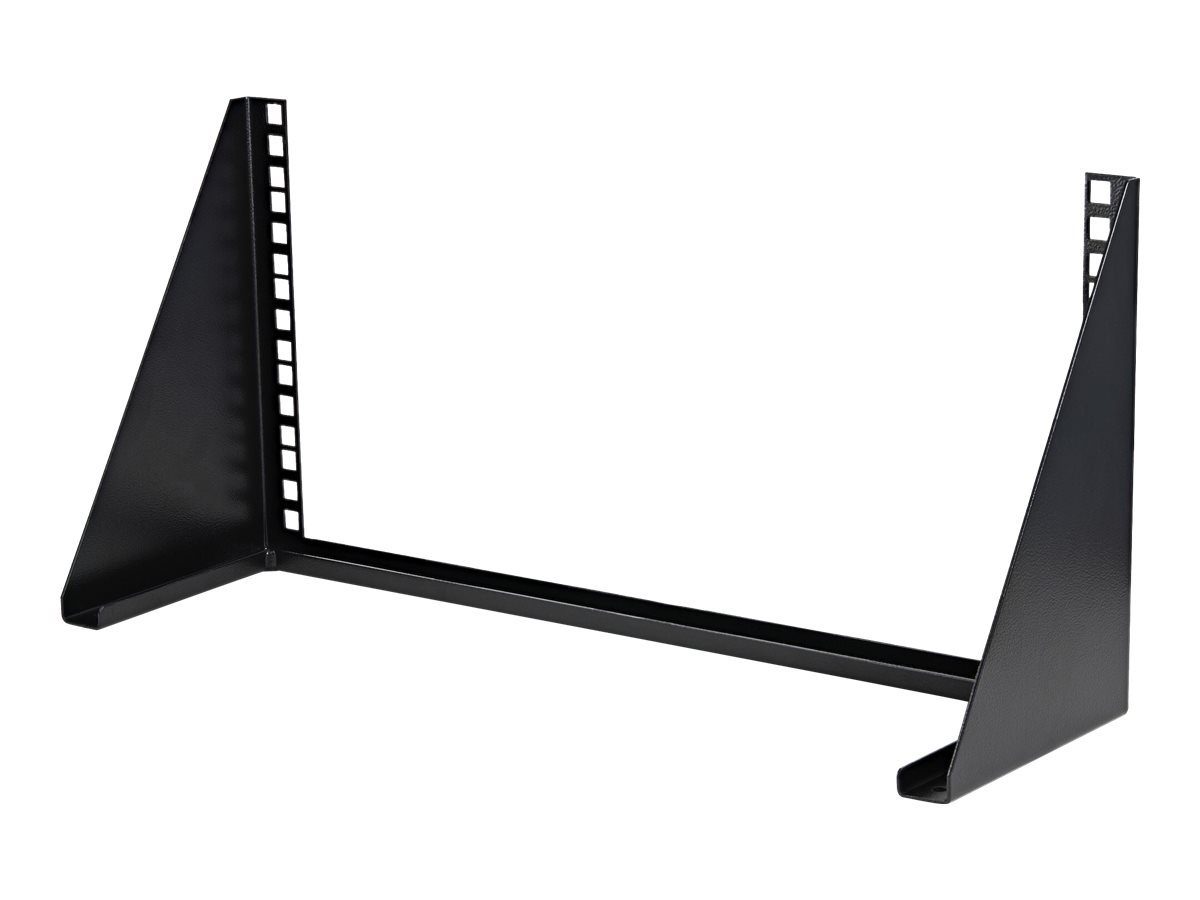

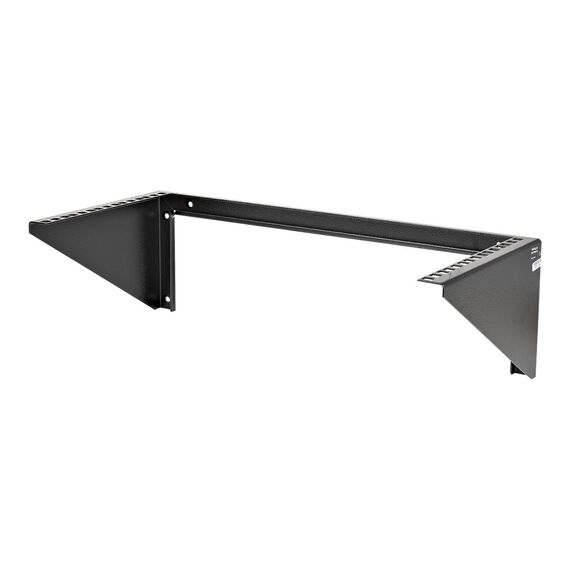

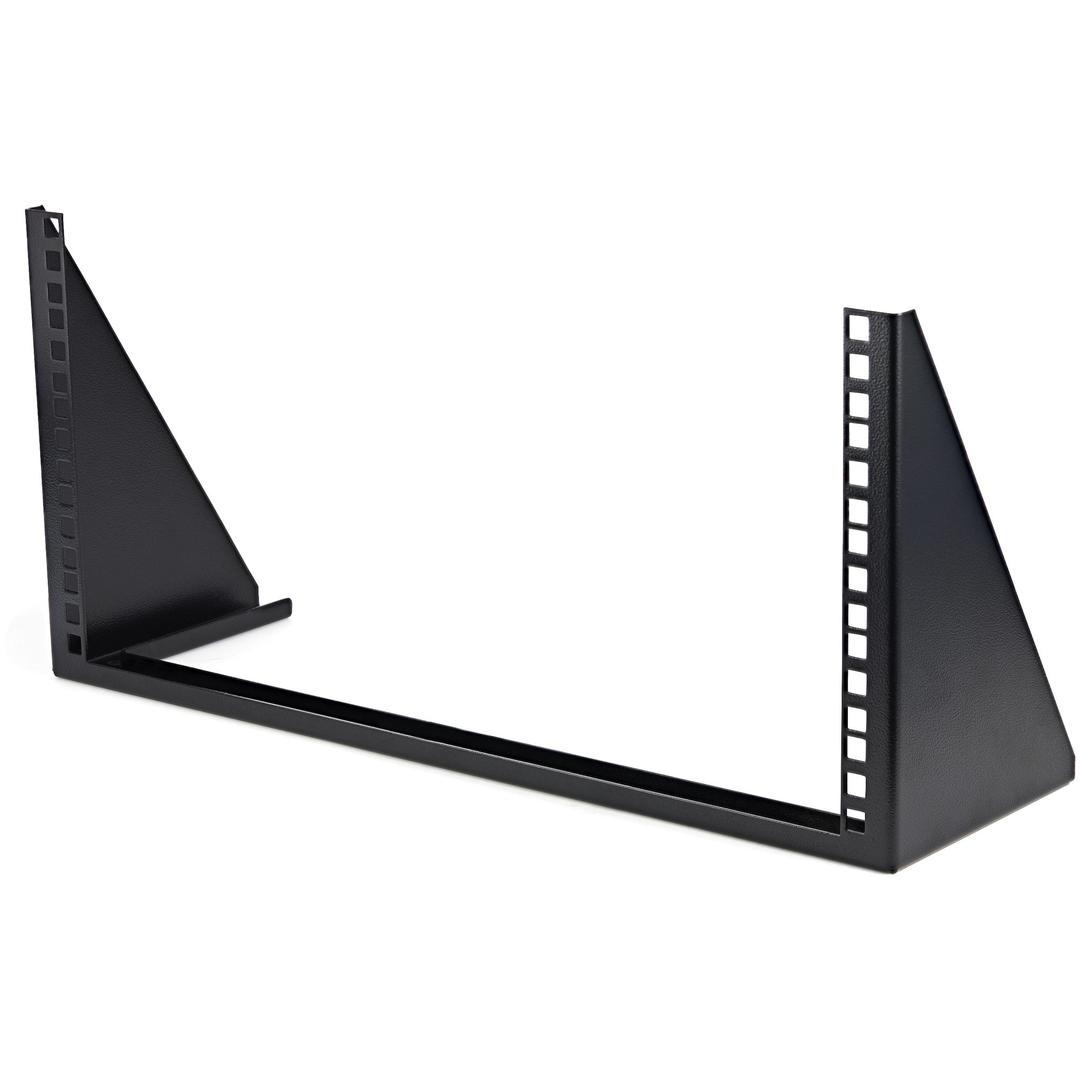

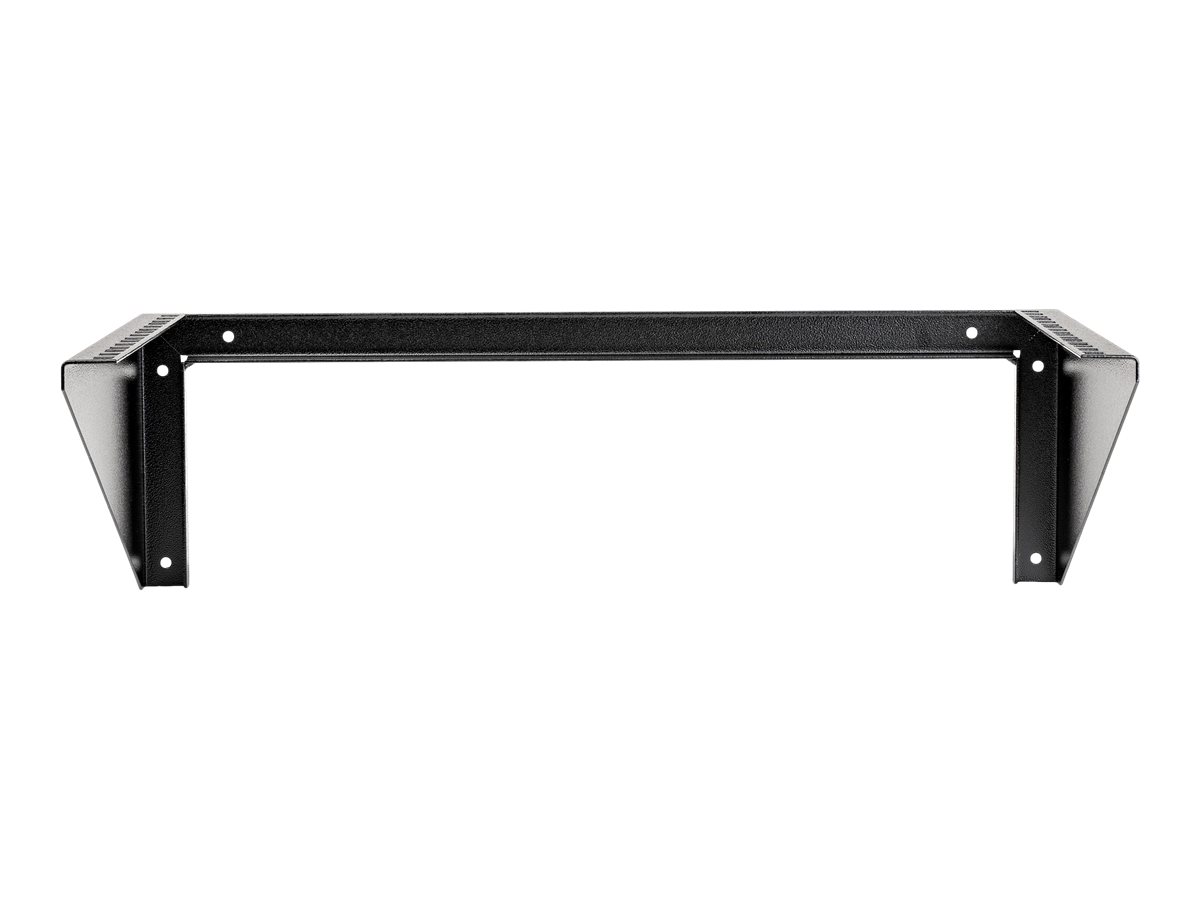

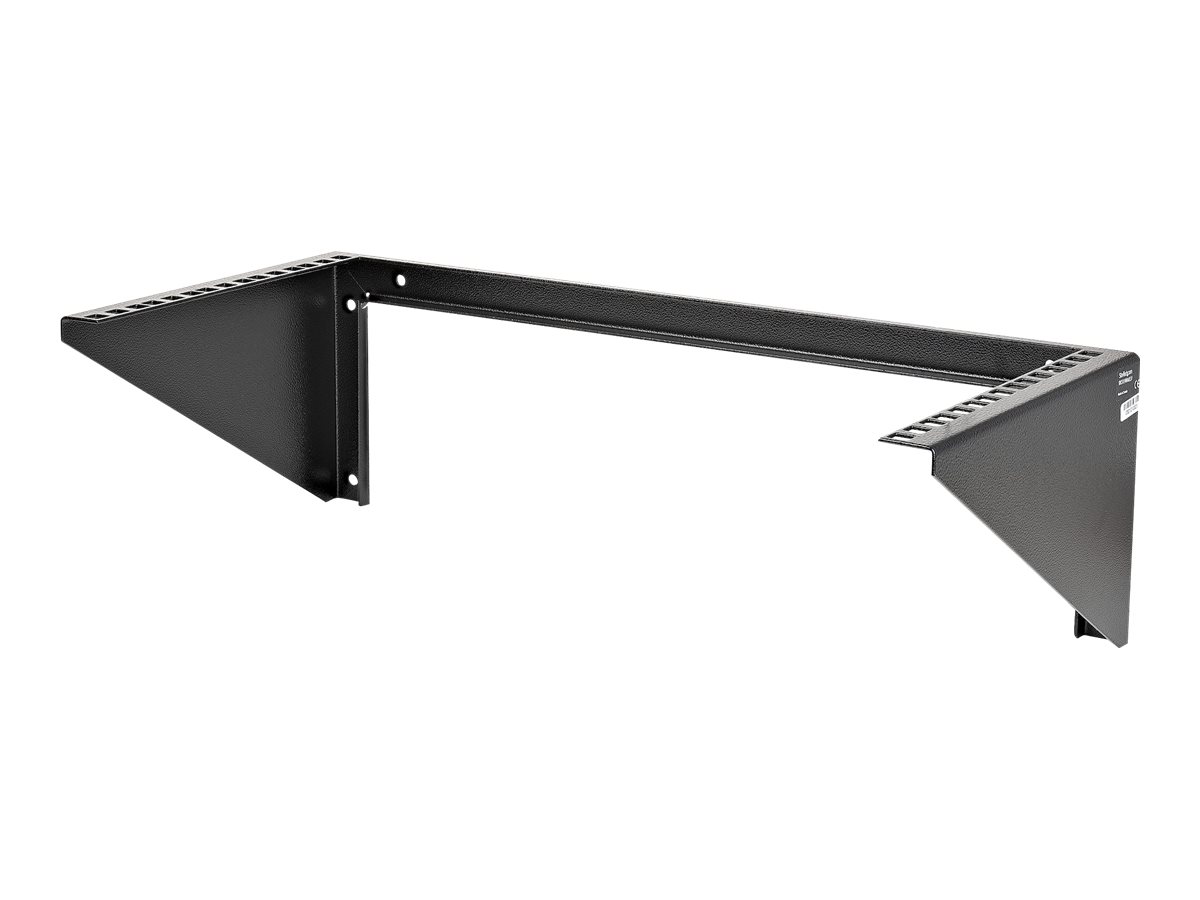

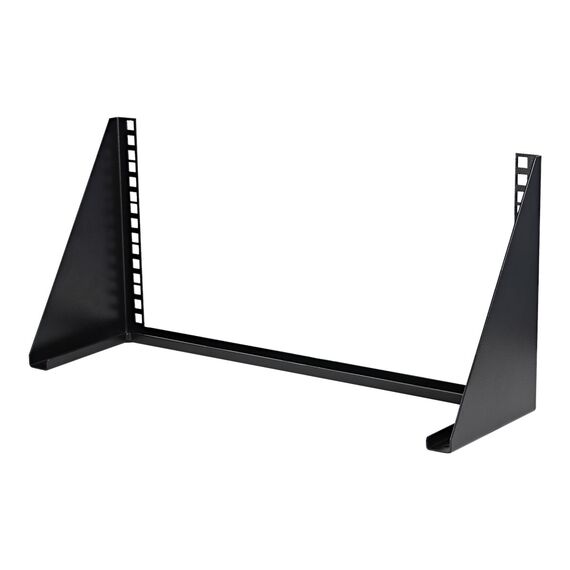

It is an open 2-post steel frame with L-shaped square-hole rails (EIA/ECA-310-E) that holds the equipment vertically against the wall. The wall holes are spaced 406 mm (16 in) apart to match standard stud spacing, and the rack ships fully assembled.
Before you order: StarTech does not publish a maximum equipment depth for this rack. Tell us the model of the device you plan to mount and we will confirm it fits.

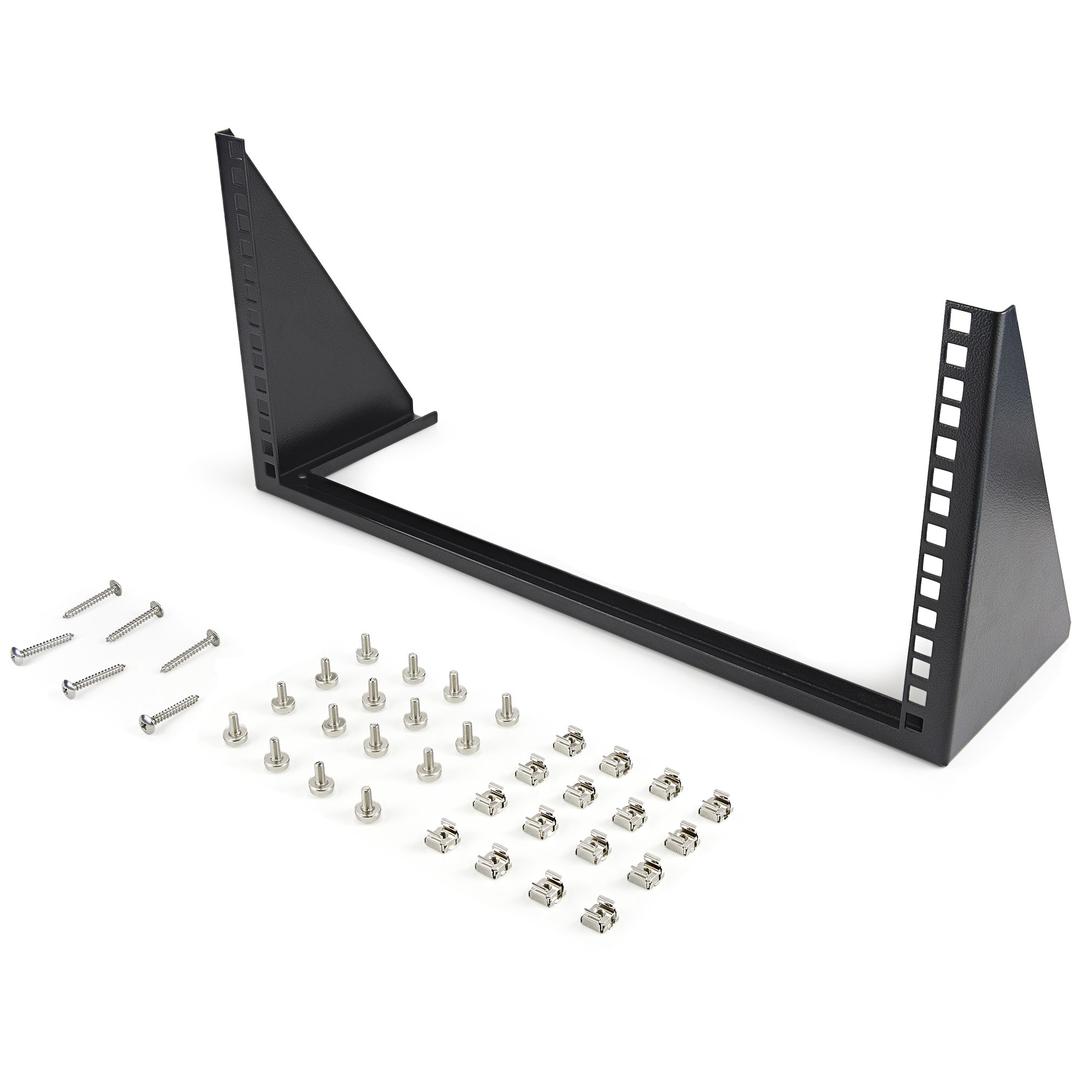

What's in the Box
- 1 × vertical wall-mount rack (fully assembled)
- 16 × M5 cage nuts
- 16 × M5 screws
- 6 × wood screws
What It Means in Practice
- 5U fits, for example, a 24- or 48-port switch, a patch panel, a cable manager and a small shelf.
- 90 kg rating covers far more than typical network gear — the wall fixing is usually the limit.
- 16-inch hole spacing lines up with standard timber studs; for masonry use rated anchors.
- Open frame: no dust protection or lock.
What Will Not Work
- 23-inch or 10-inch equipment.
- Servers needing 4-post rails.
- Round-hole mounting without matching screws.
- Locking or enclosing equipment.
Key Features
90 kg rating
Heavy-duty frame for fully populated 5U.
Vertical low profile
Keeps equipment close to the wall.
Stud-aligned holes
406 mm spacing for timber stud walls.
Ships assembled
Ready to fix to the wall.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
An open vertical wall rack is ideal for a small comms point with a switch and patch panel. Fill it with our network switches and keep the wall fixings matched to the load.
✓ Buy it if you need 5U of open 19-inch wall space with a generous load margin.
✕ Skip it if you need a lockable enclosure.
→ Also consider the StarTech.com RK419WALLV (4U, 56.7 kg) or a wall-mount rack cabinet.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
