Newland HR12 Anchoa Wired 1D CCD Barcode Scanner, 300 Scans/s, 2m USB Cable, IP41, Black

Brand:
Newland

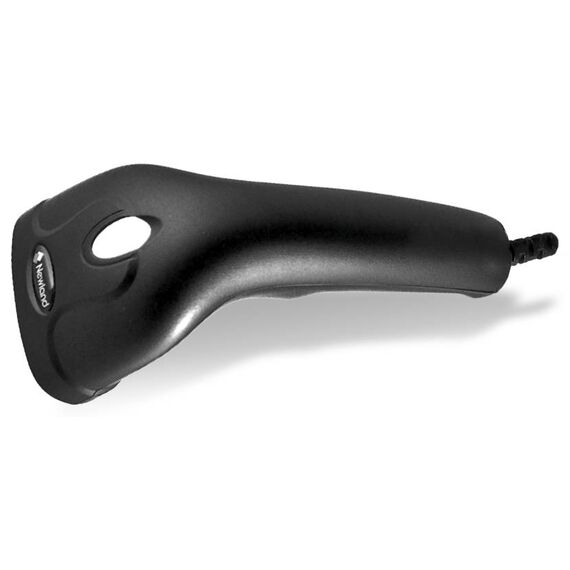

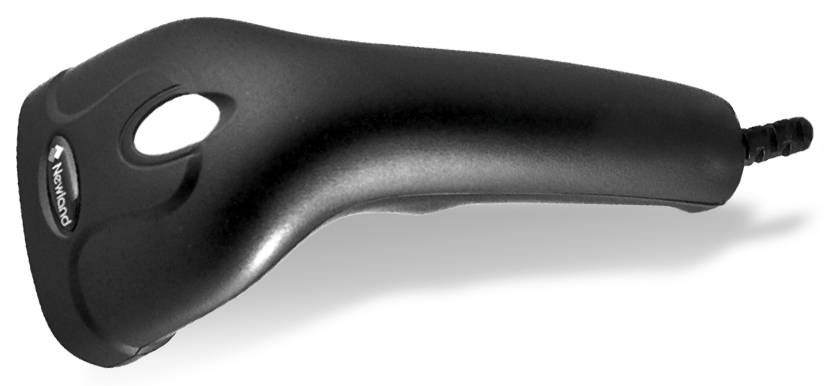

Newland HR12 Anchoa NLS-HR1250-70 Black Wired USB 1D Barcode Scanner
Newland HR12 Anchoa Wired 1D CCD Barcode Scanner, 300 Scans/s, 2m USB Cable, IP41, Black
€51.04 inc. VAT
Buy
NLS-HR1250-70
€42.89
€51.04 inc. VAT
Ships from EU stock: 20 item(s)
+ −
Add to wish list Ask a question
Product Code
CE77927
Manufacturer
Newland

Quick Specs

Barcode type
1D / CCD
Scan rate
300 scans/s
Connection / cable
Wired USB, 2m direct cable
Protection / weight
IP41 / 130g including USB cable
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Simple wired capture for everyday 1D labels

1D CCD300 scans/s2m USBIP41

The HR12 Anchoa reads linear barcodes for tasks such as product entry and inventory counting. This NLS-HR1250-70 configuration is the black handheld reader with a direct 2m USB cable. Connect it to a compatible USB host and configure the reader and receiving application for your barcode workflow. One scanner and its USB cable are supplied; a stand is not listed in this package.

Before you order:
This is a wired 1D reader, so choose a verified 2D scanner if the task requires QR or Data Matrix. Reading range depends on barcode type and element size: the 655mm figure applies to EAN13 at 13mil, not every barcode. Screen-reading capability is not established by the exact-model evidence used here.

What It Means in Practice

  • For a stock-counting workflow, connect the USB cable, select the required scan mode and confirm that a sample label reaches the intended application correctly before processing the batch. Trigger, Sense and Continuous modes are listed.

What Will Not Work

  • It is not a wireless roaming scanner or a 2D code reader. Do not treat IP41 as waterproof protection.

Key Features


Linear barcode capture
The CCD engine and 0110 chip support a broad listed set of 1D symbologies at 300 scans/s.

A defined USB configuration
The exact ordering code supplies a 2m direct USB cable, avoiding uncertainty about interface and cable selection.

Lightweight handheld design
The 130g specification includes the USB cable. Beep and LED notifications provide reading feedback.

Technical Specifications

Identity and capture
Brand / model / MPN Newland / HR12 Anchoa / NLS-HR1250-70
EAN / colour 5711783201700 / black
Sensor / processor 1500 CCD / 0110 Chip
Barcode support 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code93, ITF-6, ITF-14, Interleaved/Industrial/Standard/Matrix 2of5, GS1 Databar, Code39, Code11, MSI-Plessey, Plessey
Scan rate / modes 300 scans/s; Trigger, Sense, Continuous
Code39 5mil depth of field 55–165mm
EAN13 13mil depth of field 50–655mm
Horizontal field of view 40°
Illumination / minimum contrast Red LED 610–640nm / 30%
Pitch / roll / skew angles ±60° / 30° / ±60°
Connection and power
Interface / cable USB; 2m direct cable; wired
Input voltage 5V DC ±5%
Operating / standby current at5VDC 55±5mA / 21±2mA
Notification Beep and LED
Physical and environmental
Dimensions 163 × 68.4 × 58.5mm
Weight / housing 130g including USB cable / PC, ABS
Protection / ESD IP41; ±8kV contact, ±10kV air
Operating / storage temperature −20–60°C / −40–85°C
Humidity 5–95%, non-condensing
Compliance FCC Part15 ClassB, CE EMC ClassB, RoHS
Package / manufacturer warranty
Included 1 × HR12 Anchoa scanner with 2m USB cable; no stand listed
Manufacturer standard warranty 5 years stated by Newland; seller terms checked separately

Frequently Asked Questions

Can it read QR codes?
This is a 1D CCD scanner. Choose a verified 2D imager for QR or Data Matrix.
What does the 655mm range mean?
Newland lists 50–655mm for EAN13 at 13mil; Code 39 at 5mil is 55–165mm. Match the range to the labels you use.
Is it a cordless kit with a stand?
No. This exact version is wired USB with a 2m direct cable. The official package lists the scanner and cable; no stand is listed.
Singular Expert Insight
Start with the barcode format and the application that receives the data. This version makes sense for linear-label work within cable reach; sample-label testing is more useful than comparing scan rates alone. Check your barcode and application requirements

Buyer’s Guide

✓

Buy it if

 You need a simple wired handheld reader for supported 1D labels.
✕

Skip it if

 You require QR, Data Matrix, wireless movement or verified screen reading.
→

Also consider

 A verified 2D or cordless scanner matched to those requirements.
Provide a sample barcode format and the intended host/application.
