EFB EC020200105 Cat 6A S/FTP Patch Cable 1 m Orange PiMF AWG 27/7 LSZH 500 MHz 10GbE Gold Plated Moulded
Brand:
EFB
EFB EC020200105 Cat 6A S/FTP Patch Cable 1 m Orange PiMF AWG 27/7 LSZH 500 MHz 10GbE Gold Plated Moulded
€3.93 inc. VAT
EC020200105
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
EFB EC020200105 Cat 6A S/FTP Patch Cable, 1 m Orange
Cat 6A · 500 MHzS/FTP PiMFAWG 27/71 m Orange

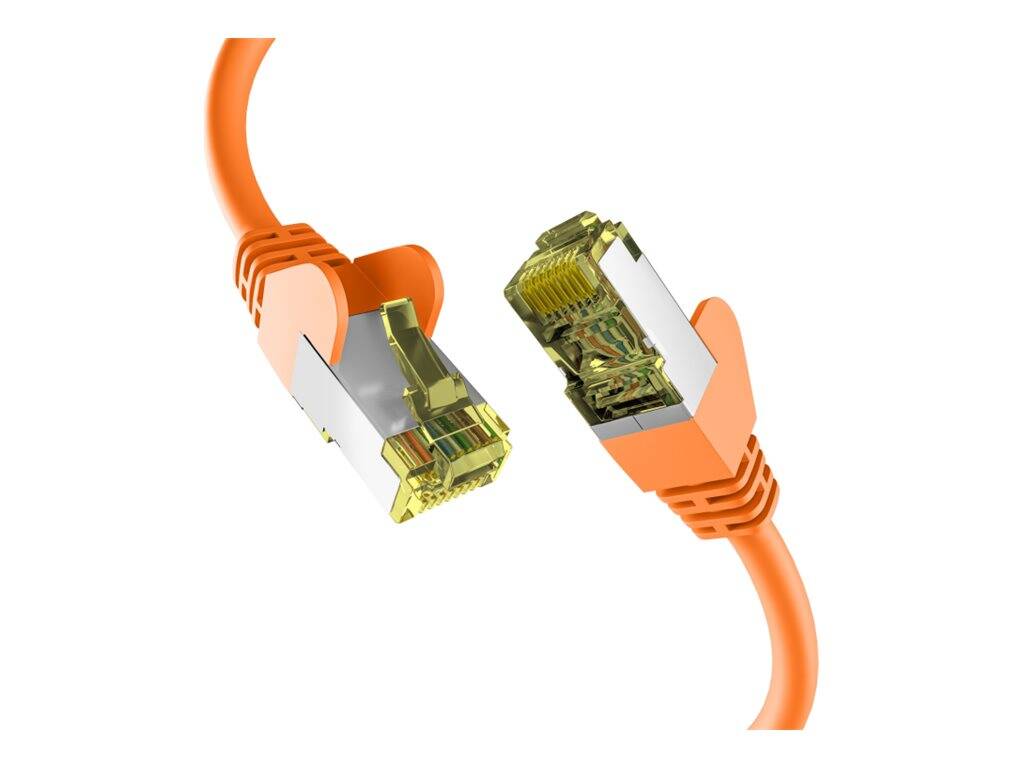

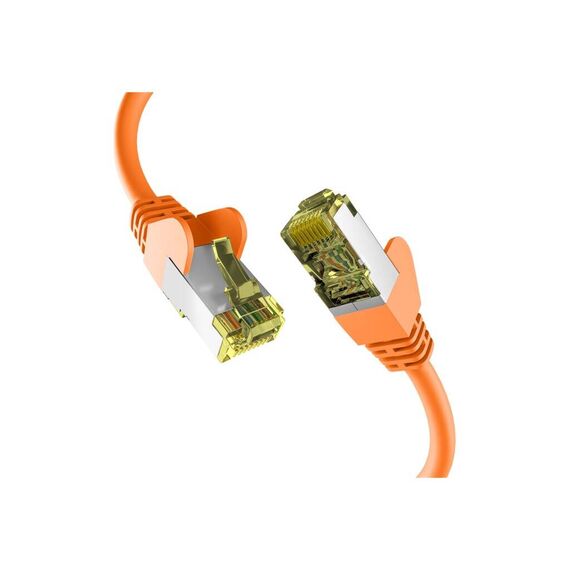

The EFB-Elektronik EC020200105 is a 1 m orange Cat 6A S/FTP PiMF patch cable with AWG 27/7 stranded conductors and a halogen-free LSZH jacket, built for 10 Gigabit Ethernet in racks, server rooms and offices.
The part number is EC020200105 (EAN 4049759289539). Every pair is individually foiled and the bundle is covered by an overall braid, the 6 mm cable is wired 1:1 to T568B, and the gold-plated RJ45 plugs sit in moulded, anti-kink boots with latch protection. It meets EN 50173-1, ISO/IEC 11801 and TIA/EIA-568-B up to 500 MHz. Typically in stock with fast delivery across Cyprus.
Before you buy
EFB does not publish a PoE class for this cord, so we do not claim one. For IEEE 802.3bt (4PPoE) devices, EFB's MK6001/MK7001 lines state 4PPoE explicitly. The S/FTP shield only works fully when both ends are plugged into grounded, shielded ports; with ordinary ports the cord still works normally.
Key Features
10 GbE at 500 MHz
Cat 6A transmission to 500 MHz carries 10GBase-T over the full channel, so the cord will not be the bottleneck in a 10 GbE rack.
PiMF + braid shielding
Pairs in metal foil plus an overall braid keep crosstalk and outside interference down in dense patch fields.
LSZH, moulded boots
Halogen-free jacket for safer buildings, and moulded anti-kink boots with latch protection for years of re-patching.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
A 1 m shielded Cat 6A cord is the workhorse length for patching network switches to a panel one or two units away. EFB's colour range lets you code uplinks, servers and PoE devices at a glance. If you need guaranteed 802.3bt PoE, pick EFB MK6001 instead.
Buyer's Guide
Buy it if
You want a 1 m halogen-free S/FTP Cat 6A cord for 10 GbE patching, in orange for colour coding.
Skip it if
You need a documented 802.3bt PoE rating.
Also consider
EFB MK6001 Cat 6A (4PPoE) or EFB MK7001 with Cat 7 raw cable.
Features - EFB - EC020200105
Colour
orange
Length
1.0m
Standard
CAT6a
More Details
Product Code
04:450044
EAN Code
4049759289539
Manufacturer
EFB
