EFB-Elektronik EC020200221 Cat 6A S/FTP PiMF Patch Cable 1 m Orange Cat 7 Raw Cable RJ45 10 Gbps LSZH AWG 27/7

Brand:
EFB
EFB-Elektronik - Patch cable - RJ-45 (M) to RJ-45 ( | EC020200221
EFB-Elektronik EC020200221 Cat 6A S/FTP PiMF Patch Cable 1 m Orange Cat 7 Raw Cable RJ45 10 Gbps LSZH AWG 27/7
€4.02 inc. VAT
Buy
EC020200221
€3.38
€4.02 inc. VAT
Ships from EU stock: 144 item(s)
+ −
Add to wish list Ask a question
Product Code
04:437723
EAN Code
4049759290696
Manufacturer
EFB
Quick Specs
Category
Cat 6A channel · Cat 7 raw
Length
1 m · Orange
Shielding
S/FTP PiMF
Jacket
LSZH · AWG 27/7
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

EFB-Elektronik EC020200221 S/FTP Patch Cable, Cat 7 Raw Cable, 1 m Orange

Cat 6A channel · 10 GbpsCat 7 raw cableS/FTP PiMFLSZH · 1 m orange

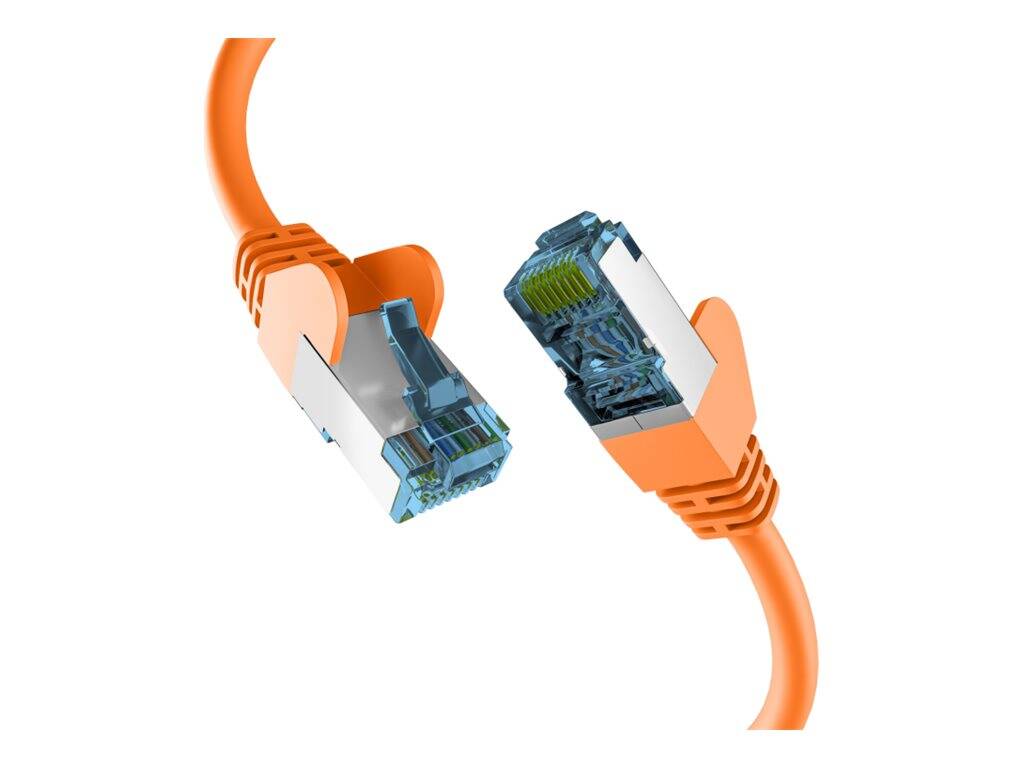

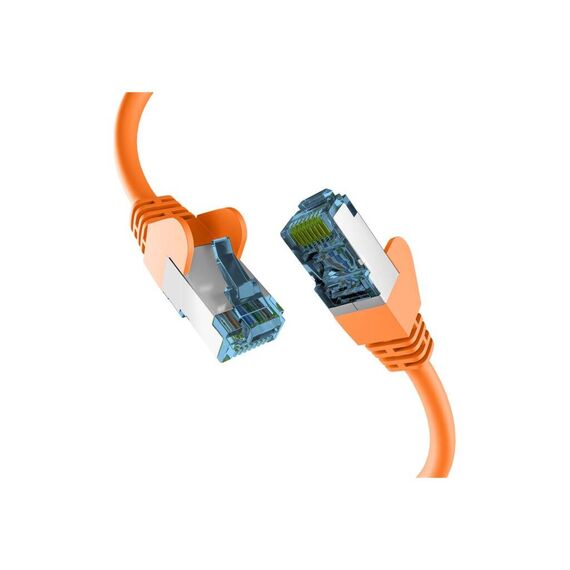

The EFB-Elektronik EC020200221 is a 1 m S/FTP PiMF patch cable that combines Cat 7 raw cable with Cat 6A RJ45 connectors, giving a robust, fully shielded 10 Gigabit Ethernet link for racks, desks and patch panels.

Part number EC020200221 uses AWG 27/7 stranded copper wired 1:1 to T568B, gold-plated contacts, a 6 mm LSZH jacket, moulded anti-kink boots with locking-lug protection and a length imprint. The orange jacket helps colour-code uplinks, servers or VLANs. Typically in stock with fast delivery across Cyprus.

Before you buy
The Cat 7 rating refers to the raw cable; the RJ45 plugs are Cat 6A, so the finished cord performs as a Cat 6A (500 MHz, 10 Gbps) channel. That is exactly what 10GBASE-T needs. Connect to shielded ports to benefit from the S/FTP construction. EFB publishes no PoE class for this family.

Key Features


Cat 7 cable, Cat 6A plugs
Heavier Cat 7 raw cable with pairs in metal foil plus overall braid gives extra noise margin, while standard Cat 6A RJ45 plugs fit every switch, NIC and patch panel.

Built for daily re-patching
Moulded anti-kink sleeves, strain relief and locking-lug (latch) protection stop the classic snapped-clip failure in busy patch fields.

LSZH and length imprint
Low smoke zero halogen jacket for offices and data rooms, plus a length imprint on the boot for faster documentation and tracing.

Technical Specifications

Identification
Part Number EC020200221
EAN / GTIN 4049759290696
MPN EC020200221
Brand EFB-Elektronik
Cable
Channel Class Cat 6A — 500 MHz, set by the RJ45 plugs
Raw Cable Grade Cat 7 per ANSI/TIA/EIA 568-C.2
Shielding S/FTP PiMF — pairs in metal foil plus overall braid
Conductor Copper, AWG 27/7 stranded, 8 wires
Jacket LSZH — low smoke, zero halogen
Outer Diameter 6 mm
Length 1 m
Colour Orange
Connectors
Connectors 2 × RJ45 male, shielded, Cat 6A
Wiring T568B, pin assignment 1:1
Contacts Gold-plated
Boot Moulded, anti-kink sleeve, locking-lug protection, length imprint
Performance & Compliance
Data Rate 10 Gigabit Ethernet (10GBASE-T)
PoE Not specified by manufacturer
Standards EN 50173-1, ISO/IEC 11801, TIA/EIA-568-B
Protection IP20 — indoor use

Frequently Asked Questions

Is the EFB EC020200221 a Cat 7 or Cat 6A cable?
Both, in a sense: the raw cable is built to Cat 7, but the RJ45 connectors are Cat 6A, so the complete cord is a Cat 6A channel rated for 500 MHz and 10 Gbps. RJ45-terminated cords cannot deliver a true Cat 7 channel.
Does the EC020200221 work with 10 GbE switches and NAS units?
Yes. It supports 10GBASE-T and is backwards compatible with 1, 2.5 and 5 GbE ports on switches, NICs, NAS units and routers.
Can I use it for PoE?
EFB does not publish a PoE class for this cord. The copper AWG 27/7 construction is typical of PoE-capable patch cords, but for high-power 802.3bt devices choose a cord with a published 4PPoE rating such as EFB MK6001.
Singular Expert Insight
The EC020200221 is a good fit where you want extra shielding margin without paying for exotic connectors: Cat 7 raw cable in a 1 m cord for connecting network switches to patch panels or servers. If you need a documented PoE++ rating, the EFB MK6001 Cat 6A series is the better choice; for Gigabit-only desks, a Cat 6 cord is cheaper.

Buyer's Guide

Buy it if
You want a shielded 1 m cord with a heavier Cat 7 raw cable for 10 GbE patching and like colour-coding by jacket.
Skip it if
You need a certified PoE++ rating or a slim cable for very dense panels.
Also consider
Other EC0202001xx/2xx colours at 1 m, EFB MK6001 Cat 6A (4PPoE) or EFB K5545 flat Cat 6A cords.
