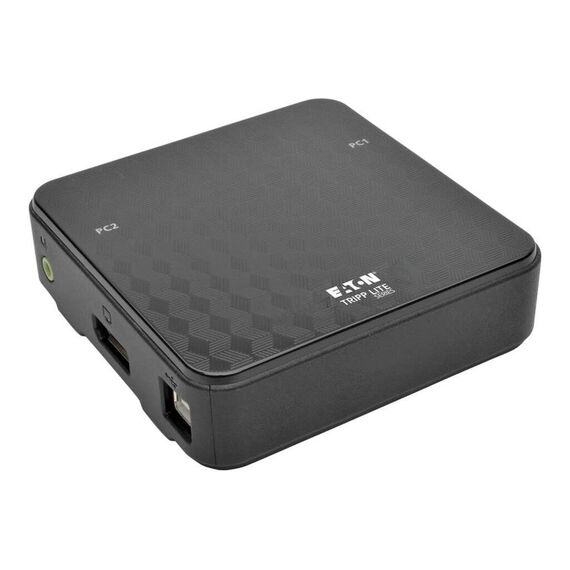

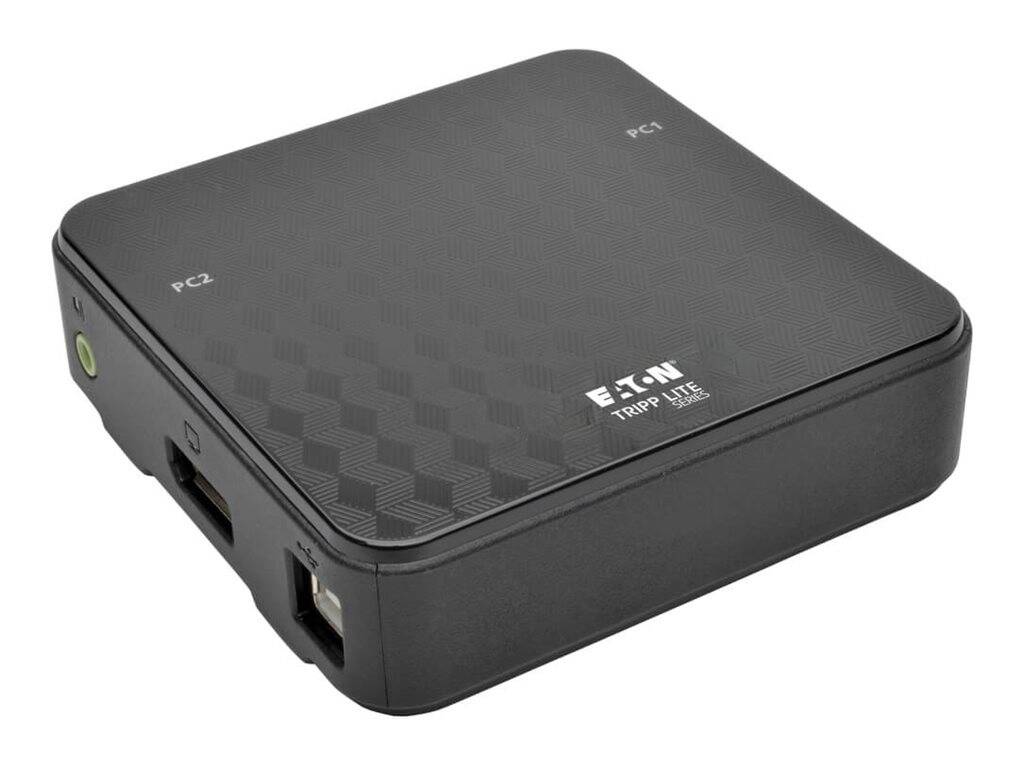

Tripp Lite B004-DP2UA2-K 2-Port DisplayPort 1.2 KVM Switch, 4K 60 Hz, Audio, USB Sharing, Cables

Brand:
Eaton Power Quality

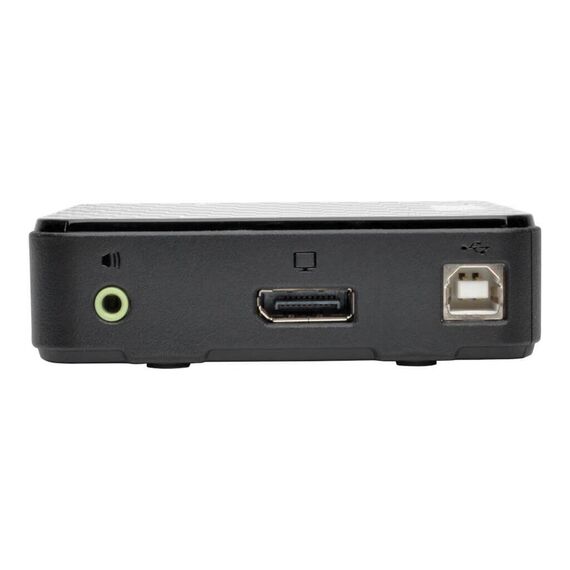

Eaton Tripp Lite series 2-Port DisplayPort 1.2 KV | B004-DP2UA2-K
Tripp Lite B004-DP2UA2-K 2-Port DisplayPort 1.2 KVM Switch, 4K 60 Hz, Audio, USB Sharing, Cables
€289.8 inc. VAT
Buy
B004-DP2UA2-K
€243.53
€289.80 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:528430
EAN Code
0037332193179
Manufacturer
Eaton Power Quality
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Tripp Lite B004-DP2UA2-K · 2-Port DisplayPort KVM Switch, 4K 60 Hz

2 PCs · 1 monitorDP 1.2 · 4K 60 HzWired remote includedCables included

Quick Specs

Computers / Monitors
2 PCs · 1 console · single monitor
Video
DisplayPort 1.2 · 3840 x 2160 @ 60 Hz
USB & audio
USB 2.0 peripheral sharing · 3.5 mm 2.1 audio
Form & switching
Desktop metal · remote · hotkeys · mouse

The Tripp Lite by Eaton B004-DP2UA2-K is a 2-port DisplayPort KVM switch that shares one DisplayPort monitor, USB keyboard, mouse and speakers between two computers at up to 3840 x 2160 at 60 Hz. It is a tidy, bus-powered solution for home offices and workstations with two PCs.

All cables are included (two DisplayPort, two USB A/B and two 3.5 mm audio), plus a wired remote port selector. Switching also works by hotkeys, mouse or auto-scan (3/5/10/20 s), and EDID support keeps the monitor correctly detected on both computers.

Compatibility note: Both computers need DisplayPort outputs (DP++ dual-mode is supported). The USB ports are USB 2.0 (480 Mbps), suitable for keyboards, mice and headsets rather than fast external storage.

Key Features


4K 60 Hz DisplayPort
DisplayPort 1.2 at 3840 x 2160 at 60 Hz with EDID and HDCP support for a sharp, stable picture.

Wired remote selector
An included desktop remote lets you switch without reaching the unit, alongside hotkeys and mouse switching.

Bus powered, cables included
No power adapter needed, and all DisplayPort, USB and audio cables are in the box.

Technical Specifications

Identification
Part Number B004-DP2UA2-K
EAN / GTIN 0037332193179
MPN B004-DP2UA2-K
Brand Eaton Tripp Lite
Ports & video

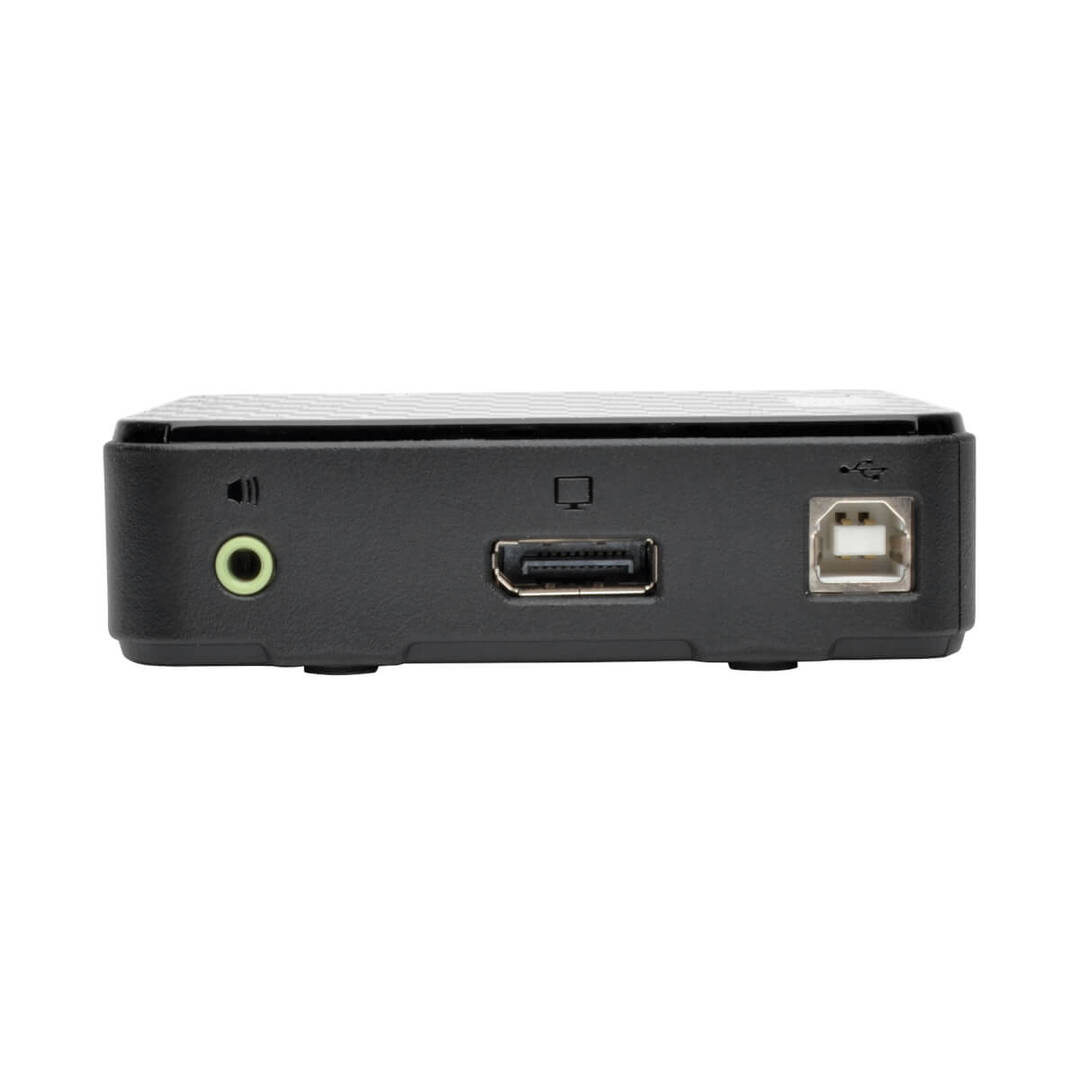

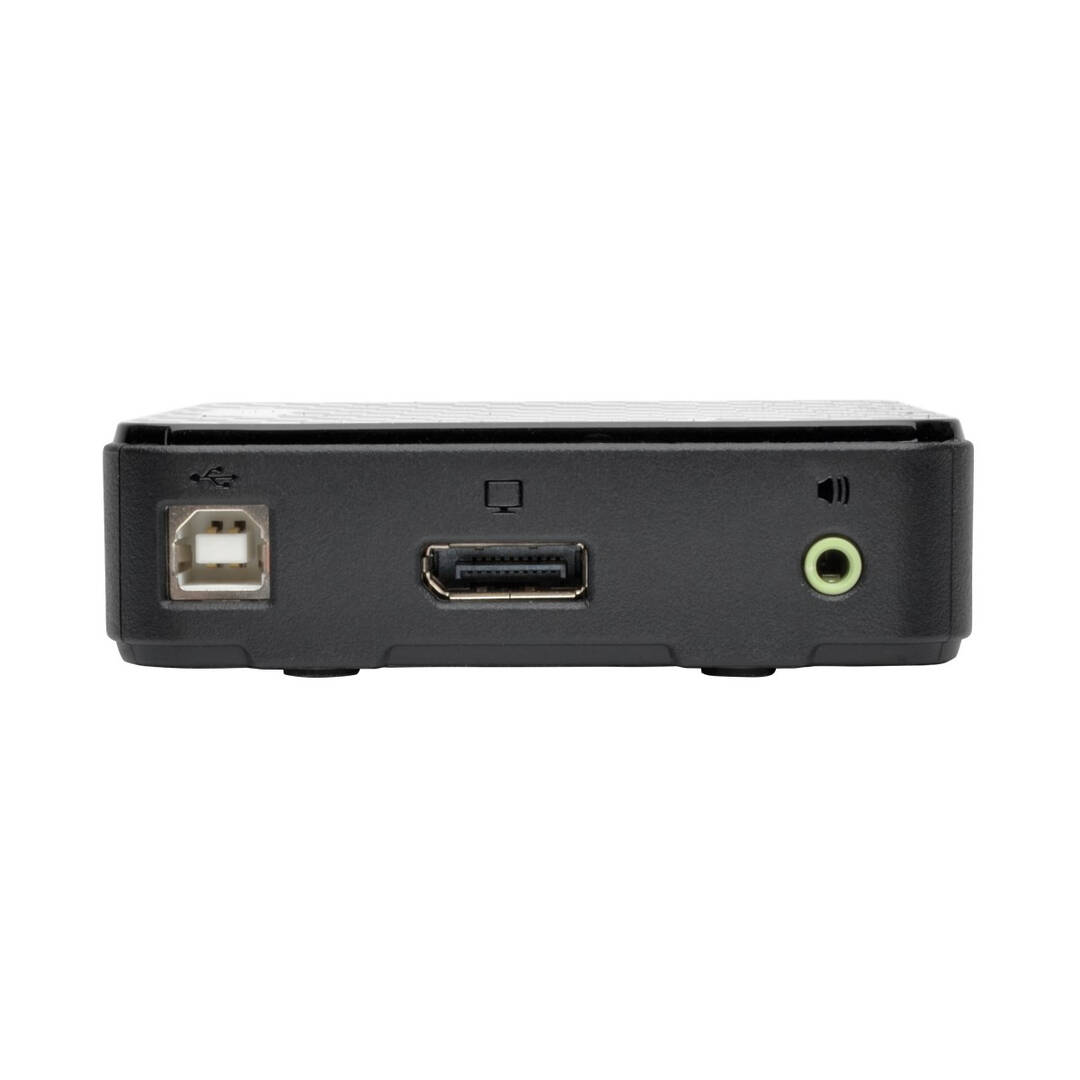

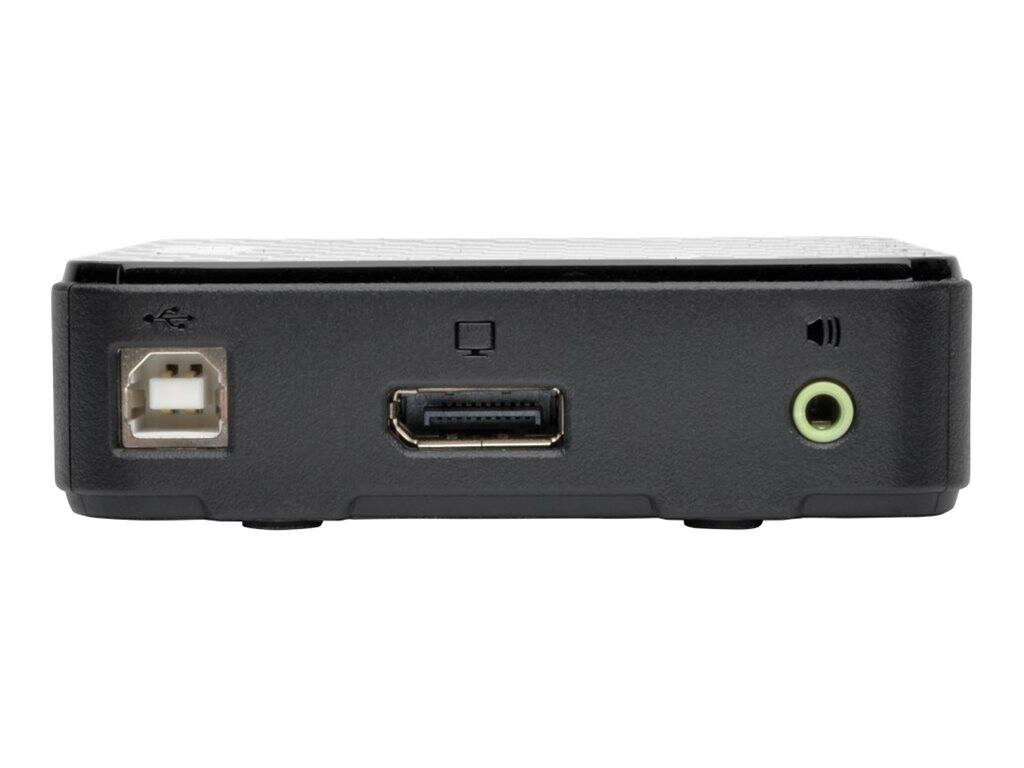

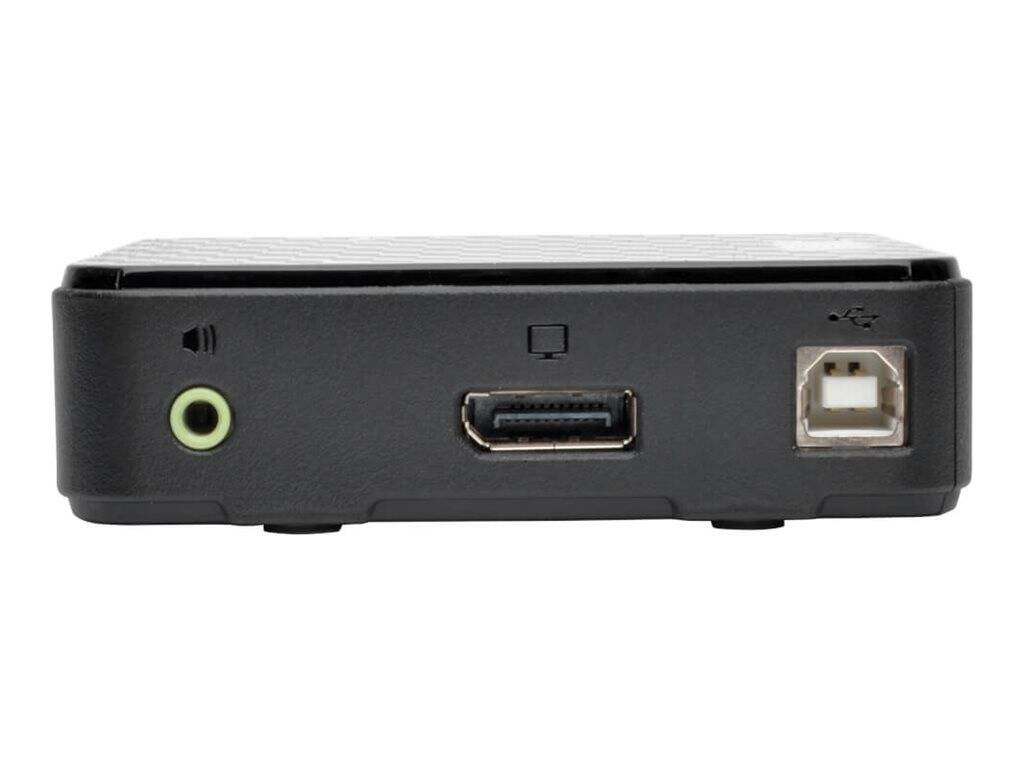

Computer ports 2 x DisplayPort + USB-B + 3.5 mm audio

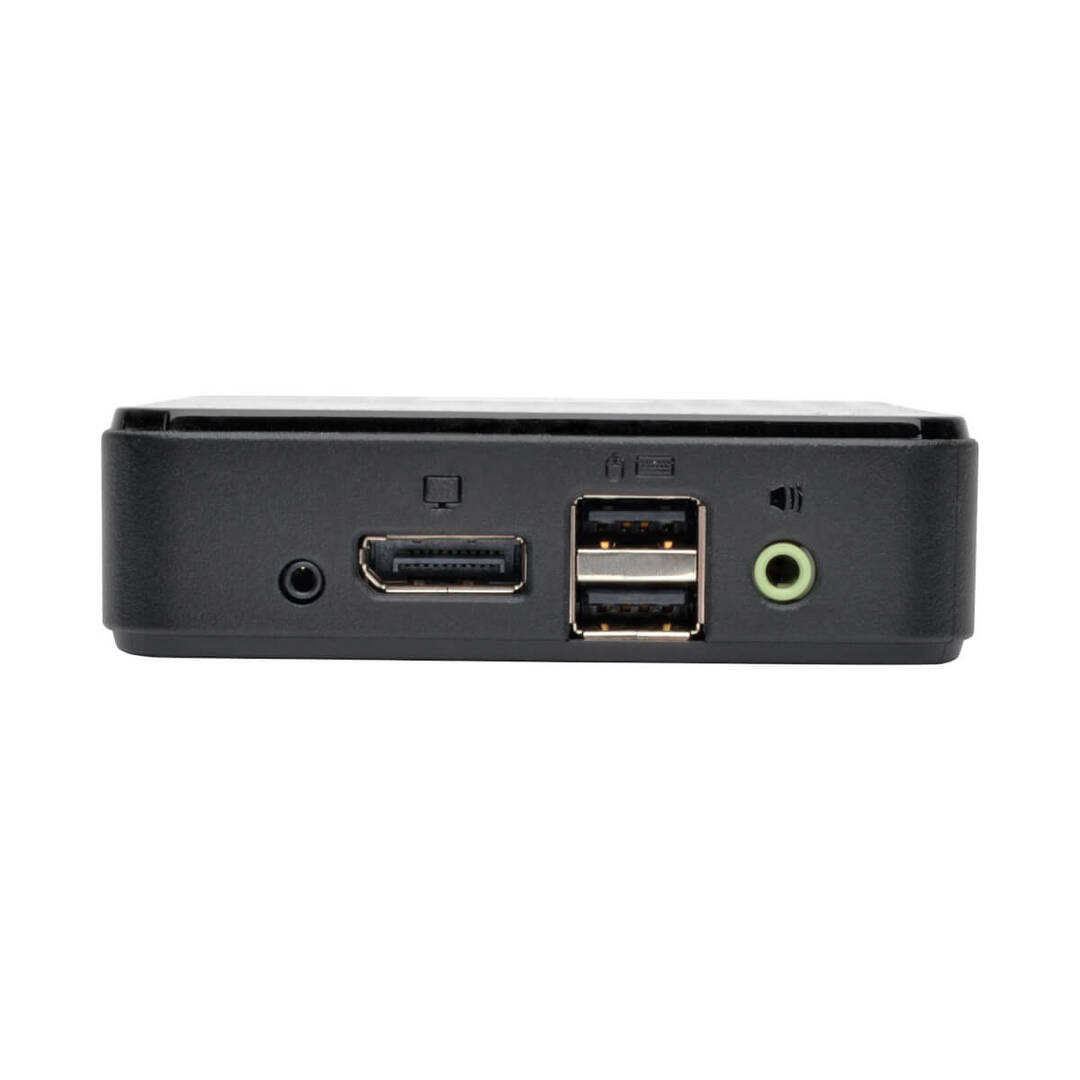

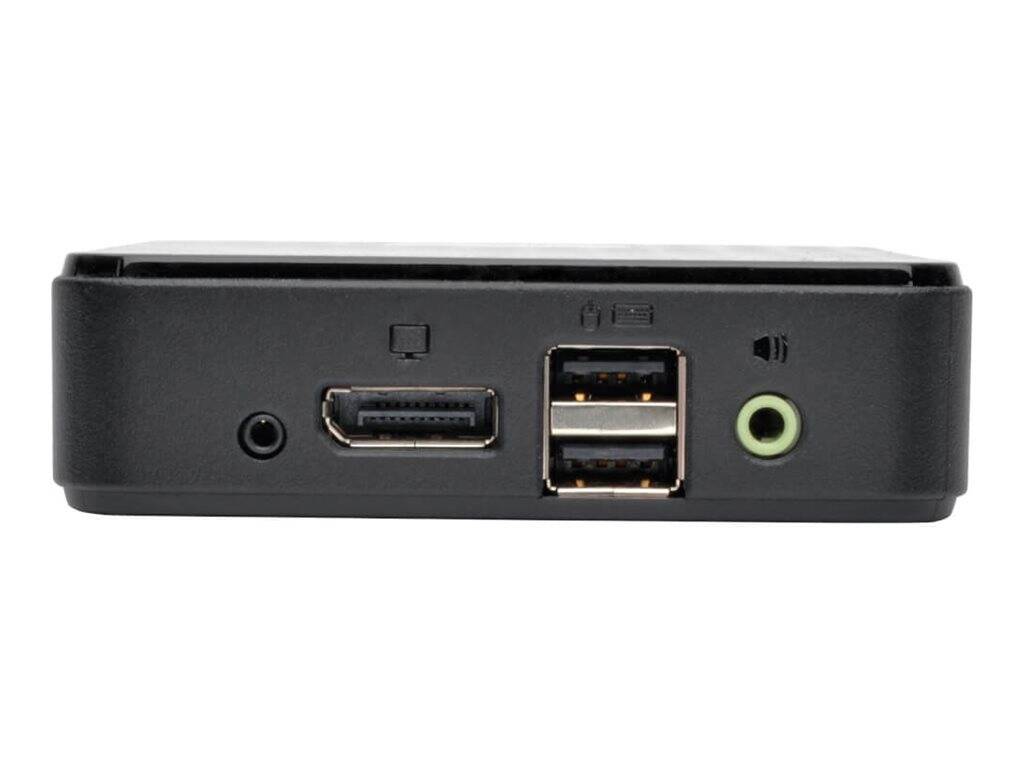

Console 1 x DisplayPort, 2 x USB-A (USB 2.0), 3.5 mm audio
DisplayPort version 1.2 (DP++ dual-mode)
Max resolution 3840 x 2160 @ 60 Hz
Audio 3.5 mm stereo, 2.1-channel, HD audio
EDID / HDCP Yes / Yes
Control
Switching Wired remote port selector, hotkeys, mouse
Auto-scan 3, 5, 10 or 20 s
Firmware Upgradable
Physical
Housing Metal, black
Power Bus powered (no external supply)

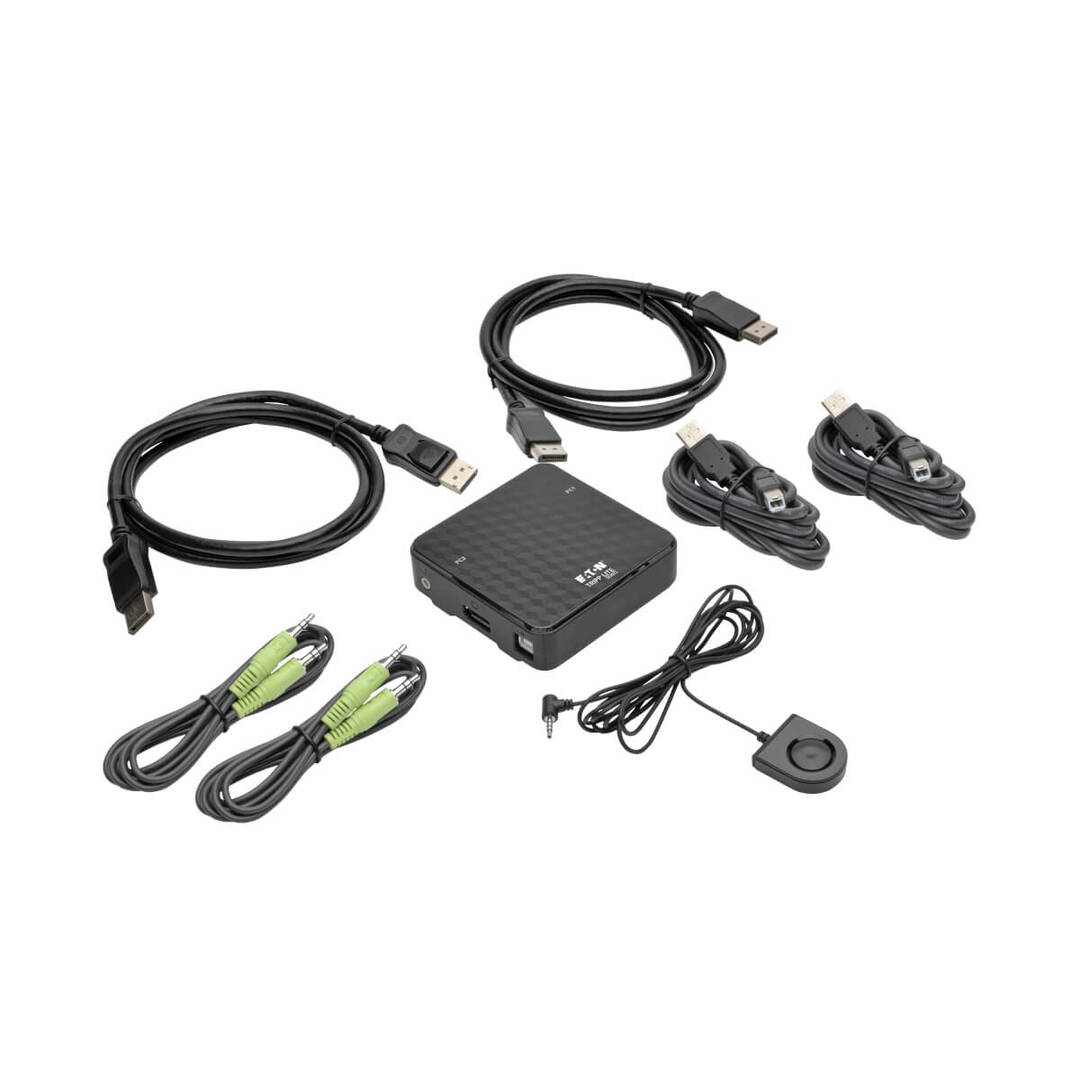

In the box KVM switch, 2 x DisplayPort cable, 2 x USB A/B cable, 2 x 3.5 mm audio cable, remote selector, manual
OS support Windows, macOS, Linux, Sun

Frequently Asked Questions

Does the B004-DP2UA2-K need a power adapter?
No. Tripp Lite designed it to be bus powered from the connected computers.
Can I connect an HDMI monitor?
The console output is DisplayPort. Use a DisplayPort monitor, or an active DP-to-HDMI 2.0 adapter if you need 4K 60 Hz on an HDMI display.
Is there a 4-port version?
Tripp Lite offers the B004-DPUA4-K as a 4-port DisplayPort KVM with USB 3.0 hub.
Singular Expert Insight
The B004-DP2UA2-K is the easy two-PC answer for a single 4K 60 Hz DisplayPort monitor: cables, remote and bus power mean no extra purchases. If you need a fast USB 3.0 hub or HDR over HDMI, the StarTech.com SV231HU34K6 is the step up. See our KVM switches range.
✓ Buy it if you share one 4K DisplayPort monitor between two computers and want everything in the box.
✕ Skip it if you need dual monitors or USB 3.0 speeds for storage.
→ Also consider the StarTech.com SV231HU34K6 (2-port HDMI 2.0 4K 60 Hz HDR, USB 3.2 hub) or Techly IDATA-DP-KVM2 (2-port dual DP).
