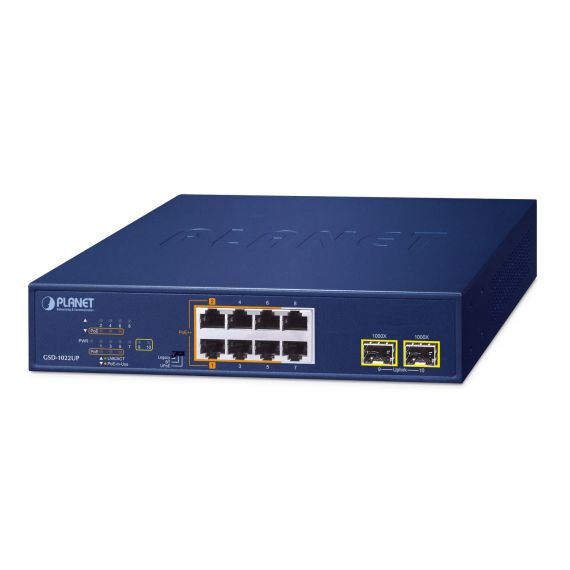

Planet GSD-1022UP 8-Port Gigabit Unmanaged PoE+ Desktop Switch with 2 SFP
The Planet GSD-1022UP is an unmanaged Gigabit PoE switch for small network installations that need flexible power and uplink options. It combines eight Gigabit RJ-45 ports, two SFP interfaces, PoE support and a 180W total power budget in a desktop design that can also be wall mounted or rack mounted.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Planet |
| Model | GSD-1022UP |
| Product Type | Switch |
| Switch Type | Unmanaged |
| Ports | 8 x Gigabit Ethernet (10/100/1000) RJ-45 |
| SFP Uplinks | 2 |
| PoE | Yes |
| PoE+ Ports | 4 |
| PoE++ Ports | 2 |
| Switching Capacity | 20 Gbit/s |
| Throughput | 13.39 Mpps |
| MAC Address Table | 4000 entries |
| Jumbo Frames | 9000 |
| Networking Standards | IEEE 802.3 | IEEE 802.3ab | IEEE 802.3af | IEEE 802.3at | IEEE 802.3bt | IEEE 802.3u | IEEE 802.3x |
| Full Duplex | Yes |
| Half Duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Store-and-Forward | Yes |
| Mounting | Desktop | Wall mountable | Rack mounting |
| Colour | Blue | 1Gbps |
| LED Indicators | Yes |
| Fans | 1 |
| Power Source | AC |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50/60 Hz |
| Input Current | 2.5 A |
| Heat Dissipation | 682.4 BTU/h |
| Dimensions | 220 x 150 x 44 mm |
| Weight | 1.32 kg |
| Certification | FCC Part 15 Class A | CE |
| Data Transfer Rate | 1Gbps |
| SKU / EAN | GSD-1022UP | 4711605287227 |
SINGULAR RECOMMENDS
For who
Suitable for installers and small business or home network users who need an unmanaged Gigabit PoE switch with both PoE and uplink flexibility.
Real reason to buy it
It offers a practical mix of 8 Gigabit ports, 2 SFP uplinks, PoE support and a 180W power budget in one compact switch.
Know before
This is an unmanaged switch, so it does not provide advanced configuration features. The product information lists a blue finish and single-fan design, with desktop, wall and rack mounting support.
Features - Planet - GSD-1022UP
Standard
8-Port
Port Speed
- 1 Gbps
More Details
Product Code
04:511319
EAN Code
4711605287227
Manufacturer
Planet
