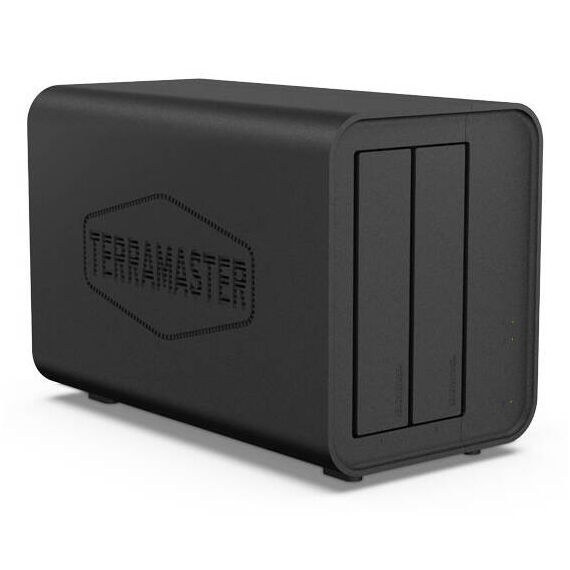

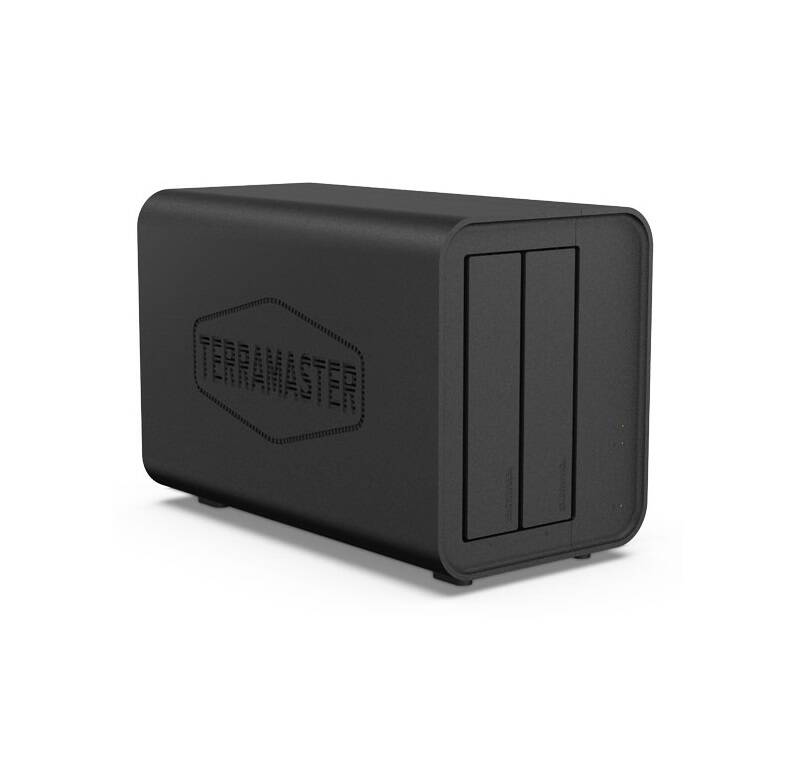

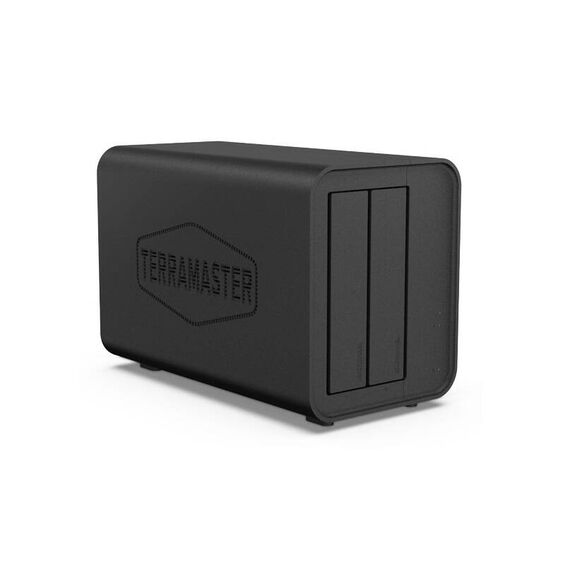

TerraMaster D5 Hybrid 5-Bay USB-C DAS 2 SATA Bays 3 M.2 NVMe Diskless

Brand: TerraMaster

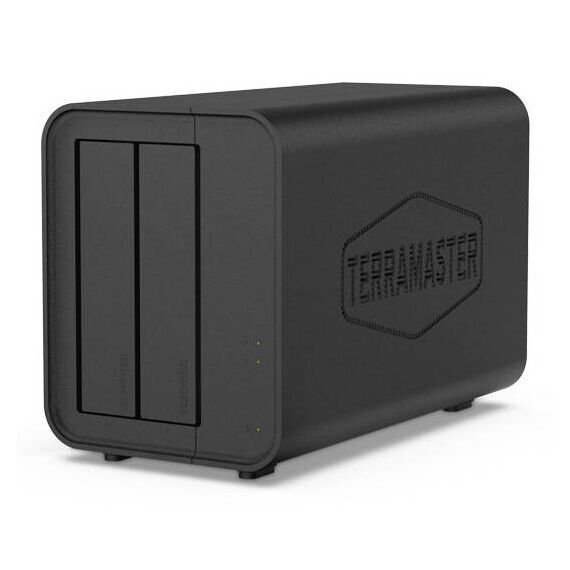

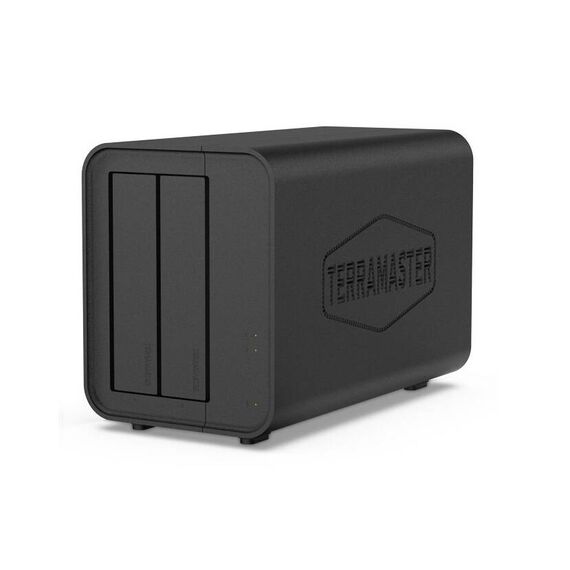

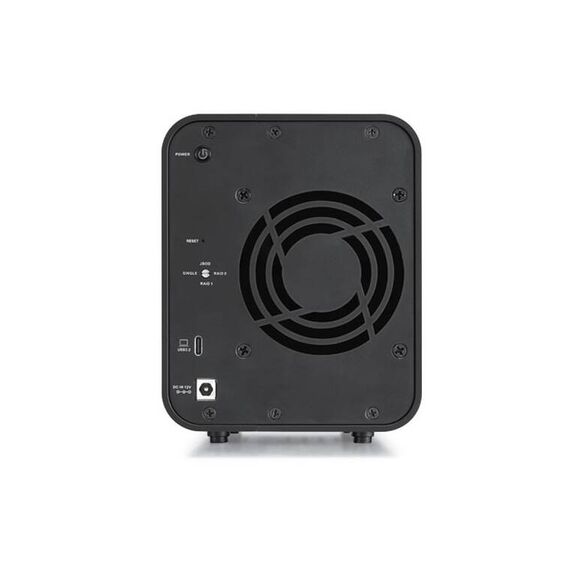

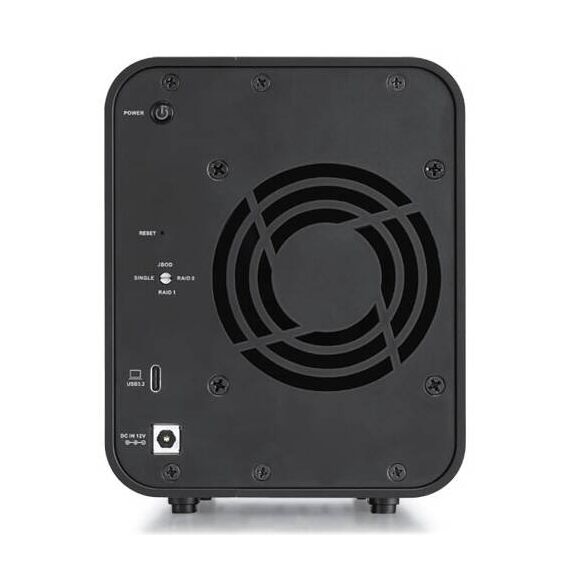

2 x 3.5"/2.5" SATA HDD/SSD, 3 x M.2 (PCle3.0/4.0/5.0) | D5 HYBRID
TerraMaster D5 Hybrid 5-Bay USB-C DAS 2 SATA Bays 3 M.2 NVMe Diskless
€310.82 inc. VAT
Buy
D5 HYBRID
€261.19
€310.82 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code04:512983 EAN Code6939236144353 ManufacturerTerraMaster

Quick Specs

Product Type
USB-C Direct Attached Storage
Drive Bays
2× SATA + 3× M.2 NVMe
Interface
USB 3.2 Gen 2 Type-C
RAID Support
RAID 0/1/JBOD/Single for SATA
Capacity
Up to 68TB
Included Drives
Diskless
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

TerraMaster D5 Hybrid 5-Bay USB-C DAS

A hybrid direct-attached storage enclosure with two SATA bays and three M.2 NVMe slots for flexible desktop storage expansion.
2× SATA Bays3× M.2 NVMeUSB-C DASDiskless

The TerraMaster D5 Hybrid is a 5-bay USB-C direct-attached storage enclosure designed for users who want to combine large SATA HDD or SSD capacity with fast M.2 NVMe storage in one desktop unit. It provides two 3.5"/2.5" SATA bays plus three M.2 2280 NVMe slots, making it useful for backups, media projects, workstation expansion and mixed hot/cold data storage workflows.

Compatibility Note: This is a diskless DAS enclosure, not a standalone NAS. Please confirm drive compatibility, host USB-C support, RAID mode requirements and operating system compatibility before purchase.
Best For
✓ Desktop storage expansion
✓ Backup and project storage
✓ Mixed HDD and NVMe workflows
✓ Creative and workstation users

Key Features


Hybrid 2+3 Storage Layout
The D5 Hybrid combines two SATA drive bays for large-capacity HDDs or SSDs with three M.2 2280 NVMe slots for fast solid-state storage.

USB-C Direct Attached Storage
USB 3.2 Gen 2 Type-C connectivity provides a simple direct connection to a compatible Windows, macOS or Linux computer without network configuration.

Flexible SATA RAID Modes
The two SATA bays support RAID 0, RAID 1, JBOD and Single Disk modes, giving users the option to prioritise speed, mirroring or independent disks.

Diskless Storage Flexibility
Because drives are not included, customers can choose their own HDDs, SATA SSDs and NVMe SSDs based on capacity, workload and budget.

Technical Specifications

Product Type Direct-attached storage enclosure
Model TerraMaster D5 Hybrid
EAN 6939236144353

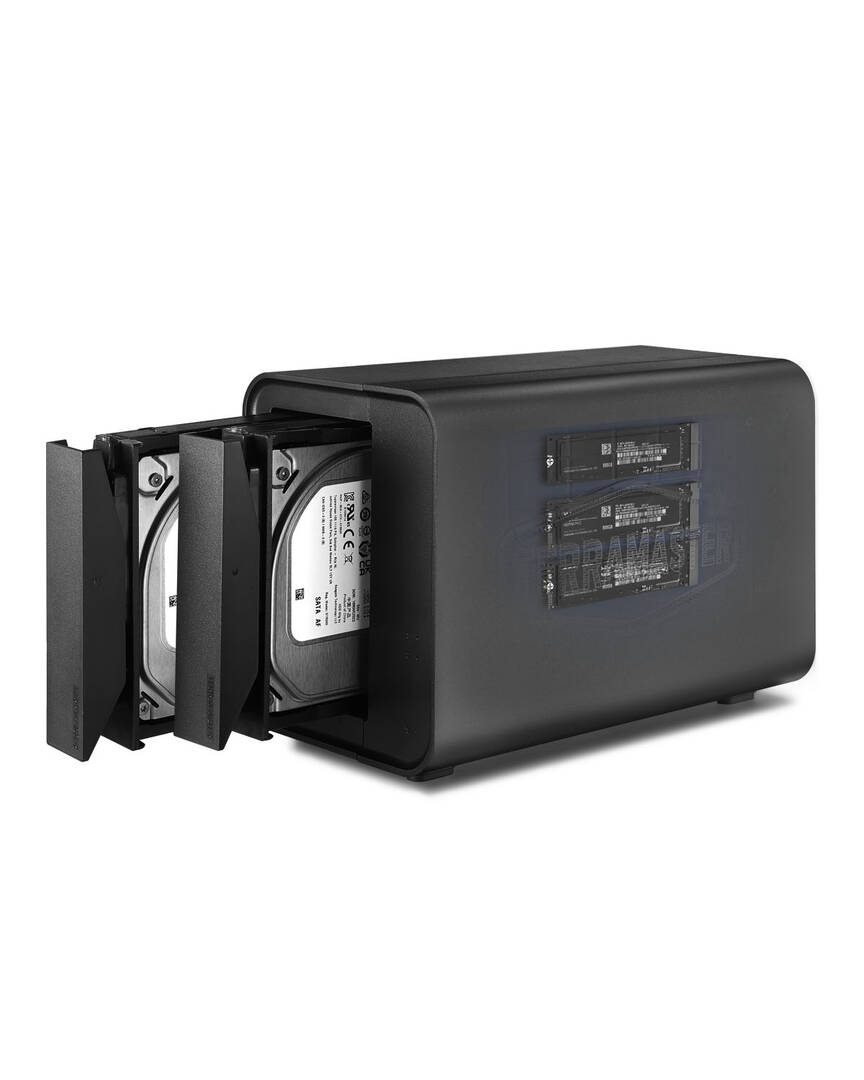

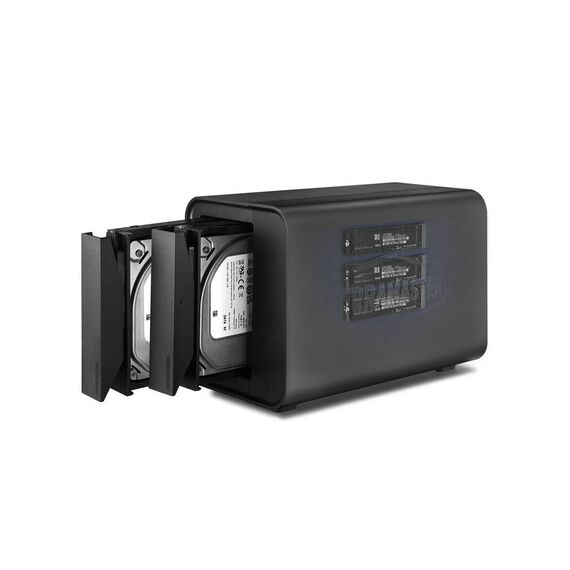

Drive Bays 2× 3.5"/2.5" SATA HDD/SSD bays + 3× M.2 2280 NVMe SSD slots
Included Drives No drives included

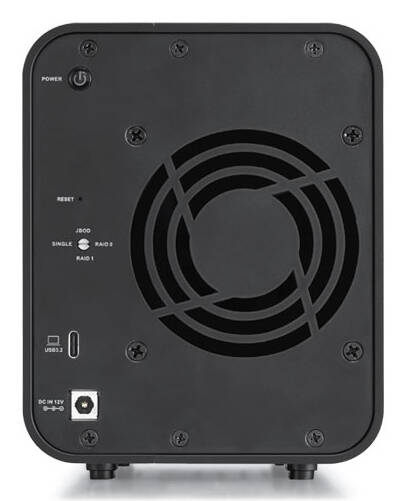

Host Interface USB 3.2 Gen 2 Type-C, up to 10Gbps
Maximum Capacity Up to 68TB, using 2× 22TB HDDs and 3× 8TB NVMe SSDs
RAID Modes RAID 0, RAID 1, JBOD and Single Disk for the two SATA bays
M.2 SSD Mode M.2 NVMe SSDs operate as independent single disks
Supported Operating Systems Windows, macOS and Linux support, exact version compatibility should be confirmed before deployment
Cooling Temperature-controlled fan
Power Input DC 12V
Dimensions 222 × 119 × 154 mm
Weight 1.3kg

Frequently Asked Questions

Is the TerraMaster D5 Hybrid a NAS?
No. It is a direct-attached storage enclosure that connects to a computer by USB-C. It does not work as a standalone network NAS unless connected through a host system.
Are hard drives or SSDs included?
No. This product is diskless, so HDDs, SATA SSDs and M.2 NVMe SSDs must be purchased separately according to the required capacity and compatibility.
Can all five drives be used in one RAID array?
No. The SATA bays support RAID modes, while the three M.2 NVMe SSD slots operate as independent single disks, so plan the storage layout accordingly.
Singular Expert Insight
Choose this model if you need flexible local USB-C storage with both large SATA capacity and fast NVMe slots in one enclosure. If you need network sharing, user permissions or remote access, a TerraMaster NAS or Synology NAS will be the better category.

Buyer’s Guide

Buy it if
You need a diskless USB-C DAS with 2 SATA bays, 3 M.2 NVMe slots, flexible local storage and simple desktop expansion.
Skip it if
You need a standalone NAS, included drives, network file sharing, full five-drive RAID, Thunderbolt-class speeds or enterprise storage management.
Also consider
Consider a NAS for multi-user network access, or a simpler 2-bay DAS if you only need basic local backup storage.

Features - TerraMaster - D5 HYBRID

Interface
  • USB3.2
  • M.2
  • SATA
More Details
Product Code
04:512983
EAN Code
6939236144353
Manufacturer
TerraMaster
