EFB-Elektronik O0319.20 — LC to LC OM4 Duplex Fiber Patch Cable, 20 m
OM4 multimodeLC – LC duplex20 mMeasurement report

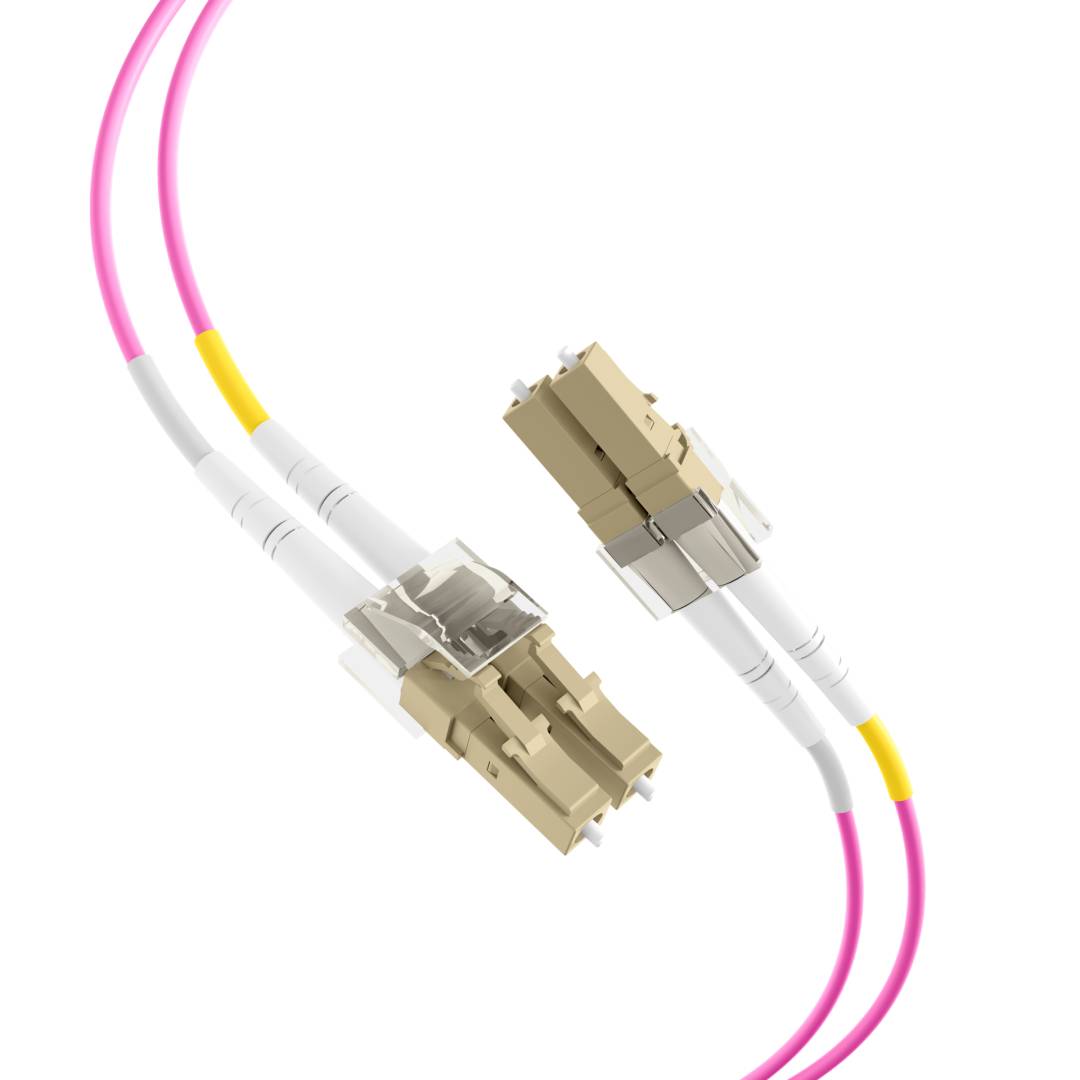

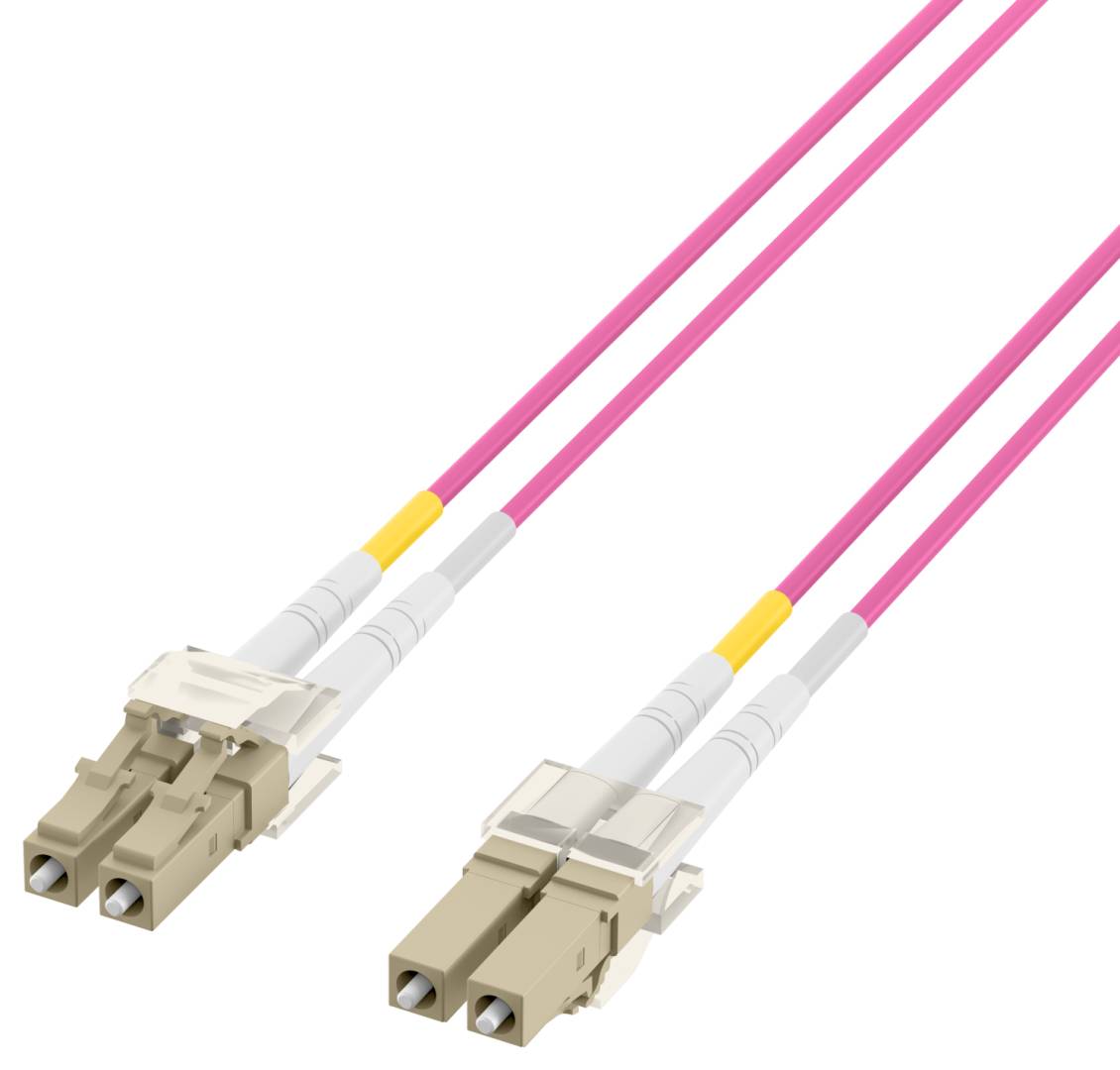

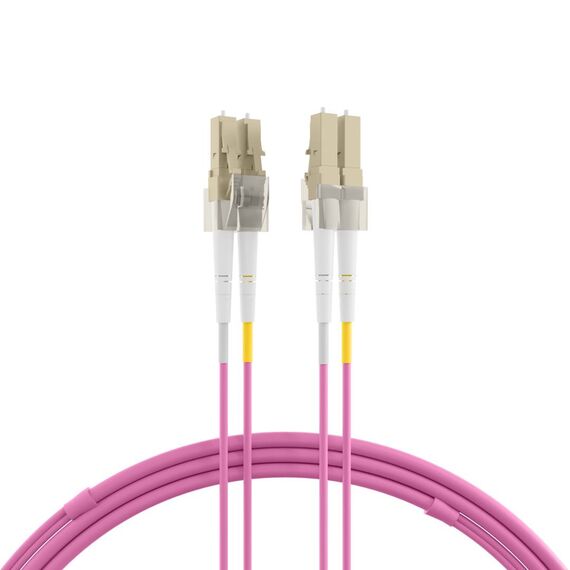

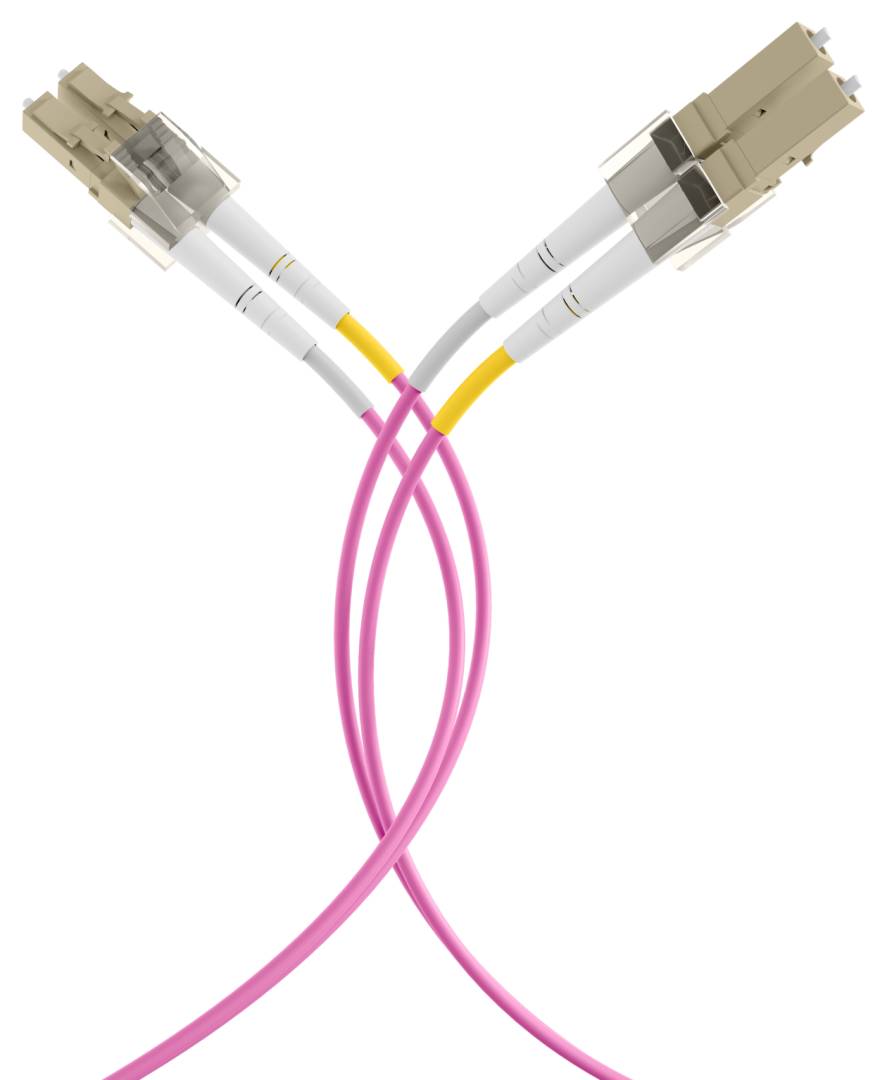

The EFB-Elektronik O0319.20 is a 20 m LC to LC duplex fibre optic patch cable with OM4 multimode 50/125 µm fibre and a 2 mm LSZH jacket, for connecting switches, servers and patch panels in data centres and structured cabling.
Each cable ships with an individual measurement report and two duplex clips, and EFB publishes the optical values: insertion loss ≤0.25 dB and return loss ≥35 dB at 850 nm. The heather-violet jacket marks it as OM4.
Before you order: this is a multimode OM4 cable with LC PC/UPC connectors. It works with SR (850 nm) multimode optics; it is not for single-mode (OS2) optics or LC/APC ports.
What's in the Box
- 1 × LC–LC duplex patch cable, OM4 50/125 µm, 20 m
- 2 × duplex clips
- 1 × measurement report
- 1 × information sheet
What It Means in Practice
- The LC connectors fit SFP/SFP+ transceivers and LC patch panels directly.
- IEEE specifies OM4 for 10GBASE-SR up to 400 m and 40G/100G SR4 up to 150 m; 20 m is well inside that.
- The two duplex clips let you join or separate the pair — swap A/B on one end if the link stays dark.
- Bending radius: keep it above 10× the cable diameter when fixed and 20× when moved (about 20 mm and 40 mm for this 2 mm cable).
What Will Not Work
- Single-mode optics (LR, ER) or OS2 cabling — use yellow single-mode patch cords.
- LC/APC ports (angled, usually green) — PC and APC end faces must never be mated.
- Empty SFP cages or copper ports — the switch needs a multimode SFP/SFP+ transceiver fitted.
- Outdoor runs — this is an indoor LSZH cable (I-V(ZN)H construction).
Key Features
Tested with report
Each cable comes with its own measurement report.
Low loss
≤0.25 dB insertion loss and ≥35 dB return loss at 850 nm.
LSZH, flame retardant
Halogen-free per IEC 62821, flame retardant per IEC 60332-1-2, low smoke per IEC 61034.
Aramid reinforced
Aramid strain relief in a 2 mm jacket.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A 20 m pre-terminated OM4 cord is a practical way to bridge two racks or rows without installing a permanent trunk. Match it to SR optics on your switches with SFP/SFP+ ports and keep the measurement report with the installation documents.
✓ Buy it if you need a tested 20 m OM4 LC–LC duplex link between racks or rows.
✕ Skip it if your optics are single-mode or APC, or the run leaves the building.
→ Also consider Equip OM4 LC–LC duplex patch cables in other lengths.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - EFB - O0319.20
Colour
violet
Length
20m
More Details
Product Code
04:262053
EAN Code
4049759065263
Manufacturer
EFB
