Elo E176640 I-Series 5 Steel 21.5″ Full HD Touch Computer, Android 14, QCS6490, 8GB/64GB, PoE

Brand:
Elo
Elo E176640 I-Series 5 Steel 21.5-inch Android Touchscreen Computer with PoE
Elo E176640 I-Series 5 Steel 21.5″ Full HD Touch Computer, Android 14, QCS6490, 8GB/64GB, PoE
€2431.04 inc. VAT
Buy
E176640
€2,042.89
€2,431.04 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
CP27590
EAN Code
0843173162089
Manufacturer
Elo
Features
Bluetooth, Wireless

Quick Specs

Display / touch
21.5″ 1920 × 1080, 10-touch PCAP
Platform
QCS6490 / Android 14 / 8GB RAM / 64GB
Power variant
Integrated PoE; 60W+ active PoE++ recommended
Enclosure / protection
Stainless steel / IP65 front, IP54 rear
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

An Android touch computer for demanding workspaces

21.5″ Full HDAndroid 148GB / 64GBPoE included

The Elo E176640 combines a 21.5-inch Full HD touchscreen and an Android computer in a stainless-steel enclosure. Qualcomm QCS6490 processing, 8GB RAM and 64GB storage run the installed Android application on the device itself, making it suitable for a configured kitchen display, industrial interface or self-service application without a separate host PC. This is the I-Series 5 Steel variant with integrated PoE, not a monitor-only display. Your application, network and suitable mounting hardware must be arranged for the intended installation.

Before you order:
The PoE box does not include an AC power brick or power cables. Elo recommends an active IEEE 802.3bt PoE++ source rated 60W or more per port for full functionality; up to 51W is available to the system. Lower PoE budgets limit features. Do not connect PoE and a DC adapter simultaneously. The IP ratings are IP65 at the front and IP54 at the rear, not IP65 on every side.

What It Means in Practice

  • For a kitchen display deployment, install a suitable Android order-display application, mount the computer using its 75mm or 100mm VESA interface, and connect it to the configured network and correctly budgeted PoE source. Test the application, peripherals and cable-cover installation before deployment. EloView and OS 360 are available management/service options; their subscriptions and your application are not established as included.

What Will Not Work

  • A basic 802.3af PoE source is not recommended for optimal operation. Under the manual’s below-25.5W PoE profile, Wi-Fi, USB-A, USB-C and external-display functions are disabled and the 22-inch brightness setting is limited to 70%. The device has no Edge Connect or GPIO ports. It does not include a payment application, payment reader or mounting stand.

Key Features


A complete Android platform
Android 14 with Google Play Services, an eight-core QCS6490, 8GB RAM and 64GB storage provide the computing platform for your compatible business application.

Touch and protective construction
TouchPro PCAP supports 10 simultaneous touches. Touch-through operation is separately limited to two touches through up to 6mm glass or 3mm plastic.

Networked installation with PoE
Gigabit Ethernet carries the network connection and PoE supply when the correct source is used; Wi-Fi 6 and Bluetooth 5.2 provide additional connectivity subject to the power budget.

Mounting and communication
VESA 75/100mm supports landscape or portrait mounting with suitable hardware. The integrated 8MP autofocus camera, two digital microphones and two speakers support appropriately configured applications.

Technical Specifications

Identity and computing
Brand / part / EAN Elo / E176640 / 0843173162089
Family / variant 22-inch I-Series 5 Steel for Android / with PoE
Processor Qualcomm QCS6490, octa-core
Memory / storage 8GB RAM / 64GB
Operating system Android 14 with Google Play Services; AOSP capable
Chipset AI capability Up to 12 TOPS combined AI performance; application dependent
Display and touch
Diagonal / panel / ratio 21.5″ / active-matrix TFT LCD with LED / 16:9
Active area 476 × 268mm
Resolution / refresh 1920 × 1080 @ 60Hz
Colours 8-bit / 16.7 million
Typical brightness 250nits LCD panel / 215nits with TouchPro PCAP
Contrast / typical response 1000:1 / 14ms total
Viewing angles 178° horizontal / 178° vertical
Surface / touch Clear / TouchPro projected-capacitive PCAP, 10 touches
Touch-through limit Up to 6mm glass or 3mm plastic, up to 2 touches
Sealability Touchscreen sealed to LCD
Connectivity and audio/video
USB / DC 1 × USB-A 3.0 (900mA); 1 × USB-C output; 1 × DC input
Ethernet 1 × RJ45 Gigabit LAN with integrated PoE
Wireless Wi-Fi 802.11a/b/g/n/ac/ax / Bluetooth 5.2
Camera 8MP autofocus; max. 3264 × 2448 at 30fps
Microphones / speakers 2 digital microphones / 2 × 1.5W speakers
Edge Connect / GPIO Not fitted
Power and operating profiles
PoE system power Max. 51W available to device
Recommended PoE source Active IEEE 802.3bt PoE++, 60W or more per port for full functionality
Lower-power PoE profile Below 25.5W: Wi-Fi, USB-A, USB-C and external display disabled; 22-inch brightness 70%; 802.3af not recommended
USB-C power output PoE: max. 15W; optional 65W DC brick: up to 15W; optional 90W brick: up to 27W
Power-source restriction Do not connect PoE and DC power adapters simultaneously
Typical consumption On 15.2W / off 0.2W / sleep 2.0W
Optional AC supply input 100–240VAC / 50–60Hz
Mechanical and environmental

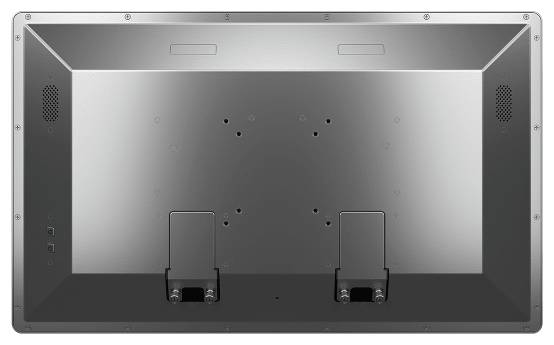

Enclosure / mounting Stainless steel / VESA 75mm and 100mm; landscape or portrait
Dimensions 533 × 324 × 38.68mm
Unit / packaged weight (PoE) 5.2kg / 7.5kg
Box dimensions 613 × 173 × 415mm
Ingress protection Front IP65 / rear IP54
Operating / storage temperature 0°C to 45°C / −20°C to 50°C
Operating / storage humidity 20%–80% / 5%–95%
RTC / MTBF Lithium coin-cell RTC battery / 50,000 hours demonstrated
Manufacturer-listed approvals UL/cUL, FCC, IC, CE, CB, VCCI, MIC, RCM
Supply, services and optional accessories
Box contents for E176640 I-Series 5 Steel with PoE, Quick Install Guide, 2 cable ties; no power brick or power cables
Manufacturer warranty 2 years; manufacturer terms apply
Optional DC kits E514304: 65W kit / E557815: 90W kit; sold separately
Management / security updates EloView available; OS 360 package provides Android security updates every two months; subscriptions not established as included

Frequently Asked Questions

Can any PoE switch power all its functions?
No. Elo recommends active 802.3bt PoE++ rated at least 60W per port. The manual describes feature restrictions at lower budgets, including disabled Wi-Fi and USB in the below-25.5W profile.
Is the screen brightness 250nits in normal touch use?
Elo separates the bare LCD value, 250nits, from 215nits with TouchPro PCAP. Use the latter figure when comparing the complete touchscreen.
Can it replace a monitor connected to any Windows PC?
Its verified role is an Android all-in-one computer running a compatible installed application. Do not assume a video-input monitor mode or Windows application support from the USB-C connector alone.
Singular Expert Insight
Plan the application and power budget together. For this PoE variant, the switch or injector must sustain the intended display and peripherals, while IP protection depends on the installed cable covers and appropriate installation. Match the VESA hardware to the 5.2kg device and confirm software/service requirements before rollout. Confirm PoE power, mounting and application requirements

Buyer’s Guide

✓

Buy it if

 You need a stainless Android touch computer and can provide a suitably budgeted PoE++ network and compatible application.
✕

Skip it if

 You need a monitor-only device, a Windows PC, included AC supply or identical IP65 protection on every side.
→

Also consider

 The separately specified non-PoE configuration or an appropriate DC power kit when PoE infrastructure is unavailable.
Confirm PoE power, mounting and application requirements
