EFB-Elektronik MK7001.0,25GR Cat 6A S/FTP Patch Cable 0.25 m Green Cat 7 Raw Cable LSZH 500 MHz 10GbE 4PPoE

Brand:
EFB
EFBElektronik Patch cable RJ45 (M) to RJ45 (M) MK7001.0,25GR
EFB-Elektronik MK7001.0,25GR Cat 6A S/FTP Patch Cable 0.25 m Green Cat 7 Raw Cable LSZH 500 MHz 10GbE 4PPoE
€4.11 inc. VAT
Buy
MK7001.0,25GR
€3.45
€4.11 inc. VAT
Ships from EU stock: 45 item(s)
+ −
Add to wish list Ask a question
Product Code
04:261939
EAN Code
4049759126414
Manufacturer
EFB
Quick Specs
Standard
Cat 6A S/FTP · 500 MHz
Length / Colour
0.25 m · Green
Raw Cable
Cat 7 · AWG 26/7 Cu
Jacket / PoE
LSZH · 4PPoE 802.3bt
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

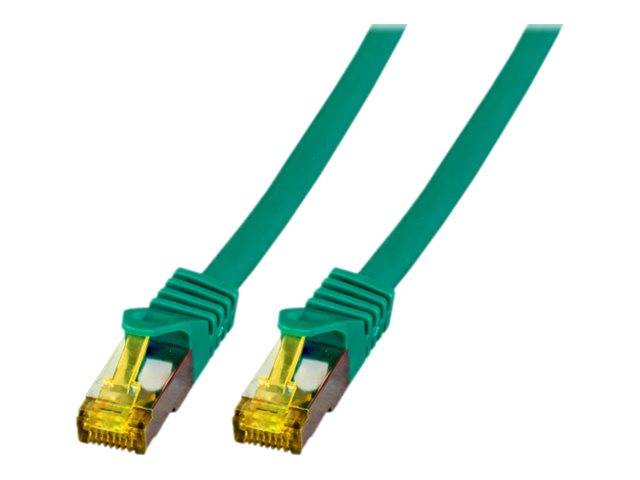

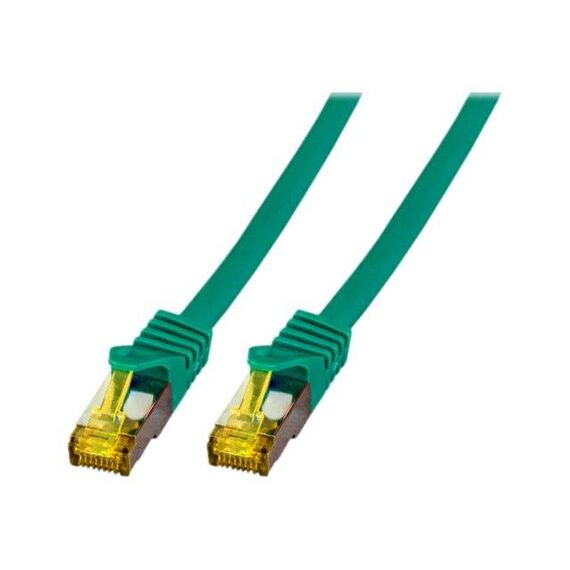

EFB-Elektronik Cat 6A S/FTP Patch Cable — 0.25 m Green

Cat 6A · 500 MHz0.25 m GreenCat 7 raw cableLSZH · 4PPoE

The EFB-Elektronik MK7001.0,25GR is a 0.25 m green Cat 6A S/FTP patch cable built on Cat 7 raw cable with a halogen-free LSZH jacket, designed for short switch-to-patch-panel jumps in 19-inch racks where 10 Gigabit Ethernet and PoE need to run cleanly.

Its part number is EFB MK7001.0,25GR. Each of the four pairs is individually foil-screened under an overall braid (PiMF), with AWG 26/7 stranded copper, 500 MHz channel performance and support for 4-pair PoE to IEEE 802.3bt. Typically in stock with fast delivery across Cyprus.

Before you buy
At 25 cm this is a rack-jumper length: it only reaches between a switch and a patch panel mounted directly above or below it. Measure the port-to-port distance first — for adjacent-rack or desk runs choose 0.5 m or longer. The sheath is printed Cat 7 (600 MHz raw cable), but the RJ45 plugs set the channel to Cat 6A / 500 MHz, which is how it is classified here.

Key Features


Cat 7 raw cable, Cat 6A channel
S/FTP PiMF construction with AWG 26/7 copper gives strong crosstalk and EMI immunity; the Cat 6A RJ45 plugs deliver 500 MHz for 10GBASE-T.

Halogen-free LSZH jacket
Low-smoke, zero-halogen sheath (IEC 60332-1, 60754-2, 61034) and CPR EN 50575 — suitable for data centres, offices and public buildings.

Locking lever and length imprint
Moulded anti-kink sleeve with latch protection, printed length on the boot for quick identification, gold contacts rated for 750+ mating cycles.

Technical Specifications

Identification
Part Number MK7001.0,25GR
EAN / GTIN 4049759126414
MPN MK7001.0,25GR
Brand EFB-Elektronik
Cable
Channel Class Cat 6A (TIA) — 500 MHz, set by the RJ45 plugs
Raw Cable Grade Cat 7 — S/FTP 4x2xAWG26/7 PiMF, 600 MHz sheath print
Shielding S/FTP PiMF — braid overall + foil around each pair
Conductor AWG 26/7 stranded copper
Jacket LSZH — IEC 60332-1 / 60754-2 / 61034
Outer Diameter 6.5 mm
Min. Bend Radius > 32.5 mm
Connectors
Connectors 2× RJ45 (8P8C) male, IEC 60603-7-51
Housing Yellow, locking lever + moulded anti-kink sleeve
Contacts Gold-plated, ≥ 750 mating cycles
Wiring 1:1 TIA/EIA-568B
Performance
Data Rate 10 Gbit/s (10GBASE-T)
PoE IEEE 802.3af / at / bt (4PPoE)
Electrical Max 1 A / 50 V DC per contact, impedance 100 ±5 Ω
Physical & Compliance
Length 0.25 m
Colour Green
Operating Temperature −20 to +60 °C
Protection IP20 — indoor use only
Standards ANSI/TIA-568, EN 50173, ISO/IEC 11801, EN 50575 (CPR)
Other Silicone-free, length imprint

Frequently Asked Questions

Does the EFB MK7001.0,25GR support 10 Gigabit Ethernet?
Yes. It is a Cat 6A S/FTP cable rated to 500 MHz, which supports 10GBASE-T; at 0.25 m it is well inside the 100 m channel limit.
Can the EFB MK7001.0,25GR carry PoE?
Yes. EFB specifies power delivery via 4PPoE to IEEE 802.3bt, as well as 802.3af/at, so it can patch PoE switches to panels feeding cameras and access points.
Is it Cat 7 or Cat 6A?
The raw cable is Cat 7 grade, but the RJ45 connectors limit the link to Cat 6A (500 MHz). True Cat 7 needs GG45 or TERA connectors, which standard switches do not use.
Singular Expert Insight
Short 0.25 m jumpers are what keep a rack tidy: they link each switch port straight to the patch panel above it without loops of slack. The EFB MK7001 series adds Cat 7 raw cable and LSZH on top of the Cat 6A channel, so it suits 10 GbE and PoE++ racks. Colour-code by function — for example green for one VLAN or uplink group.

Buyer's Guide

Buy it if
You are patching a switch to an adjacent patch panel in a rack and want a shielded, halogen-free 10 GbE / PoE-ready 25 cm jumper.
Skip it if
The ports are more than about 20 cm apart, or your panels are unshielded U/UTP and you want a cheaper unshielded cord.
Also consider
The same MK7001 cable in 0.5 m or 1 m, or EFB MK6001 Cat 6A S/FTP (6.0 mm) for a slightly slimmer LSZH cord.
