EFB-Elektronik Cat6A S/FTP Patch Cable RJ45 0.25m Yellow, Cat7 Raw Cable, LSZH
Brand:
EFB
EC020200177
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

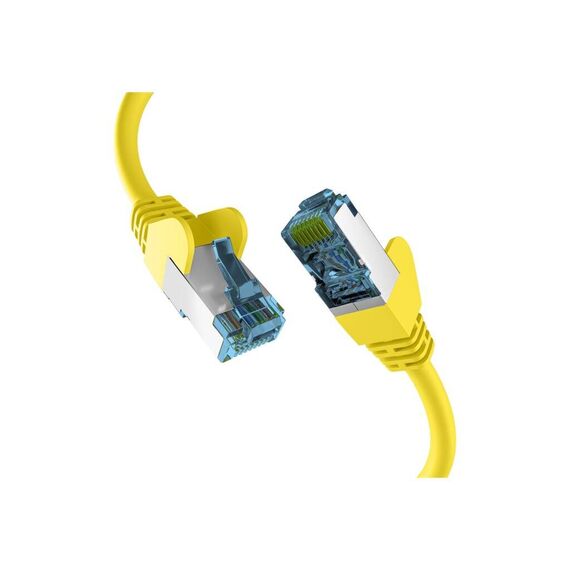

EFB-Elektronik Cat 7 raw cable / Cat 6A RJ45 plugs S/FTP Patch Cable 0.25 m Yellow
Cat 7 raw / Cat 6A0.25 mS/FTP PiMFLSZHAWG 27/7
The EFB-Elektronik EC020200177 is a 0.25 m yellow patch cable built on Cat 7 S/FTP raw cable and terminated with Cat 6A RJ45 plugs, made for short 10 Gigabit jumpers between patch panels and network switches in the same rack. Part number EC020200177 (EAN 4049759290252) combines pair-in-metal-foil shielding, stranded AWG 27/7 copper conductors, a halogen-free LSZH jacket and gold-plated contacts. Typically in stock with fast delivery across Cyprus.
Before you buy
The raw cable is graded Cat 7 (tested up to 600 MHz), but the RJ45 plugs cap the channel at Cat 6A / 500 MHz — performance is identical to a good Cat 6A cord, the extra headroom sits in the cable only. EFB publishes no PoE class for this cord; the 27/7 copper construction is suitable for standard PoE/PoE+, but check your switch budget for 802.3bt. At 25 cm, measure panel-to-port distance first.
Key Features
PiMF shielding
Each twisted pair sits in its own metal foil under an overall braid (S/FTP PiMF), keeping alien crosstalk and EMI out of dense 10GbE racks.
Length imprint + locking lug
The moulded, anti-kink boot carries a printed length and a locking-lug guard so the clip does not snag or break when cords are pulled through a crowded panel.
LSZH jacket
Low-smoke, zero-halogen outer sheath around a 6 mm cable — the right choice for server rooms, offices and any occupied building.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
Short shielded jumpers are what keep a 10GbE rack serviceable: a 25 cm cord goes straight from panel port to the network switches below with no slack bundles blocking airflow. EFB's EC range is a cost-effective, properly shielded LSZH choice — buy several colours to separate uplinks, servers and PoE ports at a glance. The Cat 7 raw cable gives extra margin but no extra speed, so pick it for consistency with an existing Cat 7-raw install rather than for performance.
Buyer's Guide
Buy it if
You need neat 0.25 m Cat 6A shielded jumpers for a 10GbE patch panel, colour-coded and with an LSZH jacket.
Skip it if
The switch sits more than one rack unit away, or you need a published 802.3bt PoE rating.
Also consider
EFB 0.5 m versions of the same cord for more reach, or EFB MK6001 Cat 6A cords when 4PPoE is required.
Features - EFB - EC020200177
Colour
yellow
Length
0.25m
Standard
CAT6a
More Details
Product Code
CI29867
EAN Code
4049759290252
Manufacturer
EFB
