EFB EC020200133 S/FTP PiMF Patch Cable 0.25 m White Cat 7 Raw Cable Cat 6A RJ45 LSZH 10 Gbit Locking-Lug Protection

Brand:
EFB
EFB-Elektronik - Patch cable - RJ-45 (M) to RJ-45 ( | EC020200133
EFB EC020200133 S/FTP PiMF Patch Cable 0.25 m White Cat 7 Raw Cable Cat 6A RJ45 LSZH 10 Gbit Locking-Lug Protection
€3.68 inc. VAT
Buy
EC020200133
€3.09
€3.68 inc. VAT
Ships from EU stock: 500 item(s)
+ −
Add to wish list Ask a question
Product Code
04:437635
EAN Code
4049759289812
Manufacturer
EFB
Quick Specs
Category
Cat 6A channel · Cat 7 cable
Length
0.25 m · White
Construction
S/FTP PiMF, AWG 27/7
Jacket
LSZH halogen-free
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

EFB EC020200133 — Cat 7 Cable / Cat 6A Plug S/FTP Patch Cable, 0.25 m, White

Cat 6A · 10 Gbit0.25 mS/FTP PiMFLSZH

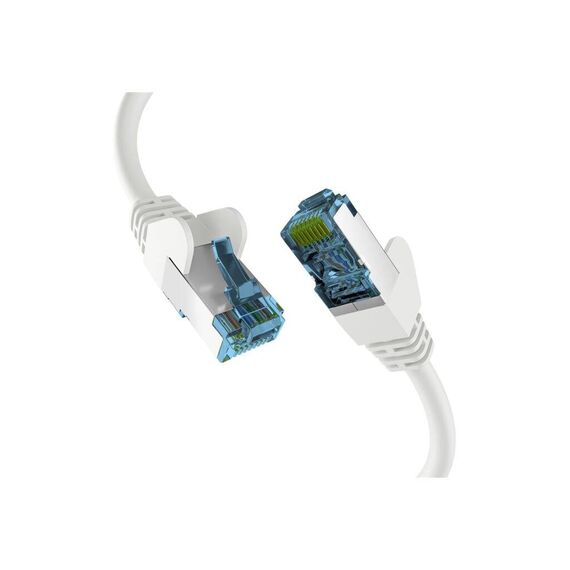

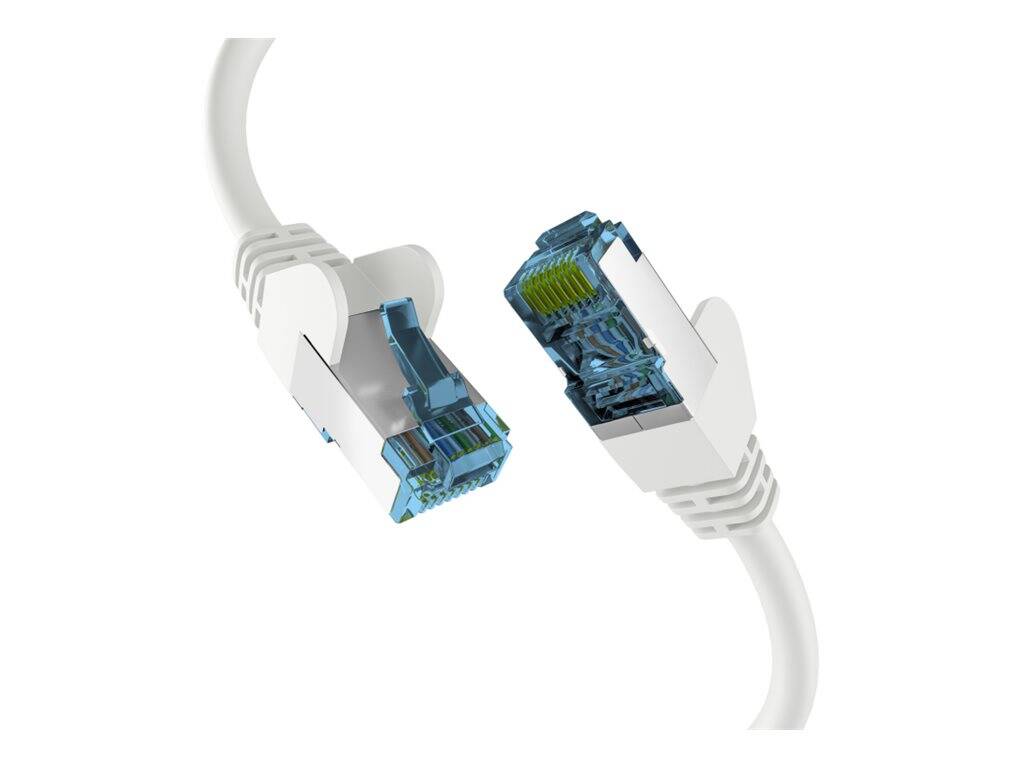

The EFB EC020200133 is a 0.25 m white S/FTP patch cable that combines Cat 7 raw cable with Cat 6A RJ45 plugs, for short 10 Gbit jumpers between patch panels and network switches in the same rack. Part number EC020200133 uses pairs in metal foil plus an overall braid, AWG 27/7 stranded copper, a 6 mm LSZH jacket and gold-plated plugs with anti-kink sleeves, locking-lug protection and a length imprint.

Typically in stock with fast delivery across Cyprus.

Before you buy
Only 25 cm long — for adjacent rack units. The raw cable is Cat 7 grade (tested to 600 MHz), but the RJ45 plugs make the channel Cat 6A — 500 MHz, 10 Gbit. EFB publishes no PoE class for this article; for 802.3bt loads choose the EFB MK6001 series.

Key Features


Cat 7 Raw Cable
600 MHz-tested S/FTP cable under Cat 6A plugs gives headroom for clean 10GBASE-T links.

PiMF + Braid Screening
Pairs in metal foil with an overall braid for excellent EMI and alien-crosstalk immunity in dense racks.

Locking-Lug Protection
Moulded anti-kink sleeve with a latch guard and length imprint — robust and easy to identify in a patch field.

Technical Specifications

Identification
Part Number EC020200133
EAN / GTIN 4049759289812
MPN EC020200133
Cable
Channel Class Cat 6A — 500 MHz, 10 Gbit (set by the RJ45 plugs)
Raw Cable Grade Cat 7 per ANSI/TIA/EIA 568-C.2, tested up to 600 MHz
Construction S/FTP PiMF — pairs in metal foil plus overall braid
Conductors 8 wires, AWG 27/7 stranded copper
Jacket LSZH (low smoke, zero halogen)
Outer Diameter 6 mm
Length 0.25 m
Colour White
Connectors & Standards
Connectors 2× RJ45 male, shielded, gold-plated
Wiring T568B, pin assignment 1:1
Boot Moulded anti-kink sleeve, locking-lug protection, length imprint
Standards EN 50173-1, ISO/IEC 11801, TIA/EIA-568-B
Protection IP20 — indoor use
PoE No PoE class published

Frequently Asked Questions

Is the EFB EC020200133 a Cat 7 cable?
The raw cable is Cat 7 grade, but the RJ45 connectors are Cat 6A, so the finished cord performs as Cat 6A — 500 MHz and 10 Gbit, exactly what 10GBASE-T equipment needs.
Can I use the EC020200133 for PoE?
The copper AWG 27/7 conductors are PoE-capable in principle, but EFB publishes no PoE class for this article. For certified 802.3bt (PoE++) use the EFB MK6001 series.
Is 0.25 m long enough?
Only between adjacent devices, for example a patch panel directly above a switch. Measure the port-to-port distance first.
Singular Expert Insight
The EC 25 cm white cord suits a tidy, white-coded 10 G patch field between panels and network switches. If you need a published PoE++ rating, the EFB MK6001 series is the alternative; for 1 G links the ECOLAN K55xx Cat 6 0.25 m cords are cheaper.

Buyer's Guide

Buy it if
You want 25 cm shielded 10 Gbit jumpers with LSZH jacket and latch protection.
Skip it if
You need a published 802.3bt PoE rating or more than 25 cm of reach.
Also consider
EFB MK6001 Cat 6A (4PPoE) or ECOLAN K55xx 0.25 m Cat 6.
