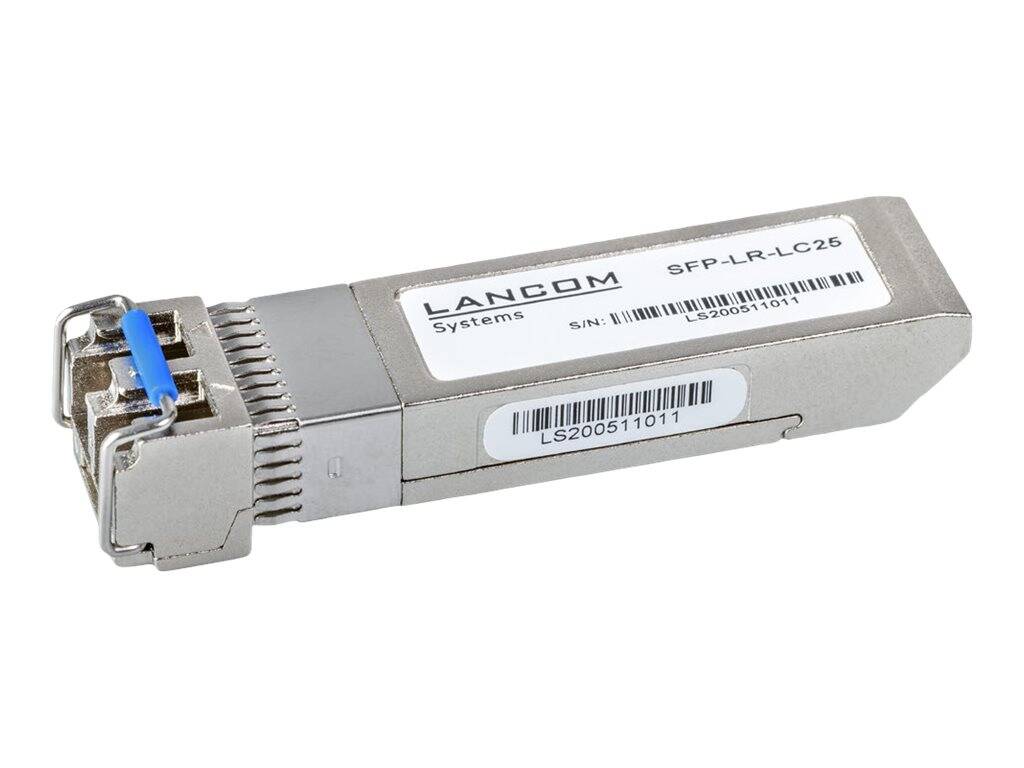

LANCOM SFP-LR-LC25 SFP28 Transceiver Module – 25GBASE-LR, 1310 nm Single-Mode LC, up to 10 km
Brand:
Lancom Systems
LANCOM SFP-LR-LC25 SFP28 Transceiver Module – 25GBASE-LR, 1310 nm Single-Mode LC, up to 10 km
€644.54 inc. VAT
60172
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
LANCOM SFP-LR-LC25 – 25G SFP28 Long-Range Transceiver for 10 km Single-Mode Links
25GBASE-LR1310 nm · SMFUp to 10 kmSFP28
The LANCOM SFP-LR-LC25 (article 60172) is a 25 Gigabit SFP28 transceiver for 25GBASE-LR links of up to 10 km over 9 µm single-mode fibre, designed for the SFP28 ports of LANCOM switches. It is the module for 25G uplinks between buildings or from aggregation to core where multimode distances are not enough.
LANCOM publishes a transmit power of −2 dBm typical (+3 dBm max) and a receive sensitivity of −12 dBm. As with its other long-range optics, LANCOM advises planning attenuation on short or low-loss links to protect the receiver.
Before you order: Designed for SFP28 ports on LANCOM switches only — LANCOM does not list it for its routers or Unified Firewalls. On short or low-attenuation runs, LANCOM recommends at least one 3 dB attenuator per RX and TX fibre. The far end must be a 25GBASE-LR (1310 nm) optic.
What's in the Box
- 1 × LANCOM SFP-LR-LC25 SFP28 transceiver (single unit, article 60172)
- Dust cap on the optical port
- No fibre patch cords or attenuators included
What It Means in Practice
- 25G uplink between LANCOM switches up to 10 km apart on single-mode fibre.
- Hot-swappable during operation.
- Pairs with any 25GBASE-LR optic on the far end; for a LANCOM-to-LANCOM link, order two.
- Bulk packs of 10 exist under a separate article number for larger rollouts.
What Will Not Work
- Will not work over multimode fibre — use LANCOM's SR SFP28 module for that.
- Not listed for LANCOM routers or Unified Firewalls.
- Will not link to a 10GBASE-LR SFP+ optic running at 10G — both ends must run 25G LR.
- Not intended for very short runs without attenuation.
Key Features
25G over single-mode
25GBASE-LR at 1310 nm, up to 10 km.
SFP28 for LANCOM switches
Validated for LANCOM switch SFP28 ports.
Hot-swappable
Swap during operation without rebooting the switch.
Published optical budget
Tx −2 dBm typ., Rx sensitivity −12 dBm for link planning.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
For 25G backbones over existing single-mode fibre, the LR optic is the simple, future-proof choice — just make sure both switches have SFP28 ports set to 25G. Short campus links on single-mode should be checked for attenuation before go-live. See LANCOM and other switches with SFP28 uplinks.
✓ Buy it if you are building 25G links between LANCOM switches over single-mode fibre up to 10 km.
✕ Skip it if your fibre is multimode (choose the LANCOM 25G SR module) or your ports are 10G SFP+ only.
→ Also consider LANCOM SFP-LR40-LC10 for 10G links up to 40 km and LANCOM QSFP28 SR4 (60206) for 100G within the data centre.
Send us the LANCOM switch models, link length and fibre type and we will confirm the module and attenuation needs.
Features - Lancom Systems - 60172
More Details
Product Code
04:358884
EAN Code
4044144601729
Manufacturer
Lancom Systems
