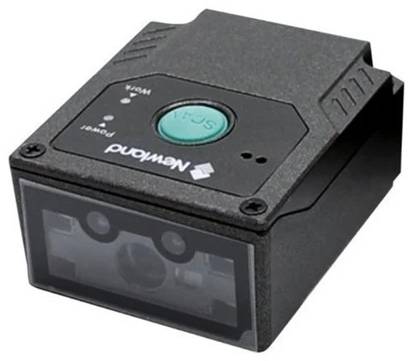

Newland FM430 Barracuda NLS-FM430-U Fixed-Mount 1D/2D Barcode Scanner, Green LED Aimer, 2 m USB Extension Cable

Brand:
Newland
Newland FM430 Barracuda NLS-FM430-U Black Fixed-Mount Barcode Scanner
Newland FM430 Barracuda NLS-FM430-U Fixed-Mount 1D/2D Barcode Scanner, Green LED Aimer, 2 m USB Extension Cable
€215.34 inc. VAT
Buy
NLS-FM430-U
€180.96
€215.34 inc. VAT
Ships from EU stock: 80 item(s)
+ −
Add to wish list Ask a question
Product Code
CE77913
Manufacturer
Newland

Quick Specs

Reading
1D / 2D, QR Code
Aiming
Green LED
Included connection
2 m USB extension
Installation
Fixed mount, IP54
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Newland FM430 Barracuda USB 2D Fixed-Mount Scanner

1D / 2D, QR CodeGreen LED2 m USB extensionFixed mount, IP54

The Newland FM430 Barracuda NLS-FM430-U reads printed 1D barcodes and 2D codes such as QR Code, Data Matrix and PDF417, including codes displayed on mobile screens. Install this compact fixed-mount reader in a kiosk, ticket terminal or other host system, then present the label or phone to its scan window. This green LED aiming configuration includes a 2 m USB extension cable. The connected host and its application use the decoded data to perform the intended task.

Before you order:
Check host USB input support, software integration, mounting space and the reading distance for your actual barcode size. NLS-FM430-U is the green LED version with a 2 m USB extension; laser aiming belongs to NLS-FM430L-U. A kiosk, host computer and application are required separately. Outdoor installation requires a suitable housing, as specified by Newland.

What's in the Box

  • 1 × FM430 Barracuda reader with green LED aimer
  • 1 × 2 m USB extension cable

What It Means in Practice

  • Example: a visitor presents a QR ticket on a phone; the reader sends the code to the connected ticketing application, which must validate it and control any access equipment.
  • IR and light sensing support automatic hands-free triggering; EasySet configures the scanner for the installation.
  • Test your real labels, screen brightness and presentation distance before fixing the scanner position.

What Will Not Work

  • Choose a handheld or wireless scanner if the operator needs to move between items.
  • The reader alone does not validate tickets, process payments or operate a kiosk; those functions belong to the host application.
  • The USB kit does not include the RS-232 cable and multiplug adapter supplied with the RC configuration. IP54 does not make it suitable for immersion.

Key Features


Printed labels and mobile screens
The 1280 × 800 CMOS sensor covers major 1D and 2D symbologies. A single fixed reading point can accept conventional product labels and QR codes shown on phones.

Automatic presentation scanning
IR and light sensors detect presented barcodes, while supplementary white illumination adjusts to reflected light. Sense, Continuous, Level and Pulse modes support different integration requirements.

Exact USB and green LED configuration
The 2 m USB extension helps route the connection between the scan position and host. Green LED aiming identifies this U version; do not substitute laser-version or short-cable specifications.

Compact integration with IP54 protection
The PC/ABS housing measures 41.5 × 49.5 × 24.3 mm. IP54 protection and manufacturer-tested 1.5 m drop resistance support integration, with suitable additional housing required for outdoor use.

Technical Specifications

Identity
MPN NLS-FM430-U
EAN 2050010273961
Configuration
Brand / series Newland / FM430 Barracuda
Form factor Fixed-mount scanner for system integration
Colour Black
Supplied interface USB, with 2 m USB extension cable
Reader interface support USB / RS-232; RS-232 cable and adapter are not included in this USB configuration
Optics and decoding
Image sensor 1280 × 800 CMOS
Minimum barcode resolution ≥3 mil
Frame rate 60 frames/s
Aimer Green LED, 518 nm
Illumination White LED
Trigger sensing Infrared and light sensors
Reading media Printed barcodes and mobile phone screens
1D symbologies EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, ITF, ITF-14, ITF6, Standard 25, Matrix 25, COOP 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, Code 49, Code 16K
2D symbologies PDF417, QR Code, Data Matrix, Aztec, CSC, Maxicode, Micro QR, Micro PDF417, GM, Code One
Minimum print contrast 25%
Field of view 51° horizontal / 32° vertical
Reading angles Pitch ±55°, skew ±55°, roll 360°
Scan modes Sense, Continuous, Level, Pulse
Processor X1500, 1 GHz
Typical reading distances
Code 39, 5 mil 70–180 mm
EAN-13, 13 mil 55–360 mm
PDF417, 6.67 mil 55–160 mm
Data Matrix, 10 mil 50–170 mm
QR Code, 15 mil 40–210 mm
Distance conditions Typical manufacturer values for the stated barcode types and module sizes; actual results depend on the barcode and installation
Physical and electrical
Dimensions (W × D × H) 41.5 × 49.5 × 24.3 mm
Weight (EMEA specification) 75 g
Housing material PC / ABS
Operating voltage 5 VDC ±5%
Operating current at 5 VDC 276.8 mA typical / 322.7 mA maximum
Standby current at 5 VDC 83.3 mA
Feedback Beeper and LED
Environment and support
Operating temperature −20 to +60 °C
Storage temperature −40 to +70 °C
Humidity 5–95%, non-condensing
Protection rating IP54
Drop resistance 1.5 m onto concrete, six sides, three drops per side under manufacturer test conditions
ESD resistance ±14 kV air / ±8 kV direct discharge
Configuration tool EasySet
Driver resources JPOS / OPOS packages on the manufacturer support page
Manufacturer-listed certifications FCC Part 15 Class B, CE EMC Class B, RoHS, IEC 60825, IEC 62471, KC
Standard manufacturer warranty 5 years (EMEA)

Frequently Asked Questions

How far away should a phone QR code be presented?
Newland lists a typical 40–210 mm range for a 15 mil QR code. The supported distance depends on module size and presentation conditions; test the real code and screen during installation.
Will scanning a ticket automatically open a door?
The scanner supplies decoded barcode data. Your host application must check the ticket and implement any connection to access-control equipment. Confirm the complete integration before ordering.
Which software can configure the reader?
Newland lists EasySet as the configuration tool and provides JPOS and OPOS resources on its product support page. Match the interface mode and integration method to your host application; the presence of drivers is not a guarantee for every application.
Singular Expert Insight
Choose this kit when the barcode is brought to a fixed USB reading point and the 2 m extension suits the enclosure. The key installation decision is the distance to the real barcode, not simply the megapixel sensor. Compare barcode scanners

Buyer’s Guide

✓

Buy it if

 You are integrating printed-label and phone-screen scanning into a fixed USB terminal.
✕

Skip it if

 Choose a handheld or wireless scanner if the operator needs to move between items.
→

Also consider

 Compare handheld scanners for mobile operation, or verify an RS-232 kit if your host requires a serial connection.
Tell us your host connection, barcode type and size, reading distance and enclosure so we can check the installation.
