EFB-Elektronik EC020200122 Cat 6A Patch Cable on Cat 7 Raw S/FTP PiMF LSZH 2 m Grey, 10 Gbit RJ45 Male to Male
Brand:
EFB
EFB-Elektronik EC020200122 Cat 6A Patch Cable on Cat 7 Raw S/FTP PiMF LSZH 2 m Grey, 10 Gbit RJ45 Male to Male
€4.96 inc. VAT
EC020200122
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

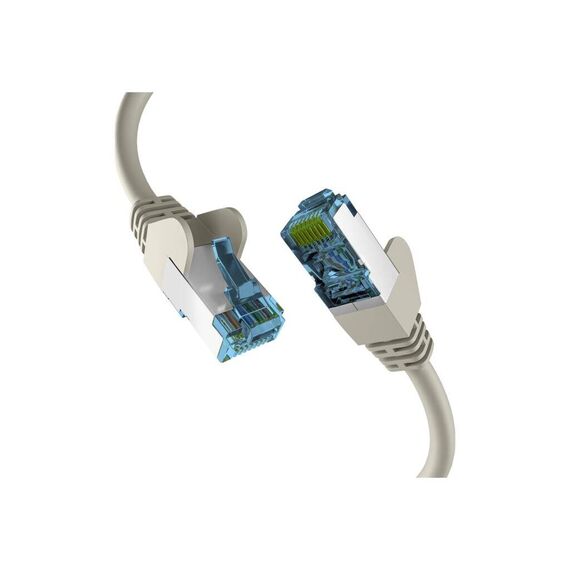

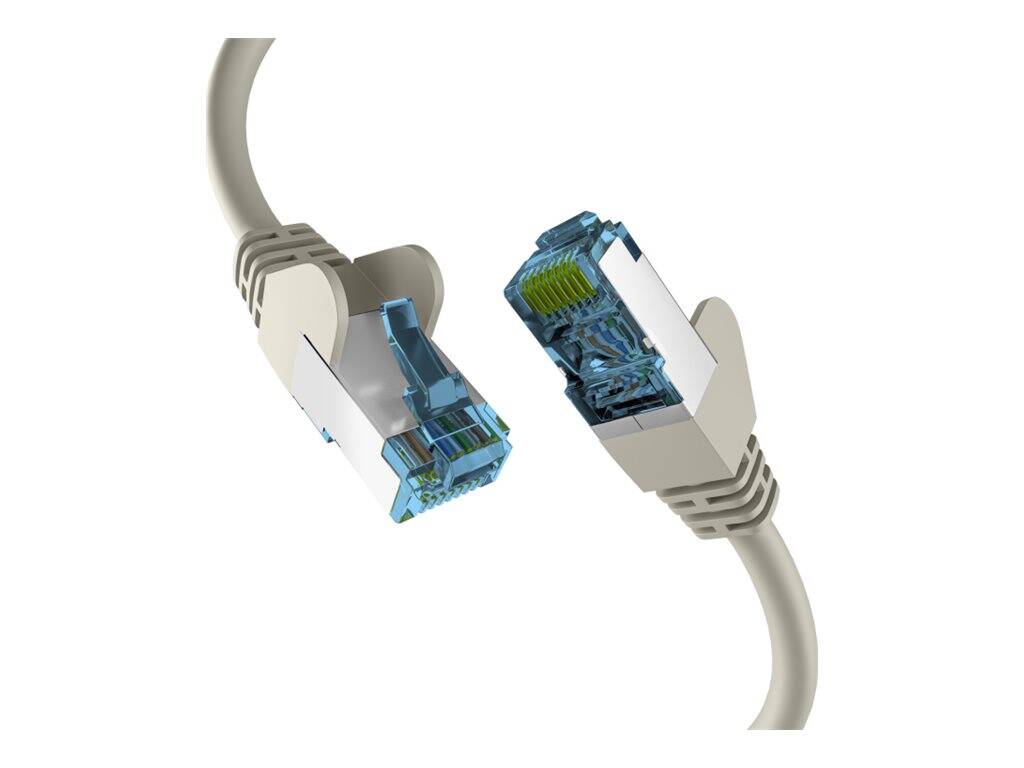

EFB-Elektronik EC020200122 Cat 7 Raw S/FTP Patch Cable — 2 m, Grey
Cat 7 raw / Cat 6a plugs600 MHz10 Gbit2 m · Grey
The EFB-Elektronik EC020200122 is a 2 m grey RJ45 patch cable built on Cat 7 raw S/FTP PiMF cable with Cat 6a connectors, rated up to 600 MHz for 10 Gigabit Ethernet in racks, offices and server rooms. Part number EC020200122 uses a halogen-free LSZH jacket, gold-plated contacts, a length imprint and locking-lug protection against accidental unplugging. Typically in stock with fast delivery across Cyprus.
Compatibility note: The link runs at the speed of the weakest element: Cat 6a RJ45 plugs make this a Cat 6A-class channel (10GBASE-T up to 100 m), not a "Cat 7" link. EFB publishes no PoE class for this range; for IEEE 802.3bt 4PPoE loads choose the EFB MK6001 or ECOLAN series.
Key Features
Cat 7 raw cable, Cat 6a plugs
Individually foil-screened pairs plus an overall braid (S/FTP PiMF) with AWG 27/7 stranded copper give generous crosstalk headroom for 10 Gigabit Ethernet.
LSZH jacket
Low-smoke zero-halogen 6 mm jacket for offices, public buildings and data centres where halogen-free cabling is specified.
Length imprint + locking-lug protection
The printed length speeds up documentation, and the protected latch resists snagging when cords are pulled through dense patch panels.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The EC020200122 is a solid choice when you want a shielded, halogen-free 2 m cord with a latch guard and printed length for tidy network cables. If you need certified 4PPoE for PoE++ access points, step to the EFB MK6001 series; if you only run Gigabit, a Cat 6 cord is cheaper.
Buyer's Guide
Buy it if
You want a halogen-free 2 m S/FTP cord with latch protection for 10 Gbit rack patching in grey.
Skip it if
You need a published 802.3bt PoE rating or a slim cord for very dense panels.
Also consider
EFB MK6001 Cat 6A S/FTP LSZH (4PPoE 802.3bt) or a flat Cat 6A cord for tight spaces.
Features - EFB - EC020200122
Colour
grey
Length
2m
Standard
CAT6a
More Details
Product Code
CI29767
EAN Code
4049759289706
Manufacturer
EFB
