Optically clear film for controlled display bonding
8264N12in × 33yd4mil nominal1 roll

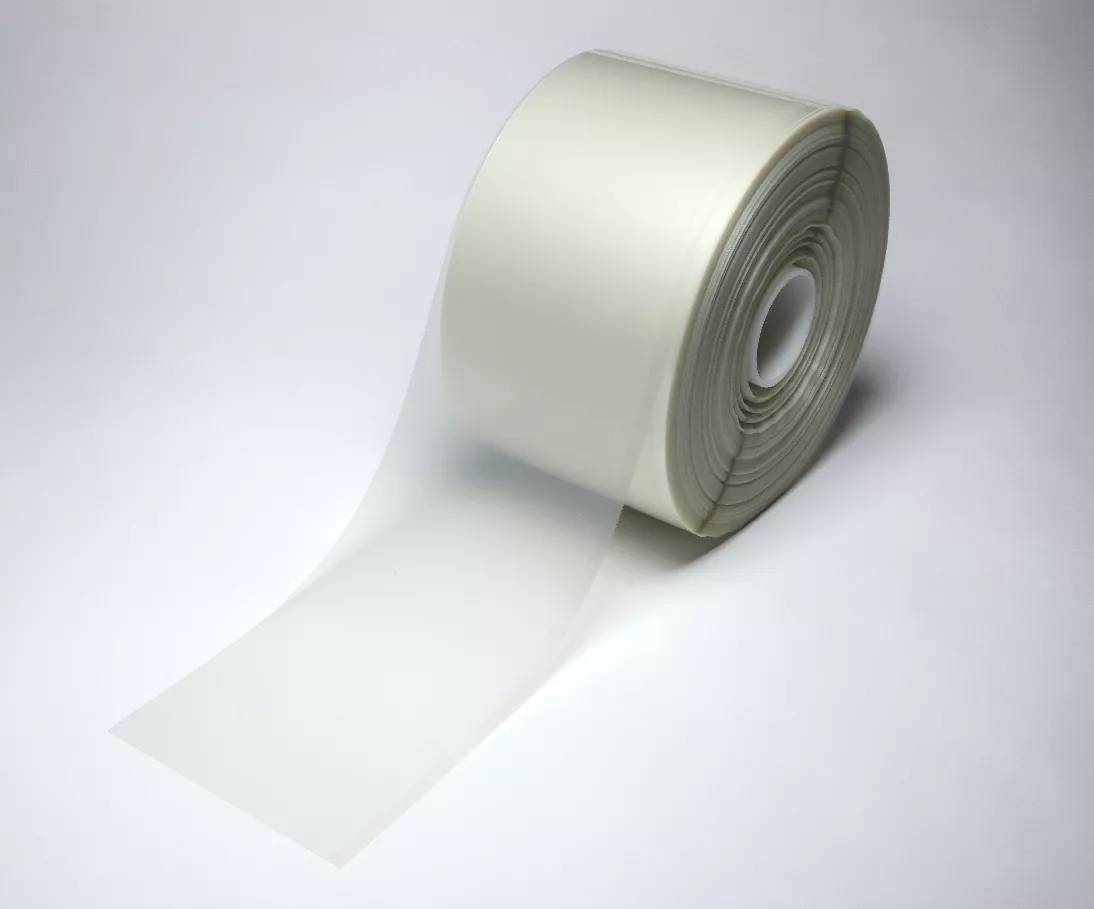

The 3M 8264N is an industrial optically clear adhesive supplied as one 12in-wide, 33yd-long roll, approximately 304.8mm × 30.18m. It forms a transparent adhesive bond between suitably prepared components in validated display assemblies, including touch applications, plastic light guides and cover lenses. The nominal film thickness is listed as 4mil / 100µm. This is raw adhesive material for cutting and lamination, not a pre-cut screen protector or a device-specific repair kit. Cutting, alignment, surface preparation and a suitable controlled lamination process must be provided separately.
Before you order:
Qualify the exact substrate materials, bare-ITO layer, adhesive thickness and lamination process before production. PMMA/PC and bare-ITO descriptions do not establish universal compatibility with every display or coating. Numeric optical transmission, temperature limits, shelf life and storage conditions have not been verified for this exact supplied item; obtain the current 3M application guidance for production qualification.
What It Means in Practice
- For a validated cover-lens bonding process, convert the roll into the required part shape, prepare the specified surfaces, align the adhesive and components and laminate using the approved process. Inspect the finished assembly for optical defects and bond quality before production use.
What Will Not Work
- It is not a liquid adhesive, a curing lamp, a laminating machine or a complete display repair kit. No device-specific compatibility, outdoor rating or guaranteed bubble-free result is established.
Key Features
Transparent bonding material
The optically clear free-film format is intended for transparent-substrate bonding where the adhesive interface must remain visually unobtrusive.
Touch and plastic-substrate applications
The exact listing describes bare-ITO compatibility and outgassing resistance with PMMA and PC; these are starting points for application testing.
Roll for conversion
The 12in × 33yd roll supplies material for cutting to the required assembly shape rather than a fixed device outline.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
For optical bonding, adhesive identity and nominal thickness are only part of the decision. Surface cleanliness, substrate chemistry, alignment and a qualified lamination process determine whether the material is suitable for the assembly. Confirm the exact roll and application requirements
Buyer’s Guide
✓
Buy it if
Your validated display-bonding process specifies 8264N in this roll format and nominal thickness.✕
Skip it if
You need a pre-cut repair kit, liquid glue or guaranteed compatibility without application testing.→
Also consider
The current manufacturer-recommended optical adhesive for the exact substrates and qualified process.Confirm the exact roll and application requirements
Features - 3M - 7100093929
Colour
clear
More Details
Product Code
04:410509
EAN Code
00051128004159
Manufacturer
3M
