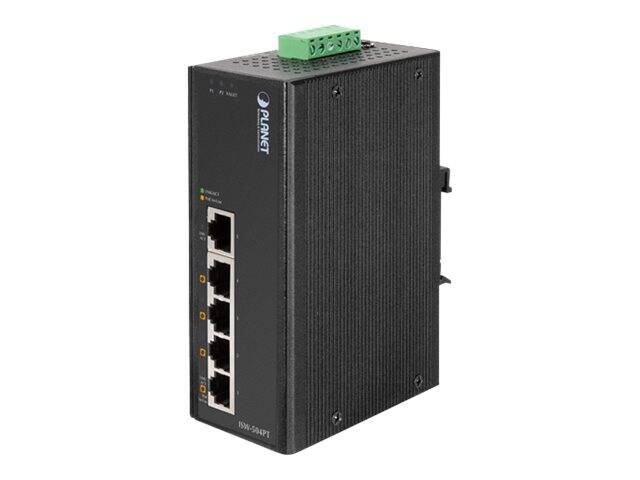

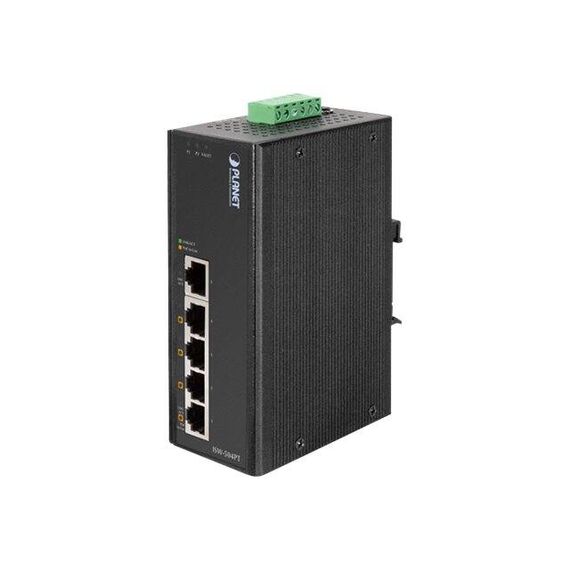

Planet ISW-504PT Industrial Fast Ethernet PoE Switch - 5-Port
The Planet ISW-504PT is an industrial Fast Ethernet switch with PoE support, designed for compact network installations where powered devices need simple cabling. It offers five 10/100 ports, with four PoE RJ-45 interfaces rated at up to 15.4 W per port, plus DIN rail or wall mounting and a rugged IP-30 enclosure.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Switch - 5 ports |
| Subtype | Fast Ethernet |
| Ports | 4 x 10/100 (PoE) + 1 x 10/100 |
| Interfaces | 4 x 100Base-TX RJ-45 PoE - 15.4 W | 1 x 100Base-TX RJ-45 | 4 x 100Base-TX RJ-45 PoE - 15.4 W 1 x 100Base-TX RJ-45 |
| Power over Ethernet | PoE |
| Mounting | DIN rail mountable | wall-mountable |
| Enclosure Type | IP-30 rugged case |
| Switching Fabric Bandwidth | 1 Gbps |
| Throughput | 0.74 Mpps |
| MAC Address Table Size | 2K entries |
| Features | Auto-negotiation | auto-uplink (auto MDI/MDI-X) | store and forward | half duplex mode | full duplex mode |
| Standards | IEEE 802.3 | IEEE 802.3u | IEEE 802.3af | IEEE 802.3x |
| Status Indicators | Power | PoE | link/activity |
| Voltage Required | DC 24/48 V |
| Dimensions | 13.5 x 8.78 x 5.6 cm |
| Weight | 842 g |
| Operating Temperature | -40 °C to 75 °C |
| Operating Humidity | 5 - 90% |
| Storage Temperature | -40 °C to 85 °C |
| Storage Humidity | 5 - 90% (non-condensing) |
| Compliant Standards | IEC 60068-2-27 | IEC 60068-2-32 | IEC 60068-2-6 | FCC Part 15 A |
| Manufacturer ID | ISW-504PT |
| EAN/UPC | 4711213688829 |
| SKU / EAN | ISW-504PT | 4711213688829 |
SINGULAR RECOMMENDS
For who
Suitable for installers and industrial sites that need a small PoE switch for powering network devices from a compact, rugged unit.
Real reason to buy it
It combines five Fast Ethernet ports with four PoE outputs, rugged mounting options, and an IP-30 enclosure in one industrial switch.
Know before
This is a Fast Ethernet switch, so all network ports are 10/100 Mbps rather than gigabit. The PoE outputs are IEEE 802.3af at up to 15.4 W per port.
