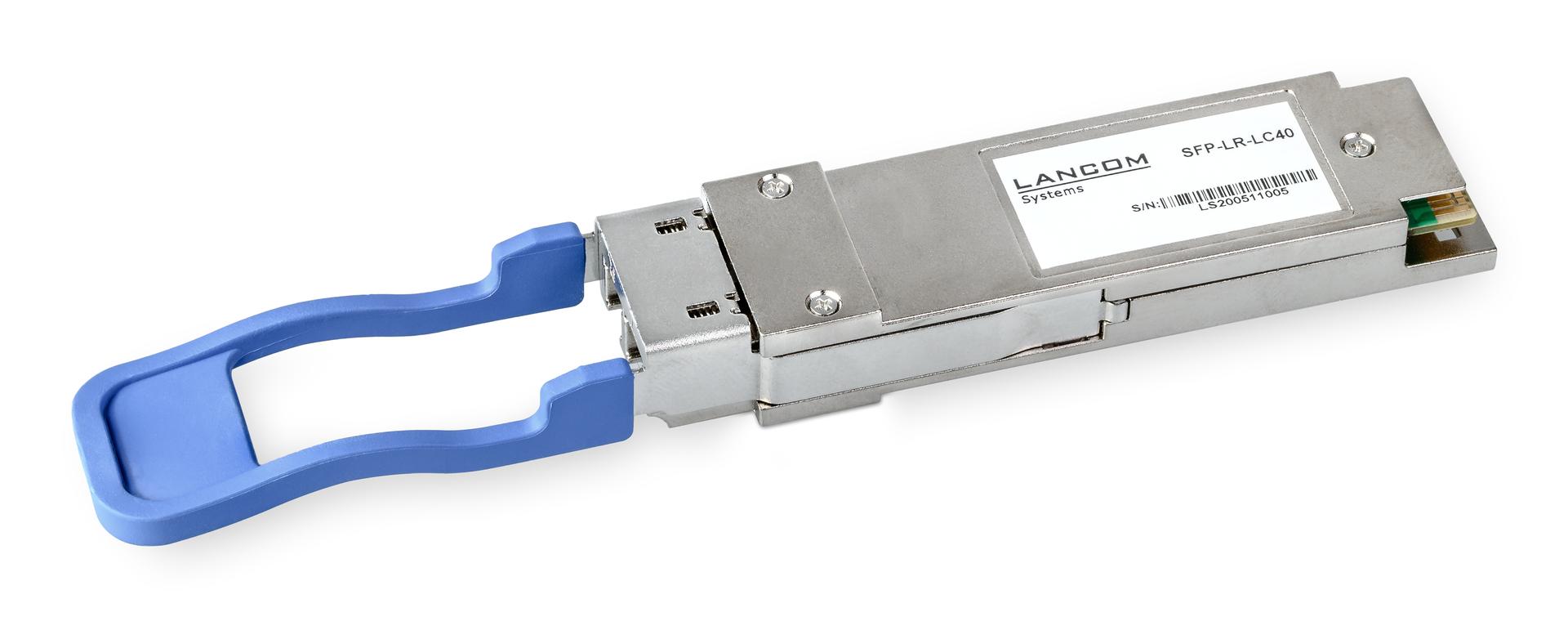

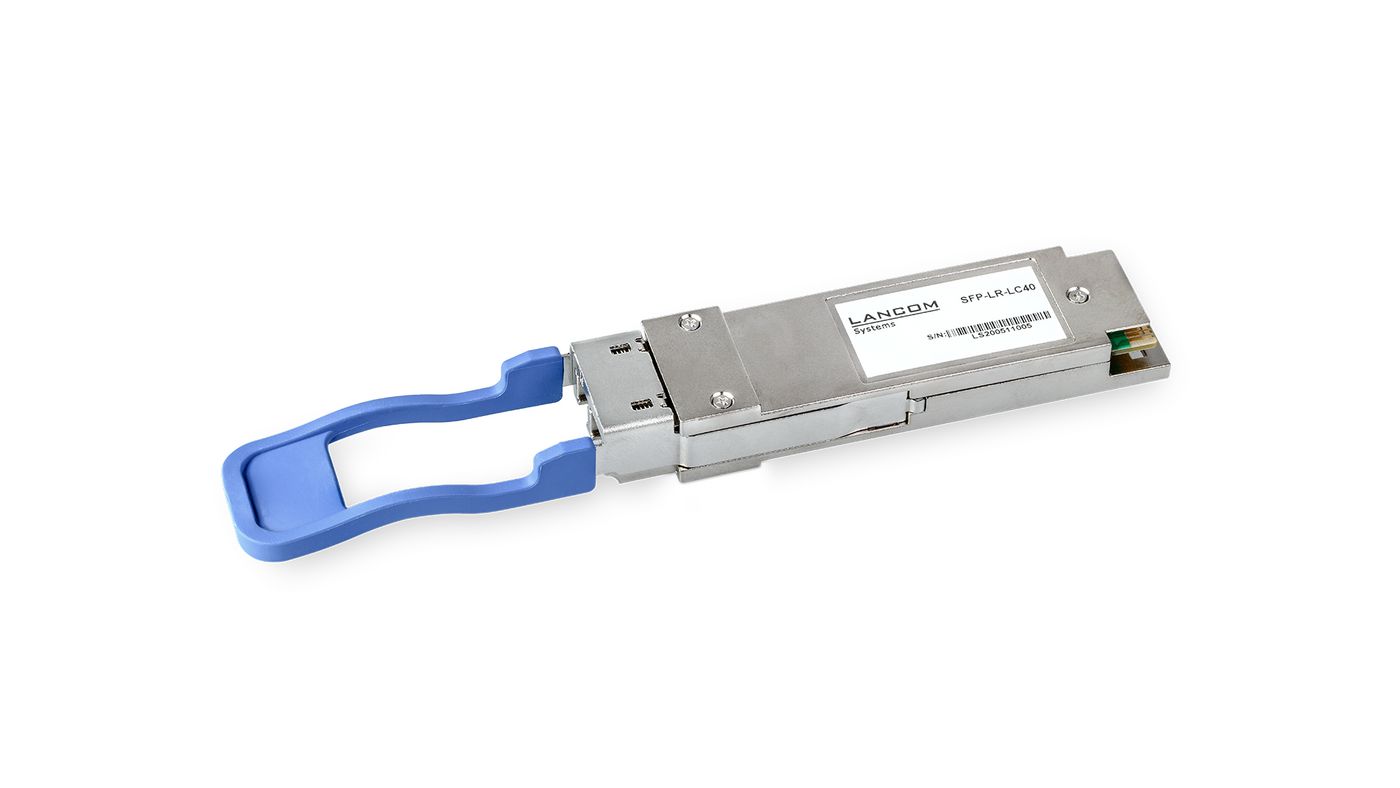

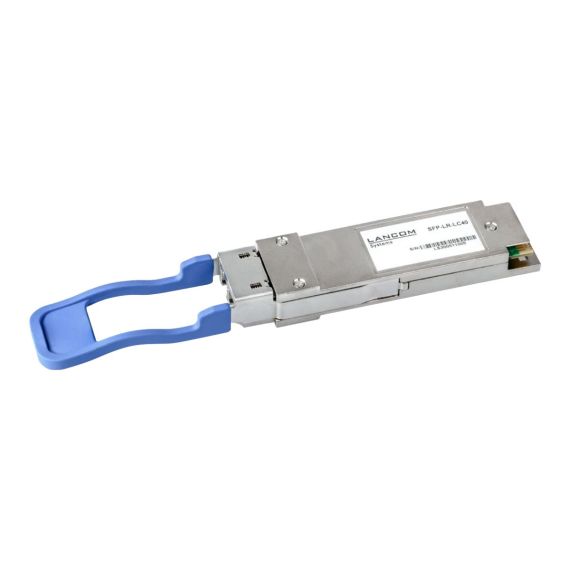

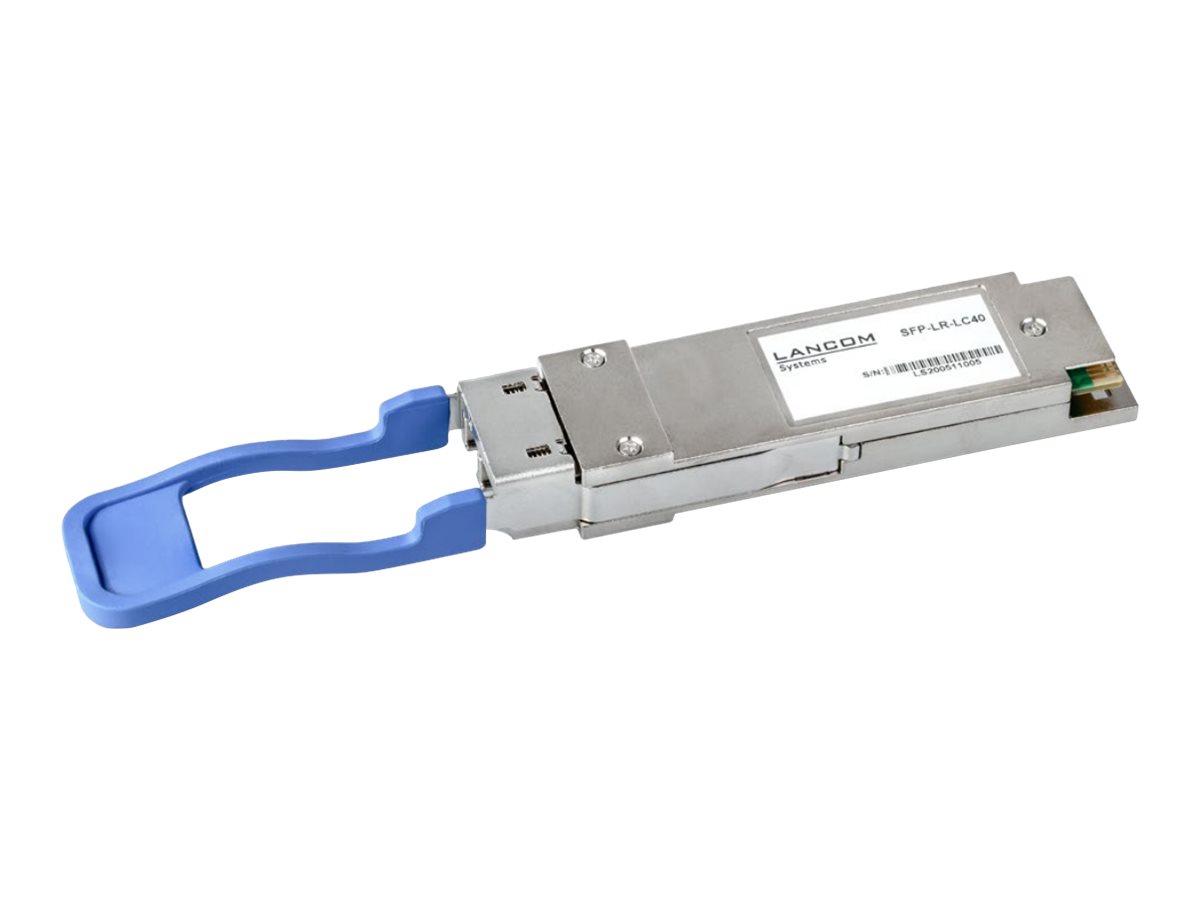

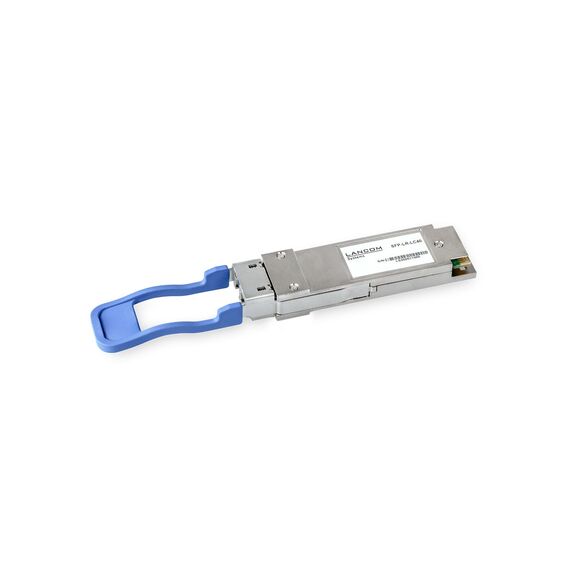

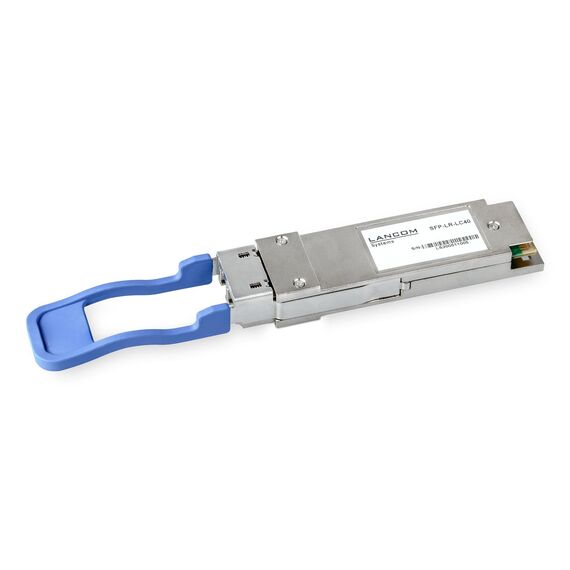

LANCOM SFP-LR-LC40 60174 QSFP+ Transceiver 40GBASE-LR 1310 nm LC Single-Mode up to 10 km

Brand:
Lancom Systems
LANCOM SFP-LR-LC40 / QSFP+ transceiver module / 40GbE / 4 | 60174
LANCOM SFP-LR-LC40 60174 QSFP+ Transceiver 40GBASE-LR 1310 nm LC Single-Mode up to 10 km
€2051.98 inc. VAT
Buy
60174
€1,724.35
€2,051.98 inc. VAT
Ships from EU stock: 8 item(s)
+ −
Add to wish list Ask a question
Product Code
N170816
EAN Code
4044144601743
Manufacturer
Lancom Systems

Quick Specs

Standard
40GBASE-LR · 40 Gbps
Fibre & Reach
Single-mode · up to 10 km
Connector
LC duplex · 1310 nm
Form Factor
QSFP+
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

LANCOM SFP-LR-LC40 — 40G Single-Mode QSFP+

40 GbpsQSFP+LC single-modeUp to 10 km

The LANCOM SFP-LR-LC40 (article 60174) is a 40 Gbit QSFP+ transceiver for single-mode fibre, reaching up to 10 km over an LC duplex connection. It is the long-reach uplink optic for LANCOM aggregation and core switches such as the XS-5116QF, XS-6128QF, CS-8132F and YS-7154CF, linking server rooms, buildings or sites at 40 Gbps. In practice, single-mode optics are the choice when a link leaves the building or runs several hundred metres: the OS2 fibre used by carriers and campus backbones carries the signal for kilometres with little loss. Before you order, confirm the fibre is single-mode at both ends and note the length and the number of patch panels on the way.

Compatibility — check before buying:
It needs single-mode fibre with an LC duplex patch cord — it will not work over multimode fibre or MPO trunks (that is the SFP-SR-MPO40, 60173). The far end needs a 40G LR module; it will not link to a 100G module. Watch the name: SFP-LR-LC100 (60205) looks almost identical but is the 100G QSFP28 version. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your switch model and the cable run and we check it before you order.

Best For

✓ 40G links between buildings
✓ Core-to-aggregation uplinks on single-mode fibre
✓ LANCOM XS-5116QF / XS-6128QF QSFP+ ports
✓ Site-to-site dark fibre up to 10 km
✓ Replacing an MPO short-reach link with long reach
✓ Campus backbones

Key Features


40G over two fibres
Uses a normal LC duplex single-mode pair rather than a 12-fibre MPO trunk, so existing single-mode backbone cabling can carry 40 Gbps.

Single-mode fibre, long reach
Built for single-mode (OS1/OS2) fibre, the type used between buildings, floors and sites. It will not run over the orange or aqua multimode fibre found in many racks — the fibre type has to match at both ends.

Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.

Plan both ends together
A link only comes up when both ends use the same standard, speed and media. Order the far-end optic, the patch cord and any spares in one go and the link works on day one.

Technical Specifications

Identification
Brand R&S®LANCOM (Rohde & Schwarz)
Model SFP-LR-LC40
Part Number 60174
EAN / GTIN 4044144601743
Pack Size Single unit
Interface
Form Factor QSFP+
Standard 40GBASE-LR/LW
Data Rate 40 Gbps
Connector LC duplex
Optics & Reach
Wavelength 1310 nm
Fibre Single-mode 9/125 µm
Reach Up to 10 km
Tx Power (typ./max.) −4 / +2 dBm
Environment & Power
Operating Temperature 0 to 70 °C
Diagnostics (DDM) Not published for this module
Hot-Swap Yes
Compatibility
Designed For R&S®LANCOM switches, routers and firewalls with the matching port type — XS-5116QF, XS-6128QF, CS-8132F and YS-7154CF list it as an accessory
Link Partner Another 40GBASE-LR single-mode QSFP+ module
In the Box
Included 1 module
Not Included Fibre patch cords, cleaning tools and attenuators
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term LANCOM publishes a 2-year manufacturer warranty for this module type. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Which LANCOM switches take it?
LANCOM lists it as an accessory for the XS-5116QF and XS-6128QF (QSFP+ ports) and for the CS-8132F and YS-7154CF, whose QSFP28 ports also run at 40G.
Is this the same as SFP-LR-LC100?
No. SFP-LR-LC100 (60205) is the 100G QSFP28 version with the same 10 km single-mode reach. The two will not link to each other.
Are fibre patch cords included?
No. You get 1 module. The LC duplex patch cord, a matching module for the far end of the link and a fibre cleaning tool are bought separately. Tell us the distance and the fibre type and we quote the right cord.
Will it work in a switch from another brand?
LANCOM tests and approves its modules across its own models and excludes support for third-party SFPs inside LANCOM devices. Operation of LANCOM modules in other brands’ switches is not something LANCOM publishes, so we do not promise it — send us the switch model and we check it.
Singular Expert Insight
The SFP-LR-LC40 is the optic we fit when a LANCOM 40G uplink has to leave the building. For runs inside one room on multimode fibre, the SFP-SR-MPO40 (60173) is cheaper; if both ends are 100G-capable QSFP28 ports, move straight to the SFP-LR-LC100. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status from the switch and we help you find out whether it is the optic, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.

Buyer’s Guide

Buy it if

You need a 40G single-mode uplink up to 10 km on a LANCOM QSFP+ or QSFP28 port.

Skip it if

Your fibre is multimode or MPO, or both ends run at 100G.

Also consider

LANCOM SFP-SR-MPO40 (60173) for multimode MPO, or SFP-LR-LC100 (60205) for 100G.
