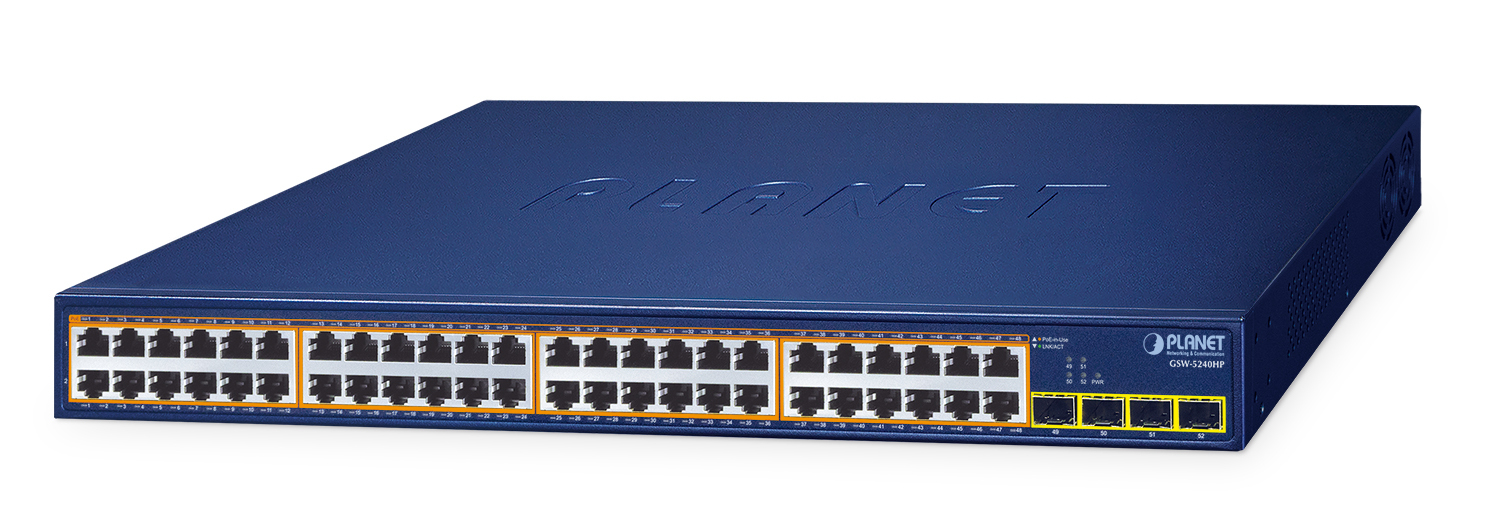

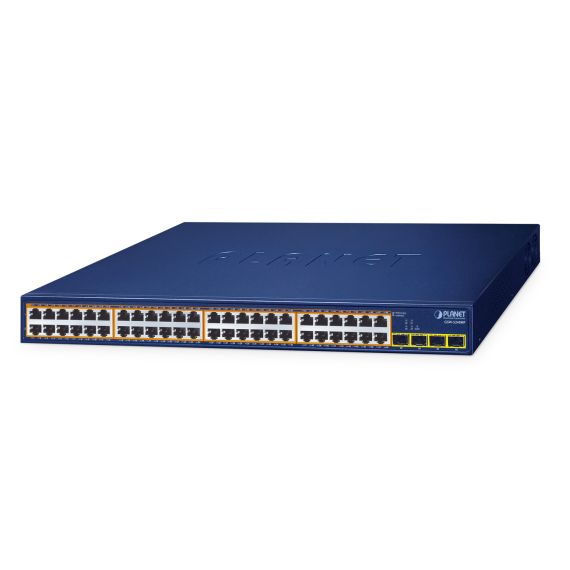

PLANET GSW-5240HP 48-Port Gigabit Unmanaged PoE+ Switch 370W 4x SFP PD Alive Check Rackmount Blue

Brand:
Planet
PLANET 48-Port 10/100/1000T 802.3at GSW-5240HP, Unmanaged, Gigabi
PLANET GSW-5240HP 48-Port Gigabit Unmanaged PoE+ Switch 370W 4x SFP PD Alive Check Rackmount Blue
€701.6 inc. VAT
Buy
GSW-5240HP
€589.58 €655.09
€701.60 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:528869
EAN Code
4711605288477
Manufacturer
Planet

Quick Specs

Ports
48× 1G PoE+ + 4× SFP
PoE
802.3at · 370W budget
Management
Unmanaged (plug-and-play)
Design
1U · 104 Gbps · PD Alive
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

PLANET GSW-5240HP — 48-Port Gigabit Unmanaged PoE+ Switch

48× Gigabit PoE+4× SFP Uplink370W PoE BudgetPlug-and-Play

The PLANET GSW-5240HP is a 48-port Gigabit unmanaged PoE+ switch with four Gigabit SFP fibre uplinks, delivering PoE+ on every copper port from a 370W shared budget. It is true plug-and-play for large camera, access-point and VoIP deployments, and includes PLANET’s PD Alive Check to auto-recover hung powered devices. This is model GSW-5240HP. Typically in stock with fast delivery across Cyprus.

Compatibility — check before buying:
PoE is IEEE 802.3at PoE+ (backward compatible with 802.3af) up to 30W per port — not 802.3bt / PoE++. All 48 ports are PoE-capable but share a 370W budget, so they cannot all draw 30W at once; plan the budget across your devices. The 4 SFP slots take Gigabit (1G) modules, sold separately. It uses active fans.

Best For

✓Large IP camera (CCTV) networks
✓Wi-Fi AP rollouts
✓VoIP phone deployments
✓High-density office LANs
✓Fibre uplinks to the core
✓Zero-config plug-and-play sites

Key Features


48 Gigabit PoE+ Ports, 370W
Every RJ45 port supplies 802.3at PoE+ up to 30W (54V DC) from a 370W shared budget, powering a large fleet of cameras, APs and phones with no injectors.

PD Alive Check Reliability
PLANET’s PD Alive Check continuously monitors powered devices and automatically reboots any that hang, cutting maintenance trips for remote cameras.

True Plug-and-Play
No configuration — connect and go — with Auto MDI/MDI-X, flow control and IEEE 802.3az Energy-Efficient Ethernet to trim power use.

4 SFP Uplinks, 104 Gbps Fabric
Four Gigabit SFP fibre slots and a 104 Gbps non-blocking fabric (77.3 Mpps) with 12K jumbo frames handle backbone links and heavy traffic.

Technical Specifications

Identification
Brand PLANET
Model GSW-5240HP
Part Number GSW-5240HP
EAN / GTIN 4711605288477
MPN GSW-5240HP
Ports & Switching
Ports 48 × 10/100/1000 RJ45 (PoE+) + 4 × 1000BASE-X SFP
Switching Capacity 104 Gbps (non-blocking)
Forwarding Rate 77.3 Mpps
MAC Address Table 16K
Jumbo Frame 12 KB
Power over Ethernet
PoE Standards IEEE 802.3at (PoE+), backward compatible 802.3af
PoE Ports 48 (all RJ45)
PoE Power Budget 370W (shared)
Per-Port Max 30W (54V DC)
Reliability PD Alive Check
Features
Management Unmanaged (plug-and-play)
Energy Saving IEEE 802.3az (EEE)
Other Auto MDI/MDI-X, flow control
Physical & Power
Cooling Active (4 fans)
Form Factor 19-inch 1U rack-mount
Colour Blue
Dimensions 440 × 330 × 44.5 mm
Weight 4.9 kg
Power Input 100–240 VAC, 50/60Hz
Max Consumption 420W
Warranty
Warranty PLANET 2-year limited manufacturer warranty. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process.

Frequently Asked Questions

How many ports supply PoE?
All 48 Gigabit ports are PoE+ capable (802.3at, up to 30W each), but they share a 370W total budget — so not every port can draw the full 30W simultaneously. Plan the budget across your devices.
Does it need configuration?
No. The GSW-5240HP is unmanaged and fully plug-and-play. Connect your devices and it works, with automatic speed negotiation and PoE detection.
What is PD Alive Check?
It is a PLANET feature that monitors each powered device and automatically reboots any that stop responding, reducing maintenance visits for remote cameras and APs.
What do the 4 SFP ports accept?
They are Gigabit (1G) SFP fibre uplink slots for standard 1000BASE-SX/LX modules (sold separately) to link the switch to a fibre backbone or core.
Singular Expert Insight
The GSW-5240HP is built for large surveillance and AP deployments that need lots of PoE ports with zero configuration, plus PD Alive Check to keep remote devices online. If you need VLANs or monitoring, choose a managed PoE switch instead. Browse our network switches range, or the access points and cameras it powers.

Buyer’s Guide

Buy it if
You need to power many cameras, APs and phones with zero setup — 48 Gigabit PoE+ ports (370W) plus fibre uplinks and PD Alive Check auto-recovery.
Skip it if
You need VLANs, monitoring or managed control, or 802.3bt / PoE++ high-power devices — choose a managed PoE switch or a bt-capable model.
Also consider
A managed PoE+ switch (such as the TP-Link TL-SG3428XMP) if you need VLANs and monitoring, or a bt-capable switch for 60W+ devices.
