HPE R9L61A Comware 5140 HI Managed Layer 3 Switch, 24 Gigabit Ports with 8 Combo SFP, 4 SFP+ Uplinks, 1U, No PSU

Brand:
Hewlett Packard
HPE R9L61A 5140 HI 24G 4SFP Plus Managed Switch
HPE R9L61A Comware 5140 HI Managed Layer 3 Switch, 24 Gigabit Ports with 8 Combo SFP, 4 SFP+ Uplinks, 1U, No PSU
€3574.41 inc. VAT
Buy
R9L61A
€3,003.71 €3,337.46
€3,574.41 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
CF38908
EAN Code
0190017587868
Manufacturer
Hewlett Packard

Quick Specs

Access connectivity
24 × 10/100/1000 RJ45; 8 shared RJ45/SFP combo ports
Uplinks / expansion
4 × 1/10G SFP+ / 1 expansion slot
Switching / forwarding
288Gbps / 180Mpps
Rack / power
1U; 2 PSU slots, at least 1 separately selected PSU
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

A configurable Layer 3 access switch for enterprise networks

24 Gigabit access ports4 SFP+ uplinksLayer 3 / IRF / DRNIPSU selected separately

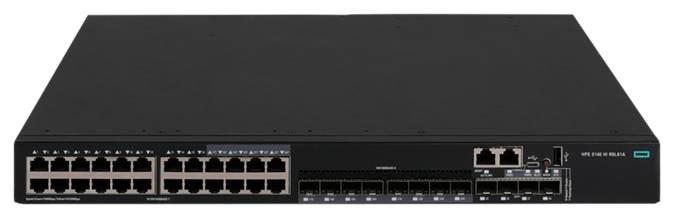

The HPE R9L61A Comware 5140 HI is a managed 1U enterprise access switch for connecting office devices and aggregating their traffic toward the network core. It provides 24 Gigabit access ports, including 8 copper/fibre combo positions, plus 4 SFP+ uplinks and an expansion slot. This is the non-PoE chassis: a compatible power supply must be selected separately before operation. Two fan trays and rack-mounting hardware are documented as included. Optical transceivers and expansion modules are separate choices.

Before you order:
The 8 combo positions share their copper and SFP alternatives: they do not add 8 independent access links to the 24-port total. SFP+ slots need compatible optics or supported direct-attach cabling. Choose at least one compatible AC or DC PSU, the appropriate uplink media and a supported rack/airflow configuration. The PoE features advertised for other 5140 HI family members do not apply to R9L61A.

What's in the Box

  • 1 × HPE R9L61A switch chassis
  • 2 fan trays
  • Rack-mounting hardware
  • PSU, optical transceivers and expansion modules selected separately

What It Means in Practice

  • For an office access layer, connect endpoints to Gigabit RJ45 ports, choose copper or fibre for the combo positions and connect a suitable SFP+ uplink toward the core. A network administrator must configure addressing, VLANs, routing, access policies and management.
  • Layer 3 routing can move traffic between configured subnets; IRF and DRNI support resilient designs when deployed with the correct peer devices and configuration. These are design capabilities, not automatic protection against every outage.
  • At least one PSU is required. Fitting a second supported PSU enables a redundant power arrangement; it is not supplied as an assumed complete dual-PSU bundle.
  • This is an actively cooled rack switch. Its documented fan noise makes a rack or equipment room more suitable than a quiet desk. Maintain side-to-back airflow and access to power and uplink modules.

What Will Not Work

  • Powering PoE cameras or access points directly from this non-PoE model.
  • Operating the chassis without a compatible PSU or using empty SFP+ cages as ready optical connections.
  • Counting the combo SFP alternatives as extra independent copper ports or assuming every optional module is included.

Key Features


Flexible copper and fibre access
24 Gigabit access ports include 8 shared combo positions; 4 fixed 1/10G SFP+ uplinks and an optional expansion slot provide network-design flexibility.

Managed routing and resilience
Comware supports IPv4/IPv6 routing, OSPF, RIP, policy-based routing, IRF, DRNI and ISSU under supported deployment conditions.

Security, QoS and visibility
ACLs, 802.1X, DHCP/ARP protections, traffic policies, sFlow and iNQA help administrators control and observe the network. SmartMC is included; IMC integration is supported.

Technical Specifications

Identity and ports
Manufacturer / model HPE Networking Comware 5140 HI / R9L61A
EAN 0190017587868
Switch type Managed Layer 3 Gigabit Ethernet access switch
Copper access ports 24 × 10/100/1000BASE-T RJ45; auto-MDIX
Combo arrangement 16 fixed copper ports + 8 shared RJ45/SFP combo ports; 24 access links maximum
Fixed uplinks 4 × 1/10G SFP+; compatible 1G SFP also supported
Expansion slot 1 optional port expansion module slot
Other interfaces 1 dual-personality RJ45/mini-USB serial console; 1 RJ45 out-of-band management; 1 USB 2.0
PoE output No; this is the non-PoE R9L61A model
Performance and resources
Routing / switching capacity 288Gbps
Forwarding throughput 180Mpps
Latency Less than 5µs at 1000Mb; less than 3µs at 10Gbps
Memory / flash / packet buffer 2GB SDRAM / 512MB flash / 4MB packet buffer
Routing table / MAC table 8K / 32K
VLAN / jumbo frames 4094 VLAN IDs / up to 9KB frames
Network functions
Layer 3 routing IPv4/IPv6 static routing, OSPFv2/v3, RIP, VRRP/VRRPE, policy-based routing
Layer 2 / resiliency 802.1Q VLAN, QinQ, LACP, STP/RSTP/MSTP/PVST+, IRF, DRNI, ISSU
IRF scale Up to 9 physical switches as one logical device, under supported configuration
QoS L2–L4 classification, traffic policing, SP/WRR/SP+WRR queues
Security ACLs, 802.1X, MAC authentication, DHCP protection, IP source guard, Dynamic ARP protection, RADIUS/HWTACACS
Management and visibility CLI, web management, SNMPv1/v2c/v3, SSHv2, HTTPS, sFlow, LLDP, SmartMC, IMC integration, iNQA
MACsec expansion example Optional R9L65A 2-port 10GBASE-T AES256 MACsec module; not included
Power and installation
PSU arrangement 2 power-supply slots; minimum 1, maximum 2 separately selected PSUs
Supported PSU examples JD362B 150W AC or JD366B 150W DC; select appropriate option
Cooling 2 fan trays included; side-to-back airflow
Rack mounting 1U / 19-inch EIA rack; mounting hardware included
Dimensions 440 × 360 × 43.6mm (W × D × H)
Weight Up to 6.7kg
Operating environment −5 to 45°C; 5–95% RH, noncondensing
Storage environment −40 to 70°C; 5–95% RH, noncondensing
Acoustics 53.0dB low fan / 68.9dB high fan; ISO 7779
Power planning figures 29W idle with dual AC / 95W maximum with dual DC; configuration dependent

Frequently Asked Questions

Is a power supply included?
This listing is the R9L61A chassis. The official configuration requires at least one and permits up to two separately selected PSUs; choose the correct compatible AC or DC option.
Can it power PoE devices?
No. R9L61A is the non-PoE model. Other 5140 HI PoE+ variants have different part numbers.
Are the 8 combo SFP ports additional to 24 RJ45 ports?
No. They share 8 access positions with their RJ45 alternatives. Select copper or SFP at each combo position; they are not 8 extra independent links.
Singular Expert Insight
Specify the complete build before purchase: access media, uplink optics or DACs, compatible PSU type and redundancy, expansion module if needed, and rack airflow. For MACsec, verify the required port/module support rather than assuming the optional AES256 module is fitted. Check the complete HPE switch configuration

Buyer’s Guide

✓

Buy it if

 an administrator needs managed Gigabit access, 10G uplinks and Layer 3 features in a configurable rack platform.
✕

Skip it if

 you need built-in PoE output, a fanless desktop switch or a ready-to-use unit with an assumed included PSU.
→

Also consider

 the separately selected PSU, compatible optics/DACs, optional expansion module and rack environment.
Provide the PSU, uplink medium and intended rack/network configuration for a build check.
