Intellinet 714150 19 Inch Wall Mount Network Cabinet Basic Line 6U 400 mm Depth Reversible Glass Door Flatpack 50 kg Grey
Brand:
Intellinet
Intellinet 714150 19 Inch Wall Mount Network Cabinet Basic Line 6U 400 mm Depth Reversible Glass Door Flatpack 50 kg Grey
€157.2 inc. VAT
714150
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

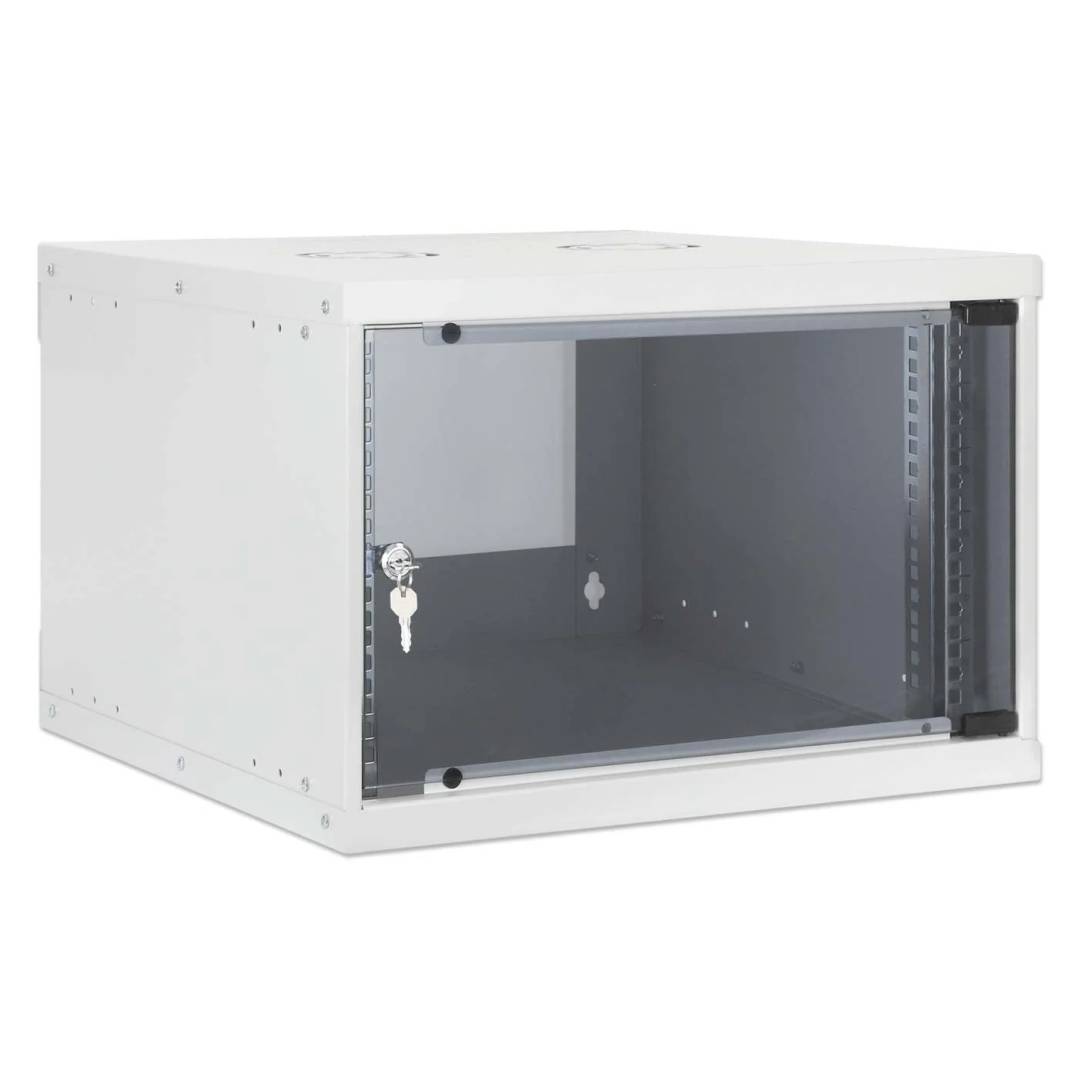

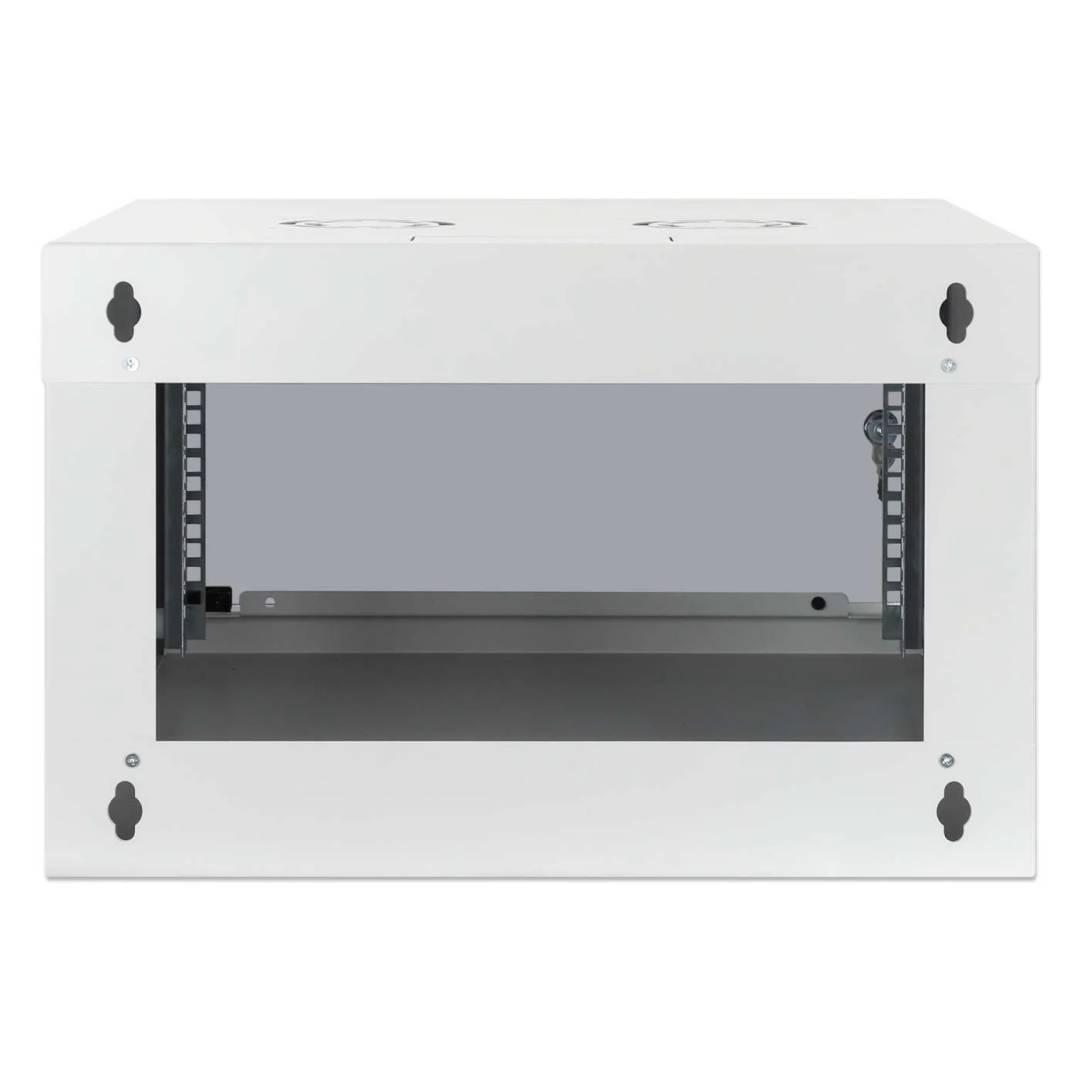

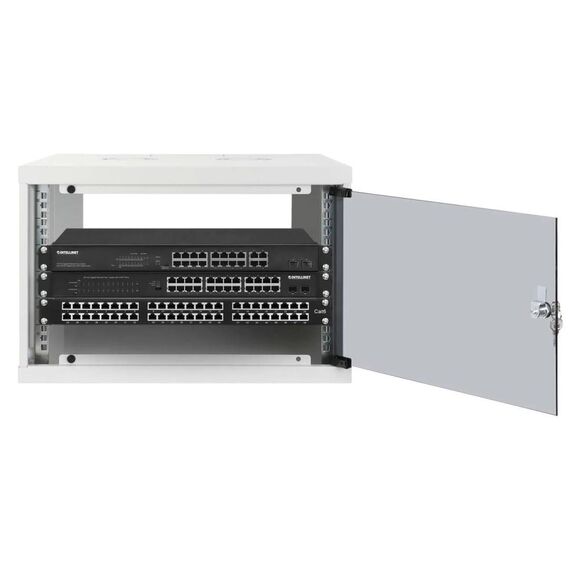

Intellinet 714150 — 6U 19″ Wall Mount Network Cabinet, Basic Line, Grey
6U · 19″400 mm deepReversible glass doorFlatpack
The Intellinet 714150 is a 6U, 19″ wall mount network cabinet from the Basic Line, in grey (RAL 7035), 540 mm wide, 400 mm deep and 354 mm high, with 340 mm of usable depth. The tempered-glass front door is lockable and reversible, so it can open to the left or right to suit the corner of the room. The cabinet is made of cold-rolled SPCC steel, carries up to 50 kg static load, is rated IP20 and follows the 19″ standards ANSI/EIA RS-310-D, IEC 60297-2 and DIN 41494. It ships as a flatpack, which keeps delivery compact, and is assembled on site following the instructions. In practice it is a tidy, lockable home for a patch panel, a switch, a router shelf and a small power strip in offices, shops and homes.
Compatibility — check before buying:
Check the depth of your equipment. Usable depth is 340 mm: patch panels, switches and small routers fit, while rack servers and deep NVRs usually do not. It is a 19″ cabinet — 10″ devices need adapter brackets. It ships as a flatpack and is assembled before mounting. Parts for wall installation (wall plugs and screws) are not included, and Intellinet does not list cage nuts or equipment screws — order them with the cabinet and choose wall fixings for the loaded weight (up to 50 kg plus the 11 kg cabinet). This is the grey version; 714143 is the same cabinet in black, and the 560 mm deep Basic Line models are 714792 (grey) and 714785 (black). Send us your equipment list and we check the fit.
Best For
✓ Small office network corners
✓ Shops and branch sites
✓ Home network cabinets
✓ Patch panel plus switch installs
✓ Lockable space for a router
✓ Corners where the door must open either way
Key Features
Reversible glass door
A lockable tempered-glass door that can be hung to open left or right.
340 mm usable depth
Room for switches, patch panels, routers and shelves in six units.
Solid SPCC steel
Cold-rolled steel with side panels up to 1.2 mm, rated for 50 kg static load.
Flatpack delivery
Compact to ship and carry; assembled on site following the guide.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We suggest the 714150 for a small 19″ network point where a lockable, reversible glass door and 340 mm of depth are enough. Order wall fixings and cage nuts with it, since they are not in the box. Every order comes with Singular’s local support in Cyprus. See our patch panels and network switches, or browse all racks and cabinets.
Buyer’s Guide
Buy it if
You need a lockable 6U 19″ wall cabinet for equipment up to 340 mm deep.
Skip it if
Your equipment is deeper, or you want the wall fixings in the box.
Also consider
Intellinet 714143, the same cabinet in black.
Features - Intellinet - 714150
Colour
grey
More Details
Product Code
04:240550
EAN Code
0766623714150
Manufacturer
Intellinet
