Getac 590GBL001263 — Gamber-Johnson 7160-1841 forklift guard leg mount
Forklift guard legLocking swing armAMPS / VESA 75Heavy-gauge steel

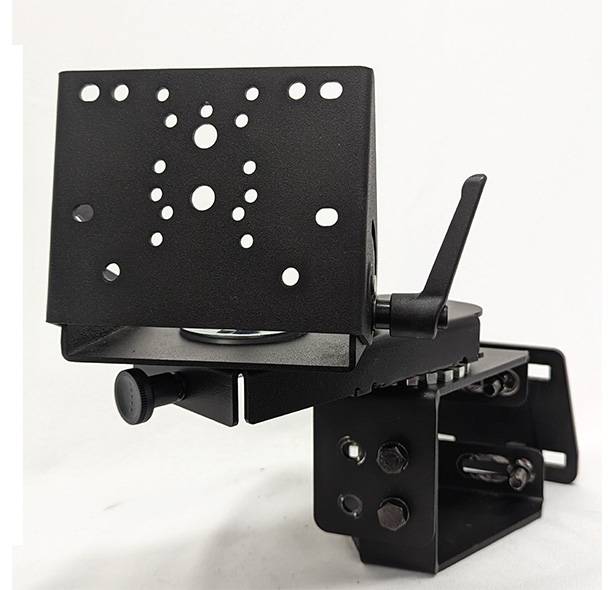

The Getac 590GBL001263 is the Gamber-Johnson 7160-1841 guard leg mount: a heavy-gauge steel bracket that clamps to the inside vertical face of a forklift’s overhead guard leg and carries a rugged tablet or computer cradle on a locking swing arm.
It fits rectangular guard legs and most roll-formed legs with a flat inside surface up to 4 in (10 cm) wide. The 4.5 in swing arm locks with a one-handed lever knob, and the clevis swivels 360° and tilts 90° forward and 26° back, with AMPS, NEC and 75mm VESA hole patterns for the cradle or dock.
Before you order: The mount is universal, not device-specific: it does not hold a Getac tablet on its own. You also need the Getac/Gamber-Johnson cradle or vehicle dock for your device with an AMPS or 75mm VESA pattern.
What's in the Box
- Top and bottom brackets
- Offset brackets for left- or right-hand mounting
- Swing arm with lever knob and back plate
- 3/8 in hex bolts with lock washers, nylock nuts, carriage bolts and flange nuts
What It Means in Practice
- Puts the tablet within reach of the driver without blocking forward visibility.
- Swing the arm out of the way when not needed and lock it for travel.
- Left- or right-hand installation using the offset brackets.
- No drilling into the forklift guard — it clamps around the leg.
What Will Not Work
- It will not fit round guard legs or legs wider than 4 in.
- No device cradle or dock is included.
- Gamber-Johnson does not publish a weight limit, so heavy all-in-one terminals should be checked with us first.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
On forklifts the mount is the part that takes the abuse, so a steel guard-leg clamp with a locking arm is the right foundation. Pair it with the correct cradle or dock for your Getac device — see our docking stations or ask us for the vehicle-dock part number.
✓ Buy it if you are fitting a rugged tablet or computer to a forklift with flat-faced overhead guard legs.
✕ Skip it if your forklift has round or extra-wide guard legs, or you need the cradle itself.
→ Also consider the Getac vehicle dock or cradle for your specific device.
Send us your forklift model and Getac device and we will confirm fit and the matching cradle before you order.
