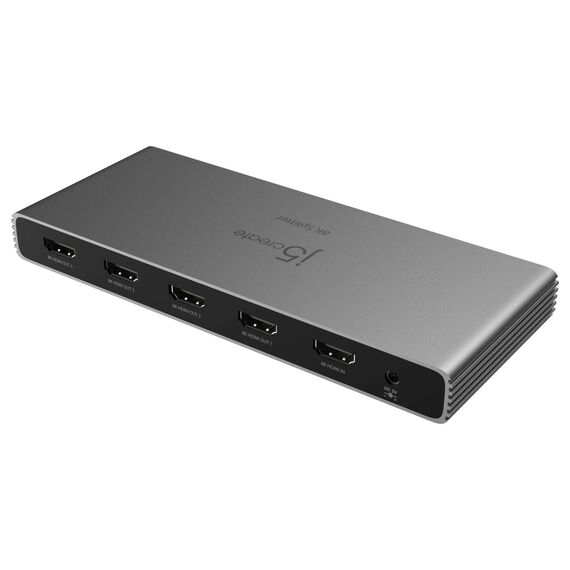

j5create 8K HDMI 2.1 4-Way Splitter, 1 In 4 Out, 8K60 / 4K120, HDR10+ Dolby Vision, VRR, HDCP 2.3, Aluminium, Space Grey
Brand:
J5CREATE
j5create 8K HDMI 2.1 4-Way Splitter, 1 In 4 Out, 8K60 / 4K120, HDR10+ Dolby Vision, VRR, HDCP 2.3, Aluminium, Space Grey
€103.48 inc. VAT
JDSH814-N
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
j5create 8K HDMI 2.1 4-Way Splitter — One Source, Four Identical Screens
1 in · 4 out8K60 · 4K120HDR10+ · Dolby VisionHDCP 2.3
The j5create JDSH814-N is an HDMI 2.1 splitter that sends one video source to four displays at the same time, at up to 8K 60 Hz or 4K 120 Hz. It is built for showrooms, retail video walls of separate screens, classrooms, meeting rooms and control desks where the same picture must appear on several TVs or monitors.
It passes HDR10, HDR10+, Dolby Vision and HLG, supports VRR, FreeSync, G-Sync and ALLM, and handles HDCP 2.3 content. The aluminium enclosure is powered from any 5 V / 2 A USB-A adapter through the included cable.
Before you order: This splitter mirrors one picture to all four outputs. It cannot show different content or extend a desktop across four screens. A USB-A power adapter (5 V / 2 A or more) is required and is not included.
What's in the Box

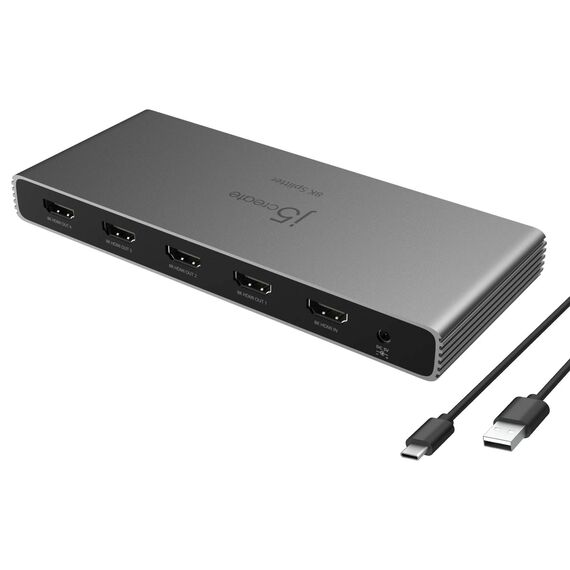

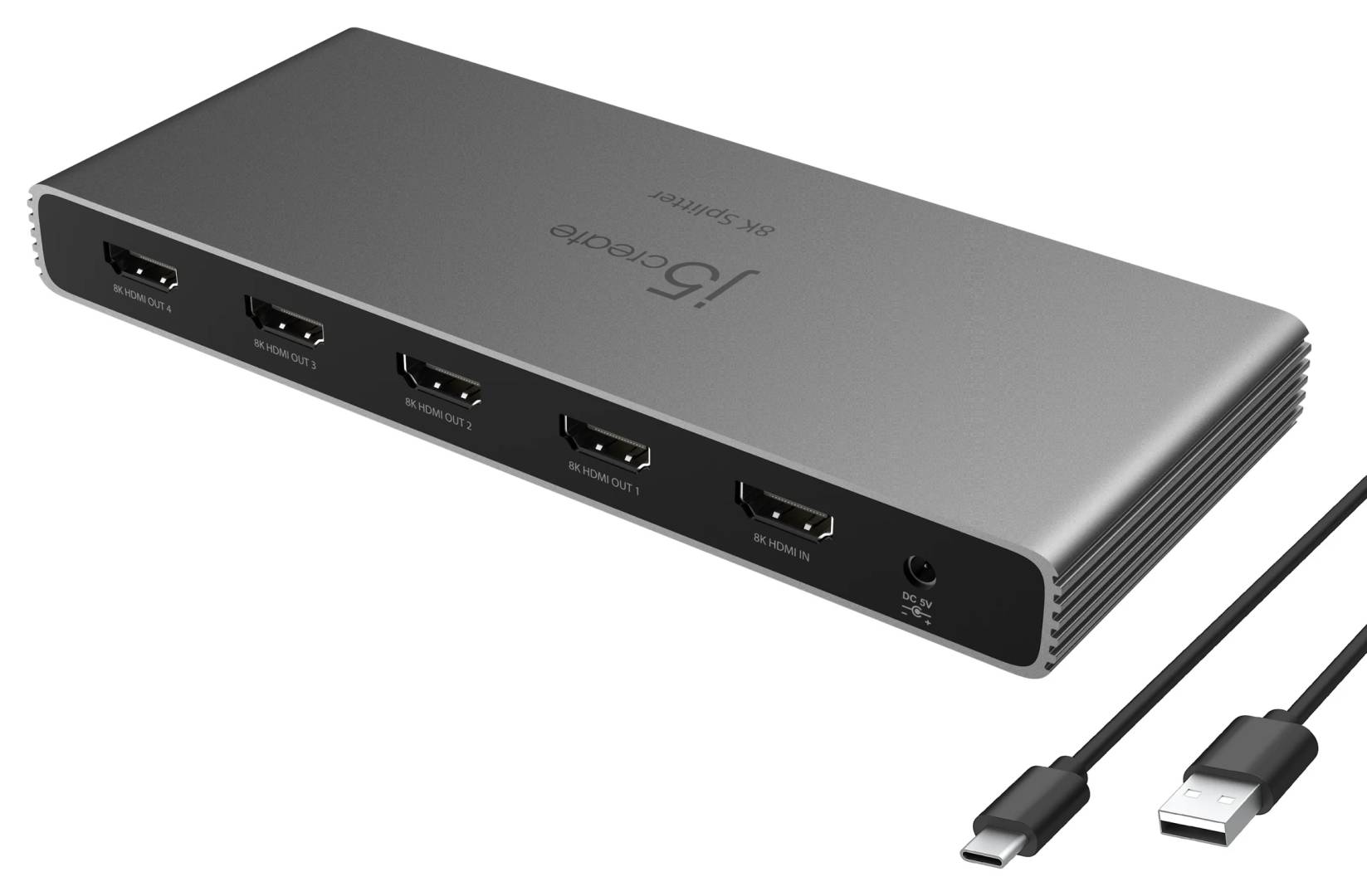

- j5create 8K HDMI 2.1 4-way splitter (JDSH814), Space Grey
- DC to USB-A power cable, 150 cm
- Quick installation guide
- No HDMI cables and no power adapter included
What It Means in Practice
- Connect a media player, PC or set-top box once and feed four TVs or monitors with the same image.
- For 8K or 4K 120 Hz, each display and every HDMI cable must support that format; longer cables can reduce the achievable resolution.
- Use a 5 V / 2 A USB-A charger or a free USB port on a powered device to run it.

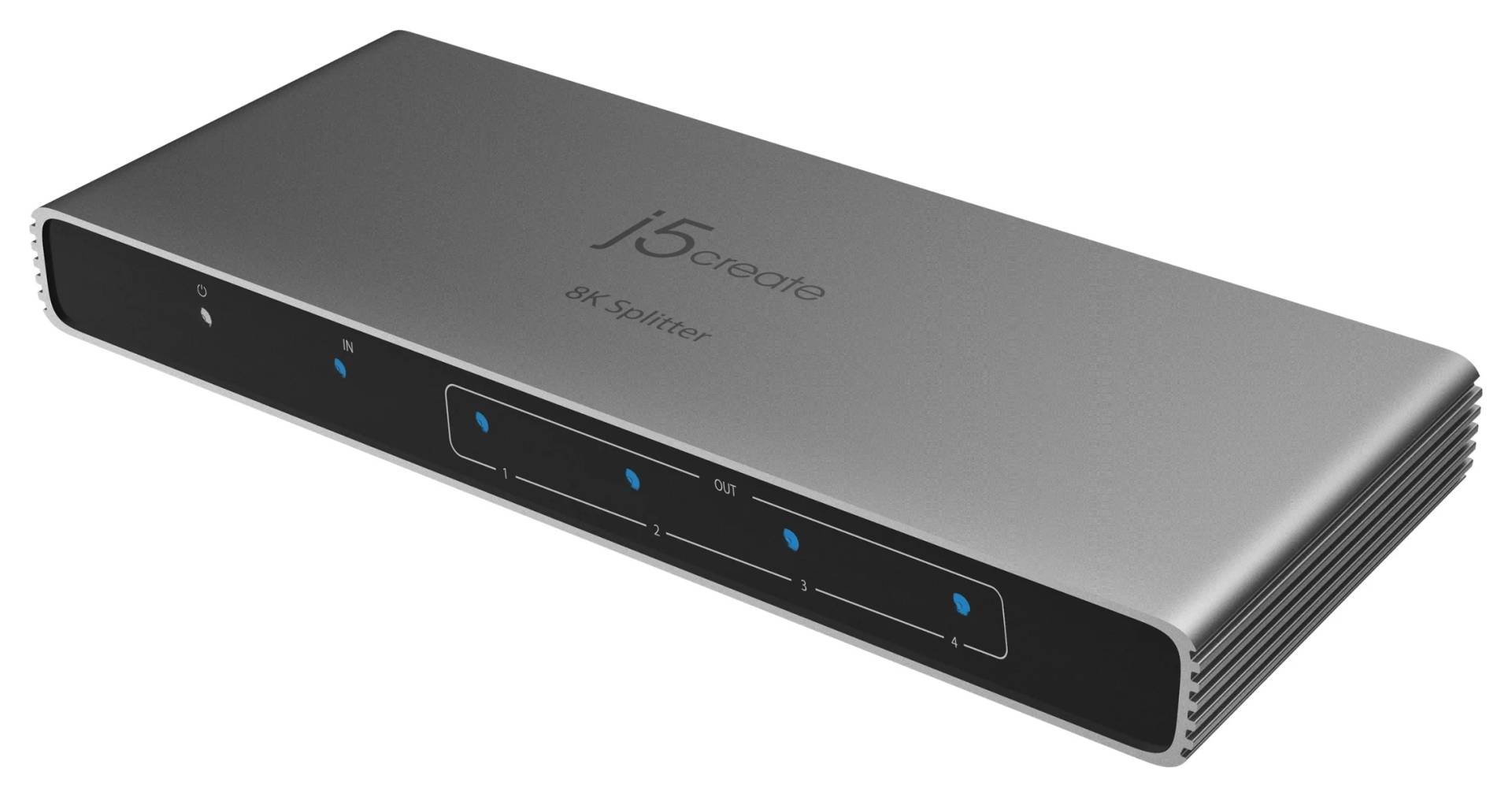

- White and blue LEDs show power and signal status at a glance.
What Will Not Work
- Different content on each screen or an extended desktop is not supported.
- It does not scale — a 4K source to a Full HD display depends on what the source outputs.
- There is no USB pass-through and no audio extraction output.
- It will not run without an external USB power source.
Key Features
HDMI 2.1 bandwidth
8K 60 Hz, 4K 120 Hz, 1440p 240 Hz and 1080p 240 Hz to all four outputs.
Full HDR support
HDR10, HDR10+, Dolby Vision and HLG.
Gaming features
VRR, FreeSync, G-Sync and ALLM pass-through.
Copy-protected content
HDCP 2.2/2.3 and HDCP 1.4 compliant.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Splitters are the simplest way to put the same picture on several screens, and HDMI 2.1 bandwidth keeps the setup ready for 4K 120 Hz and 8K sources. If you need to choose between sources rather than duplicate one, look at our video switchers instead.
✓ Buy it if you need one HDMI source on up to four displays with full 4K/8K and HDR support.
✕ Skip it if you need different content per screen, or you want to switch between several sources.
→ Also consider certified Ultra High Speed HDMI cables and a 5 V / 2 A USB power adapter.
Not sure which resolution you will get on your screens? Send us the source and display models and the cable lengths, and we will check before you order.
Features - J5CREATE - JDSH814-N
Colour
grey
More Details
Product Code
CQ15557
EAN Code
4712795088793
Manufacturer
J5CREATE
