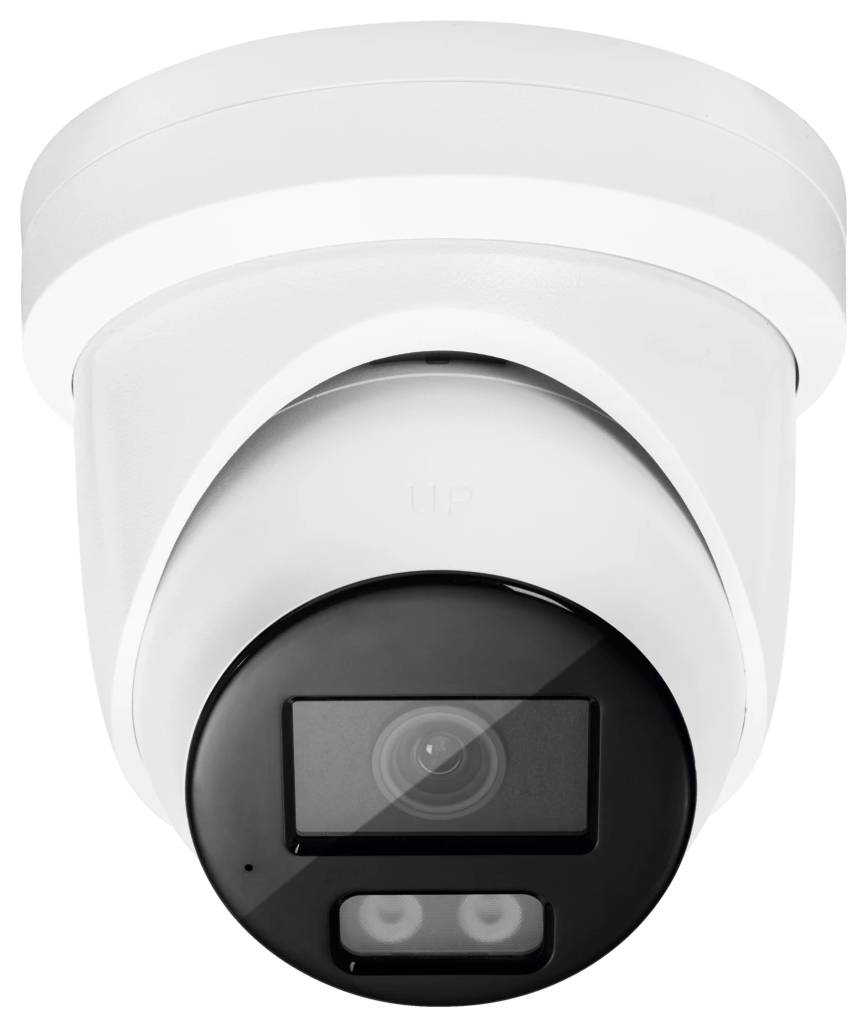

ABUS IP Spherical Dome Camera 4 MP, 2.8 mm Lens, IR + White-Light Colour Night Vision, Microphone, PoE, IP67, White

Brand:
Abus

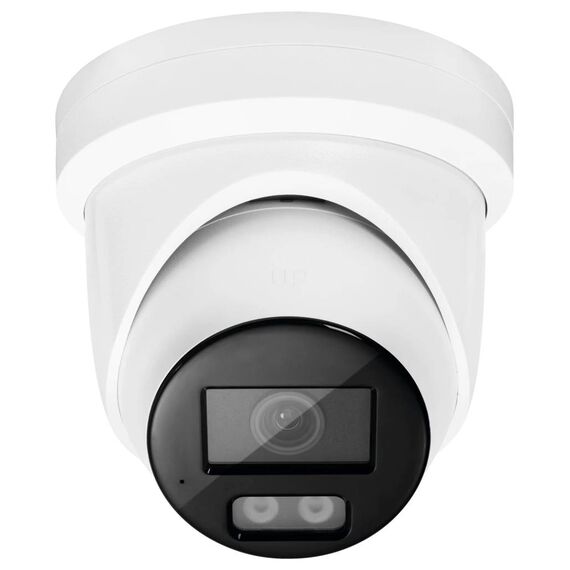

ABUS IP Spherical Dome 4 MP 2.8 mm IR/WL White
ABUS IP Spherical Dome Camera 4 MP, 2.8 mm Lens, IR + White-Light Colour Night Vision, Microphone, PoE, IP67, White
€357.55 inc. VAT
Buy
IPCA54512A
€300.46
€357.55 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
04:599868
EAN Code
4043158239775
Manufacturer
Abus

Quick Specs

Type
IP spherical (turret) dome camera, 4 MP
Connectors/Interface
RJ45 · PoE 802.3af / 12 V DC
Key spec
2.8 mm · 110° · IR + WL
Compatibility
ABUS NVR/App · ONVIF G/S/T
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

ABUS IP Spherical Dome 4 MPx (2.8 mm, IR/WL) — 4 MP spherical (turret) dome camera, 2.8 mm, IR + white-light night vision

4 MP · 2688 × 15202.8 mm · 110°IR 30 m + white lightPoE · IP67

The ABUS IP Spherical Dome 4 MPx (2.8 mm, IR/WL) (IPCA54512A) is a 4-megapixel network spherical (turret) dome camera for entrances, facades, warehouses and offices, with a fixed 2.8 mm lens covering 110° H × 57° V and a hybrid night mode: 2 white-light LEDs give full-colour images in darkness, while 2 infrared LEDs (up to 30 m) record discreetly in black and white.

It streams 2688 × 1520 at 25 fps in H.265 or H.264, runs on 12 V DC ±25% or PoE IEEE 802.3af (7 W max), records to an optional microSD card up to 512 GB and works with ABUS NVRs, ABUS CMS and the ABUS Link Station app, as well as third-party recorders through ONVIF Profile G, S and T. Built-in analytics classify people and vehicles, so tripwire and intrusion alarms ignore moving branches, animals and headlights.

Before you order: No power supply is included — plan a PoE (IEEE 802.3af) switch port or injector, or a 12 V DC adapter. Don’t order the wrong twin: IPCA54612A is the same dome in black; IPCA54572A adds a speaker, flashing light and alarm terminals.

What's in the Box

  • ABUS IP Spherical Dome 4 MPx (2.8 mm, IR/WL) camera, white metal housing
  • Connection pigtail for network and 12 V DC
  • Quick guide and safety notes
  • Not included: power supply, microSD card, network cable and junction/installation box

What It Means in Practice

  • 110° horizontal view with the 2.8 mm lens: wide enough to cover a typical entrance, shop floor or small car park from one corner.
  • At night you choose: colour with the white LEDs, discreet black-and-white with infrared, or smart mode where the white light switches on only when a person or vehicle is detected.
  • One Cat5e/Cat6 cable carries power and video (7 W max), so the camera mounts wherever a network cable can reach.
  • Person/vehicle classification means far fewer false push alerts from trees, cats and rain than plain motion detection.
  • With a microSD card it keeps recording locally if the recorder or network goes down.

What Will Not Work

  • Wi-Fi: this is a wired network camera with no wireless connection.
  • Talk-back: it has a built-in microphone but no speaker, so it can listen but not speak.
  • Wired alarm contacts: there are no alarm input/output terminals — use the analytics events or the recorder for alarm logic.
  • Zoom: the fixed 2.8 mm lens has no optical zoom; for plates or faces far away choose a varifocal or PTZ model.
  • Consumer cloud apps (Ring, Arlo, Google Home): it is a professional ABUS system camera, not a consumer cloud camera.

Key Features


4 MP with 120 dB WDR
2688 × 1520 at 25 fps on a 1/1.8" sensor; wide dynamic range keeps faces readable against bright doorways and windows.

Hybrid night mode
2 IR LEDs up to 30 m plus 2 white-light LEDs; colour or black-and-white, or switched by detection events.

AI person & vehicle detection
Tripwire, intrusion, region entrance and exit with object classification; alerts by e-mail, app push, FTP or NAS.

Built for outdoors
IP67 metal housing, -30 to +60 °C, 138 × 138 × 130 mm.

Technical Specifications

Identification
Part Number IPCA54512A
EAN / GTIN 4043158239775
Brand ABUS
Product name IP Spherical Dome 4 MPx (2.8 mm, IR/WL)
Sensor 1/1.8" progressive scan CMOS
Resolution 2688 × 1520 (4 MP) @ 25 fps
Compression H.265, H.264, MJPEG (sub-stream)
Image processing WDR 120 dB, BLC, HLC, 3D DNR
Minimum illumination 0.0005 lx (colour)
Lens
Focal length 2.8 mm fixed
Field of view 110° H × 57° V
Aperture F1.0
Night vision
Infrared 2 IR LEDs, up to 30 m
White light 2 white-light LEDs, up to 30 m
Day/night IR cut filter (ICR)
Analytics
Detection Tripwire, intrusion, region entrance/exit, person/vehicle classification
Alarm actions E-mail, app push, FTP
Audio & alarm
Microphone Built-in
Speaker No
Audio in/out No
Alarm in/out No
Network & storage
Interface RJ45 10/100 Mbit/s
ONVIF Profile G, S, T
Security HTTPS, TLS 1.1/1.2/1.3
Users 32
Local storage microSD up to 512 GB (card not included)
Power
Power supply 12 V DC ±25% or PoE IEEE 802.3af
Consumption max 7 W
Physical
Housing Metal, white
Protection IP67
Operating temperature -30 to +60 °C
Dimensions 138 × 138 × 130 mm
Weight 0.8 kg
Compatibility
ABUS ABUS NVR, ABUS CMS, Link Station app, Comfion, Secoris, Secvest, wAppLoxx / wAppLoxx Pro
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term The manufacturer does not publish a warranty term for this model — claims handled through Singular

Frequently Asked Questions

Can I record it on a non-ABUS NVR?
Yes — ABUS lists ONVIF Profile G, S and T, so most ONVIF recorders and VMS software can record it; the analytics events are best used with ABUS recorders or the Link Station app.
What do I need to power it?
A PoE (IEEE 802.3af) switch port or injector, or a 12 V DC adapter; it draws up to 7 W.
Will the white light bother neighbours?
The white LEDs are visible light. In smart mode they switch on only when a person or vehicle is detected, and you can also keep the camera on infrared only.
Is a microSD card or junction box included?
No. Add a microSD card (up to 512 GB) for local recording, and an ABUS installation box if you want the cable connection protected outdoors.
Singular Expert Insight · Buyer's Guide
We supply ABUS cameras to Cypriot businesses that want a European brand with its own NVR, app and alarm ecosystem. The IR plus white-light combination is the flexible choice: colour evidence when it matters, discreet infrared the rest of the night. Browse more IP cameras or ask us for a full camera + NVR + PoE switch quote.
✓ Buy it if you need a wide view with colour or infrared night recording on an ABUS or ONVIF system.
✕ Skip it if you need Wi-Fi or a consumer cloud camera.
→ Also consider IPCA54612A is the same dome in black; IPCA54572A adds a speaker, flashing light and alarm terminals.
Not sure which lens or night mode fits your site? Send us a photo of the area and the model of your recorder and we will check it before you order.
