ABUS Thermal Bi-Spectral IP Dome Camera, 256 × 192 Thermal + 4 MP Visible, 3.6 / 4.3 mm, Fire Detection, PoE, IP66
Brand:
Abus
ABUS Thermal Bi-Spectral IP Dome Camera, 256 × 192 Thermal + 4 MP Visible, 3.6 / 4.3 mm, Fire Detection, PoE, IP66
€936.41 inc. VAT
IPCA54581B
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply

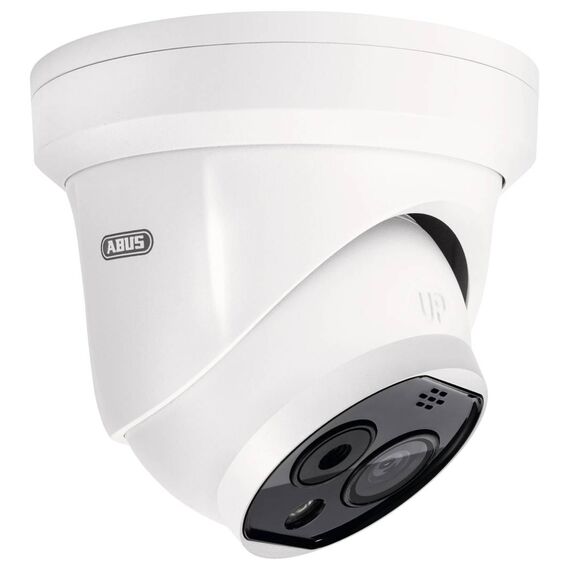

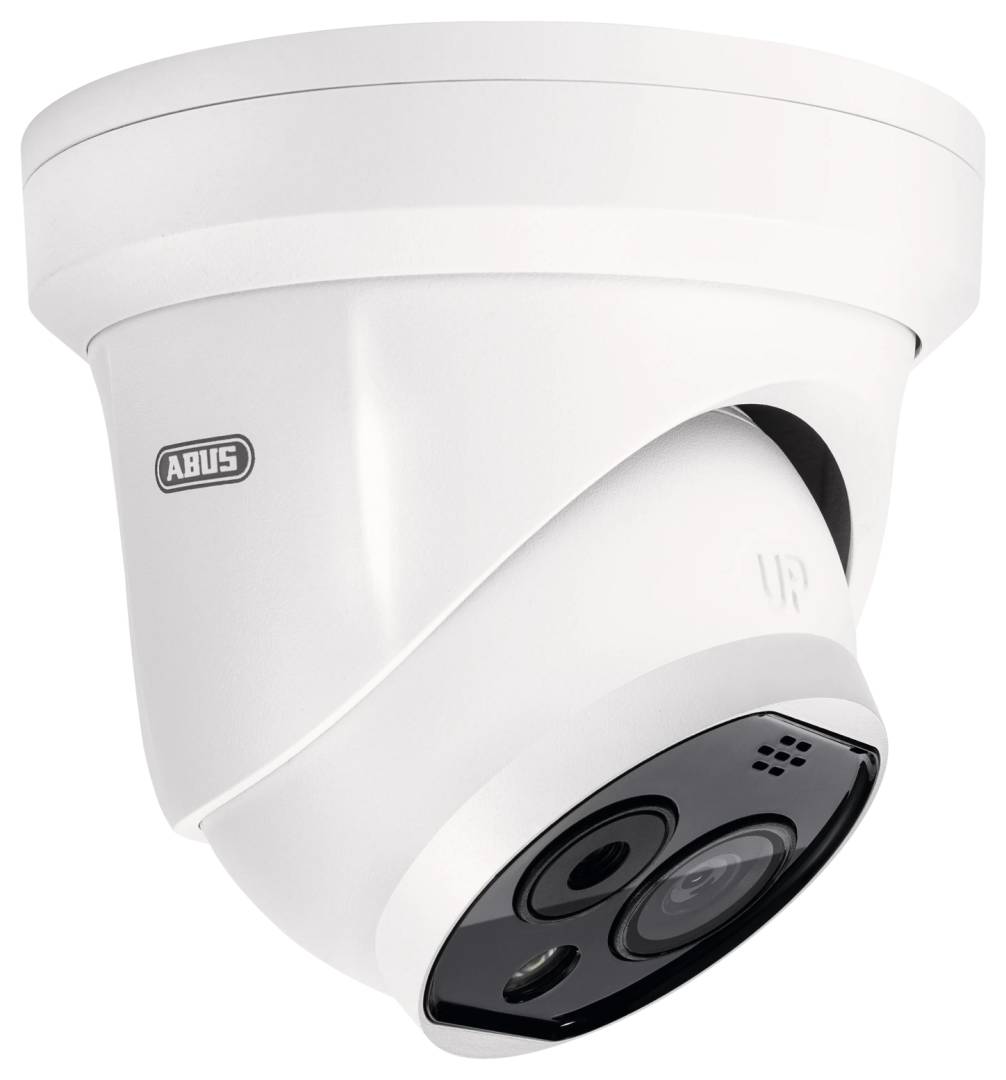

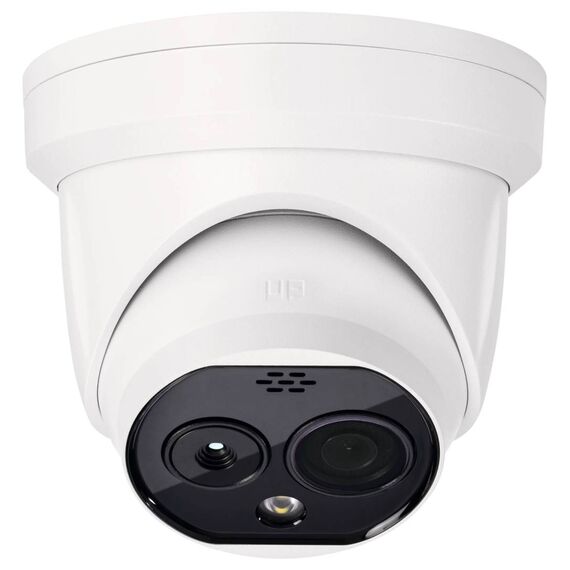

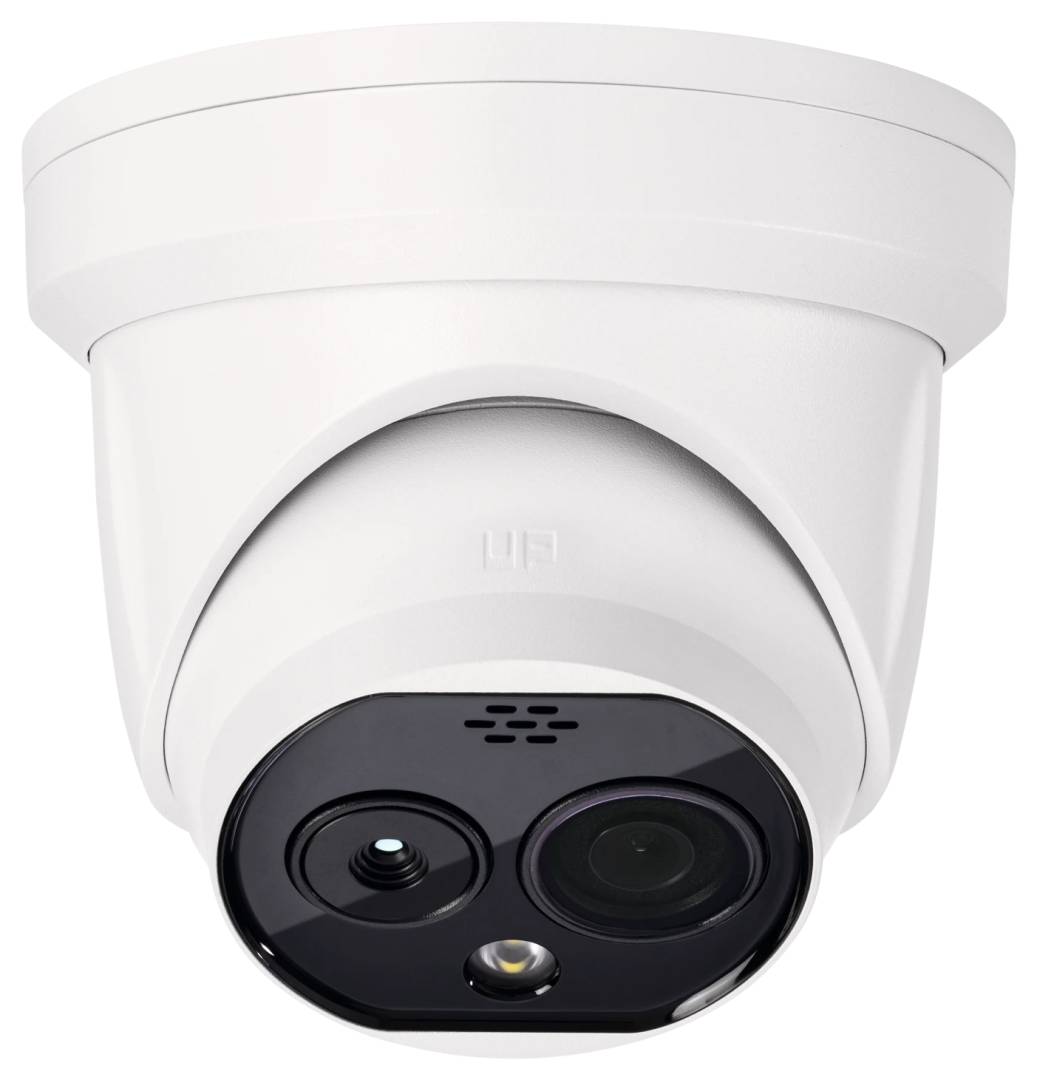

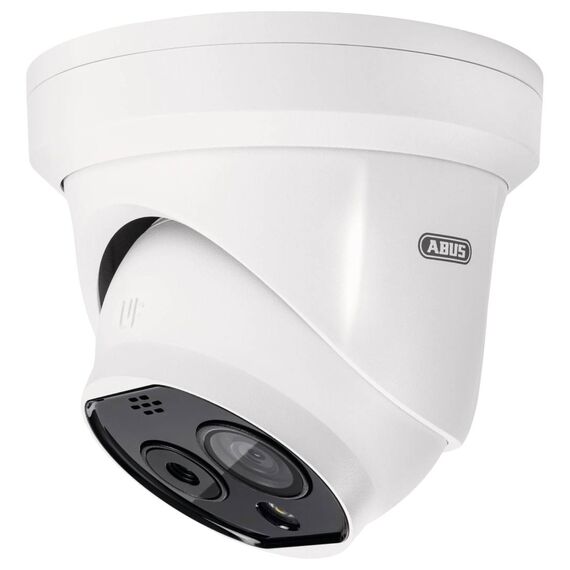

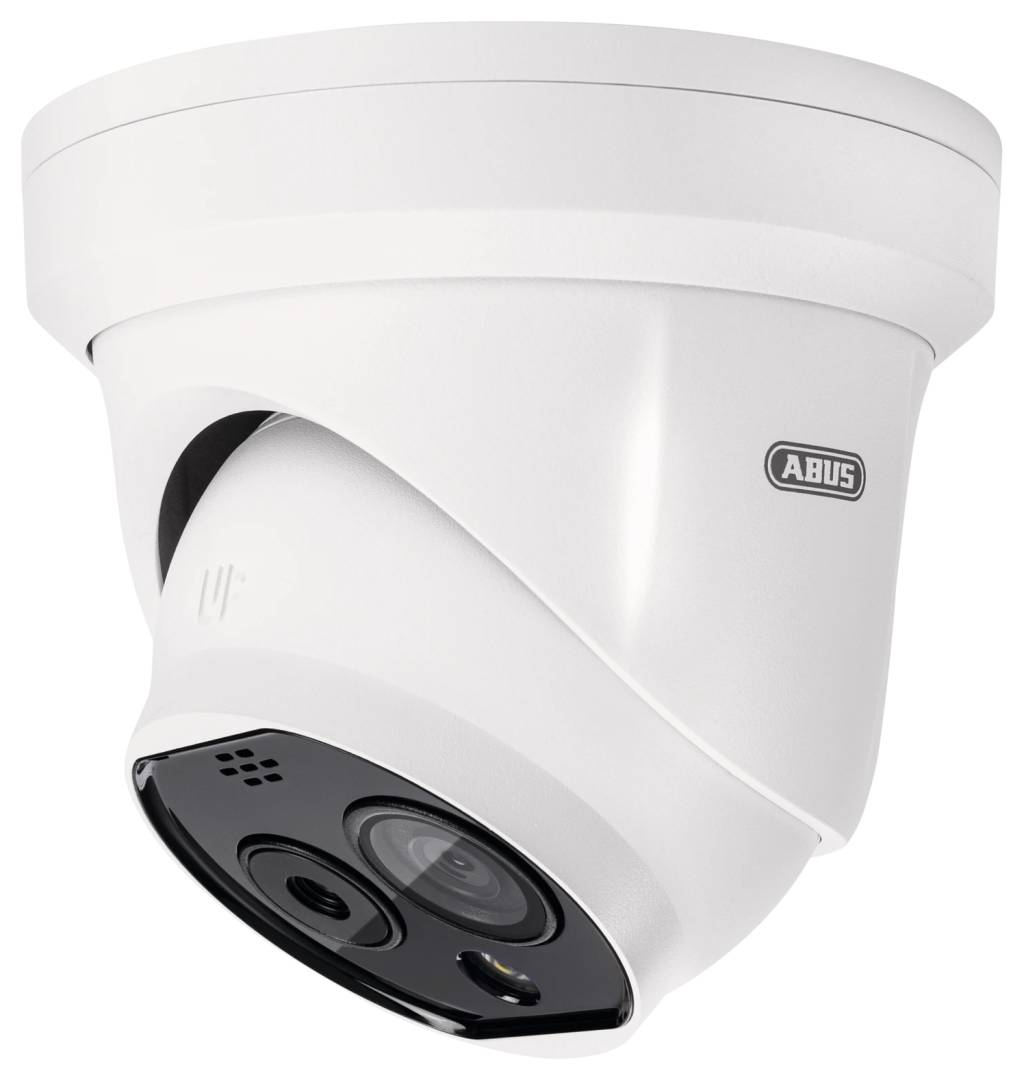

ABUS IPCA54581B — Thermal Bi-Spectral IP Dome Camera, 3.6 / 4.3 mm
Thermal 256 × 1924 MP visiblePerson 28 m · vehicle 76 mFire detection
The ABUS IPCA54581B is a bi-spectral IP dome camera that combines a 256 × 192 thermal sensor with a 4 MP visible-light camera in one housing — for perimeter protection, outdoor storage and technical areas where people and vehicles must be detected reliably in complete darkness, fog or smoke.
The thermal channel (3.6 mm, 50°) detects people up to 28 m and vehicles up to 76 m with 8 VCA rules and person/vehicle classification, measures temperature with 21 rules and raises fire alarms, while the visible channel (4.3 mm, 84°) records a normal colour image for identification. A built-in loudspeaker can warn intruders.
Before you order: Thermal imaging detects — it does not identify faces or number plates; that is the job of the 4 mm/8 mm visible channel. Temperature measurement is ±8 °C, which suits fire and overheating alerts, not precise or medical measurement. Export-controlled item (6A003B4B).
What's in the Box
- ABUS IPCA54581B bi-spectral camera with a pre-installed 32 GB microSD card
- No power supply — powered over PoE (802.3af) or 12 V DC
- ABUS does not publish the rest of the box contents — ask us and we confirm before you order
What It Means in Practice
- 4 MP (2688 × 1520) is a sound balance between detail and storage — sharper than Full HD while keeping recordings compact.
- The 15 m infrared range sets how far you see in the dark; beyond that the image falls off to black.
- A single network cable carries video and power (PoE 802.3af); 12 V DC operation is available where there is no PoE switch.
- A microSD slot (32 GB pre-installed, max. 256 GB) keeps recording locally if the network or recorder is down.
- Person/vehicle classification lets the camera ignore moving branches, rain and animals, so alerts are about people and cars.
- Thermal detection ignores darkness, shadows and headlights, so false alarms from lighting changes drop sharply.
- Fire detection reacts to rising heat sources such as a smouldering bin or an overheating machine, and can trigger alarm outputs.
What Will Not Work
- Not an analogue (BNC/coax) camera — it needs a network recorder, an IP-capable hybrid recorder or direct app access.
- Thermal images cannot see through glass — do not mount it behind a window.
- Not compatible with the ABUS alarm systems Comfion, Secoris, Secvest or wAppLoxx.
- ABUS does not list ONVIF support — use an ABUS NVR, ABUS CMS or Link Station.
Key Features
4 MP image
2688 × 1520 (visible) · thermal stream 1280 × 720 at 25 fps from a 1/2.7" CMOS 4 MP, with 120 dB WDR for bright backgrounds.
Night vision
Infrared up to 15 m for a clear black-and-white night image.
On-camera analytics
8 thermal VCA rules (intrusion, tripwire, region entry/exit) with person/vehicle classification · temperature measurement from -20 °C, ±8 °C, 21 rules · dynamic fire detection
Weatherproof housing
IP66 metal housing for outdoor use, -40 °C to +65 °C.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A bi-spectral camera such as the IPCA54581B is worth it where ordinary cameras give false alarms or see nothing: open yards, fences, storage areas and plant rooms. Use the thermal channel for detection and the visible channel for evidence. Browse our other IP cameras if you need a different lens or housing.
✓ Buy it if you need reliable person/vehicle detection in total darkness or bad weather, plus fire alerts.
✕ Skip it if you mainly need to identify faces — a high-resolution visible camera is better value.
→ Also consider the ABUS IPCA64581D tube with 9.7 mm thermal lens for detection up to 80 m.
Not sure it fits your system? Send us the models of the cameras or recorder you already have and we will check compatibility before you order.
Features - Abus - IPCA54581B
Colour
white
More Details
Product Code
04:599871
EAN Code
4043158220353
Manufacturer
Abus
