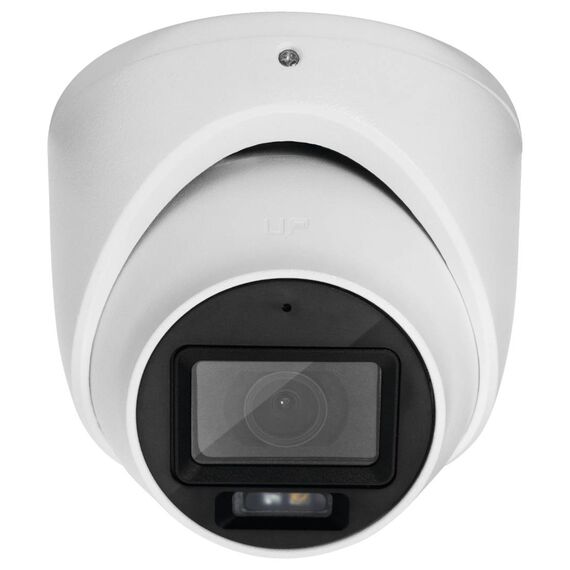

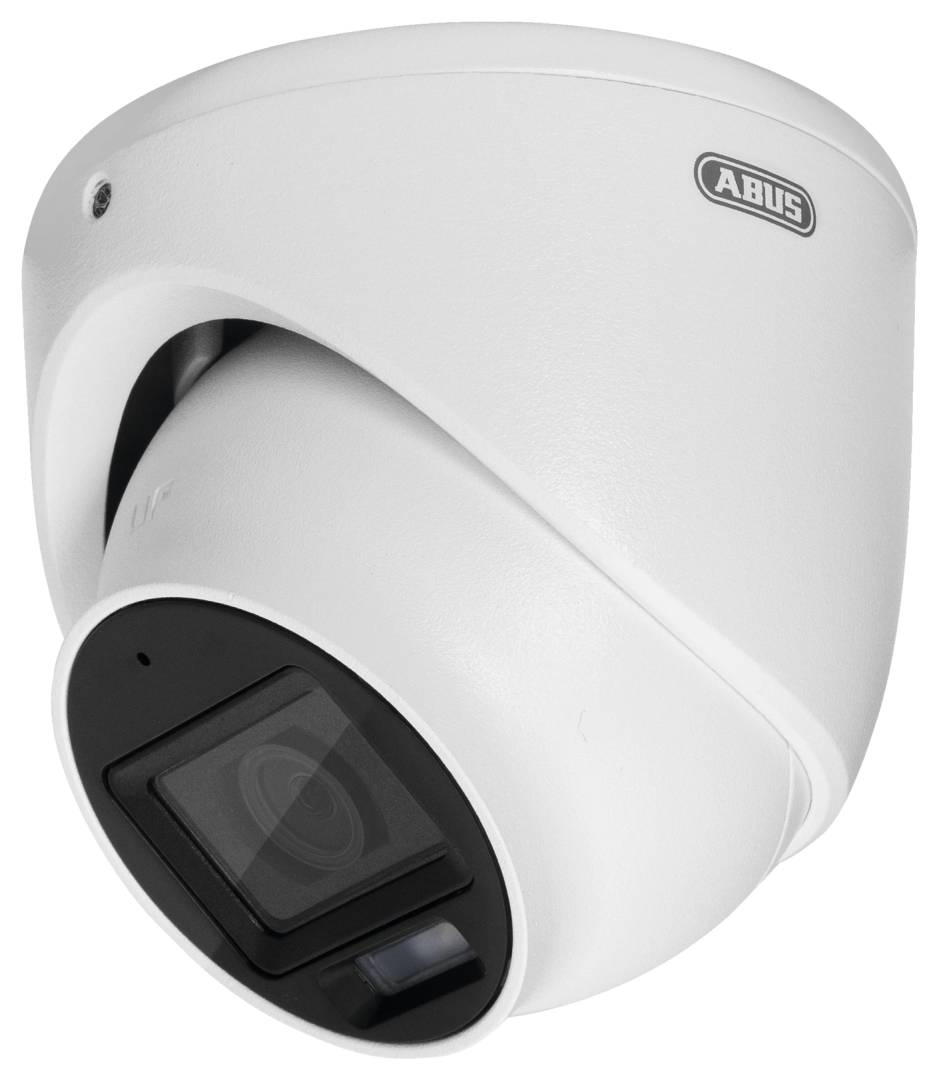

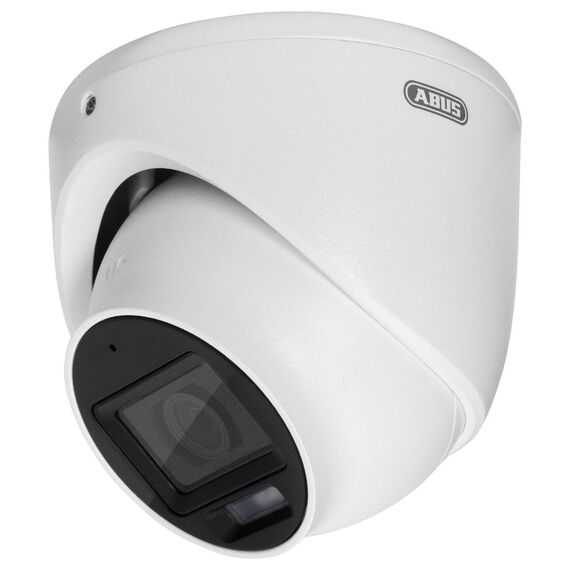

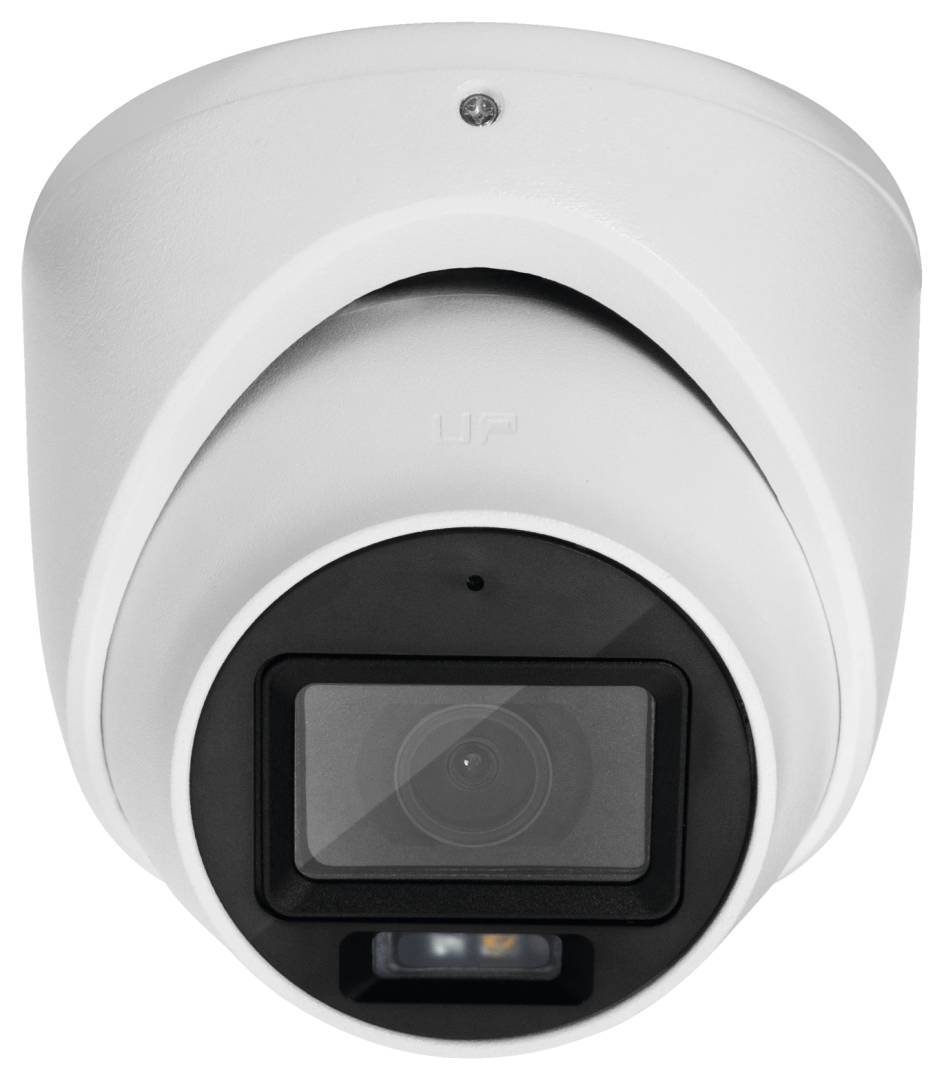

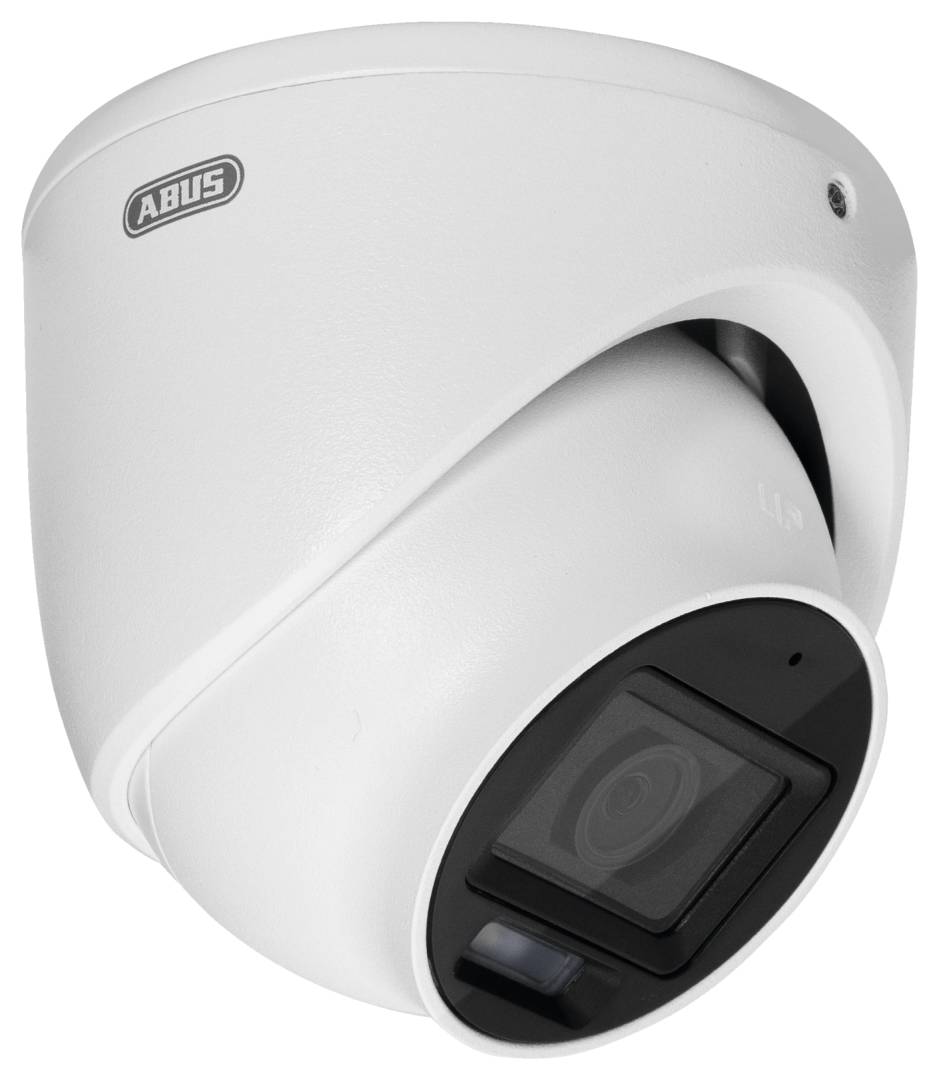

ABUS 5 MP Analogue HD Mini Dome Camera FlexNiteView, 2.8 mm 105°, IR 30 m + White Light, TVI/AHD/CVI/CVBS, IP67

The ABUS TVCC55512 is a 5 MP analogue HD mini dome camera that sends its image over coax (BNC) in HD-TVI, AHD, HD-CVI or CVBS — the straightforward way to replace or add cameras on an existing analogue system with a 2.8 mm wide-angle view of 105°.

FlexNiteView lets you choose the night mode: invisible infrared up to 30 m for a black-and-white image, or a white-light LED for colour at night. The camera comes with a 30 m video/power combination cable and a power supply, so it can be connected to an ABUS hybrid or analogue HD recorder straight out of the box.

• ABUS TVCC55512 Mini Dome camera with ceiling/wall mount
• 30 m video combination cable (video + power)
• Power supply unit (12 V DC)

• 5 MP over coax gives clearly more detail than the 720p/1080p analogue cameras of older systems, while reusing the existing cabling.
• The 105° field of view covers an entrance, a room or a small yard from a single point.
• The included 30 m combination cable carries both video and 12 V power, so one cable run reaches the recorder.
• Switchable output (TVI, AHD, CVI, CVBS) means it works with most analogue HD recorders, not only ABUS ones.
• The built-in microphone records sound if the recorder supports audio over the channel.

• Not an IP camera — no network port, no PoE, no direct app or cloud access.
• ABUS does not publish how the output format is switched — tell us your recorder model and we confirm the right setting.
• At 5 MP the camera runs at 20 fps; older recorders that cannot handle 5 MP will fall back to a lower resolution.
• No smart analysis in the camera — person/vehicle filtering depends on the recorder.
