ABUS TVVR33623D Hybrid CCTV Kit, 2 × 2 MP Mini Dome Cameras, 6-Channel Recorder, 1 TB HDD

Brand:
Abus
ABUS TVVR33623D Hybrid CCTV Kit 2 2MP Mini Dome Cameras 1TB HDD
ABUS TVVR33623D Hybrid CCTV Kit, 2 × 2 MP Mini Dome Cameras, 6-Channel Recorder, 1 TB HDD
€503.24 inc. VAT
Buy
TVVR33623D
€422.89
€503.24 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
04:600151
EAN Code
4003318116087
Manufacturer
Abus

Quick Specs

Included cameras
2 × 2 MP Mini Dome
Recorder
6-channel hybrid / TVVR33603
Storage
1 TB HDD included
Cabling / night
2 × 30 m cables / up to 30 m night vision
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

2 wired 2 MP cameras with local recording

2 × 2 MP cameras6-channel hybrid1 TB HDD includedIR + white light

The ABUS TVVR33623D combines 2 TVCC52512 2 MP mini dome analogue cameras with one TVVR33603 6-channel hybrid recorder and a 1 TB surveillance hard disk. Run a supplied 30 m combination video/power cable to each camera and connect the supplied 12 V adapters. These are wired BNC analogue cameras, not Wi-Fi or PoE IP cameras. A separate monitor or networked PC provides local viewing/configuration; internet is needed for remote mobile access.

Before you order:
The included cameras are 2 MP Full HD, even though a generic kit-table resolution row says 5 MP. The separate recorder can accept higher-resolution cameras; it does not turn the supplied cameras into 5 MP models. The kit page states security updates to 2027-06-30, while the recorder page states 2026-12-31; confirm the current support policy for the supplied hardware. No monitor is included.

What's in the Box

  • 1 × TVVR33603 recorder, 2 × TVCC52512 cameras and 1 × 1 TB surveillance 3.5-inch SATA HDD.
  • 3 × 12 V DC universal adapters, 2 × 30 m combination cables, 1 × 1 m network cable, USB wireless mouse including batteries, and mounting materials.

What It Means in Practice

  • For a small shop or entrance area, plan 2 fixed camera views and route the supplied combination cables back to the recorder area. The cable carries analogue video and separate DC power conductors; it does not make the camera an Ethernet/PoE device. Configure recording schedules and test day/night lighting. The supplied 1 TB drive stores recordings locally; retention depends on bitrate, activity and recording settings.

What Will Not Work

  • Wireless or battery-only camera installation, or connecting these BNC cameras directly to a router/PoE port.
  • Assuming every maximum resolution, frame rate and analysis mode is available simultaneously.
  • Using the cameras’ IP67 rating as a weatherproof rating for the recorder, adapters or unprotected connectors.

Key Features


Included local storage
A 1 TB surveillance SATA disk is supplied, rather than requiring a separate recording-card purchase. The recorder accepts one HDD up to 10 TB.

Two night-view options
Use IR for black-and-white night viewing or integrated white light for colour. The manufacturer states up to 30 m depending on placement.

Hybrid upgrade path
The recorder has 6 total channels, including four analogue inputs. IP channels and convertible analogue channels allow gradual system changes.

Local and mobile access
Use monitor/PC locally or ABUS Link Station remotely. Lite allows up to 60 min/month live/playback; Pro provides unlimited mobile access.

Technical Specifications

Kit identity and contents
Model / EAN TVVR33623D / 4003318116087
Included recorder / cameras 1 × TVVR33603; 2 × TVCC52512
Included storage 1 TB surveillance 3.5-inch SATA HDD
Included cables / power 2 × 30 m combination video/power cables; 3 × 12 V DC universal power adapters; 1 × 1 m network cable
Other included items USB wireless mouse including batteries; mounting materials
Net kit weight 3.81 kg

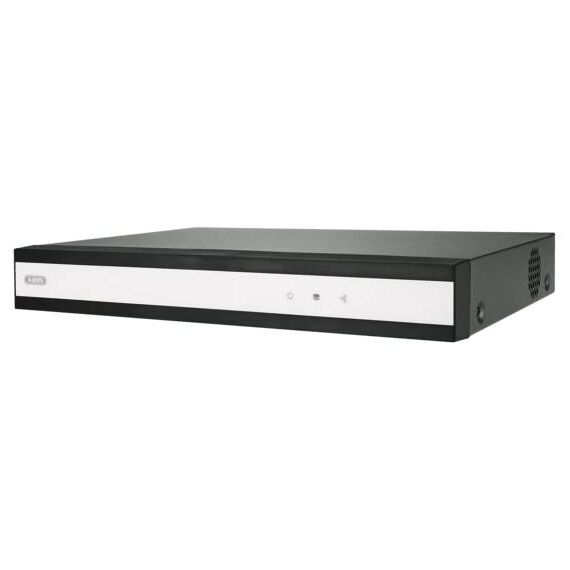

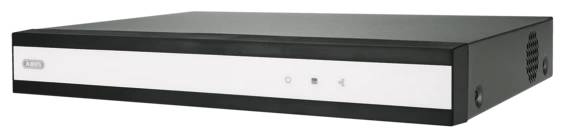

Hybrid recorder
Total channels / standard hybrid mix 6 total; up to 4 analogue HD + 2 IP
IP-only mode Up to 6 IP channels by converting analogue channels
Analogue formats / physical inputs TVI / AHD / CVI / CVBS; 4 × BNC (1.0 Vp-p, 75 Ω)
Input mode, current recorder table TVI 2960 × 1665 at 20 fps; AHD/CVI 2592 × 1944 at 20 fps; CVBS supported
Recording rate per camera 5 MP at 20 fps through 720p at 25/30 fps; included cameras 1080p at 25 fps
Supported IP cameras ABUS IP cameras up to 8 MP
Compression H.264 / H.264 Plus / H.265 / H.265 Plus
Recording / playback Manual, schedule, motion, alarm, VCA; 4 synchronized playback channels
Recorder analysis, conditional modes 4 TVI channels person/vehicle motion OR 2 channels intrusion/tripwire with person/vehicle; face search
Alerts Acoustic warning, OSD, e-mail and app push
Storage expansion 1 SATA interface for 3.5-inch HDD up to 10 TB; NAS support; 1 TB HDD included in this kit
Network 1 × RJ45 10/100/1000 Mbit/s Ethernet
Network throughput, input / output 24 / 48 Mbit/s (72 Mbit/s total)
Network protocols TCP/IP, DHCP, DNS, DDNS, NTP, SMTP, RTSP, NFS, UPnP, HTTPS, ABUS Server
HDMI / VGA modes 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768 at 60 Hz
USB / analogue audio 2 × USB 2.0; 1 × RCA input (2.0 Vp-p, 1 kΩ), 1 × RCA line output (1 kΩ)
Software / browser ABUS Link Station iOS/Android, IP Installer, CMS; Chrome, Edge; legacy IE11 requires plugin
Central PC management CMS up to 256 recorders / 1024 cameras
Mobile service Link Station Lite: up to 60 min/month live/playback; Pro: unlimited mobile access
Recorder power / rated power 12 V DC / 18 W
Recorder housing / cooling 1U, metal/plastic; fanless; rack shelf separate
Recorder dimensions 315 × 240 × 48 mm (W × L × H)
Recorder net / gross weight 2.06 / 2.9 kg
Recorder temperature / humidity -10 to +55 °C / max. 90%
Internal recorder cell 1 × CR1220; does not power the CCTV system
Recorder OSD languages DE, UK, FR, NL, DK, IT, PL, ES, SE

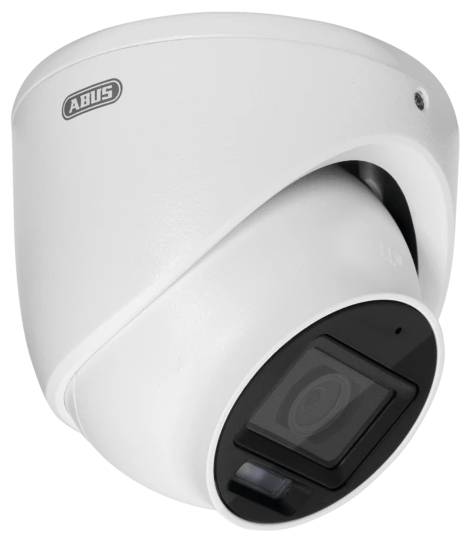

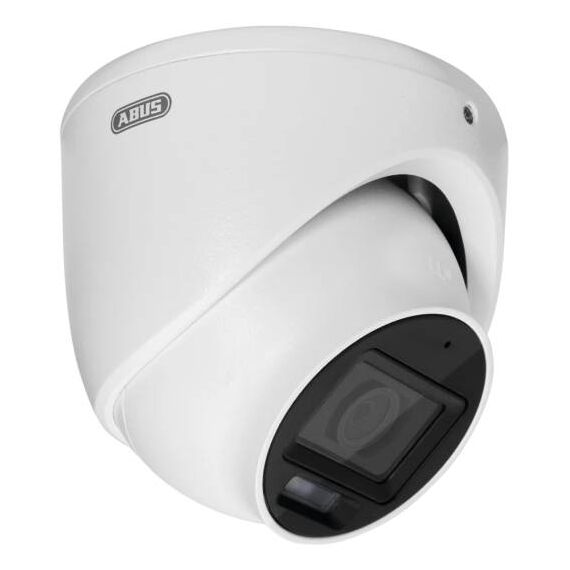

Included cameras
Camera type / sensor TVCC52512; analogue 2 MP Mini Dome; CMOS
Camera maximum output 1920 × 1080 at 25 fps
Other camera output modes TVI / AHD / CVI 1080p at 25 fps; CVBS PAL
Lens / aperture 2.8 mm / F1.6
Optical view 101° horizontal / 56° vertical
Night vision IR monochrome / white-light colour; up to 30 m depending on location
Minimum light 0.01 lx colour / 0 lx IR
Image processing BLC / HLC / DWDR; DNR
Microphone / video connector Built-in microphone; 1 × BNC output
Camera power / consumption 12 V DC ±25% / 3.3 W
Housing / weather protection Metal / IP67
Camera dimensions 80 × 85 mm (diameter × height)
Camera net / gross weight 0.31 / 0.82 kg
Camera operating temperature / humidity -40 to +60 °C / max. 90%
Camera menu English
Support and system limits
Kit security-update date, manufacturer Minimum until 2027-06-30
Recorder security-update date, separate page Minimum until 2026-12-31; differs from kit listing, confirm current policy
Alarm ecosystem integration Not Secoris / Secvest / Smartvest / wAppLoxx
Disk-brand discrepancy Manufacturer delivery list names WD Purple; gallery illustrates Seagate SkyHawk. 1 TB included; confirm brand if required.

Frequently Asked Questions

Are the hard disk and camera cables included?
Yes. This exact kit includes one 1 TB surveillance disk, 2 combination cables of 30 m each and the specified power adapters.
Are these PoE cameras?
No. The supplied cameras output analogue video over BNC and use 12 V DC power. The recorder’s Ethernet connection serves network access and compatible IP-camera integration.
What recording quality should I expect?
The included cameras are 2 MP Full HD, even though a generic kit-table resolution row says 5 MP. The separate recorder can accept higher-resolution cameras; it does not turn the supplied cameras into 5 MP models.
Singular Expert Insight
Check camera view and cable routes before comparing headline megapixels. For motion detail, the actual recorded frame rate matters as well as resolution. Keep the recorder and power connections suitably protected and review the stated software-support dates before committing to a long-term installation. Compare the corresponding Mini Tube kit

Buyer’s Guide

✓

Buy it if

 You need 2 wired analogue camera views with a recorder, HDD and cables supplied together.
✕

Skip it if

 You need wireless battery cameras, a monitor in the box or direct PoE camera cabling.
→

Also consider

 The alternative camera shape or camera-count kit after checking the view, recording rate and installation route.
Tell us the existing camera formats, cable routes and required recorded detail.
