ABUS PPDF17100 EasyLook Pan/Tilt Camera and 7-inch Monitor Kit, 3 MP, Two-Way Audio, IP66 Camera

Brand:
Abus

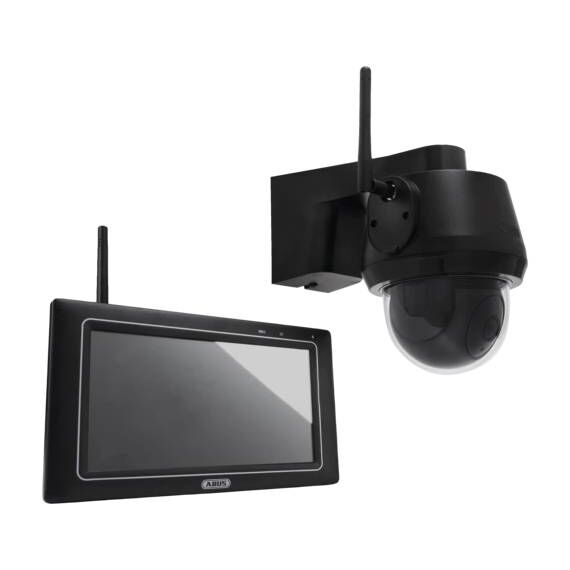

ABUS PPDF17100 EasyLook Pan/Tilt Camera and 7-inch Monitor Kit Black
ABUS PPDF17100 EasyLook Pan/Tilt Camera and 7-inch Monitor Kit, 3 MP, Two-Way Audio, IP66 Camera
€391.45 inc. VAT
Buy
PPDF17100
€328.95
€391.45 inc. VAT
Ships from EU stock: 6 item(s)
+ −
Add to wish list Ask a question
Product Code
04:599748
EAN Code
4003318410208
Manufacturer
Abus
Features
Wireless

Quick Specs

System
1 camera + 7-inch monitor
Video
3 MP at 15 fps
View / movement
270° pan / 90° tilt
Night / protection
IR up to 15 m / IP66 camera
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

A local camera and monitor system without internet

3 MP videoNo internet/app270° / 90° movementIP66 camera

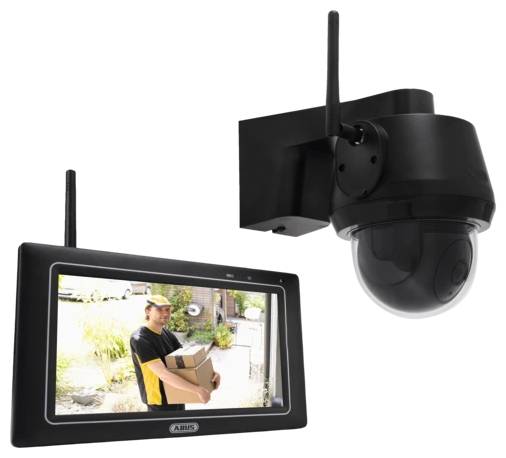

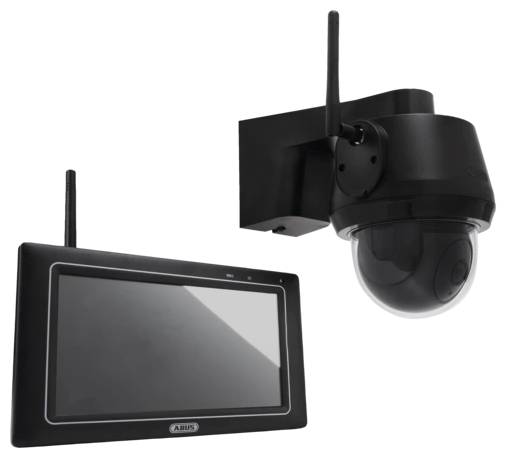

The ABUS PPDF17100 EasyLook is a local surveillance kit with one PPDF17620 pan/tilt camera and a 7-inch touchscreen monitor. It sends 3 MP video and two-way audio over an encrypted camera-to-monitor radio link, without internet, home Wi-Fi, a smartphone or an app. The camera needs continuous adapter power; wireless refers to video transmission.

Before you order:
The monitor handles up to 4 cameras in total, not four cameras in this package. Add a Class 10 microSD card up to 128 GB for local recording. PPDF17620 works with PPDF17100 out of the box; a PPDF17000 monitor must run firmware higher than v3.1.9.8.19M.

What's in the Box

  • 1 × 7-inch monitor and 1 × PPDF17620 camera; 2 × 12 V DC / 1 A adapters and 2 antennas.
  • Mounting materials, drill template, quick guide and safety information. microSD card separate.

What It Means in Practice

  • For another entrance or a garden view, power the camera and use the monitor’s camera menu to pair it. Test the live signal at the proposed position before drilling: walls and layout affect the stated 20–50 m radio range. Use the monitor arrows to pan/tilt the camera; this is manual direction control, not a verified automatic tracking feature.

What Will Not Work

  • Remote smartphone viewing or joining the camera directly to a home Wi-Fi router.
  • Battery-only camera operation. The portable battery is in the monitor; it does not power the outdoor camera.

Key Features


Direct local video
The dedicated encrypted radio link works without internet or an app. A compatible monitor provides live view and settings.

Pan/tilt control
Turn the lens through 270° horizontally and 90° vertically using the monitor; software/person detection supports event monitoring.

Night viewing and conversation
IR LEDs provide monochrome night vision up to 15 m; built-in microphone and speaker enable intercom through the monitor.

Local recording and privacy
The monitor records to a separate microSD card up to 128 GB. Configure schedules, motion areas, four privacy zones and recording audio.

Technical Specifications

Identity and system
Model / EAN PPDF17100 / 4003318410208
Package type 1 PPDF17620 camera and 1 EasyLook 7-inch monitor
Network / app / subscription Dedicated wireless camera-to-monitor link; no internet, home Wi-Fi, smartphone, app, cloud or subscription required
System capacity Up to 4 cameras per monitor; one camera pairs with one monitor at a time
Compatible camera family PPDF17520 / PPDF17620
Alarm-system integrations Not Secvest, Smartvest or wAppLoxx
Camera video and optics
Camera sensor / lens 1/3-inch CMOS / 4.1 mm
Camera video 2304 × 1296 (3 MP) at 15 fps
Compression / bitrate H.264+ / 2 Mbit/s
Camera optical view 85° horizontal / 45° vertical
Night / day controls IR black-and-white up to 15 m; automatic day/night and white balance; digital zoom
Minimum light 1 lx colour / 0.1 lx IR
Detection Software motion + motion mask, person detection
Audio / privacy Microphone and speaker for two-way intercom; 4 privacy zones; recording audio can be disabled
Camera power and installation
Camera supply / consumption 12 V DC / 3.75 W
Camera power connector DC 5.5 × 2.0 mm
Camera housing / protection Black plastic / IP66
Camera dimensions 210 × 120 × 160 mm
Camera net weight, exact add-on page 0.814 kg
Camera operating temperature / humidity -10 to +50 °C / max. 90%
Radio link 2.403–2.478 GHz; WPA2; camera channel width 20 MHz
Radio range / sensitivity / output 20–50 m depending on installation / -88 dBm / 20 dBm
Camera pan/tilt 270° / 90°; controlled on compatible monitor
PPDF17000 firmware requirement PPDF17620 requires monitor firmware higher than v3.1.9.8.19M; PPDF17100 supports it ex factory
Included monitor
Screen / display resolution 7-inch capacitive touchscreen / 1024 × 600
Monitor recording / view modes 3 MP (2304 × 1296) at 15 fps; single view / 4-camera quad view
Storage microSD Class 10 up to 128 GB, separate; schedule/motion recording and ring overwrite
Monitor audio Microphone, speaker and switchable alarm sound; audio from one selected camera at a time
Monitor power / battery 12 V DC; stated 5200 mAh rechargeable battery, 2 installed cells; up to 2 h mobile use
Monitor ports / consumption DC 5.5 × 2.1 mm / USB 2.0 / 8.4 W
Monitor dimensions / housing 199 × 32 × 123 mm (W × L × H) / black plastic
Monitor temperature 0 to +40 °C; indoor placement
Monitor radio details 20/40 MHz, DSSS/OFDM, 13 transmission channels; same system radio band/range
Monitor menu languages DE, GB, FR, NL, DK, IT
Net kit weight 1.438 kg

Frequently Asked Questions

Can I watch it remotely on a phone?
No app or remote internet viewing is provided. EasyLook is a local camera-to-monitor system.
How many cameras are supplied?
One camera is supplied. This set also includes a 7-inch monitor; expand to up to four cameras total.
Will this pan/tilt camera work with PPDF17000?
Yes, if the PPDF17000 monitor firmware is higher than v3.1.9.8.19M. PPDF17100 supports the camera ex factory.
Singular Expert Insight
Choose EasyLook when a nearby dedicated screen is more useful than smartphone access. Confirm power and radio reception at the actual site, then plan recording-card capacity and camera views. Check the PPDF17000 firmware before adding the pan/tilt camera. See the matching additional camera

Buyer’s Guide

✓

Buy it if

 You want local surveillance without internet/app and need the camera/monitor starter kit.
✕

Skip it if

 You need smartphone access, battery-powered outdoor cameras or unlimited radio range.
→

Also consider

 The fixed-view EasyLook version if that better fits the scene.
Tell us your existing monitor model, firmware version and camera distance.
