ABUS SmartLook PPIC54520 4K Outdoor Wi-Fi Camera, Fixed View, IP66, White

Brand:
Abus

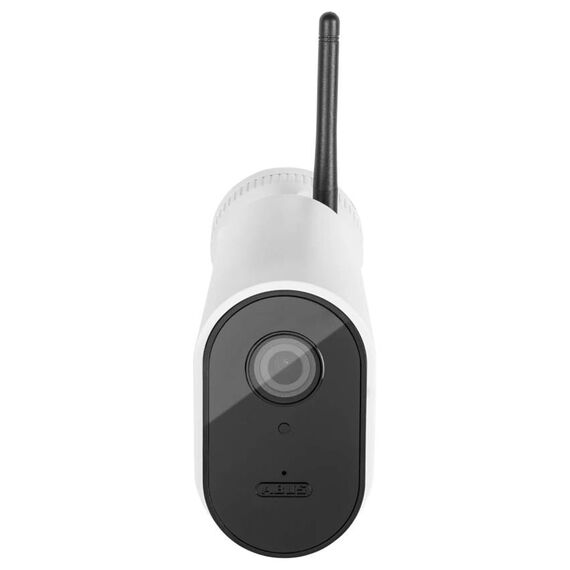

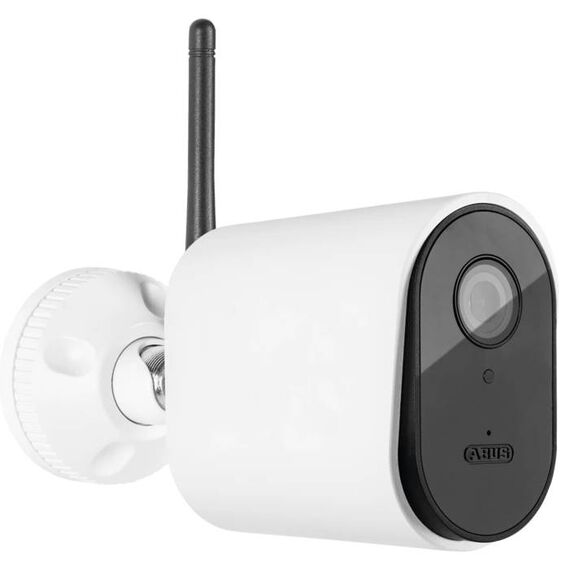

ABUS SmartLook PPIC54520 Outdoor Wi-Fi Camera White
ABUS SmartLook PPIC54520 4K Outdoor Wi-Fi Camera, Fixed View, IP66, White
€207.46 inc. VAT
Buy
PPIC54520
€174.34
€207.46 inc. VAT
Ships from EU stock: 13 item(s)
+ −
Add to wish list Ask a question
Product Code
04:599756
EAN Code
4003318832369
Manufacturer
Abus
Features
Bluetooth, Wireless

Quick Specs

Recording
4K / 8MP, 15 fps
Viewpoint
Fixed, 85° horizontal
Network
2.4 / 5 GHz Wi-Fi + LAN
Night vision / protection
IR up to 10 m / IP66
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

ABUS SmartLook PPIC54520

4K / 8MPFixed view2.4 / 5 GHz Wi-FiIP66

The white ABUS SmartLook PPIC54520 is a powered outdoor camera for checking your entrance, driveway or garden from App2Cam Plus on an Android or iOS phone. Aim its fixed lens at the area you want to watch; its microphone captures audio when enabled. It records in 4K to the included microSD card, connects through 2.4/5 GHz Wi-Fi or Ethernet, and includes a power adapter. No camera subscription is required.

Before you order:
Plan a nearby mains outlet for the supplied 5 V adapter and suitable network coverage. Wi-Fi carries data; it does not remove the power cable. Use App2Cam Plus on Android/iOS for setup and operation. This is the fixed-view model; choose SmartLook Pan & Tilt if you need remote camera movement and intercom.

What's in the Box

  • 1 × ABUS SmartLook PPIC54520 camera
  • 1 × 5 V DC / 2 A power supply
  • Antenna, drill template, mounting material and reset tool
  • 8GB microSD card (pre-installed)
  • 1 × Allen key and pre-installed wall bracket

What It Means in Practice

  • For example, choose person notifications for an entrance, then review the saved event and up to five seconds before its trigger. Detection settings determine which alerts reach your phone.
  • A lower live-view quality can help on a slower remote connection; the manual states that saved recordings remain in 4K.
  • A fixed 85° horizontal view suits a defined entrance or path. Choose the mounting point before drilling.

What Will Not Work

  • Operation without the supplied external power source.
  • Integration with Secoris, Secvest or wAppLoxx is not supported.
  • Do not place the camera behind glass for IR night viewing: reflected infrared light can obscure the image.

Key Features


Relevant motion alerts
Distinguishes people, animals and vehicles. Adjust detection sensitivity and excluded image areas to suit the scene.

Night coverage
Infrared night vision reaches up to 10 m. Automatic day/night switching handles the change from colour daylight to infrared viewing.

Local recordings
The included microSD stores events locally; pre-recording adds up to five seconds of context. Circular overwrite helps keep new events recording.

Private areas stay masked
Three privacy zones can black out areas you do not want to capture. Audio recording can be disabled separately.

Technical Specifications

Identification
Manufacturer / model ABUS SmartLook
MPN PPIC54520
EAN 4003318832369
Colour White
Camera type Fixed-view outdoor IP camera
Imaging and recording
Resolution / frame rate 4K Ultra HD (8MP) / Full HD (1080p), 15 fps
Live-view modes 4K Ultra HD / Full HD (1080p) / 360p
Sensor 1/2.8-inch CMOS
Lens / aperture 4 mm / F2.0
Field of view 85° horizontal / 45° vertical
Video compression / bitrate H.264 / H.264+; 0.256–1.5 Mbit/s
Day/night / white balance Automatic day/night, IR-cut filter, AWB
Minimum illumination 1 lx (colour); 0 lx (IR)
IR night vision Up to 10 m
Recording Manual or motion-triggered; up to 5 seconds pre-recording
Local storage microSD, up to 128GB; Class 10 or higher
Included storage 8GB microSD card (pre-installed)
Storage management Circular overwrite; configurable recording without sound
Detection / privacy Human, animal and vehicle detection; adjustable sensitivity, exclusion areas, 3 privacy zones
Alerts Push notification / email
Audio Integrated microphone
Audio encoding AAC; 16 Kbit/s
Network and software
Wi-Fi 2.4 / 5 GHz; IEEE 802.11 b/g/n/ac/ax
Ethernet RJ45, 10/100 Mbps
Network protocols TCP/IP, UDP, SMTP, NTP, DHCP, ARP
Network security AES 128-bit; WPA/WPA2-PSK/WPA3 Personal
Wi-Fi channel width / sensitivity 20 MHz / -90 dBm
Wireless range 10–30 m, depending on local conditions
Transmit power 802.11b: 17 ±1.5 dBm; 802.11g: 14 ±1.5 dBm; 802.11n: 12.5 ±1.5 dBm
App / remote access ABUS App2Cam Plus for Android / iOS; free functions without subscription
System integration Smartvest; ABUS One (main camera functions)
Unsupported ABUS systems Secoris, Secvest, wAppLoxx
Simultaneous access 3 users
Power and installation
Power input / supplied adapter 5 V DC / 2 A
Consumption 4 W
DC connector 3.5 × 1.35 mm
Housing / protection Plastic / IP66
Operating temperature -10 to +50 °C
Relative humidity 20–90%
Dimensions 167 × 48 × 80 mm
Net weight 0.433 kg
Included accessories Power supply, antenna, mounting material, drill template, reset tool, wall bracket; 1 Allen key
Minimum security-update commitment 2026-12-31
Initial setup Bluetooth pairing with App2Cam Plus
Zoom Digital zoom
Automatic recording deletion Selectable 3, 7 or 30 days; circular overwrite

Frequently Asked Questions

Do I need a monthly camera subscription?
No. ABUS provides the camera functions through the free App2Cam Plus app, with recordings on the included microSD card.
Why is remote live view less detailed than a saved clip?
Live-view quality can be reduced to suit the connection. The manual says this setting does not change the recording, which is saved in 4K.
Can I redirect the lens from my phone?
This model uses a fixed view. For app-controlled direction and intercom, consider the verified SmartLook Pan & Tilt model.
Singular Expert Insight
Choose this fixed camera for one defined area, such as a side path or entrance. Its 10 m IR reference is a more useful installation guide than assuming 4K alone guarantees detail at any distance. The white finish identifies this variant. Ask Singular to check mounting and network requirements before ordering. Check your camera installation with Singular

Buyer’s Guide

✓

Buy it if

 you need powered 4K monitoring of one fixed outdoor area.
✕

Skip it if

 you need operation without a nearby power connection.
→

Also consider

 SmartLook Pan & Tilt PPIC52520/PPIC52520B for remote movement, intercom and IR night vision up to 20 m.
Tell us your mounting position and network setup so we can check the installation requirements.

Features - Abus - PPIC54520

Colour
white
Interface
  • Ethernet,
  • Bluetooth,
  • WIFI
Port Speed
  • 10/100 Mbps
More Details
Product Code
04:599756
EAN Code
4003318832369
Manufacturer
Abus
Technical specifications
Resolution
4K (UHD)
Resolution (raw)
3840×2160
