Ergotron LX Pro 98-730-292 Wall Mount Base Kit, up to 10 kg, Aluminium and Steel, Black

Brand:
Ergotron
Ergotron LX Pro 98-730-292 Wall Mount Base Black
Ergotron LX Pro 98-730-292 Wall Mount Base Kit, up to 10 kg, Aluminium and Steel, Black
€58.3 inc. VAT
Buy
98-730-292
€48.99
€58.30 inc. VAT
Ships from EU stock: 5 item(s)
+ −
Add to wish list Ask a question
Product Code
CN84348
EAN Code
0698833092691
Manufacturer
Ergotron

Quick Specs

Product type
Wall mount base only
Compatible range
LX Pro only
Load capacity
≤ 10 kg
Supplied fixings
Wood stud / concrete
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

LX Pro Wall Mount Conversion

Black baseUp to 10 kgLX Pro only

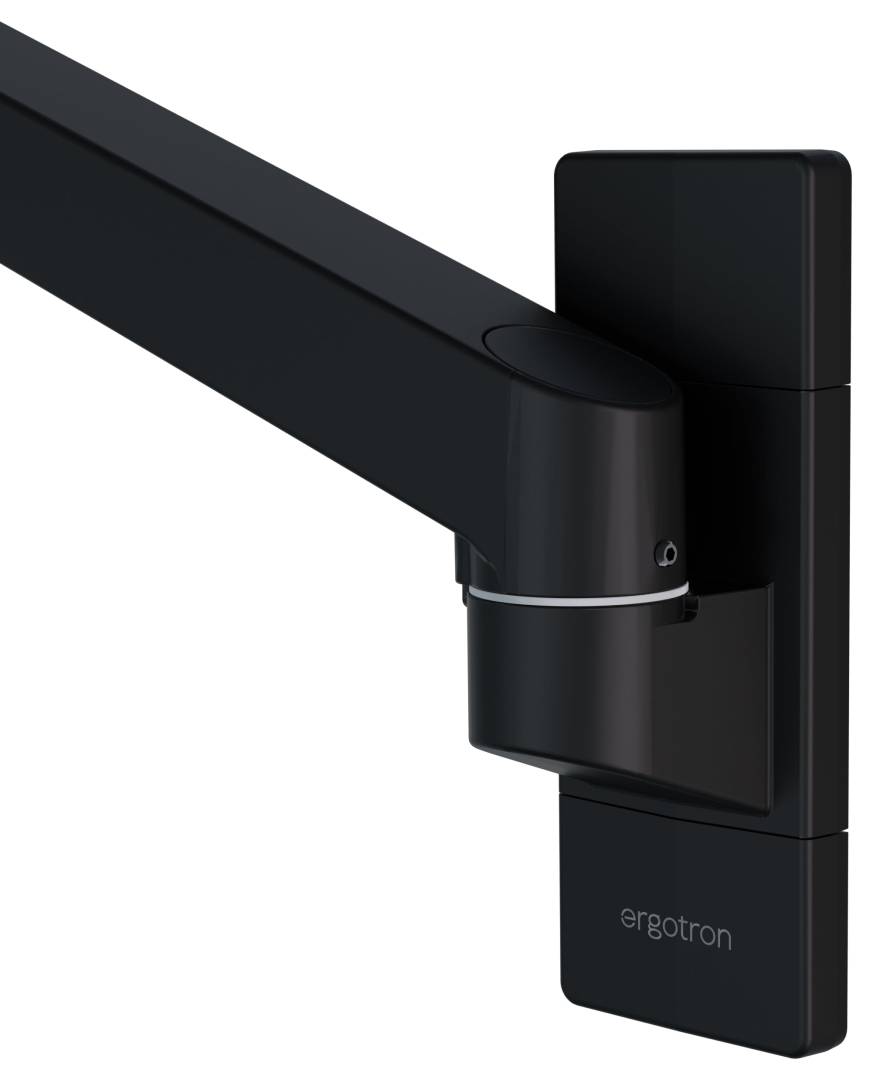

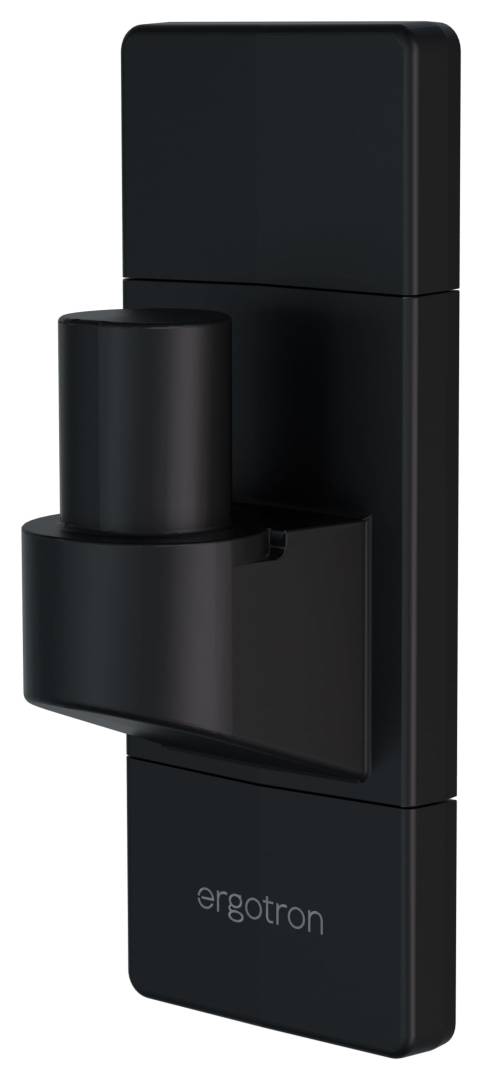

The Ergotron 98-730-292 replaces the desktop mounting point of a compatible LX Pro arm with a black wall-mounted base. It suits installations where the monitor should be supported from a sturdy vertical surface rather than the desk. This package is the base and its installation hardware: the monitor arm and display are separate items.

Before you order:
Check that the arm is LX Pro: legacy LX and other Ergotron ranges do not fit. The included wall fasteners cover wood studs or solid concrete, not direct attachment to steel studs. Check the wall structure and complete arm load limits before choosing the mounting location.

What's in the Box

  • Wall mount base, plastic caps and fasteners for wood stud or concrete wall

What It Means in Practice

  • For example, keep a compatible LX Pro arm and install this base on a suitable wall, then attach the arm following the manufacturer instructions. The base provides the attachment point; monitor movement and screen fit depend on the separately selected arm. Wall Track requires its own bracket 97-091 as well as the track.

Best For

✓ Converting an existing LX Pro installation to a wall mounting point.
✓ Keeping the monitor support off a desktop that cannot accept the intended base.

Key Features


Base for the LX Pro system
Convert the mounting arrangement without buying an unrelated arm system. Verify the complete LX Pro configuration before installation.

Aluminium and steel structure
The black base provides a fixed mounting point on a suitable vertical surface, with a manufacturer rating up to 10 kg.

Defined installation options
Wood-stud/concrete fasteners and plastic caps are supplied. Wall Plate, Wall Track and steel-stud mounting options require the appropriate separately ordered accessories.

Technical Specifications

Identity and construction
Brand / range Ergotron LX Pro
Manufacturer part number 98-730-292
EAN 0698833092691
Colour Black
Product type Wall mount base conversion kit; arm and monitor separate
Construction Aluminium and steel
Product weight 1.2 lb
Rated load capacity 22 lb / 10 kg; also observe the limits of the complete arm configuration
Installation and package
Direct mounting Sturdy vertical surface; supplied fasteners for wood stud or solid concrete
Wall structure requirement Must support four times the total mounted equipment weight, per installation manual
Steel stud attachment Direct metal-stud fasteners not included; manufacturer recommends kit 60-591-003
Optional mounting systems Wall Plate or Wall Track for extra support; Wall Track also needs separate bracket 97-091
Series compatibility LX Pro components only; incompatible with legacy LX and other product lines
Package contents Wall mount base, plastic caps and fasteners for wood stud or concrete wall
Manufacturer term 10 years

Frequently Asked Questions

Is this a complete monitor arm?
No. It is the wall mount base conversion kit. A compatible LX Pro arm and monitor are required separately.
Can I attach it directly to a steel stud with the supplied screws?
The manufacturer says direct metal-stud fasteners are not included and recommends Steel Stud Wall Mounting Kit 60-591-003. Confirm the wall construction before ordering.
Does it work with the original LX range?
No. LX Pro components are incompatible with legacy LX and other product lines.
Singular Expert Insight
Choose this kit by the existing arm generation and the wall construction. The 10 kg base rating is only one limit in the installation; it does not override the chosen arm or wall fixing limits. For a wall-track setup, include the specified 97-091 bracket rather than assuming the base attaches directly to the track. Check your LX Pro arm and wall mounting accessories

Buyer’s Guide

✓

Buy it if

 You already have or are specifying an LX Pro arm and need a suitable wall mounting point.
✕

Skip it if

 You need a complete arm, own legacy LX, or have not established the wall/fixing suitability.
→

Also consider

 A compatible LX Pro desktop base where wall fixing is unsuitable; Wall Plate or Wall Track where the specified extra support is needed.
Send the exact arm SKU and wall construction for an accessory check.
