Allied Telesis x950-52XSQ Layer 3 Stackable Switch, 48x 10G SFP+ and 4x 100G QSFP28, with 5-Year Net Cover

Brand:
Allied Telesis

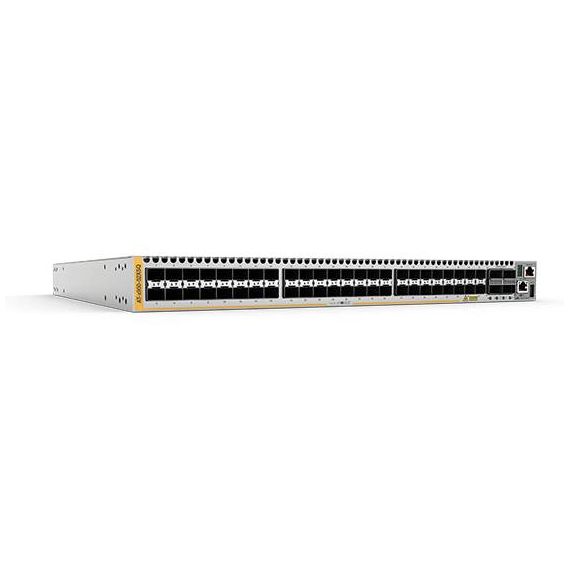

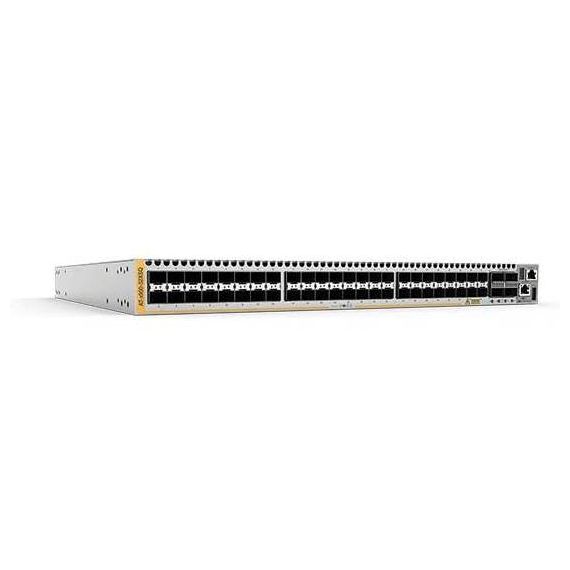

Allied Telesis x950-52XSQ 48x SFP+ 4x QSFP28 L3 Switch
Allied Telesis x950-52XSQ Layer 3 Stackable Switch, 48x 10G SFP+ and 4x 100G QSFP28, with 5-Year Net Cover
€34269.69 inc. VAT
Buy
AT-X950-52XSQ-B05
€28,798.06 €31,997.84
€34,269.69 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
CC01810
EAN Code
0767035222448
Manufacturer
Allied Telesis

Quick Specs

Type
Layer 3 stackable switch, 1U
Ports
48x 1/10G SFP+ · 4x 40/100G QSFP28
Key spec
1.92 Tbps · VCStack up to 8
Compatibility
AT-PWR600 PSUs (sold separately)
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Allied Telesis x950-52XSQ — 48x 10G SFP+ and 4x 100G QSFP28 Layer 3 stackable switch

48x 1/10G SFP+4x 40/100G QSFP281.92 Tbps fabric5-Year Net Cover

The Allied Telesis x950-52XSQ (order code AT-x950-52XSQ-B05) is a 1U Layer 3 stackable switch with 48 SFP+ ports for 1/2.5/5/10G and four QSFP28 uplinks for 40G or 100G, built as a core or aggregation switch for campus and data-centre networks.

This -B05 bundle is the switch together with 5 years of Allied Telesis Net Cover support. It ships with its two fans installed but without power supplies: you choose one or two AT-PWR600 modules (and the airflow direction) separately, which is the main thing to get right when ordering.

Before you order: The chassis does not include power supplies. Order at least one AT-PWR600 (two for 1+1 redundancy) with the correct regional power cord, plus every SFP+/QSFP28 transceiver or DAC cable you need — none are in the box.

What's in the Box

  • x950-52XSQ switch chassis (1U)
  • 2x AT-FAN05 fan modules, pre-installed (front-to-rear airflow)
  • 5 years of Allied Telesis Net Cover support (the -B05 part of the order code)
  • Not included: power supplies, transceivers, DAC cables, sliding rack kit

What It Means in Practice

  • 48 fibre/DAC ports at up to 10G each make it a dense aggregation layer for access switches, servers or storage in one rack unit.
  • The four QSFP28 ports run at 40G or 100G, or split into 4x 10G with breakout cables, so you can uplink to a core or stack over fast links.
  • VCStack joins up to 8 units into one logical switch; VCStack LD stretches a stack across buildings over fibre.
  • Dual hot-swap PSU bays let you run 1+1 redundant power and replace a supply without downtime.

What Will Not Work

  • It will not power on without at least one separately purchased AT-PWR600 / AT-PWR600-80 power supply.
  • The SFP ports do not take 100M transceivers and run full-duplex only.
  • Reverse-airflow PSUs (PWR600R) must not be mixed with the standard FAN05 fans — swap to AT-FAN05R if you need rear-to-front cooling.
  • Several advanced features (e.g. OSPF/BGP routing scale, AMF Plus, OpenFlow) need separately purchased Allied Telesis licences.
  • There is no copper RJ45 data port — for 10GBASE-T choose the x950-52XTQm instead.

Key Features


Dense 10G in 1U
48 ports at 1/2.5/5/10G over SFP/SFP+ optics or DAC cables, with a 1.92 Tbps switching fabric and 1309 Mpps forwarding.

100G-ready uplinks
4x QSFP28 ports at 40G or 100G, each also usable as 4x 10G with breakout cabling.

VCStack and VCStack LD
Up to 8 switches managed as one, including long-distance stacking between buildings over fibre.

Redundant hardware
Two hot-swap PSU bays and two hot-swap fan modules; 0.98 µs latency for latency-sensitive traffic.

Technical Specifications

Identification
Part Number AT-x950-52XSQ-B05
EAN / GTIN 0767035222448
MPN AT-x950-52XSQ-B05
Brand Allied Telesis
Bundle Switch + 5-year Net Cover support
Ports
SFP/SFP+ 48x 1/2.5/5/10G (ports 1-48)
QSFP+/QSFP28 4x 40G/100G (4x 10G breakout supported)
Management RS-232 console, USB 2.0, Ethernet management port
Expansion bay None
Performance
Switching fabric 1.92 Tbps
Forwarding rate 1309 Mpps
MAC address table 96K entries
Latency 0.98 µs
Stacking VCStack up to 8 units, VCStack LD
Power & Cooling
PSU bays 2x hot-swap (1+1), PSUs sold separately
Supported PSUs AT-PWR600 (AC), AT-PWR600-80 (DC), PWR600R / PWR600R-80 (reverse airflow)
Fans 2x AT-FAN05 included, front-to-rear
Max power consumption 266.1 W (2 PSUs)
Heat dissipation 908.1 BTU/h
Noise 65.7 dBA
Physical
Form factor 1U rack-mount
Dimensions (WxDxH) 441 x 449 x 44 mm
Weight 7.5 kg (12.0 kg packaged)
Operating temperature 0-50 °C (0-45 °C with 100G QSFP28 modules)
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term 5-year hardware warranty for the x950 Series per Allied Telesis (EMEA) — claims handled through Singular

Frequently Asked Questions

Does the switch come with power supplies?
No. The base chassis ships with fans only. Order one AT-PWR600 for a single supply or two for 1+1 redundancy, with the cord type for your region.
What does -B05 mean?
It is the switch bundled with 5 years of Allied Telesis Net Cover support. The power-cord region is chosen on the PSU order code, not on the switch.
Can I use third-party SFP+ modules?
Allied Telesis does not list third-party optics as supported. Send us your planned modules or DAC cables and we will check them against the official compatibility list.
Can I stack it with other x950 models?
VCStack is designed for x950 Series switches; mixed-model stacks depend on firmware and model. Tell us your existing switches and we will confirm.
Singular Expert Insight · Buyer's Guide
The x950-52XSQ is the fibre-dense member of the x950 family: 48 SFP+ ports and four 100G uplinks in one rack unit, with redundant power and VCStack. The order is never just the switch — power supplies, optics and licences are separate lines, so plan them together. If you are building the access layer under it, see our network switches.
✓ Buy it if you need 48 x 10G fibre/DAC ports and 100G uplinks in 1U with redundant power and stacking.
✕ Skip it if your servers and access switches use 10GBASE-T copper (look at the x950-52XTQm) or you only need a handful of 10G ports.
→ Also consider 2x AT-PWR600 power supplies with the right cord, plus SFP+/QSFP28 transceivers or DAC cables for every port you will use.
Not sure which PSUs, optics or licences you need? Send us your topology and we will put together the complete order.
