Jabra Link 14201-36 — EHS Adapter for Alcatel 8 & 9 Series
Electronic hook switchAlcatel 8 / 9 seriesJabra wireless basesPart 14201-36
The Jabra Link 14201-36 is an electronic hook switch (EHS) adapter that connects a Jabra wireless office headset base to selected Alcatel desk phones of the 8 series (IP) and 9 series (UA), so calls can be answered and ended with the headset button, at the desk or away from it.

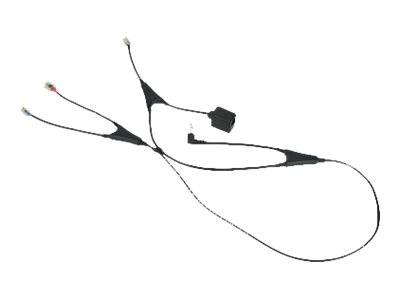

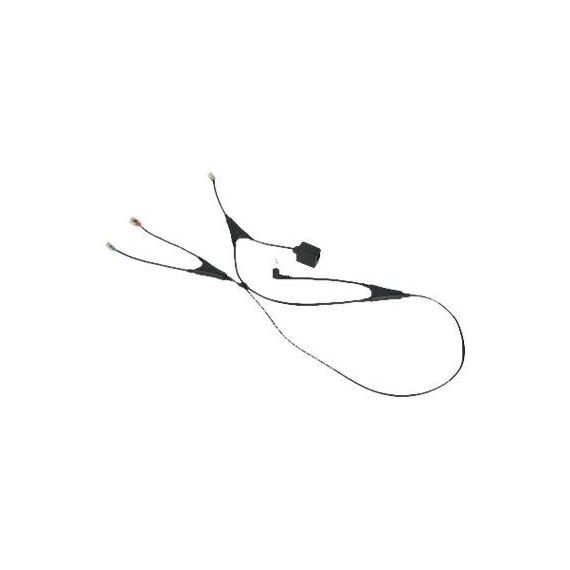

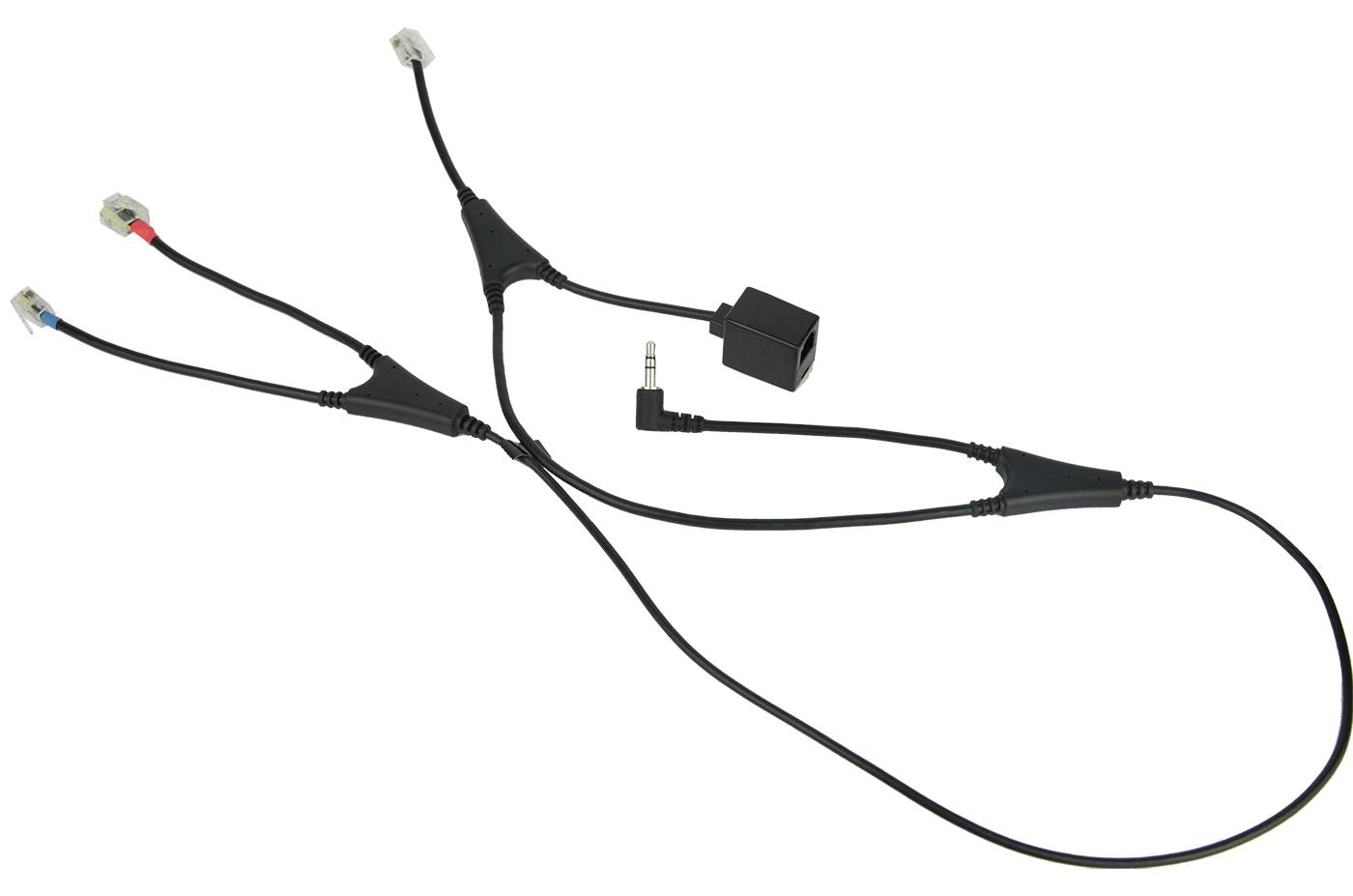

Unlike adapters that only carry the hook-switch signal, this Alcatel solution is the full connection between base and phone: on the base side it plugs into the AUX socket (red band, RJ45) and the phone socket (blue band, RJ10); on the phone side a Y-coupling goes into the Alcatel headset interface (3.5 mm) and the bell-marked socket (RJ12), leaving one socket free for an IP device.
Before you order: Alcatel 8 and 9 series only, used with a Jabra wireless headset base. The base must be set to adapter type MSH (set-up switch A). On phone software older than 9.xx, "Force headset" must be switched off and the headset activated in the phone menu.
What's in the Box

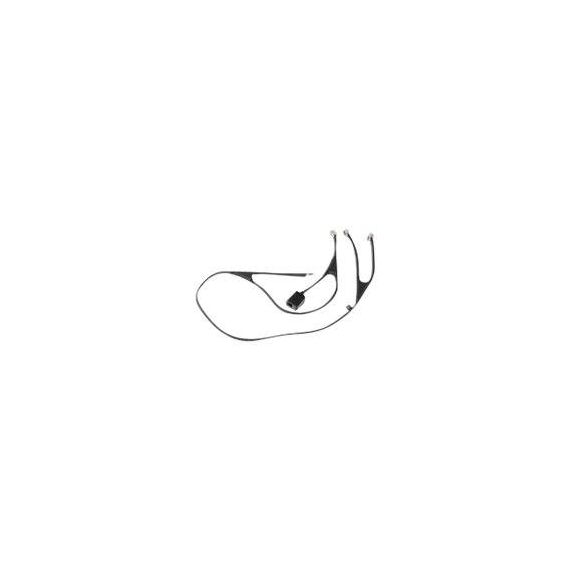

- Jabra Link 14201-36 Alcatel EHS adapter cable set
- Headset and base are not included
What It Means in Practice
- The headset button picks up and hangs up Alcatel calls, so a user walking around the office does not miss calls.
- Set-up per Jabra: base adapter type MSH, switch A; with Alcatel software 9.xx or later no phone settings are needed.
- Jabra lists Alcatel IP Touch 4028/4038/4068 and 4029/4039 among the supported phones.
- Supported Jabra bases include PRO 92x, PRO 9450/9460/9470, GO 6470 and Engage 65/65 SE/75.
- Only some Alcatel ringtones are passed to the headset (Standard, Classic, Cold River, Dooing-Dooing) — choose one of those if you want to hear the ring in the headset.
What Will Not Work
- Alcatel phones outside the 8 and 9 series, or other brands — they need a different Jabra Link or a DHSG cable.
- Corded or USB headsets — this adapter is for Jabra wireless headset bases.
- Ringtones outside the four listed above — the call still works, but the ring is not heard in the headset.
Key Features
Remote answer and end
Handle Alcatel calls from the headset button, away from the desk.
Complete connection
Carries both audio and hook-switch signalling between base and phone.
Spare IP socket
The Y-coupling keeps one socket free for an IP device on the phone.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
On Alcatel 8/9 series desks this is the adapter that makes a Jabra wireless headset fully hands-free, including answering from the corridor. Most problems after installation are settings: MSH on the base and the right ringtone on the phone. You can find matching headsets in our Office & VoIP headsets range.
✓ Buy it if you run Alcatel 8 or 9 series desk phones with Jabra wireless headsets and want remote call answering.
✕ Skip it if your phones are another brand or Alcatel series, or your headsets are corded or USB.
→ Also consider Jabra Link 14201-17 for Polycom, or Jabra Link 14201-10 (DHSG) for Siemens/Unify and other DHSG phones.
Not sure your Alcatel model is supported? Send us the phone and headset model and we will check before you order.
